SiHF-J 4G16 silicone cable

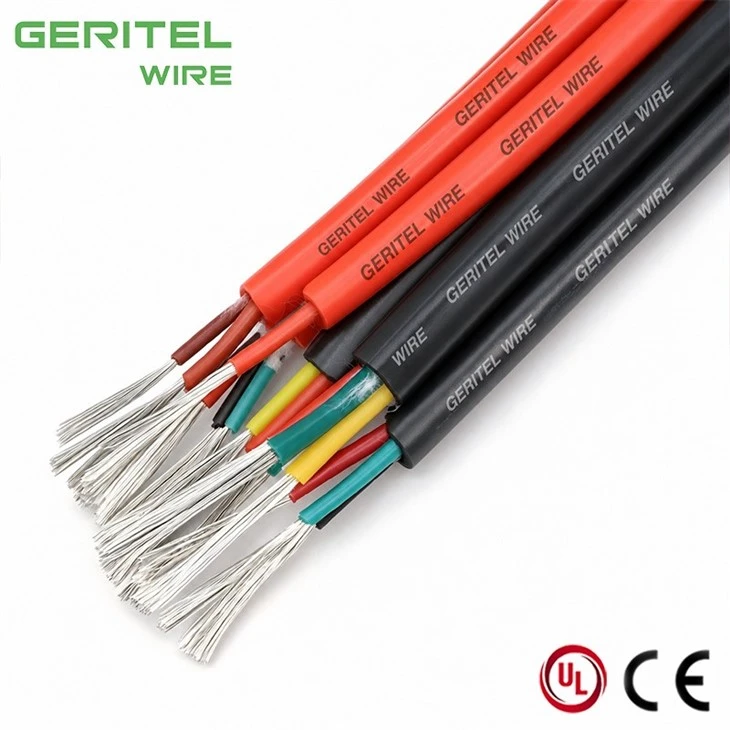

PRODUCT REAL SHOT

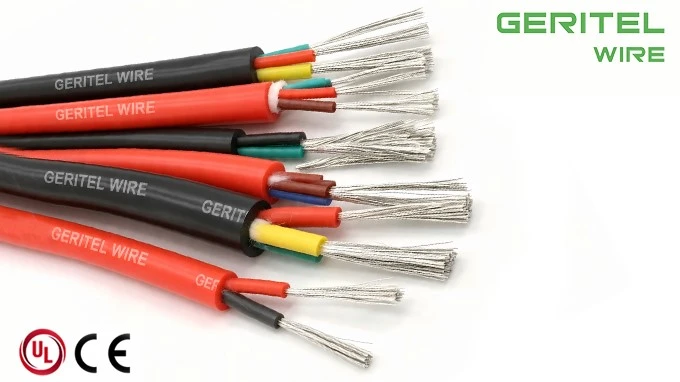

300/500V 4G16 heat resistant cable

A 16mm2 heat resistant power cable selection for 3P+N+PE where mixed auxiliary loads require a neutral

For data-center generator ventilation and resistive-heater packages, the 16mm silicone cable for data center mechanical systems gives data-center MEP contractors and packaged-equipment suppliers a heat-resistant route for higher-current mechanical-equipment feeds. Class 5 tinned-copper conductors use silicone insulation and a silicone sheath for protected high-temperature routing. Its 5-core layout supports 3P+N+PE where mixed auxiliary loads require a neutral. Size the Class 5 tinned copper 16mm silicone cable from loaded-core count, ambient temperature, grouping, installation method, route length and voltage drop. GERITEL WIRE supports core-ID review, OEM printing, reel planning, samples and export documents.

PRODUCT SPECIFICATIONS

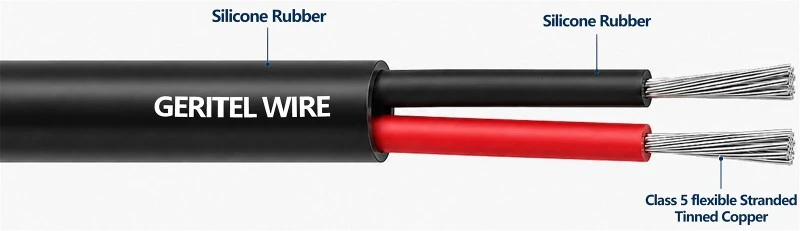

4G16 Class 5 tinned copper silicone cable

Applications

This cable is used for connection of electrical appliances without mechanical stress at increased environmental temperatures, for example in steelworks, but also at low temperatures. Insulation and sheath are resistant to most oils,acids, lyes and oxidants.

SPECIFICATIONS
Voltage Rating Uo/U	300/500V
Temperature Rating	Fixed:-60°C to +200°C
Minimum Bending Radius	Fixed: 5 x overall diameter Flexed: 15 x overall diameter
Conductor	Class 5 flexible Stranded Tinned Copper
Insulation	Silicone rubber
Outer Sheath	Silicone Rubber
Core ldentification	3 cores: Green/Yellow,Blue,Brown 4cores: Green/Yellow,Blue,Black,Grey 5cores: Green/Yellow,Blue,Brown,Black,Grey More than 5 cores: Black numebered +Green/Yellow
Sheath Colour	Red,Black

DIMENSIONS

NO. OF CORES
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
3	0.75	6.8	66
3	1	7.4	78
3	1.5	8	98
3	2.5	9.7	152
3	4	11.5	249
3	6	14.2	352
4	0.75	7.8	84
4	1	8	95
4	1.5	8.8	122
4	2.5	10.6	189
4	4	13	330
4	6	16.2	429
4	10	21.4	710
4	16	24	1014
4	25	29.3	1460
4	35	33	2044
4	50	34	2990
5	0.75	8.5	101
5	1	8.8	116
5	1.50	9.6	148
5	2.5	11.6	229
5	4	15	359
5	6	17.7	564
5	10	22.5	900
5	16	26.9	1206
5	35	36.7	2850
7	0.75	9.6	158
7	1	10	177
7	1.5	10.9	232
7	2.5	13.2	348
7	4	16.2	487
7	6	19.3	685
12	0.75	11.1	178
12	1.5	14.8	332
12	2.5	18	530
18	0.75	13.3	260
18	1.5	17.6	510
24	1.5	20.2	635
25	0.75	15.6	370

CERTIFICATIONS

4 conductor 16 sq mm SiHF-J control cable

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

HVAC & Refrigeration Systems

Industrial Automation & Machinery

Industrial Control Cabinet Wiring

CASE

Northern Steel High-Temperature Control Upgrade Project

5G16 Class 5 tinned copper silicone cable

OceanStar Marine Electrical Retrofit Project

5 conductor 16 sq mm SiHF-J control cable

PolarFresh Industrial Refrigeration Expansion Project

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

SiHF-J silicone insulated and sheathed cable

GLOBAL CERTIFICATIONS

SiHF-J flame retardant cable

CUSTOMER PHOTOS

SiHF-J high heat cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Is SiHF-J suitable for wiring a freeze dryer?

A freeze dryer silicone cable benefits from low-temperature flexibility, but vacuum compatibility, cleanability, outgassing, chamber feedthroughs and temperature cycling must also be verified. Standard SiHF-J may suit external protected equipment wiring rather than the vacuum chamber itself. GERITEL WIRE can review the installation zone, cleaning process and electrical schedule before quotation.

Can SiHF-J connect electric defrost heaters in a cold room?

A cold room defrost heater cable must tolerate low ambient temperature, repeated warm-up cycles, condensation and wet terminations. SiHF-J may suit protected fixed connections when its voltage and current selection are correct, but moisture sealing remains an installation issue. GERITEL WIRE can review heater load, route length, gland detail and conductor size for the customer.

Where can SiHF-J be used on biomass boiler equipment?

A biomass boiler silicone cable can serve protected fixed circuits for fans, burners, ignition, pumps, dampers and controls near elevated temperatures. Ash, abrasion, vibration and moving fuel-handling equipment require extra protection or another cable type. GERITEL WIRE can review the equipment-zone drawing and separate stationary hot wiring from mechanically demanding routes.

Is SiHF-J suitable for waste-to-energy and incineration equipment?

A waste to energy plant cable based on SiHF-J may be appropriate for protected auxiliary wiring on fans, dampers, heaters and control equipment outside direct flame and severe mechanical zones. Corrosive gases, ash and high ambient temperatures need project review. GERITEL WIRE can examine the cable schedule and identify where silicone, screened or mechanically protected designs are required.
