Name: China Steelworks High Temperature Cable Connection Solution 35mm² High Temperature Cable — SiHF-J Silicone Cable Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 313949761

Description

Technical Parameters

Certification

SiHF-J 4G35 silicone cable

PRODUCT REAL SHOT

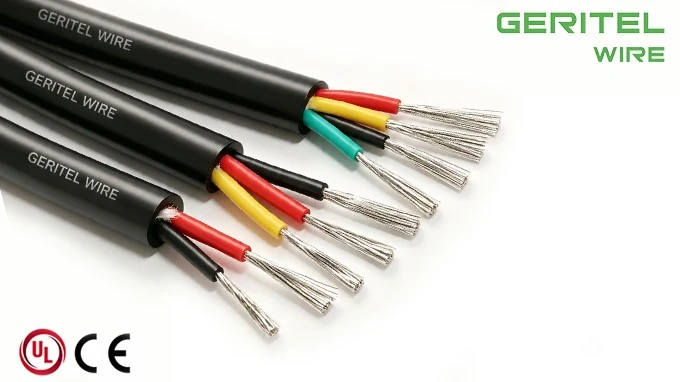

4G35 Class 5 tinned copper silicone cable

300/500V 4G35 heat resistant cable

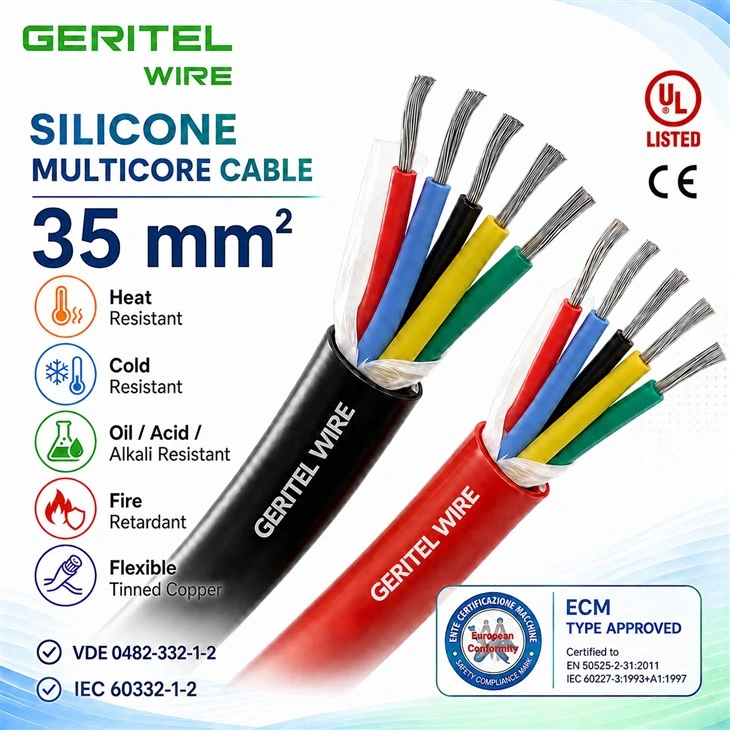

Reduce heat-aging risk with 35 sq mm silicone insulated cable

heavy-industry EPCs and steel-plant MRO teams can specify the 35mm2 silicone insulated control cable when ordinary PVC may harden near steelworks furnaces and heavy thermal-process skids. Fine-stranded tinned copper, silicone core insulation and a silicone jacket support flexible termination near hot equipment. The 35mm² conductors are positioned for heavy mixed three-phase and auxiliary demand, with a large five-core machine supply. Determine current for the 35mm² high temperature cable for steelworks high temperature cable from loaded cores, ambient heat, bundling, route and voltage drop. GERITEL WIRE can coordinate markings, reel lengths, packing and pre-order technical confirmation.

PRODUCT SPECIFICATIONS

4G35 Class 5 tinned copper silicone cable

Applications

This cable is used for connection of electrical appliances without mechanical stress at increased environmental temperatures, for example in steelworks, but also at low temperatures. Insulation and sheath are resistant to most oils,acids, lyes and oxidants.

SPECIFICATIONS
Voltage Rating Uo/U	300/500V
Temperature Rating	Fixed:-60°C to +200°C
Minimum Bending Radius	Fixed: 5 x overall diameter Flexed: 15 x overall diameter
Conductor	Class 5 flexible Stranded Tinned Copper
Insulation	Silicone rubber
Outer Sheath	Silicone Rubber
Core ldentification	3 cores: Green/Yellow,Blue,Brown 4cores: Green/Yellow,Blue,Black,Grey 5cores: Green/Yellow,Blue,Brown,Black,Grey More than 5 cores: Black numebered +Green/Yellow
Sheath Colour	Red,Black

DIMENSIONS

NO. OF CORES
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
3	0.75	6.8	66
3	1	7.4	78
3	1.5	8	98
3	2.5	9.7	152
3	4	11.5	249
3	6	14.2	352
4	0.75	7.8	84
4	1	8	95
4	1.5	8.8	122
4	2.5	10.6	189
4	4	13	330
4	6	16.2	429
4	10	21.4	710
4	16	24	1014
4	25	29.3	1460
4	35	33	2044
4	50	34	2990
5	0.75	8.5	101
5	1	8.8	116
5	1.50	9.6	148
5	2.5	11.6	229
5	4	15	359
5	6	17.7	564
5	10	22.5	900
5	16	26.9	1206
5	35	36.7	2850
7	0.75	9.6	158
7	1	10	177
7	1.5	10.9	232
7	2.5	13.2	348
7	4	16.2	487
7	6	19.3	685
12	0.75	11.1	178
12	1.5	14.8	332
12	2.5	18	530
18	0.75	13.3	260
18	1.5	17.6	510
24	1.5	20.2	635
25	0.75	15.6	370

CERTIFICATIONS

SiHF-J 4G35 cable supplier

PACKAGING

4 conductor 35 sq mm SiHF-J control cable

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

HVAC & Refrigeration Systems

Industrial Automation & Machinery

Industrial Control Cabinet Wiring

CASE

Northern Steel High-Temperature Control Upgrade Project

5G35 Class 5 tinned copper silicone cable

OceanStar Marine Electrical Retrofit Project

5 conductor 35 sq mm SiHF-J control cable

PolarFresh Industrial Refrigeration Expansion Project

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

SiHF-J control cable

CUSTOMER PHOTOS

SiHF-J high temperature cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Can SiHF-J be used on semiconductor heat-treatment furnaces?

A semiconductor furnace silicone cable can connect protected heaters, actuators and controls outside the process chamber, but cleanroom rules, outgassing, particle control, chemical exposure and shielding may be more restrictive than temperature alone. GERITEL WIRE can review the customer's material specification and circuit list before confirming whether standard or customized cable is appropriate.

Can SiHF-J be installed in a ship engine room?

A marine engine room silicone cable must satisfy the vessel's class, flag, flame, oil, smoke, mechanical and installation requirements. Standard industrial SiHF-J is not automatically marine approved even if it tolerates heat. GERITEL WIRE can review the requested class documentation and operating environment, then confirm certificate scope or propose a more suitable shipboard cable.

Does flame-retardant SiHF-J maintain circuit operation during a fire?

A flame-retardant test limits flame propagation; it does not automatically make SiHF-J a fire survival silicone cable that maintains circuit integrity for a stated time. Emergency circuits require the relevant fire-resistance standard and complete system approval. GERITEL WIRE can confirm the ordered cable's test scope so the buyer does not confuse IEC 60332-1-2 performance with circuit survival.

Can SiHF-J be specified for fire-alarm or emergency-lighting circuits?

Do not specify ordinary SiHF-J as fire alarm silicone cable unless the local code and project documents accept its exact fire performance. Many alarm and emergency-lighting circuits require circuit-integrity, smoke or system certifications beyond a single flame-propagation test. GERITEL WIRE can review the required standard and certificate before offering a compliant alternative.
