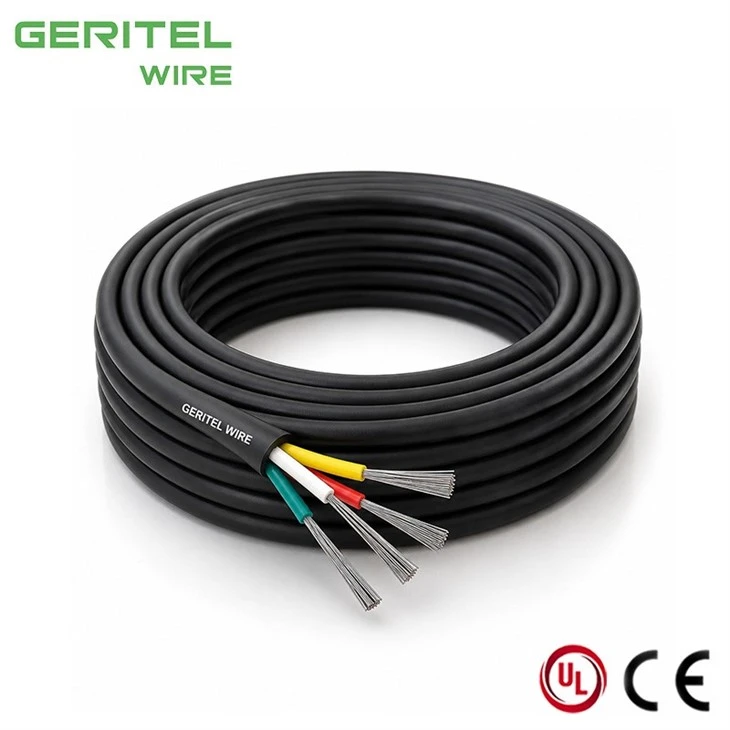

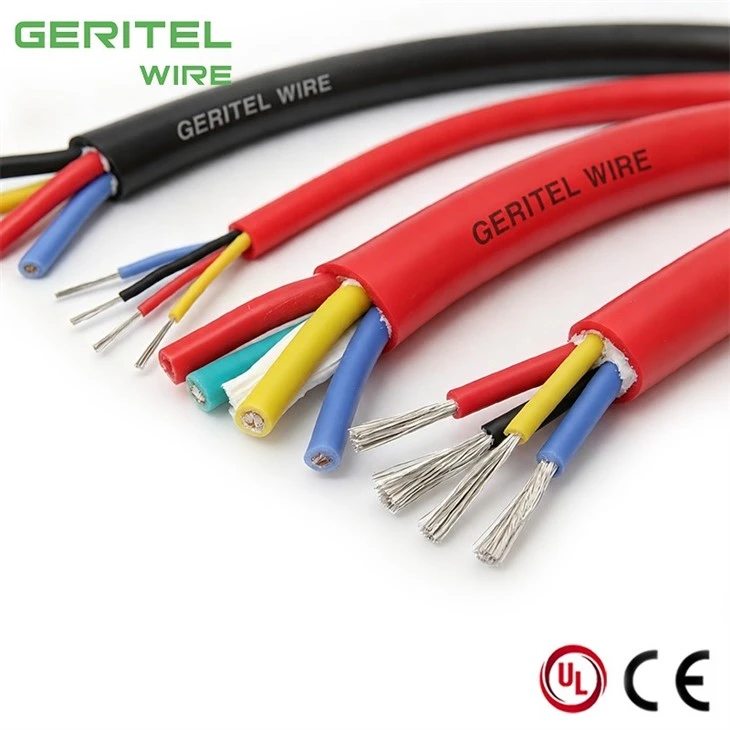

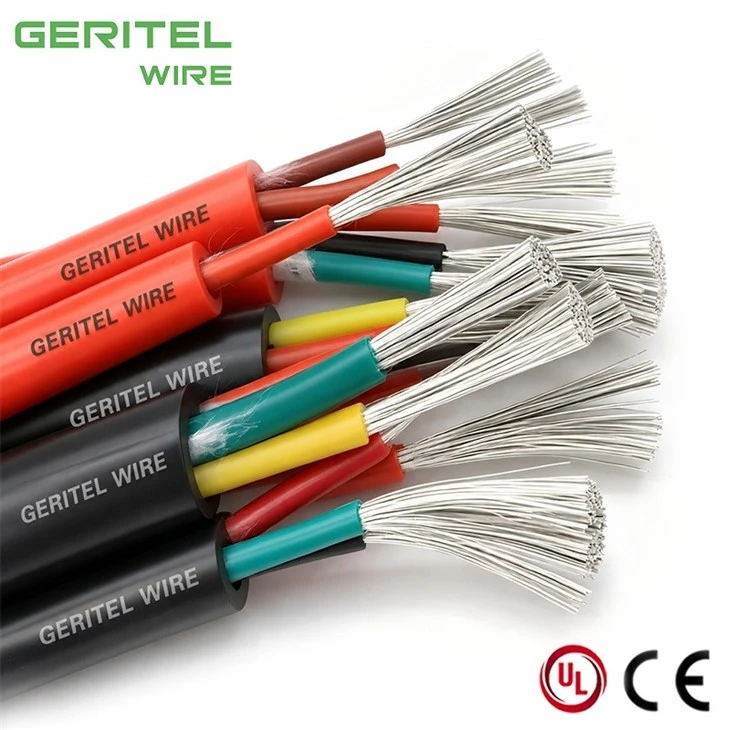

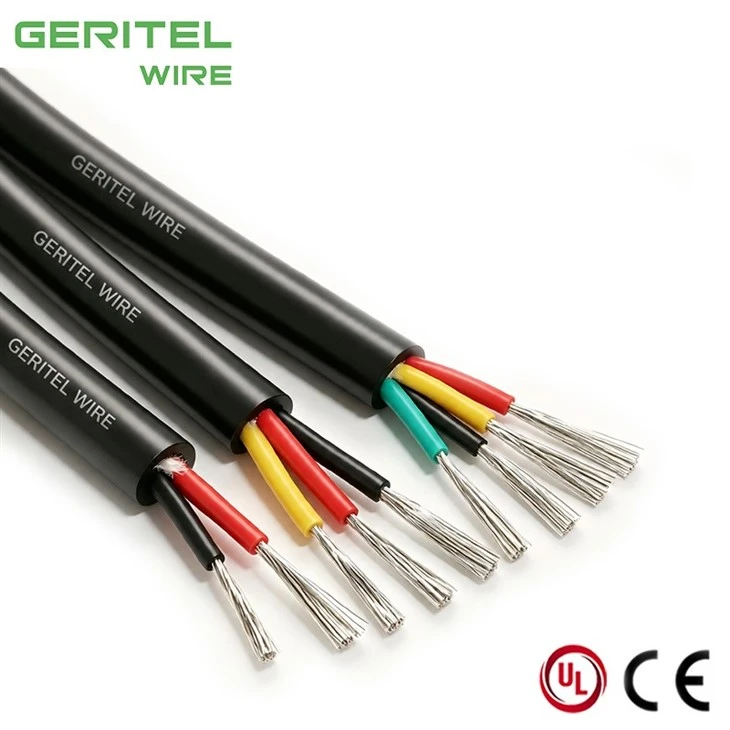

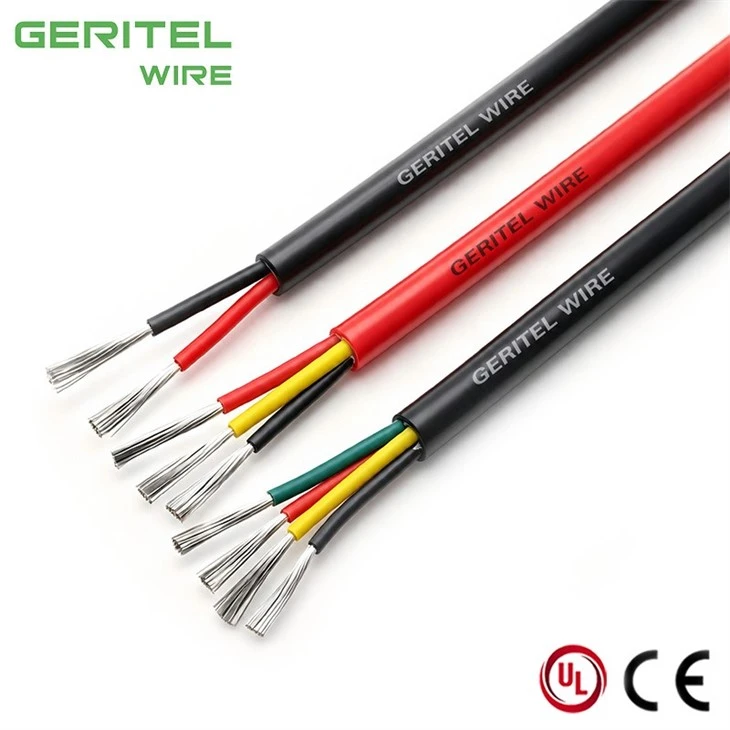

SiHF-J flexible control cable

PRODUCT REAL SHOT

SiHF-J high temperature connecting cable

A High Temperature Multicore Cable for Machinery and Plant Wiring

GERITEL WIRE supplies a silicone insulated control cable for fixed installation and occasional movement where ordinary compounds may harden under sustained heat or sharp temperature changes. Class 5 flexible stranded tinned copper conductors simplify routing, while silicone rubber insulation and a silicone outer sheath form a complete multicore construction for equipment connections. This industrial heat resistant cable supports machine builders, distributors and maintenance teams working with ovens, processing lines, power-plant auxiliaries and refrigeration equipment. Flame-retardant requirements can be reviewed against IEC 60332-1-2 and VDE 0482-332-1-2 for the ordered construction, with OEM marking, packaging and export documents available.

PRODUCT SPECIFICATIONS

SiHF-J heat resistant connecting cable

Applications

This cable is used for connection of electrical appliances without mechanical stress at increased environmental temperatures, for example in steelworks, but also at low temperatures. Insulation and sheath are resistant to most oils,acids, lyes and oxidants.

SPECIFICATIONS
Voltage Rating Uo/U	300/500V
Temperature Rating	Fixed:-60°C to +200°C
Minimum Bending Radius	Fixed: 5 x overall diameter Flexed: 15 x overall diameter
Conductor	Class 5 flexible Stranded Tinned Copper
Insulation	Silicone rubber
Outer Sheath	Silicone Rubber
Core ldentification	3 cores: Green/Yellow,Blue,Brown 4cores: Green/Yellow,Blue,Black,Grey 5cores: Green/Yellow,Blue,Brown,Black,Grey More than 5 cores: Black numebered +Green/Yellow
Sheath Colour	Red,Black

DIMENSIONS

NO. OF CORES
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
3	0.75	6.8	66
3	1	7.4	78
3	1.5	8	98
3	2.5	9.7	152
3	4	11.5	249
3	6	14.2	352
4	0.75	7.8	84
4	1	8	95
4	1.5	8.8	122
4	2.5	10.6	189
4	4	13	330
4	6	16.2	429
4	10	21.4	710
4	16	24	1014
4	25	29.3	1460
4	35	33	2044
4	50	34	2990
5	0.75	8.5	101
5	1	8.8	116
5	1.50	9.6	148
5	2.5	11.6	229
5	4	15	359
5	6	17.7	564
5	10	22.5	900
5	16	26.9	1206
5	35	36.7	2850
7	0.75	9.6	158
7	1	10	177
7	1.5	10.9	232
7	2.5	13.2	348
7	4	16.2	487
7	6	19.3	685
12	0.75	11.1	178
12	1.5	14.8	332
12	2.5	18	530
18	0.75	13.3	260
18	1.5	17.6	510
24	1.5	20.2	635
25	0.75	15.6	370

CERTIFICATIONS

SiHF-J temperature resistant control cable

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

HVAC & Refrigeration Systems

Industrial Automation & Machinery

Industrial Control Cabinet Wiring

CASE

Northern Steel High-Temperature Control Upgrade Project

OceanStar Marine Electrical Retrofit Project

PolarFresh Industrial Refrigeration Expansion Project

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

SiHF control cable

CUSTOMER PHOTOS

SiHF high temperature cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

What does SiHF-J mean in a cable description?

A SiHF-J silicone cable is a multicore power/control cable with silicone-insulated cores, a silicone outer sheath and a protective earth conductor in the standard "J" configuration. GERITEL WIRE confirms the ordered core layout, conductor size and colour code before production so the designation on your purchase order matches the cable supplied.

Is SiHF-J a single-core wire or a multicore cable?

SiHF-J is normally supplied as a multicore silicone cable, with the insulated conductors stranded together beneath one silicone sheath. If your project needs a single-core silicone wire, GERITEL WIRE will help identify a more suitable SIAF-type construction instead of relabelling a multicore design.

What is SiHF-J cable normally used for?

This high temperature silicone cable is intended for equipment connections in hot or cold industrial environments, including ovens, packaging lines, steelworks, refrigeration and HVAC equipment. GERITEL WIRE reviews temperature, movement, chemical exposure and voltage details before recommending the construction, helping buyers avoid using it in unsupported applications.

Can SiHF-J be used for both power and control circuits?

A silicone insulated control cable can serve low-voltage power or control connections when the 300/500V rating, conductor size and circuit design are suitable. GERITEL WIRE asks for load current, cable length, ambient temperature and installation method so engineers can check whether the selected cross-section and multicore arrangement fit the circuit.
