Name: China Built For Heat And Cold: Extreme Temperature Cable With Silicone Protection Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 313953388

Description

Technical Parameters

Certification

heat resistant multicore cable

PRODUCT REAL SHOT

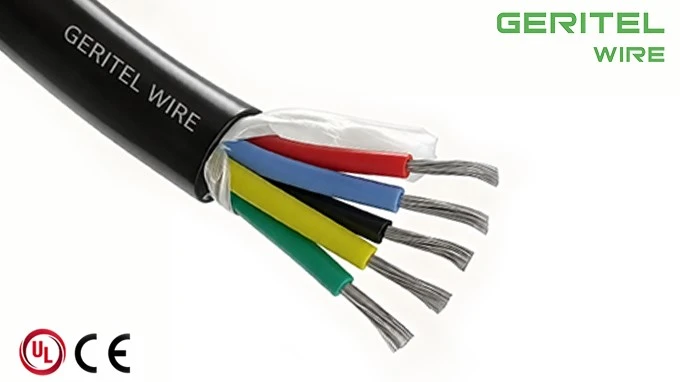

flexible silicone rubber cable

SiHF-J Flexible Cable with Tinned Copper and Silicone Rubber Protection

A system that moves between severe cold and sustained heat needs insulation that remains functional across changing conditions. GERITEL WIRE builds this heat and cold resistant silicone cable with fine stranded Class 5 tinned copper, silicone core insulation and a silicone rubber jacket. The product datasheet identifies fixed service from -60°C to +200°C, making it relevant to thermal chambers, industrial heaters, refrigeration equipment and plants exposed to rapid temperature shifts. As a temperature fluctuation resistant cable, it is intended for fixed routing or occasional flexing without tensile stress, not continuous drag-chain movement. Samples and construction records are available for the buyer's engineering review.

PRODUCT SPECIFICATIONS

flexible multicore silicone cable

Applications

This cable is used for connection of electrical appliances without mechanical stress at increased environmental temperatures, for example in steelworks, but also at low temperatures. Insulation and sheath are resistant to most oils,acids, lyes and oxidants.

SPECIFICATIONS
Voltage Rating Uo/U	300/500V
Temperature Rating	Fixed:-60°C to +200°C
Minimum Bending Radius	Fixed: 5 x overall diameter Flexed: 15 x overall diameter
Conductor	Class 5 flexible Stranded Tinned Copper
Insulation	Silicone rubber
Outer Sheath	Silicone Rubber
Core ldentification	3 cores: Green/Yellow,Blue,Brown 4cores: Green/Yellow,Blue,Black,Grey 5cores: Green/Yellow,Blue,Brown,Black,Grey More than 5 cores: Black numebered +Green/Yellow
Sheath Colour	Red,Black

DIMENSIONS

NO. OF CORES
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
3	0.75	6.8	66
3	1	7.4	78
3	1.5	8	98
3	2.5	9.7	152
3	4	11.5	249
3	6	14.2	352
4	0.75	7.8	84
4	1	8	95
4	1.5	8.8	122
4	2.5	10.6	189
4	4	13	330
4	6	16.2	429
4	10	21.4	710
4	16	24	1014
4	25	29.3	1460
4	35	33	2044
4	50	34	2990
5	0.75	8.5	101
5	1	8.8	116
5	1.50	9.6	148
5	2.5	11.6	229
5	4	15	359
5	6	17.7	564
5	10	22.5	900
5	16	26.9	1206
5	35	36.7	2850
7	0.75	9.6	158
7	1	10	177
7	1.5	10.9	232
7	2.5	13.2	348
7	4	16.2	487
7	6	19.3	685
12	0.75	11.1	178
12	1.5	14.8	332
12	2.5	18	530
18	0.75	13.3	260
18	1.5	17.6	510
24	1.5	20.2	635
25	0.75	15.6	370

CERTIFICATIONS

flexible high temperature cable

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

HVAC & Refrigeration Systems

Industrial Automation & Machinery

Industrial Control Cabinet Wiring

CASE

Northern Steel High-Temperature Control Upgrade Project

OceanStar Marine Electrical Retrofit Project

PolarFresh Industrial Refrigeration Expansion Project

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

high temperature power and control cable

GLOBAL CERTIFICATIONS

heat resistant power and control cable

CUSTOMER PHOTOS

high temperature connecting cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

flame retardant multicore silicone cable

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

When should I choose silicone cable instead of PVC cable?

Choose a flexible heat resistant cable when ordinary PVC may harden, soften or lose service life under sustained heat, severe cold or rapid temperature changes. GERITEL WIRE compares the real operating environment with the SiHF-J limits and can provide samples for routing and termination trials before a production order.

Why does SiHF-J use tinned copper instead of bare copper?

A tinned copper silicone cable uses a tin coating to help protect fine copper strands against oxidation during manufacturing, storage and service in demanding environments. GERITEL WIRE controls the Class 5 stranded conductor and can provide construction records or sample sections so customers can verify strand quality before bulk purchasing.

What is the standard voltage rating of GERITEL SiHF-J?

The GERITEL WIRE datasheet identifies this product as a 300/500V silicone cable. That rating must be compared with the circuit voltage, grounding arrangement and local installation rules; it should not be assumed suitable for 0.6/1kV service. Our team checks the requested construction and documentation before quotation.

What layers are inside a SiHF-J cable?

The GERITEL construction is a silicone rubber sheathed cable with Class 5 flexible stranded tinned copper conductors, silicone insulation around each core and a silicone outer sheath. It is not automatically screened or armoured. GERITEL WIRE can provide a construction drawing and confirm whether an alternative protected design is needed.
