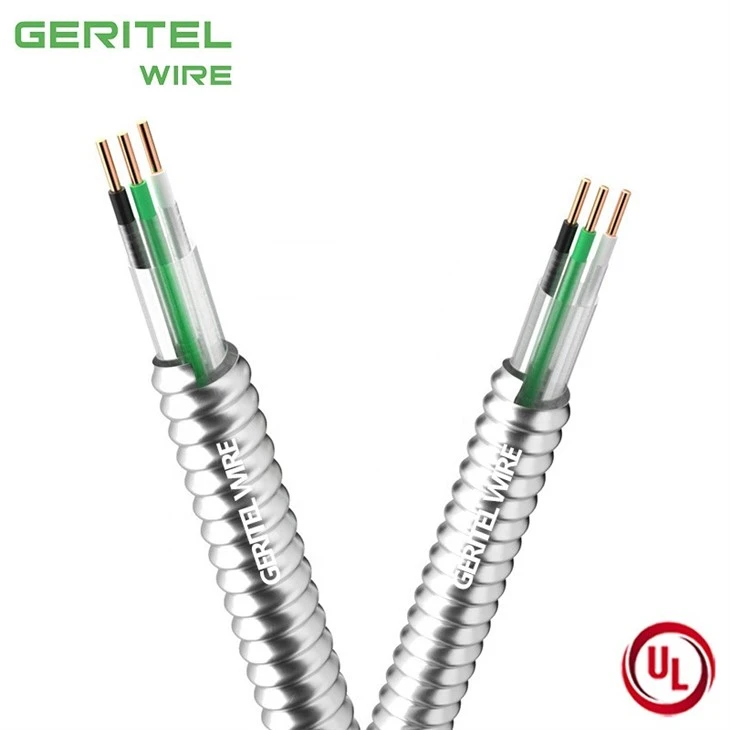

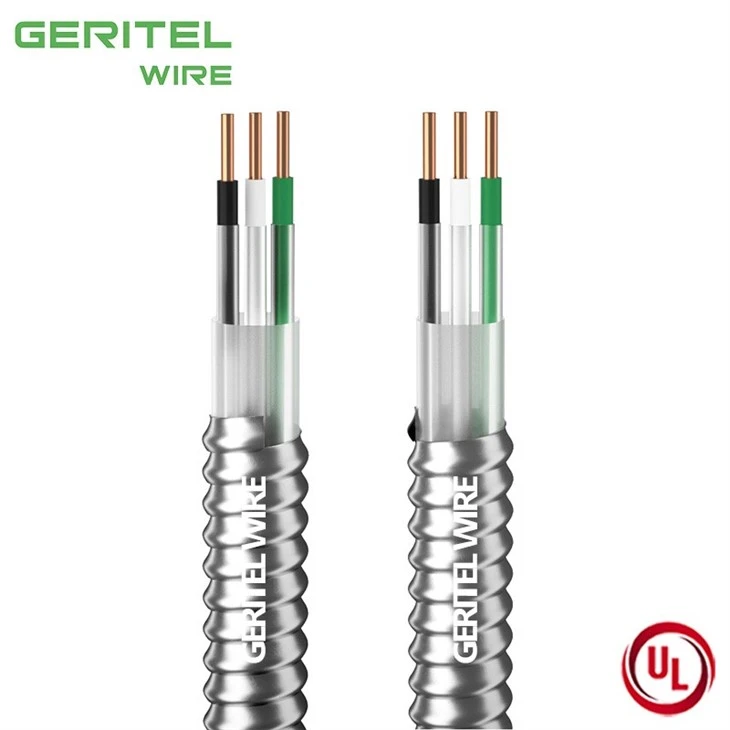

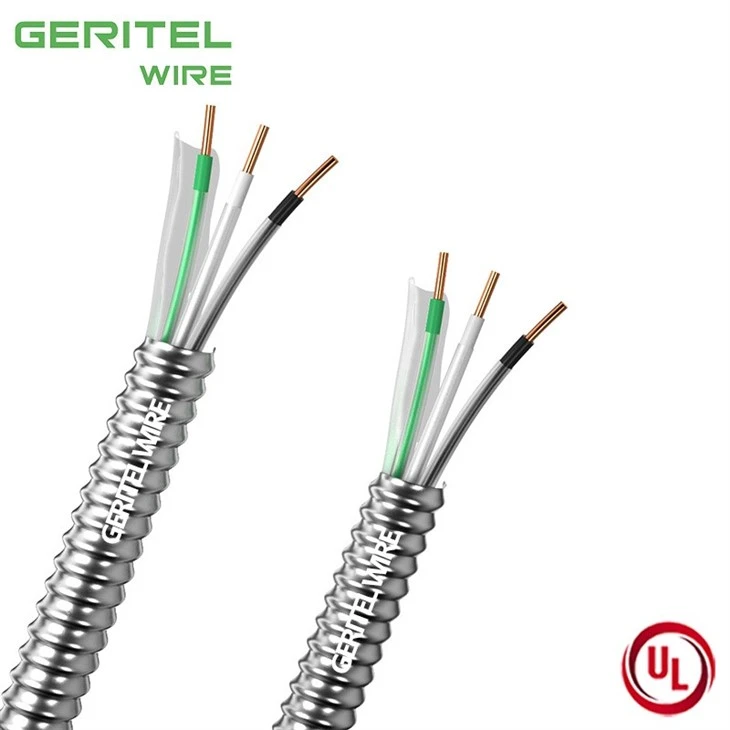

PRODUCT REAL SHOT
Rugged Metal Clad Construction for Long-Term Performance
This 600V UL 1569 MC Cable is constructed with UL 83 THHN/THWN-2 copper conductors and aluminum interlocked armor, providing reliable power distribution and superior mechanical protection for commercial and industrial installations. As a UL Listed Metal Clad Cable, it is designed for branch circuits, feeders, and service power applications where durability, code compliance, and installation efficiency are required. The rugged armored construction helps protect conductors from physical damage while supporting long-term performance in demanding building wiring systems.
PRODUCT SPECIFICATIONS
| Conductors | OutsideDiameterOver Armor(in) | ApproximateNet Weight(lbs/1000ft) | Allowable Ampacity(Amps) | Standard Packaging(ft) | ||||
|---|---|---|---|---|---|---|---|---|
| AWG/NO. | Type | Ground | 75℃ | 90℃ | Coils | Reels | ||
| 14/2 | Solid | 14 AWG Green Insulated | 0.409 | 80 | 20 | 25 | 250' | 1000' |
| 14/3 | Solid | 14 AWG Green Insulated | 0.435 | 97 | 20 | 25 | 250' | 1000' |
| 14/4 | Solid | 14 AWG Green Insulated | 0.464 | 115 | 20 | 25 | 250' | 1000' |
| 12/2 | Solid | 12 AWG Green Insulated | 0.487 | 106 | 25 | 30 | 250' | 1000' |
| 12/3 | Solid | 12 AWG Green Insulated | 0.495 | 132 | 25 | 30 | 250' | 1000' |
| 12/4 | Solid | 12 AWG Green Insulated | 0.509 | 158 | 25 | 30 | 250' | 1000' |
| 10/2 | Solid | 10 AWG Green Insulated | 0.510 | 153 | 35 | 40 | 250' | 1000' |
| 10/3 | Solid | 10 AWG Green Insulated | 0.549 | 193 | 35 | 40 | 250' | 1000' |
| 10/4 | Solid | 10 AWG Green Insulated | 0.592 | 233 | 35 | 40 | 250' | 1000' |
| 14/2 | Stranded | 14 AWG Green Insulated | 0.434 | 76.58 | 20 | 25 | 250' | 1000' |
| 14/3 | Stranded | 14 AWG Green Insulated | 0.462 | 94.09 | 20 | 25 | 250' | 1000' |
| 14/4 | Stranded | 14 AWG Green Insulated | 0.493 | 112.19 | 20 | 25 | 250' | 1000' |
| 12/2 | Stranded | 12 AWG Green Insulated | 0.487 | 110 | 25 | 30 | 250' | 1000' |
| 12/3 | Stranded | 12 AWG Green Insulated | 0.495 | 136 | 25 | 30 | 250' | 1000' |
| 12/4 | Stranded | 12 AWG Green Insulated | 0.530 | 162 | 25 | 30 | 250' | 1000' |
| 10/2 | Stranded | 10 AWG Green Insulated | 0.533 | 158 | 35 | 40 | 250' | 1000' |
| 10/3 | Stranded | 10 AWG Green Insulated | 0.574 | 199 | 35 | 40 | 250' | 1000' |
| 10/4 | Stranded | 10 AWG Green Insulated | 0.619 | 241 | 35 | 40 | 250' | 1000' |
| 8/2 | Stranded | 10 AWG Green Insulated | 0.649 | 215 | 50 | 55 | 200' | 500'/1000' |
| 8/3 | Stranded | 10 AWG Green Insulated | 0.705 | 280 | 50 | 55 | 200' | 500'/1000' |
| 8/4 | Stranded | 10 AWG Green Insulated | 0.783 | 347 | 50 | 55 | 200' | 500'/1000' |
| 6/2 | Stranded | 8 AWG Green Insulated | 0.727 | 307 | 65 | 75 | 125' | 500'/1000' |
| 6/3 | Stranded | 8 AWG Green Insulated | 0.820 | 408 | 65 | 75 | 125' | 500'/1000' |
| 6/4 | Stranded | 8 AWG Green Insulated | 0.901 | 547 | 65 | 75 | 100' | 500'/1000' |
| 4/3 | Stranded | 8 AWG Green Insulated | 0.935 | 584 | 85 | 95 | 100' | 500' |
| 4/4 | Stranded | 8 AWG Green Insulated | 1.029 | 739 | 85 | 95 | 100' | 500' |
| 3/3 | Stranded | 6 AWG Green Insulated | 1.018 | 727 | 100 | 115 | 100' | 500' |
| 3/4 | Stranded | 6 AWG Green Insulated | 1.131 | 919 | 100 | 115 | 100' | 500' |
| 2/3 | Stranded | 6 AWG Green Insulated | 1.071 | 862 | 115 | 130 | 100' | 500' |
| 2/4 | Stranded | 6 AWG Green Insulated | 1.195 | 1100 | 115 | 130 | 100' | 500' |
| 1/3 | Stranded | 6 AWG Green Insulated | 1.166 | 1060 | 130 | 145 | / | 1000' |
| 1/4 | Stranded | 6 AWG Green Insulated | 1.309 | 1361 | 130 | 145 | / | 1000' |
CERTIFICATIONS
PACKAGING
Roll
Small Wooden Reel
Large Wooden Reel
APPLICATION
Commercial Buildings
Data Centers
Public Infrastructure
CASE
Ritz-Carlton, Key Biscayne
Johns Hopkins Hospital
First Solar solarpanel factory
WHY CHOOSE US
in one-stop service
Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.
With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.
We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.
Greater Cable - Certified Quality. Reliable Supply. Engineering Value.
PLANT EQUIPMENT
GLOBAL CERTIFICATIONS
CUSTOMER PHOTOS
INTERNATIONL TRANSPORTATION
01
Sea Freight
We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.
02
Air Freight
For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.
03
International Express
Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.
COOPERATIVE PARTNER
We are looking for a cooperative partner to expand our business.
Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.
Our address
Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China
Phone Number
+86 136 6257 9592
+86 135 1078 4550
manager01@greaterwire.com
FAQ
What is MC Cable used for?
MC Cable is commonly used for branch circuits, feeder circuits, and power distribution systems in commercial buildings, industrial facilities, data centers, hospitals, schools, and other fixed wiring installations where mechanical protection and installation efficiency are required.
What conductors are used in this MC Cable?
This MC Cable is constructed with UL 83 THHN/THWN-2 copper conductors, providing reliable electrical performance, excellent heat resistance, and suitability for both dry and wet location applications in accordance with applicable NEC requirements.
Is this MC Cable UL certified?
Yes. This product is manufactured in compliance with UL 1569 requirements for Metal Clad Cable and utilizes UL 83 listed THHN/THWN-2 conductors, ensuring code-compliant performance and safety for commercial and industrial installations.
What are the advantages of MC Cable over conduit wiring systems?
MC Cable combines insulated conductors and mechanical protection in a single assembly, reducing installation time and labor costs compared to traditional conduit systems while maintaining excellent durability and code compliance.
