25kV 100% I.L. – Primary Underground Distribution Cable for Higher Voltage Commercial and Industrial Feeders
PRODUCT SPECIFICATIONS
Product Description
The Medium Voltage Underground Distribution (UD) cables consist of an Aluminum (filled or unfilled) conductor, covered with ethylene propylene rubber (EPR), a concentric neutral of helically applied copper wires, and a linear low-density polyethylene (LLDPE) jacket with 3 extruded red stripes.
Applications
- Suitable for underground primary power applications
- For wet or dry locations
- For direct burial or in duct
Features
- High dielectric strength
- Low moisture absorption
- Low dielectric loss
- Excellent resistance to treeing
- Jacket is sunlight-resistant
- Designed to operate continuously at a conductor temperature not exceeding
105°C for normal operations
140°C for emergency overload
250°C for short circuit
| SPECIFICATIONS | |
|
Conductor Count |
1 conductor |
|
Conductor |
Aluminum 1350 Class B compressed strand (filled or unfilled) |
|
Gauge Sizes |
Available in 2 AWG through 1000 kcmil |
|
Conductor Strand Shield |
Extruded thermoset semi-conducting polymer over the conductor |
|
Insulation |
Ethylene Propylene Rubber (EPR) |
|
Insulation Shield |
Extruded thermoset semi-conducting polymer over the insulation |
| Neutral | Helically applied, annealed, solid bare copper wires |
|
Jacket |
Linear Low-Density Polyethylene (LLDPE)
|
|
Jacket Marking |
00000 FT GREATER WIRE XXAWG (KCML) AL (FS) 1/C XXXV XXX% INSUL LEVEL XXXMILS EPR AA X #BB LLDPE JKT TYPE MV-90 (UL) MADE IN USA MMDDYYYY (LIGHTNING BOLT) |
|
Packaging |
Non-returnable wood reels in a variety of lengths and dimensions |
|
Performance Compliances |
ASTM B3 ASTM B230 ASTM B231 ICEA S-94-649 ICEA T-31-610 (water block compliance), as needed ICEA T-34-664 (moisture blocked jacket), as needed AEIC CS8 UL 1072 (MV-90) RUS U1 |

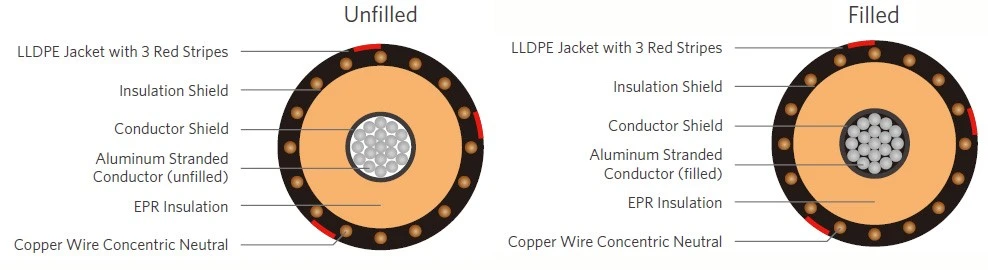

Aluminum Unfilled/Filled 25kV 100% I.L. 260 mils
| Conductor Size AWG/kcmil |
Nom. Conductor Diameter in (mm) |
Insulation Diameter in (mm) |
Concentric Neutral No. x AWG |
Jacket Thickness in (mm) |
Approx. Overall Diameter in (mm) |
Approx. Net Weight lbs/kft (kg/km) |
Ampacity | |
| Underground Duct | Direct Buried | |||||||
| 1/3 Reduced Neutral | ||||||||
| 1 | 0.322(8.2) | 0.90(22.9) | 6×14 | 0.050(1.3) | 1.23(31.2) | 635(945) | 140 | 175 |
| 1/0 | 0.362(9.2) | 0.94(23.9) | 6×14 | 0.050(1.3) | 1.27(32.3) | 680(1,012) | 155 | 195 |
| 2/0 | 0.405(10.3) | 0.99(25.1) | 7×14 | 0.050(1.3) | 1.31(33.3) | 745(1,109) | 180 | 220 |
| 3/0 | 0.456(11.6) | 1.04(26.4) | 9×14 | 0.050(1.3) | 1.36(34.5) | 835(1,242) | 200 | 250 |
| 4/0 | 0.512(13.0) | 1.09(27.7) | 11×14 | 0.050(1.3) | 1.44(36.6) | 960(1,428) | 235 | 285 |
| 250 | 0.558(14.2) | 1.15(29.2) | 13×14 | 0.050(1.3) | 1.50(38.1) | 1,060(1,577) | 260 | 300 |
| 350 | 0.661(16.8) | 1.26(32.0) | 18×14 | 0.050(1.3) | 1.60(40.6) | 1,280(1,905) | 310 | 370 |
| 500 | 0.789(20.0) | 1.39(35.3) | 25×14 | 0.075(1.9) | 1.78(45.2) | 1,645(2,448) | 370 | 445 |
| 750 | 0.968(24.6) | 1.58(40.1) | 24×12 | 0.075(1.9) | 2.01(51.1) | 2,215(3,296) | 460 | 525 |
| 1000 | 1.117(28.4) | 1.73(43.9) | 31×12 | 0.075(1.9) | 2.19(55.6) | 2,735(4,070) | 520 | 575 |
| Full Neutral | ||||||||
| 1 | 0.322(8.2) | 0.90(22.9) | 13×14 | 0.050(1.3) | 1.23(31.2) | 720(1,071) | 140 | 175 |
| 1/0 | 0.362(9.2) | 0.94(23.9) | 16×14 | 0.050(1.3) | 1.27(32.3) | 800(1,190) | 155 | 195 |
| 2/0 | 0.405(10.3) | 0.99(25.1) | 20×14 | 0.050(1.3) | 1.31(33.3) | 900(1,339) | 180 | 220 |
| 3/0 | 0.456(11.6) | 1.04(26.4) | 25×14 | 0.050(1.3) | 1.36(34.5) | 1,025(1,525) | 200 | 250 |
| 4/0 | 0.512(13.0) | 1.09(27.7) | 32×14 | 0.050(1.3) | 1.44(36.6) | 1,210(1,800) | 235 | 285 |
