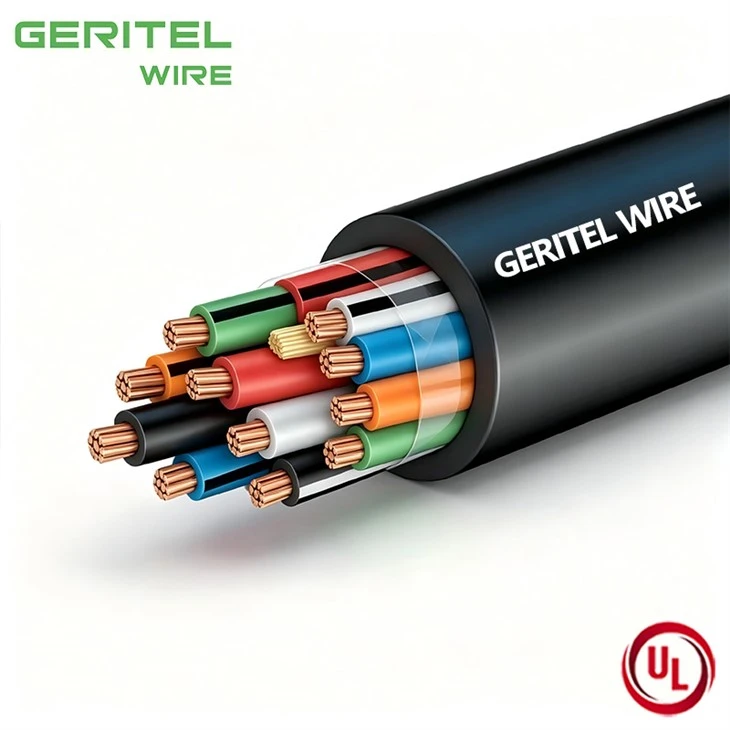

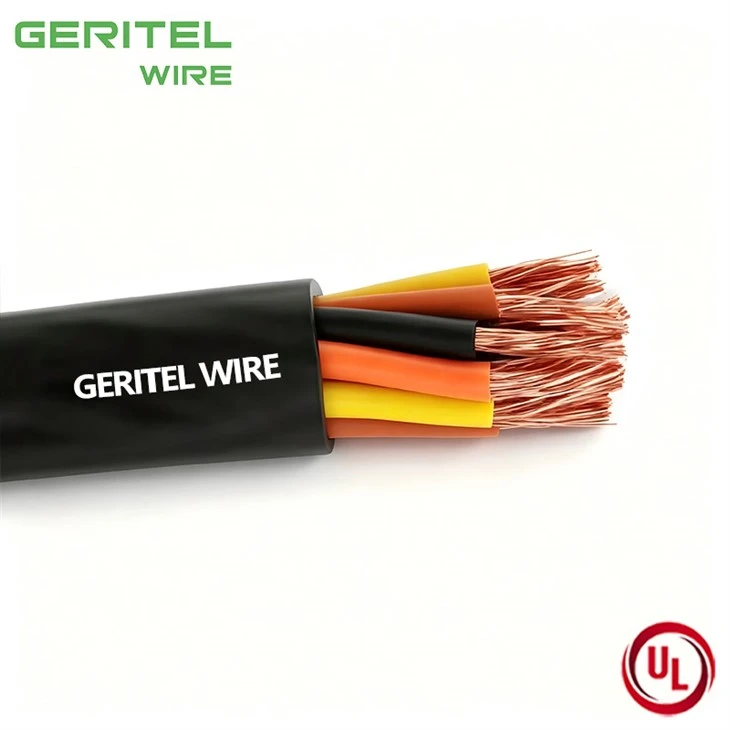

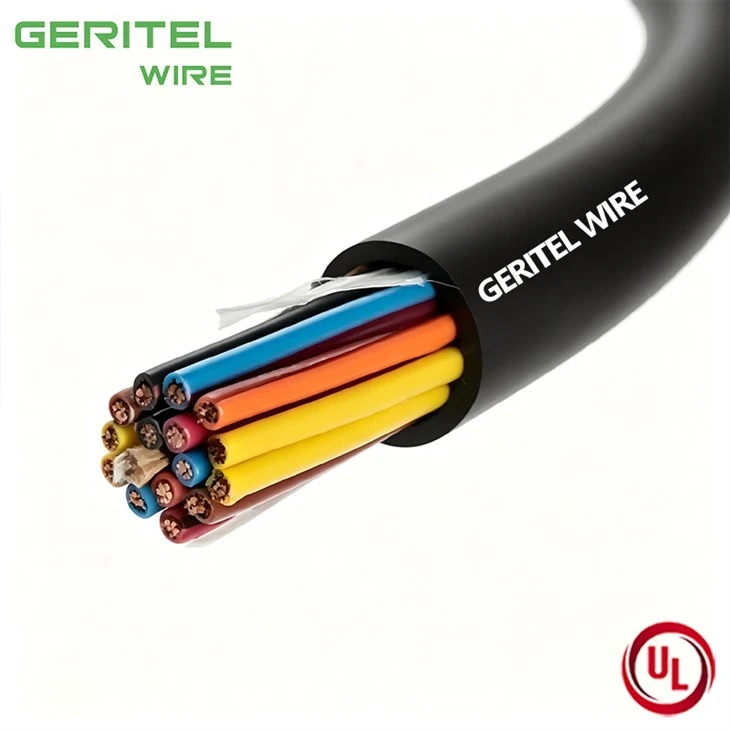

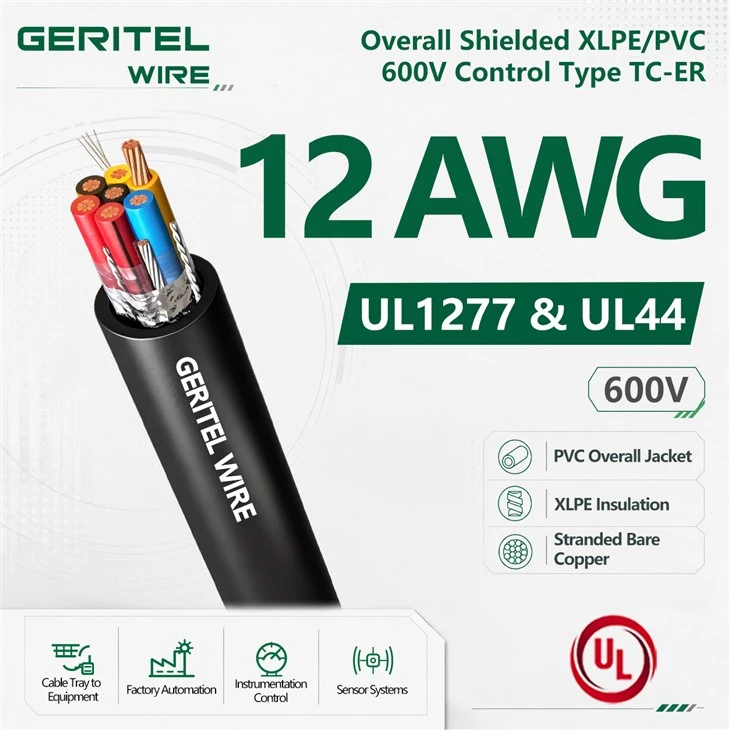

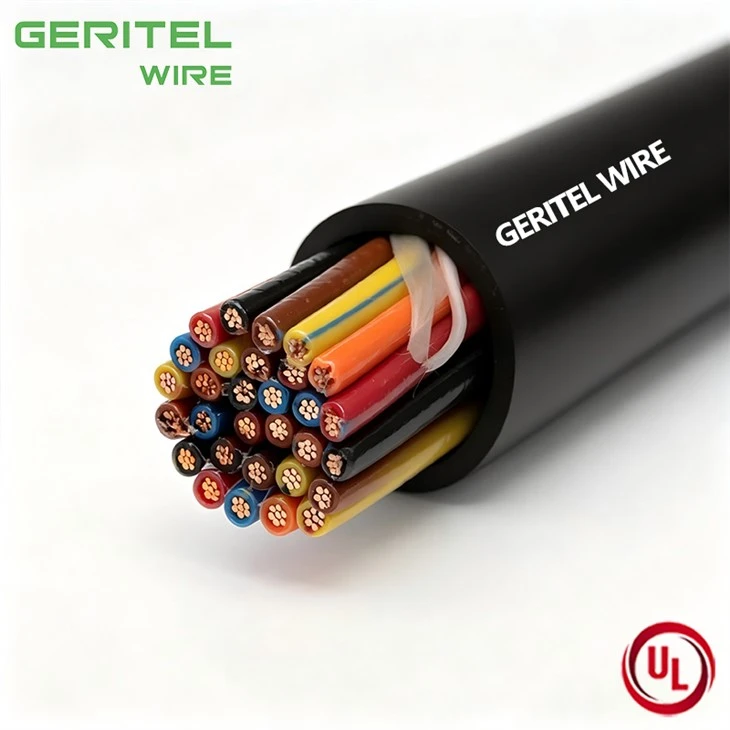

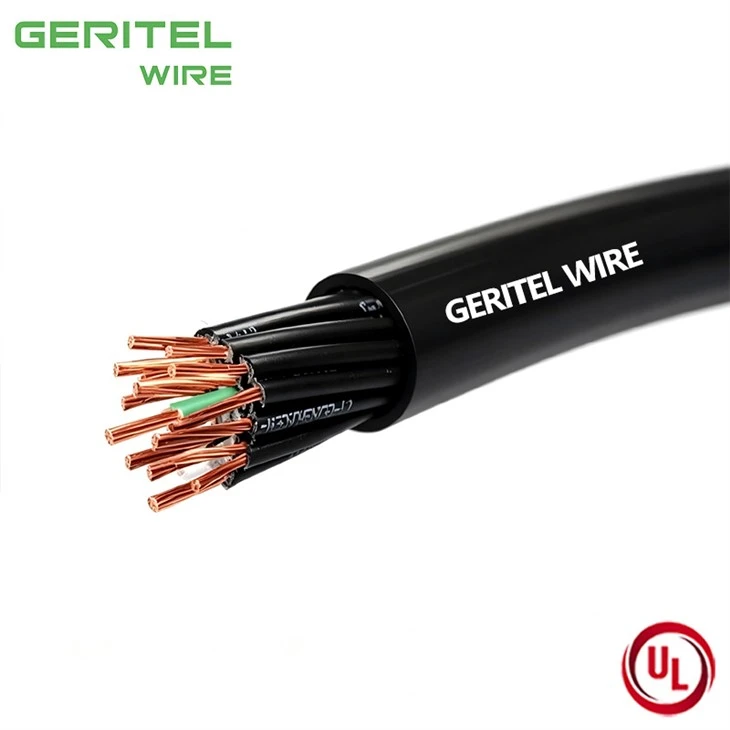

12 AWG TC-ER – Overall Shielded XLPE Insulated Tray Cable for Reliable Signal Integrity

Control and instrumentation signals are the nervous system of a factory. When those signals are corrupted by electrical noise, production suffers. This 12 AWG overall shielded TC-ER tray cable provides the protection needed to maintain signal integrity in electrically noisy industrial environments. Constructed with XLPE insulation, stranded bare copper conductors, a rugged PVC jacket, and an aluminum/polyester overall shield, this cable delivers reliable performance in cable tray and conduit installations. UL1277 and UL44 certified with a 600V rating, it is Type TC-ER rated for exposed run tray installations without conduit. The overall shield provides effective EMI protection, while the XLPE insulation offers excellent resistance to heat, moisture, and chemicals. The 12 AWG size is ideal for 20A control circuits and instrumentation applications where signal integrity is critical. This cable is the preferred choice for factory automation systems, control panels, and sensor networks where both power and signal reliability are essential.

PRODUCT SPECIFICATIONS

reel length Type TC-ER control cable

Product Description

The XLPE/PVC, 600V Control, Type TC-ER Direct Burial Cables consist of fully annealed bare copper Class B stranded conductors, covered with oil and gas resistant Cross-linked Polyethylene (XLPE), unshielded or shielded and black PVC jacket. These cables are used in industrial power or station control circuits.

Applications

In conduit, duct, free air, raceways and direct burial, primary installations include cable trays, and outdoor locations.
In wet or dry locations
Approved for Class I, Div. 2 industrial hazardous locations per NEC
Permitted for Exposed Run (ER) used in accordance with NEC for 3 or more conductors; two conductors without a ground wire are Type TC only

Features

Rated at 90°C wet or dry
Rippor (as needed)
Excellent sunlight resistance
Meets cold bend test at -25°C

SPECIFICATIONS
Conductor Count	Available in 2 through 37 conductors
Conductor	Fully annealed bare copper Class B
Gauge Sizes	Available in 14 through 10 AWG
Insulation	Cross-linked Polyethylene (XLPE) 14 AWG and larger are type XHHW-2
Color Coding	Per ICEA S-58-679 Method 1, Table E-2; additional color coding options available
Fillers	Non-hygroscopic fillers, as necessary to obtain a round finish conductor
Shield (optional)	Overall aluminum polyester foil in contact with 20 AWG stranded tinned copper drain wire
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	Type TC-ER (3 or more conductors) Conductor sizes 14 AWG - 10 AWG: 00000 FT GREATER WIRE XXAWG XX/C XHHW-2 PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC-ER (UL) SUN RES DIR BUR MADE IN USA MMDDYYYY Type TC(2 conductors) Conductor sizes 14 AWG - 10 AWG: 00000 FT GREATER WIRE XXAWG XX/C XHHW-2 PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (UL) SUN RES DIR BUR MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B3, ASTM B8,ASTM B33 UL 44 UL1277 UL 1685 (flame exposure test) ANSI/NEMA WC 70/ICEA S-95-658 NEC
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant

Unshielded

Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	14	0.030(0.76)	0.045(1.14)	0.37(9.3)	65(95)
3	14	0.030(0.76)	0.045(1.14)	0.39(9.9)	85(124)
4	14	0.030(0.76)	0.045(1.14)	0.42(10.8)	105(154)
5	14	0.030(0.76)	0.045(1.14)	0.46(11.7)	125(185)
7	14	0.030(0.76)	0.045(1.14)	0.50(12.7)	165(242)
9	14	0.030(0.76)	0.060(1.52)	0.62(15.8)	225(333)
12	14	0.030(0.76)	0.060(1.52)	0.69(17.5)	285(422)
19	14	0.030(0.76)	0.060(1.52)	0.80(20.4)	425(632)
25	14	0.030(0.76)	0.080(2.03)	0.98(24.9)	590(874)
30	14	0.030(0.76)	0.080(2.03)	1.04(26.3)	685(1,018)
37	14	0.030(0.76)	0.080(2.03)	1.11(28.3)	820(1,218)
2	12	0.030(0.76)	0.045(1.14)	0.40(10.2)	85(125)
3	12	0.030(0.76)	0.045(1.14)	0.43(10.8)	115(166)
4	12	0.030(0.76)	0.045(1.14)	0.47(11.8)	145(209)
5	12	0.030(0.76)	0.045(1.14)	0.51(12.9)	170(253)
7	12	0.030(0.76)	0.060(1.52)	0.59(14.9)	245(361)
9	12	0.030(0.76)	0.060(1.52)	0.69(17.4)	310(455)
12	12	0.030(0.76)	0.060(1.52)	0.76(19.4)	395(582)
19	12	0.030(0.76)	0.080(2.03)	0.93(23.7)	630(937)
25	12	0.030(0.76)	0.080(2.03)	1.09(27.6)	815(1,209)
30	12	0.030(0.76)	0.080(2.03)	1.15(29.2)	955(1,415)
37	12	0.030(0.76)	0.080(2.03)	1.24(31.4)	1,150(1,705)
2	10	0.030(0.76)	0.080(2.03)	0.45(11.4)	115(170)
3	10	0.030(0.76)	0.045(1.14)	0.48(12.1)	155(231)
4	10	0.030(0.76)	0.045(1.14)	0.52(13.3)	200(294)
5	10	0.030(0.76)	0.045(1.14)	0.60(15.4)	260(385)
7	10	0.030(0.76)	0.060(1.52)	0.66(16.7)	345(508)
9	10	0.030(0.76)	0.060(1.52)	0.77(19.6)	435(644)
12	10	0.030(0.76)	0.060(1.52)	0.86(21.8)	560(831)

overall shielded

Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	14	0.030(0.76)	0.045(1.14)	0.37(9.4)	70(102)
3	14	0.030(0.76)	0.045(1.14)	0.39(10.0)	90(131)
4	14	0.030(0.76)	0.045(1.14)	0.43(10.8)	110(162)
5	14	0.030(0.76)	0.045(1.14)	0.46(11.8)	130(193)
7	14	0.030(0.76)	0.045(1.14)	0.50(12.8)	170(250)
9	14	0.030(0.76)	0.060(1.52)	0.62(15.9)	230(342)
12	14	0.030(0.76)	0.060(1.52)	0.69(17.6)	290(431)
19	14	0.030(0.76)	0.060(1.52)	0.81(20.5)	435(642)
25	14	0.030(0.76)	0.080(2.03)	0.98(25.0)	600(886)
30	14	0.030(0.76)	0.080(2.03)	1.04(26.4)	695(1029)
37	14	0.030(0.76)	0.080(2.03)	1.12(28.4)	830(1231)
2	12	0.030(0.76)	0.045(1.14)	0.41(10.3)	90(132)
3	12	0.030(0.76)	0.045(1.14)	0.43(10.9)	120(173)
4	12	0.030(0.76)	0.045(1.14)	0.47(11.9)	150(217)
5	12	0.030(0.76)	0.045(1.14)	0.51(13.0)	180(261)
7	12	0.030(0.76)	0.060(1.52)	0.59(15.0)	250(369)
9	12	0.030(0.76)	0.060(1.52)	0.69(17.5)	315(464)
12	12	0.030(0.76)	0.060(1.52)	0.76(19.4)	400(592)
19	12	0.030(0.76)	0.080(2.03)	0.94(23.8)	640(948)
25	12	0.030(0.76)	0.080(2.03)	1.09(27.7)	825(1221)
30	12	0.030(0.76)	0.080(2.03)	1.15(29.2)	960(1428)
37	12	0.030(0.76)	0.080(2.03)	1.24(31.5)	1155(1718)
2	10	0.030(0.76)	0.045(1.14)	0.45(11.5)	120(177)
3	10	0.030(0.76)	0.045(1.14)	0.48(12.2)	165(238)
4	10	0.030(0.76)	0.045(1.14)	0.53(13.4)	205(302)
5	10	0.030(0.76)	0.060(1.52)	0.61(15.4)	265(393)
7	10	0.030(0.76)	0.060(1.52)	0.66(16.8)	350(517)
9	10	0.030(0.76)	0.060(1.52)	0.78(19.7)	440(653)
12	10	0.030(0.76)	0.080(2.03)	0.90(23.0)	605(894)

CERTIFICATIONS

industrial grade Type TC-ER control cable

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

factory direct 600V XLPE PVC control cable

Factory Automation

factory direct FR-XLPE PVC jacket control cable

Process Instrumentation

wholesale FR-XLPE PVC jacket control cable

Water Treatment Control Systems

CASE

manufacturer 600V XLPE PVC control cable

BASF Ludwigshafen Verbund Site

manufacturer FR-XLPE PVC jacket control cable

MWRA Deer Island Wastewater Treatment Plant

Siemens Electronic Works Amberg Factory

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

600V TC-ER control cable for industrial control circuits

600V TC-ER control cable for substation control circuits

600V TC-ER control cable for utility substations

GLOBAL CERTIFICATIONS

XLPE PVC control cable for motor control centers

CUSTOMER PHOTOS

XLPE PVC control cable for PLC control panels

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

XLPE PVC control cable for switchgear control wiring

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

600V TC-ER control cable for control cabinets

XLPE PVC control cable for oil and gas facilities

XLPE PVC control cable for petrochemical plants

XLPE PVC control cable for chemical plants

XLPE PVC control cable for renewable energy plants

XLPE PVC control cable for wind power facilities

XLPE PVC control cable for power generation plants

600V TC-ER control cable for transit projects

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

XLPE PVC control cable for HVAC control systems

FAQ

Why choose overall shielded cable for control circuits?

Overall shielded cable prevents electromagnetic interference from affecting control signals, ensuring reliable operation of automation equipment and reducing the risk of false signals.

What is the difference between overall shield and individual pair shield?

Overall shield protects the entire cable from external EMI. Individual pair shields provide additional protection against cross-talk between pairs within the cable.

Is this cable suitable for long cable tray runs?

Yes, the stranded conductors and rugged PVC jacket make this cable suitable for long tray runs with bends and transitions.

Can this cable be used for data communications?

Yes, overall shielded 12 AWG cable is suitable for low-speed data communications, RS-485, and other industrial communication protocols.
