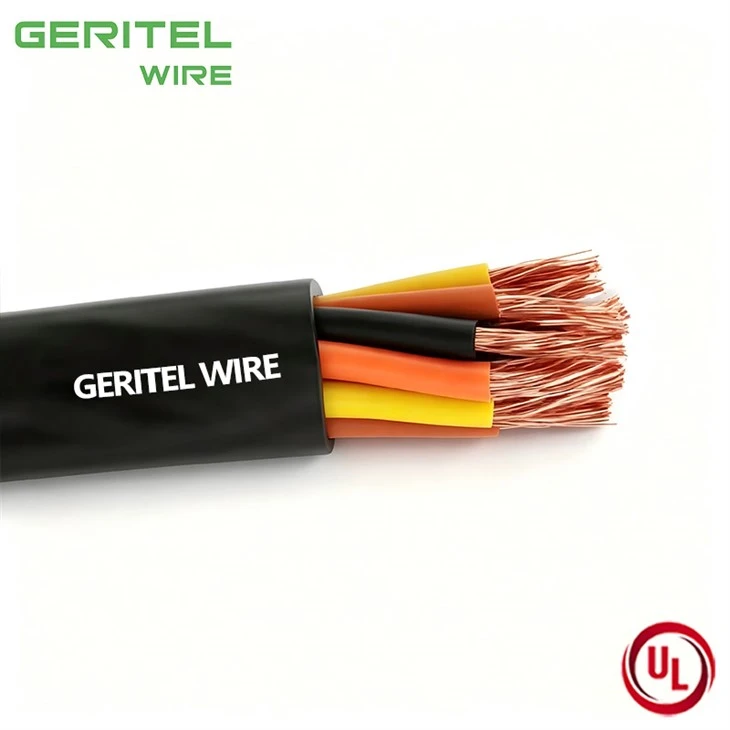

PRODUCT REAL SHOT

600V TC-ER control cable for paper mills

600V TC-ER control cable for steel mills

600V TC-ER control cable for outdoor cable trays

what is Type TC-ER cable

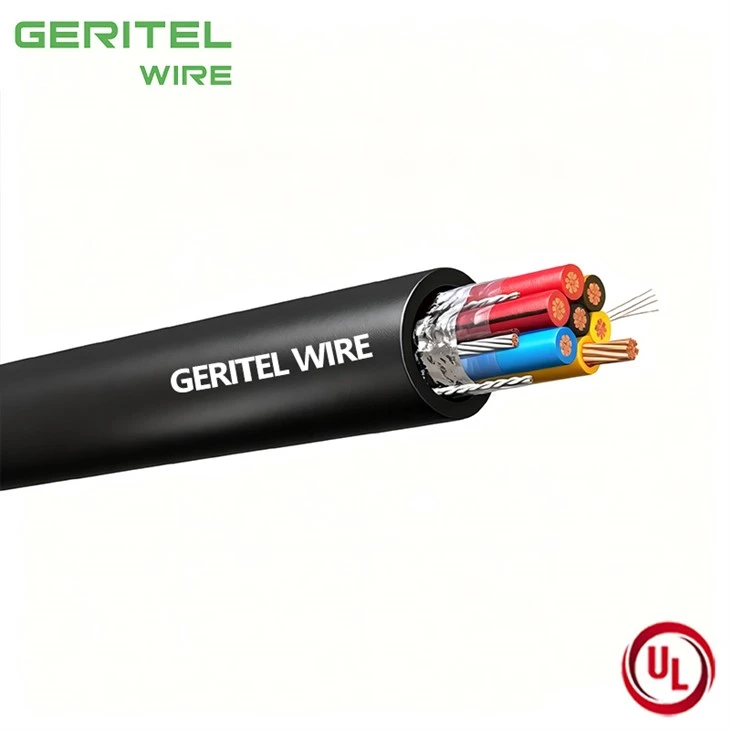

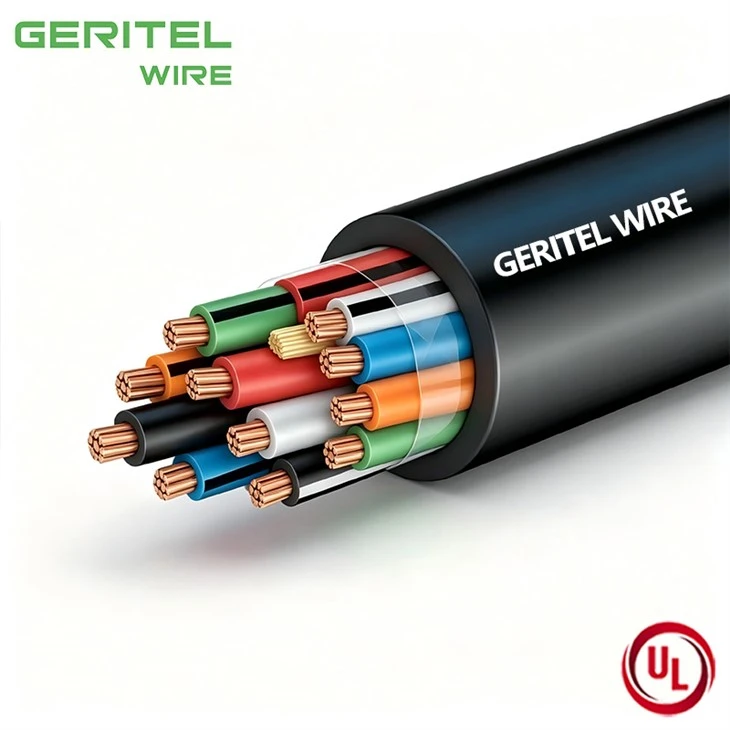

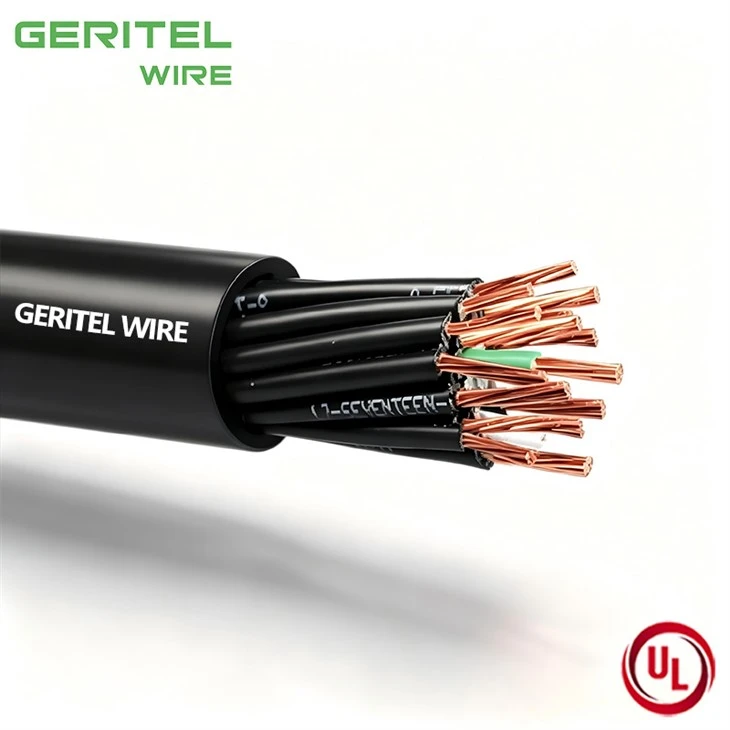

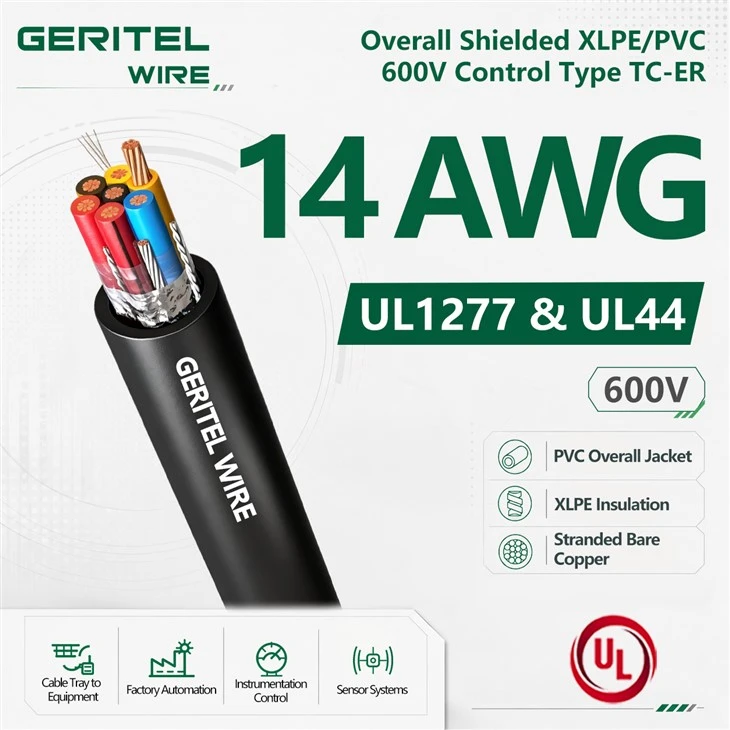

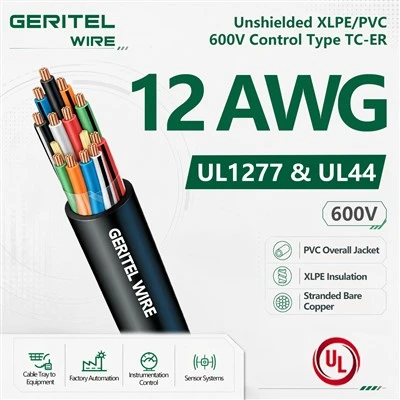

14 AWG TC-ER – Compact Overall Shielded XLPE Insulated Control Cable for High-Density EMI Protection

In modern factories, high-density cable trays are the norm, and finding space for additional shielding can be challenging. This 14 AWG overall shielded TC-ER control cable delivers EMI protection in a compact size that fits easily into crowded cable trays and control cabinets. Featuring XLPE insulation, stranded bare copper conductors, an aluminum/polyester overall shield, and a durable PVC jacket, this cable provides reliable signal transmission in electrically noisy environments. UL1277 and UL44 certified with a 600V rating, it is Type TC-ER rated for exposed run tray installations without conduit. The overall shield protects against electromagnetic interference, while the XLPE insulation offers excellent resistance to heat, moisture, and chemicals. The 14 AWG size allows more conductors in the same tray space, increasing wiring density while maintaining protection against EMI. This cable is ideal for factory automation, instrumentation, control panels, and sensor systems where space is limited but signal integrity cannot be compromised.

PRODUCT SPECIFICATIONS

XLPE vs PVC insulation for control cable

Product Description

The XLPE/PVC, 600V Control, Type TC-ER Direct Burial Cables consist of fully annealed bare copper Class B stranded conductors, covered with oil and gas resistant Cross-linked Polyethylene (XLPE), unshielded or shielded and black PVC jacket. These cables are used in industrial power or station control circuits.

Applications

In conduit, duct, free air, raceways and direct burial, primary installations include cable trays, and outdoor locations.
In wet or dry locations
Approved for Class I, Div. 2 industrial hazardous locations per NEC
Permitted for Exposed Run (ER) used in accordance with NEC for 3 or more conductors; two conductors without a ground wire are Type TC only

Features

Rated at 90°C wet or dry
Rippor (as needed)
Excellent sunlight resistance
Meets cold bend test at -25°C

SPECIFICATIONS
Conductor Count	Available in 2 through 37 conductors
Conductor	Fully annealed bare copper Class B
Gauge Sizes	Available in 14 through 10 AWG
Insulation	Cross-linked Polyethylene (XLPE) 14 AWG and larger are type XHHW-2
Color Coding	Per ICEA S-58-679 Method 1, Table E-2; additional color coding options available
Fillers	Non-hygroscopic fillers, as necessary to obtain a round finish conductor
Shield (optional)	Overall aluminum polyester foil in contact with 20 AWG stranded tinned copper drain wire
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	Type TC-ER (3 or more conductors) Conductor sizes 14 AWG - 10 AWG: 00000 FT GREATER WIRE XXAWG XX/C XHHW-2 PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC-ER (UL) SUN RES DIR BUR MADE IN USA MMDDYYYY Type TC(2 conductors) Conductor sizes 14 AWG - 10 AWG: 00000 FT GREATER WIRE XXAWG XX/C XHHW-2 PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (UL) SUN RES DIR BUR MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B3, ASTM B8,ASTM B33 UL 44 UL1277 UL 1685 (flame exposure test) ANSI/NEMA WC 70/ICEA S-95-658 NEC
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant

Unshielded

Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	14	0.030(0.76)	0.045(1.14)	0.37(9.3)	65(95)
3	14	0.030(0.76)	0.045(1.14)	0.39(9.9)	85(124)
4	14	0.030(0.76)	0.045(1.14)	0.42(10.8)	105(154)
5	14	0.030(0.76)	0.045(1.14)	0.46(11.7)	125(185)
7	14	0.030(0.76)	0.045(1.14)	0.50(12.7)	165(242)
9	14	0.030(0.76)	0.060(1.52)	0.62(15.8)	225(333)
12	14	0.030(0.76)	0.060(1.52)	0.69(17.5)	285(422)
19	14	0.030(0.76)	0.060(1.52)	0.80(20.4)	425(632)
25	14	0.030(0.76)	0.080(2.03)	0.98(24.9)	590(874)
30	14	0.030(0.76)	0.080(2.03)	1.04(26.3)	685(1,018)
37	14	0.030(0.76)	0.080(2.03)	1.11(28.3)	820(1,218)
2	12	0.030(0.76)	0.045(1.14)	0.40(10.2)	85(125)
3	12	0.030(0.76)	0.045(1.14)	0.43(10.8)	115(166)
4	12	0.030(0.76)	0.045(1.14)	0.47(11.8)	145(209)
5	12	0.030(0.76)	0.045(1.14)	0.51(12.9)	170(253)
7	12	0.030(0.76)	0.060(1.52)	0.59(14.9)	245(361)
9	12	0.030(0.76)	0.060(1.52)	0.69(17.4)	310(455)
12	12	0.030(0.76)	0.060(1.52)	0.76(19.4)	395(582)
19	12	0.030(0.76)	0.080(2.03)	0.93(23.7)	630(937)
25	12	0.030(0.76)	0.080(2.03)	1.09(27.6)	815(1,209)
30	12	0.030(0.76)	0.080(2.03)	1.15(29.2)	955(1,415)
37	12	0.030(0.76)	0.080(2.03)	1.24(31.4)	1,150(1,705)
2	10	0.030(0.76)	0.080(2.03)	0.45(11.4)	115(170)
3	10	0.030(0.76)	0.045(1.14)	0.48(12.1)	155(231)
4	10	0.030(0.76)	0.045(1.14)	0.52(13.3)	200(294)
5	10	0.030(0.76)	0.045(1.14)	0.60(15.4)	260(385)
7	10	0.030(0.76)	0.060(1.52)	0.66(16.7)	345(508)
9	10	0.030(0.76)	0.060(1.52)	0.77(19.6)	435(644)
12	10	0.030(0.76)	0.060(1.52)	0.86(21.8)	560(831)

overall shielded

Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	14	0.030(0.76)	0.045(1.14)	0.37(9.4)	70(102)
3	14	0.030(0.76)	0.045(1.14)	0.39(10.0)	90(131)
4	14	0.030(0.76)	0.045(1.14)	0.43(10.8)	110(162)
5	14	0.030(0.76)	0.045(1.14)	0.46(11.8)	130(193)
7	14	0.030(0.76)	0.045(1.14)	0.50(12.8)	170(250)
9	14	0.030(0.76)	0.060(1.52)	0.62(15.9)	230(342)
12	14	0.030(0.76)	0.060(1.52)	0.69(17.6)	290(431)
19	14	0.030(0.76)	0.060(1.52)	0.81(20.5)	435(642)
25	14	0.030(0.76)	0.080(2.03)	0.98(25.0)	600(886)
30	14	0.030(0.76)	0.080(2.03)	1.04(26.4)	695(1029)
37	14	0.030(0.76)	0.080(2.03)	1.12(28.4)	830(1231)
2	12	0.030(0.76)	0.045(1.14)	0.41(10.3)	90(132)
3	12	0.030(0.76)	0.045(1.14)	0.43(10.9)	120(173)
4	12	0.030(0.76)	0.045(1.14)	0.47(11.9)	150(217)
5	12	0.030(0.76)	0.045(1.14)	0.51(13.0)	180(261)
7	12	0.030(0.76)	0.060(1.52)	0.59(15.0)	250(369)
9	12	0.030(0.76)	0.060(1.52)	0.69(17.5)	315(464)
12	12	0.030(0.76)	0.060(1.52)	0.76(19.4)	400(592)
19	12	0.030(0.76)	0.080(2.03)	0.94(23.8)	640(948)
25	12	0.030(0.76)	0.080(2.03)	1.09(27.7)	825(1221)
30	12	0.030(0.76)	0.080(2.03)	1.15(29.2)	960(1428)
37	12	0.030(0.76)	0.080(2.03)	1.24(31.5)	1155(1718)
2	10	0.030(0.76)	0.045(1.14)	0.45(11.5)	120(177)
3	10	0.030(0.76)	0.045(1.14)	0.48(12.2)	165(238)
4	10	0.030(0.76)	0.045(1.14)	0.53(13.4)	205(302)
5	10	0.030(0.76)	0.060(1.52)	0.61(15.4)	265(393)
7	10	0.030(0.76)	0.060(1.52)	0.66(16.8)	350(517)
9	10	0.030(0.76)	0.060(1.52)	0.78(19.7)	440(653)
12	10	0.030(0.76)	0.080(2.03)	0.90(23.0)	605(894)

CERTIFICATIONS

XHHW-2 control cable meaning

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Factory Automation

industrial grade FR-XLPE PVC jacket control cable

Process Instrumentation

cut to length 600V XLPE PVC control cable

Water Treatment Control Systems

CASE

BASF Ludwigshafen Verbund Site

14 AWG 15C FR-XLPE PVC jacket control cable

MWRA Deer Island Wastewater Treatment Plant

Siemens Electronic Works Amberg Factory

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

ASTM B3 control cable

CUSTOMER PHOTOS

NEC Article 501 600V control cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

What are the advantages of 14 AWG shielded cable in high-density installations?

14 AWG shielded cable offers the benefits of EMI protection while occupying less space than larger gauges, allowing more conductors in crowded cable trays and cabinets.

Is this cable approved for exposed run installations?

Yes, the TC-ER rating permits exposed run installation in cable trays without conduit, subject to code requirements.

What type of shield does this cable have?

This cable features an aluminum/polyester overall shield, providing effective protection against electromagnetic interference.

What is the temperature rating of this cable?

The XLPE insulation is rated for continuous 90°C operation in both wet and dry locations, with emergency ratings up to 130°C and short-circuit ratings up to 250°C.
