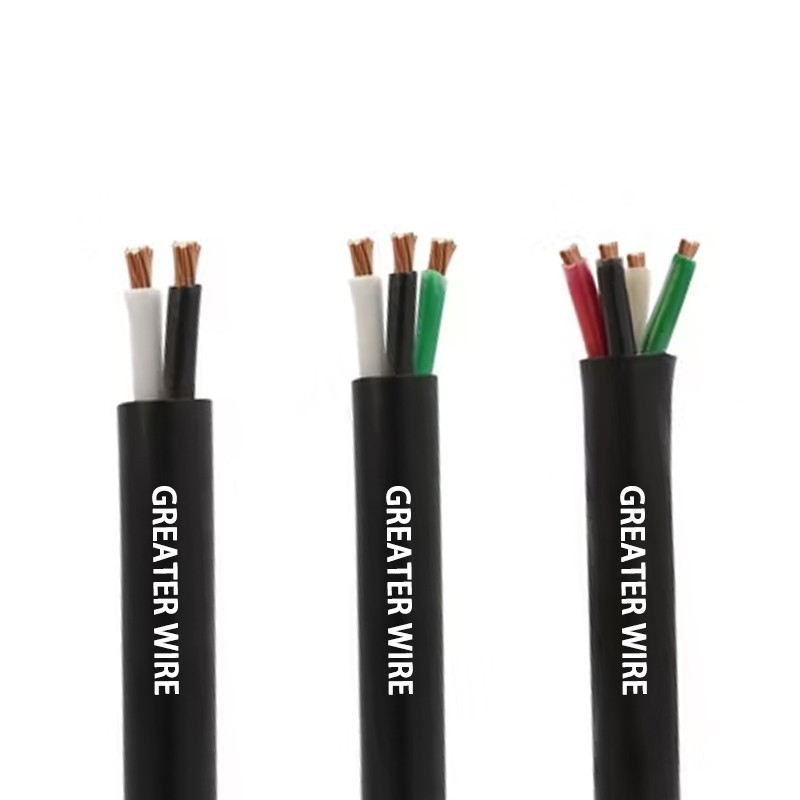

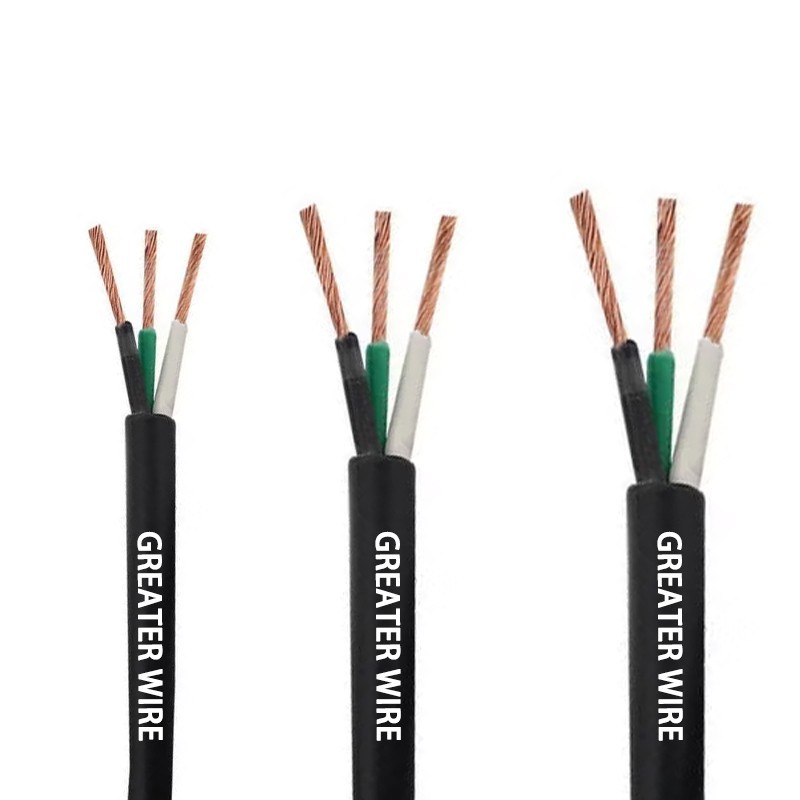

TSJ/TSJ-N electric cable is a flexible, durable wiring solution designed for use in light-duty electrical applications. Constructed with Class 5 annealed fine copper conductors and insulated with heat-resistant 105°C PVC plus a protective nylon layer, it ensures excellent mechanical strength and thermal stability. The outer black PVC sheath enhances abrasion resistance and adds protection against environmental wear.
Application
TSJ/TSJ-N cables are widely used in residential and light industrial environments, mainly for connecting low-power appliances, portable tools, hand lamps, extension cords and other equipment, and are very suitable for scenes that require frequent movement, bending or dragging. TSJ/TSJ-N cables not only have good wear and oil resistance, but are also easy to wire and install. They are particularly suitable for portable electrical equipment occasions that require reliability and convenient operation, such as temporary power supply on construction sites, mobile lighting in workshops, and household tool connection cables.
Feature
• With a highly flexible conductor structure (Class 5 annealed soft copper wire), TSJ/TSJ-N cables are easy to install.
• With high temperature resistance (105°C), oil resistance, and wear resistance of PVC + nylon insulation layer, the service life of the cable in an industrial environment is improved.
• Complying with multiple international standards (NTC 5521, ASTM, UL), it has wide compatibility and safety compliance in Latin American and North American markets.
• Quick online quote & free samples available.
Certification

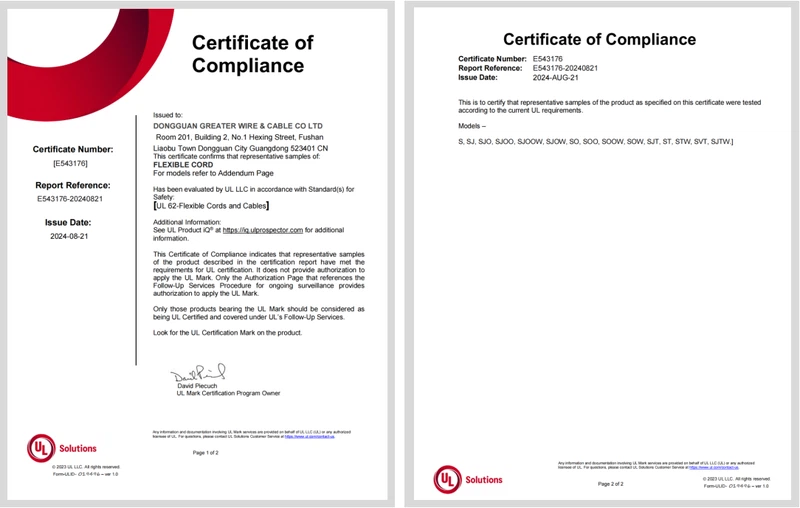

TSJ/TSJ-N cables have successfully passed multiple international quality and safety certifications, meeting the requirements of UL62 and UL83, maintaining consistent quality, electrical safety, and mechanical durability. With this strong combination of certifications, TSJ cables are approved for use in a variety of residential, commercial, and portable power applications, giving customers complete peace of mind in terms of compliance, performance, and long-term service life.
Package
Factory
Greater Wire is a TSJ/TSJ-N cable manufacturer. Our wires and cables have passed UL, SAA, UL, TUV, CE and other standard certifications. The cables are popular in the international market and are exported to Southeast Asia, Australia, the Middle East, Africa, America, Europe, and other regions. The sales network covers more than 80 countries around the world. Greater Wire has a strong R&D, technology, sales, production, and quality inspection team. From wire and cable design to project implementation, we can provide professional and high-quality services to meet various needs of customers with excellent quality.
Case
Partner
FAQ
Q: What is TSJ cable?
Q: What is the difference between TSJ cable and RVV cable?
A: The insulation layer of TSJ cable is made of PVC and nylon.
TSJ Cable is UL-certified, built for durability, temperature resistance, and mechanical strength, ideal for use in North America or where higher safety standards are required.
RVV Cable is economical, widely available, and suited for light-duty indoor use, commonly used in China and developing markets.
Hot Tags: TSJ / TSJ-N Electric Cable, China TSJ / TSJ-N Electric Cable manufacturers, suppliers, factory, spt 1 cable, NMD90 Cable, rubber welding cable, Kabel H05RR F, single core building cable, AS NZS5000 1 Aerial Parallel Cable
| Construction | Cross Section Area |
Number of Strands |
Extemal Cover Thickness |
Aproximate Total Diameter |
Aproximate Total Weight |
Minimum Curvature |
Max.C.D. Electrical Resistance @ 30℃ |
Max.Current Capacity @ 30℃ |
|||
| AWG/MCM | mm² | in | mm | in | mm | kg/km | mm | Ω/km | A | B | |
| 2x20 | 0.52 | 7 | 0.030 | 0.76 | 0.225 | 5.72 | 38 | 86 | 36.2 | / | 7 |
| 2x18 | 0.82 | 10 | 0.030 | 0.76 | 0.250 | 6.35 | 48 | 95 | 22.9 | / | 10 |
| 2x16 | 1.31 | 16 | 0.030 | 0.76 | 0.275 | 6.99 | 63 | 105 | 14.4 | / | 13 |
| 2x14 | 2.08 | 26 | 0.030 | 0.76 | 0.315 | 8.00 | 86 | 120 | 9.07 | / | 18 |
| 2x12 | 3.31 | 41 | 0.045 | 1.14 | 0.380 | 9.65 | 134 | 145 | 5.74 | / | 25 |
| 2x10 | 5.26 | 65 | 0.060 | 1.52 | 0.480 | 12.19 | 217 | 183 | 3.59 | / | 30 |
| 2x8 | 8.37 | 105 | 0.060 | 1.52 | 0.590 | 14.99 | 336 | 225 | 2.25 | / | 40 |
| 2x6 | 13.3 | 168 | 0.060 | 1.52 | 0.690 | 17.53 | 475 | 263 | 1.42 | / | 55 |
| 3x18 | 0.82 | 10 | 0.030 | 0.76 | 0.265 | 6.73 | 58 | 101 | 22.9 | 7 | 10 |
| 3x16 | 1.31 | 16 | 0.030 | 0.76 | 0.290 | 7.37 | 78 | 110 | 14.4 | 10 | 13 |
| 3x14 | 2.08 | 26 | 0.030 | 0.76 | 0.330 | 8.38 | 108 | 126 | 9.07 | 15 | 18 |
| 3x12 | 3.31 | 41 | 0.045 | 1.14 | 0.400 | 10.16 | 168 | 152 | 5.74 | 20 | 25 |
| 3x10 | 5.26 | 65 | 0.060 | 1.52 | 0.500 | 12.70 | 272 | 191 | 3.59 | 25 | 30 |
| 3x8 | 8.37 | 105 | 0.060 | 1.52 | 0.630 | 16.00 | 424 | 240 | 2.25 | 35 | 40 |
| 3x6 | 13.3 | 168 | 0.060 | 1.52 | 0.700 | 17.78 | 609 | 267 | 1.42 | 45 | 55 |
| 4x18 | 0.82 | 10 | 0.030 | 0.76 | 0.285 | 7.24 | 70 | 109 | 22.9 | 7 | / |
| 4x16 | 1.31 | 16 | 0.030 | 0.76 | 0.320 | 8.13 | 96 | 122 | 14.4 | 10 | / |
| 4x14 | 2.08 | 26 | 0.030 | 0.76 | 0.360 | 9.14 | 134 | 137 | 9.07 | 15 | / |
| 4x12 | 3.31 | 41 | 0.045 | 1.14 | 0.440 | 11.18 | 209 | 168 | 5.74 | 20 | / |
| 4x10 | 5.26 | 65 | 0.060 | 1.52 | 0.540 | 13.72 | 337 | 206 | 3.59 | 25 | / |
| 4x8 | 8.37 | 105 | 0.060 | 1.52 | 0.680 | 17.27 | 528 | 259 | 2.25 | 35 | / |
| 4x6 | 13.3 | 168 | 0.060 | 1.52 | 0.775 | 19.69 | 765 | 295 | 1.42 | 45 | / |
