6mm2 welding cable

PRODUCT REAL SHOT

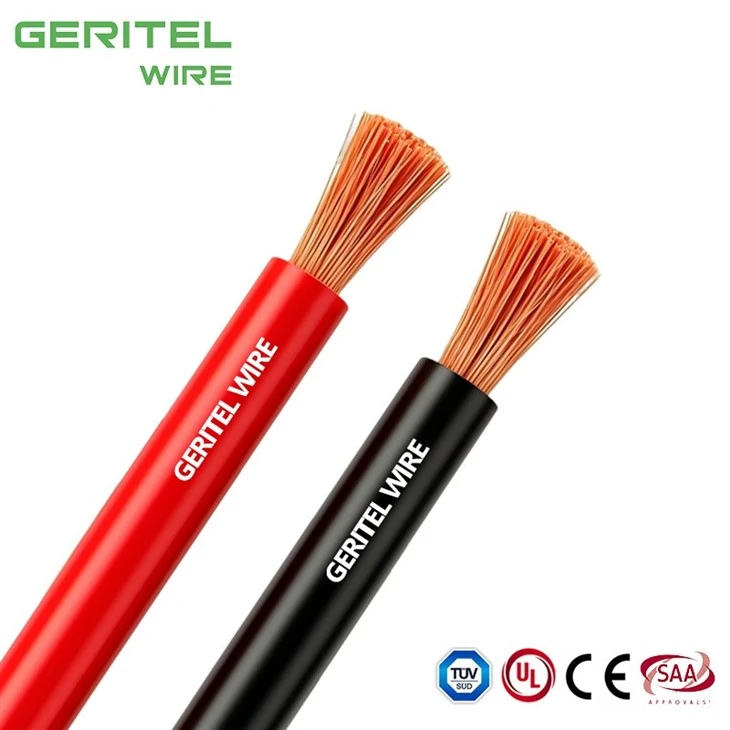

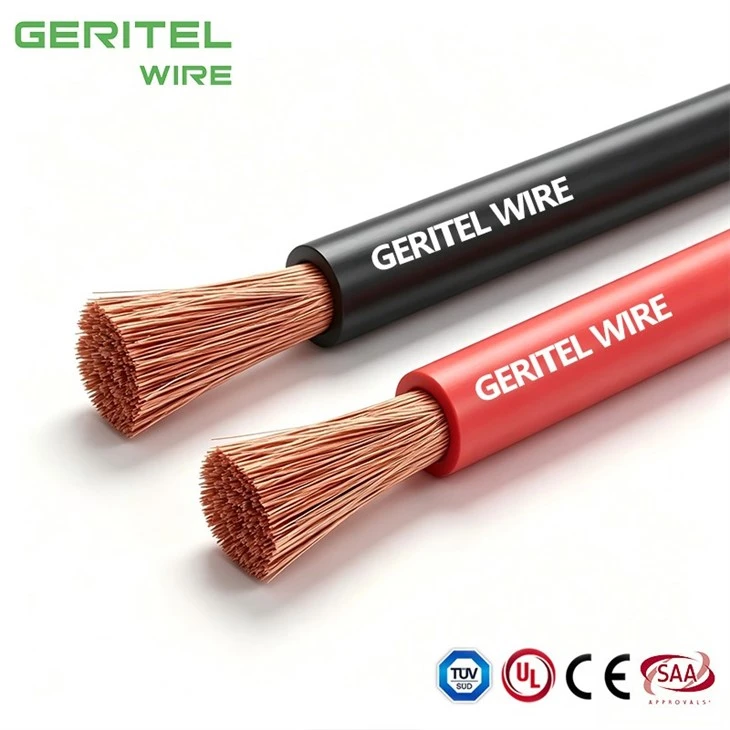

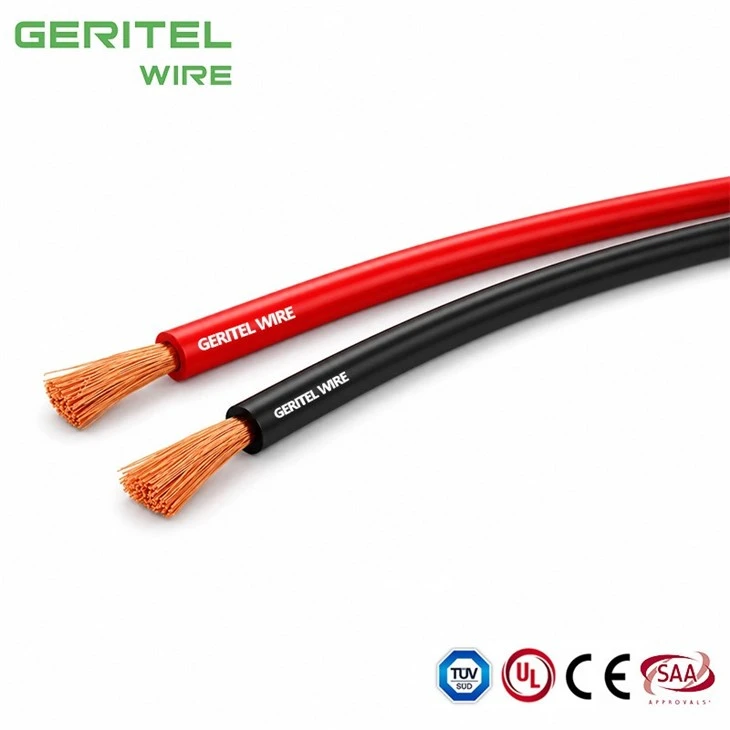

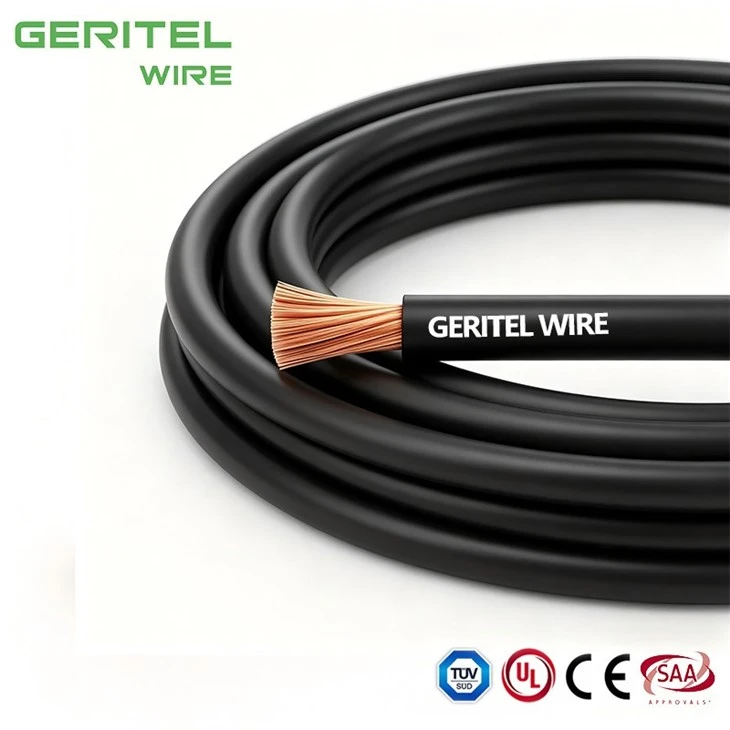

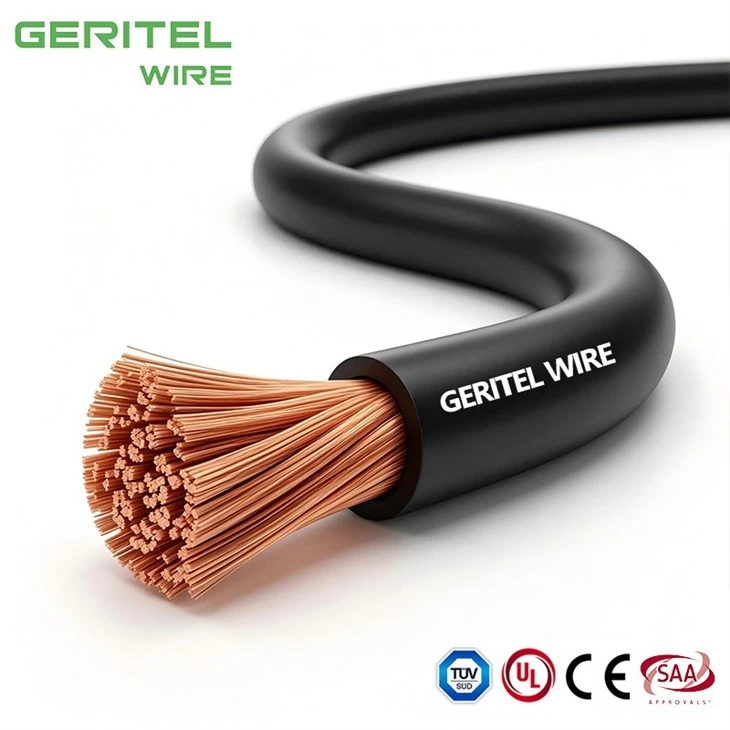

1 x 6mm2 welding cable

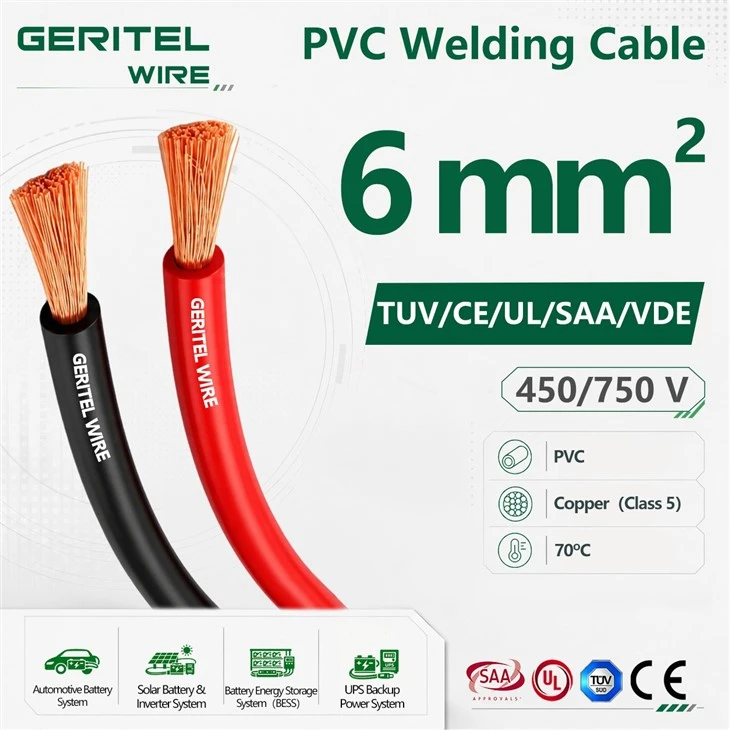

6mm² High-Flex PVC Welding Cable for Automotive Power Wiring

The 6mm² CU Class 5/PVC cable provides increased conductor capacity while retaining the flexibility needed for automotive batteries, small energy storage units, inverter connections and mobile DC equipment. Fine copper strands reduce installation stress at terminals and help the cable follow curved routes inside confined spaces. This 6mm² welding cable can be produced in red, black or project-specific colors with custom printing and coil or drum packing. As a high flex welding cable, it supports efficient cutting, stripping and crimping during harness production. GERITEL WIRE applies electrical and dimensional checks to every batch, making this flexible copper welding cable dependable for OEM battery wiring and repeat orders.

PRODUCT SPECIFICATIONS

1x6mm2 welding cable

Application

GERITEL WIRE H05V-K & H07V-K cable has been specially designed for installations that reguire a flexible cable due to the complex nature of their layout.
This cable is especially suitable for domestic wiring.
It may also be used for eguipment wiring,distributors,cabinets and tighting.

SPECIFICATIONS
Conductor	Electrolytic annealed copper, class 5 (flexible) according to EN60228 and IEC 60228.
Insulation	Extra sliding flexible polyvinyl chloride type TI1 according to EN50363-3
Thermal performance	Maximum conductor temperature: 70°C. Maximum short-circuit temperature: 160°C (max. 5 s).Minimum installation and handling temperature: 5°C.Minimum service temperature: -40°C (fixed and protectedinstallations).
Fire performance	Flame non-propagation according to EN 60332-1/IEC 60332-1. Reaction to fire CPR: Eca according to EN 50575. Reduced halogen emission. Chlorine < 15%.
Mechanical performance	Minimum bending radius: 5x cable diameter.
Environmental performance	Chemical & Oil resistance: Acceptable.
Installation conditions	In conduit.
Other	Meter by meter marking. (from 10 mm2 onwards).

Cross-section (mm2)	Diameter (mm)	Weight (kg/km)	In conduit 2 cond. (A)	In conduit 3 cond. (A)	Voltage drop (V/A·km)


1x1.5	2.9	19	17.5	15.5	31.9
1x2.5	3.6	30	24	21	19.2
1x4	4.1	44	32	28	11.9
1x6	4.6	61	41	36	7.92
1x10	5.9	105	57	50	4.58
1x16	7.0	160	76	68	2.90
1x25	8.7	245	101	89	1.87
1x35	9.9	335	125	110	1.33
1x50	11.8	480	151	134	0.926
1x70	13.5	655	192	171	0.653
1x95	15.6	865	232	207	0.494
1x120	17.3	1.095	269	239	0.386
1x150	19.2	1.380	-	275	0.310
1x185	21.5	1.675	-	314	0.254
1x240	24.5	2.210	-	370	0.192
1x300	26.9	2.795	-	430	0.153

CERTIFICATIONS

6mm2 PVC welding cable

PACKAGING

Plastic Reel

Small Wooden Reel

Large Wooden Reel

APPLICATION

Eastport Steel Fabrication Expansion

North Valley Oil Pipeline Maintenance

Riverside Industrial Equipment Welding Upgrade

CASE

Construction Site Pipe Welding

Industrial Welding Workshop

Precision Metal Fabrication Welding

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

single core flexible copper welding cable

GLOBAL CERTIFICATIONS

PVC single core welding cable

CUSTOMER PHOTOS

PVC copper welding cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

What does Class 5 copper mean in welding cable?

Class 5 refers to a flexible stranded conductor construction. GERITEL WIRE Class 5 welding cable uses many copper strands to improve routing and termination compared with a rigid conductor, while the exact strand structure is controlled against the approved data.

Why does welding cable use many fine copper strands?

Fine strands increase flexibility and reduce stress when the cable is bent or routed around equipment. GERITEL WIRE fine stranded welding cable is designed for easier handling, and customers can request samples to evaluate bendability with their terminals and installation space.

Does a higher strand count always mean better welding cable?

Not by itself. Strand diameter, total copper area, resistance, lay, insulation and manufacturing quality all matter. GERITEL WIRE evaluates flexible copper welding cable by measured electrical and dimensional performance rather than using strand count as the only selling point.

What are the benefits of PVC insulation on welding cable?

PVC provides an economical, smooth and color-customizable insulation for protected installations. GERITEL WIRE PVC welding cable is suitable where the specified temperature, movement and environment are respected; demanding sparks, oil or outdoor use may require another construction.
