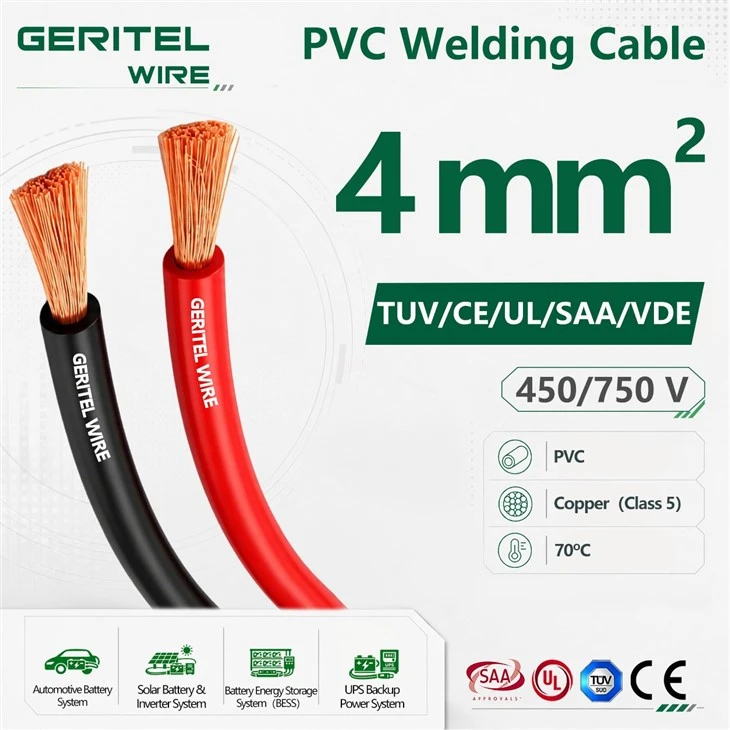

4mm² Single-Core Welding Cable for Solar Inverter Circuits
PRODUCT SPECIFICATIONS
Application
GERITEL WIRE H05V-K & H07V-K cable has been specially designed for installations that reguire a flexible cable due to the complex nature of their layout.
This cable is especially suitable for domestic wiring.
It may also be used for eguipment wiring,distributors,cabinets and tighting.
| SPECIFICATIONS | |
| Conductor | Electrolytic annealed copper, class 5 (flexible) according to EN60228 and IEC 60228. |
| Insulation | Extra sliding flexible polyvinyl chloride type TI1 according to EN50363-3 |
| Thermal performance | Maximum conductor temperature: 70°C. Maximum short-circuit temperature: 160°C (max. 5 s).Minimum installation and handling temperature: 5°C.Minimum service temperature: -40°C (fixed and protectedinstallations). |
| Fire performance | Flame non-propagation according to EN 60332-1/IEC 60332-1. Reaction to fire CPR: Eca according to EN 50575. Reduced halogen emission. Chlorine < 15%. |
| Mechanical performance | Minimum bending radius: 5x cable diameter. |
| Environmental performance | Chemical & Oil resistance: Acceptable. |
| Installation conditions | In conduit. |
| Other | Meter by meter marking. (from 10 mm2 onwards). |
|
Cross-section (mm2) |
Diameter (mm) |
Weight (kg/km) |
In conduit 2 cond. (A) |
In conduit 3 cond. (A) |
Voltage drop (V/A·km) |
| 1x1.5 | 2.9 | 19 | 17.5 | 15.5 | 31.9 |
| 1x2.5 | 3.6 | 30 | 24 | 21 | 19.2 |
| 1x4 | 4.1 | 44 | 32 | 28 | 11.9 |
| 1x6 | 4.6 | 61 | 41 | 36 | 7.92 |
| 1x10 | 5.9 | 105 | 57 | 50 | 4.58 |
| 1x16 | 7.0 | 160 | 76 | 68 | 2.90 |
| 1x25 | 8.7 | 245 | 101 | 89 | 1.87 |
| 1x35 | 9.9 | 335 | 125 | 110 | 1.33 |
| 1x50 | 11.8 | 480 | 151 | 134 | 0.926 |
| 1x70 | 13.5 | 655 | 192 | 171 | 0.653 |
| 1x95 | 15.6 | 865 | 232 | 207 | 0.494 |
| 1x120 | 17.3 | 1.095 | 269 | 239 | 0.386 |
| 1x150 | 19.2 | 1.380 | - | 275 | 0.310 |
| 1x185 | 21.5 | 1.675 | - | 314 | 0.254 |
| 1x240 | 24.5 | 2.210 | - | 370 | 0.192 |
| 1x300 | 26.9 | 2.795 | - | 430 | 0.153 |
