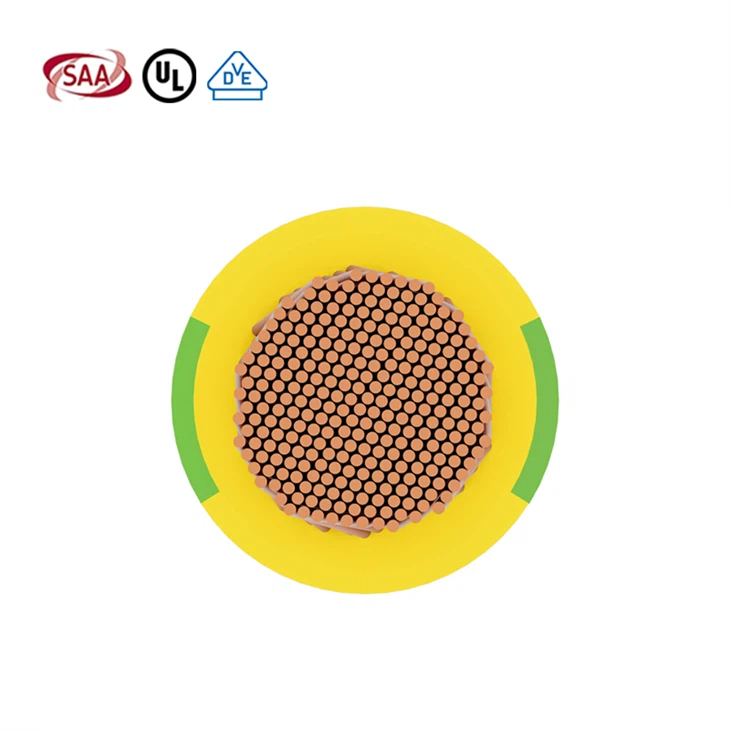

Conductor: Flexible Bare annealed copper
-
Insulation;PVC
-
Voltage: 450/750V
-
Operating Temperature: -10°C to 70°C
Application
PVC battery welding cable is a cable designed for photovoltaic power supply systems. It is suitable for fixed indoor and outdoor environments and can be used in pipelines or systems. This cable is made of high-quality PVC material, has excellent weather resistance and corrosion resistance, and can withstand long-term exposure to sunlight, rain and other harsh weather conditions. Its excellent insulation performance and electrical conductivity make it an indispensable and important part of battery pack welding, photovoltaic cell module connection and power transmission systems. In addition, the flexibility and reliability of PVC battery welding cable enable it to provide stable power connections in complex installation environments, ensuring efficient operation of the system.
Feature

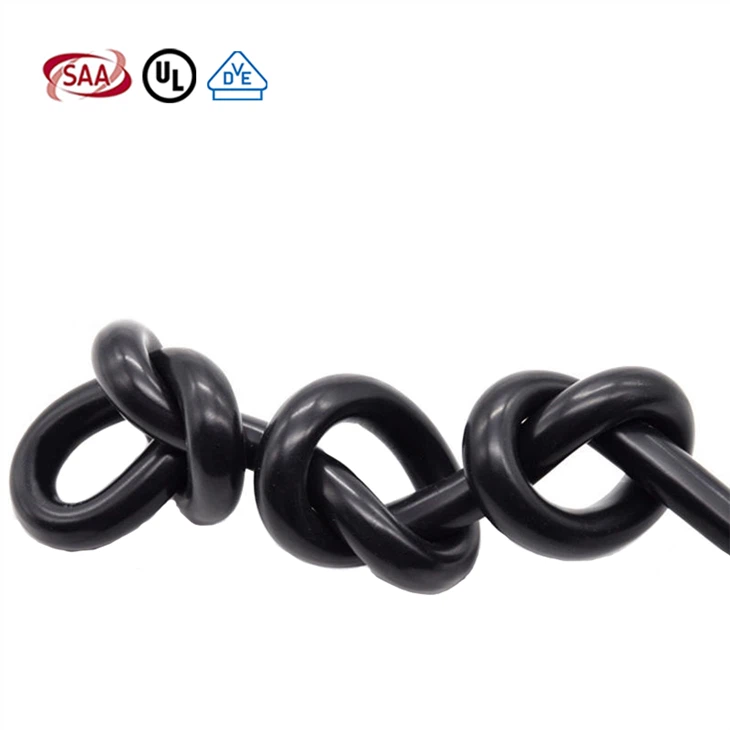

PVC battery welding cable uses flexible bare copper conductors, which have excellent electrical conductivity and flexibility, and are suitable for welding applications that require high current transmission. Its insulation layer is made of PVC material, which has good heat resistance and corrosion resistance.
Certification
Our products have passed UL, SAA, TUV, VDE, CE, CB and other certifications. Our company has corresponding certification for each region. We have more than 10 years of experience in foreign trade export, exporting to more than 90 countries around the world, and are familiar with the wire and cable specifications and standards of many countries.
Package
Factory
Dongguan Greater Wire & Cable Co., Ltd. was established in 1995, it is a professional wire and cable manufacturer. Our company has advanced production equipment and production technology, complete testing equipment, and strong product technology strength. After years of hard work and the support of clients from all over the World, our company has developed rapidly and won a high honor and share in overseas markets. The company has passed the ls09001 quality management system certification, National high tech enterprise certification, national specialization, and special new enterprise certification.
Case
Partner
FAQ
Q: Are you a manufacturer or trading company?
Q: When can I get the price?
Hot Tags: pvc battery welding cable, China pvc battery welding cable manufacturers, suppliers, factory, aerial parallel cable, NMD90 Cable, sdi cable, silicone insulated wire, orange circular cable, tuv solar cable
| Formation (no xmm2 ) |
Approx.Conductor(mm) | Average Insulation Thickness(mm) | Max. External (mm) |
Max. electrical resistance at 20°C(Ω/km) | Approx.cable weight(KG/KM) | Current rating in pipe in air at 30°C (A) |
| 1x1.5 | 1.5 | 0.7 | 3.4 | 13.3 | 20 | 16 |
| 1x2.5 | 2.0 | 0.8 | 4.1 | 7.98 | 31 | 20 |
| 1x4 | 2.5 | 0.8 | 4.8 | 4.95 | 45 | 25 |
| 1x6 | 3.0 | 0.8 | 5.3 | 3.30 | 65 | 36 |
| 1x10 | 4.0 | 1.0 | 6.8 | 1.91 | 109 | 50 |
| 1x16 | 5.0 | 1.0 | 8.1 | 1.21 | 163 | 68 |
| 1x25 | 6.2 | 1.2 | 10.2 | 0.780 | 251 | 89 |
| 1x35 | 7.4 | 1.2 | 11.7 | 0.554 | 347 | 110 |
| 1x50 | 8.9 | 1.4 | 13.9 | 0.386 | 493 | 134 |
| 1x70 | 10.5 | 1.4 | 16.0 | 0.272 | 680 | 171 |
| 1x95 | 12.2 | 1.6 | 18.2 | 0.206 | 910 | 207 |
| 1x120 | 13.8 | 1.6 | 20.2 | 0.161 | 1140 | 239 |
| 1x150 | 15.4 | 1.8 | 22.5 | 0.129 | 1420 | 275 |
| 1x180 | 16.9 | 2.0 | 24.9 | 0.106 | 1730 | 314 |
| 1x240 | 19.5 | 2.2 | 28.4 | 0.0801 | 2270 | 369 |
