2×35+1×10E elastomer cable

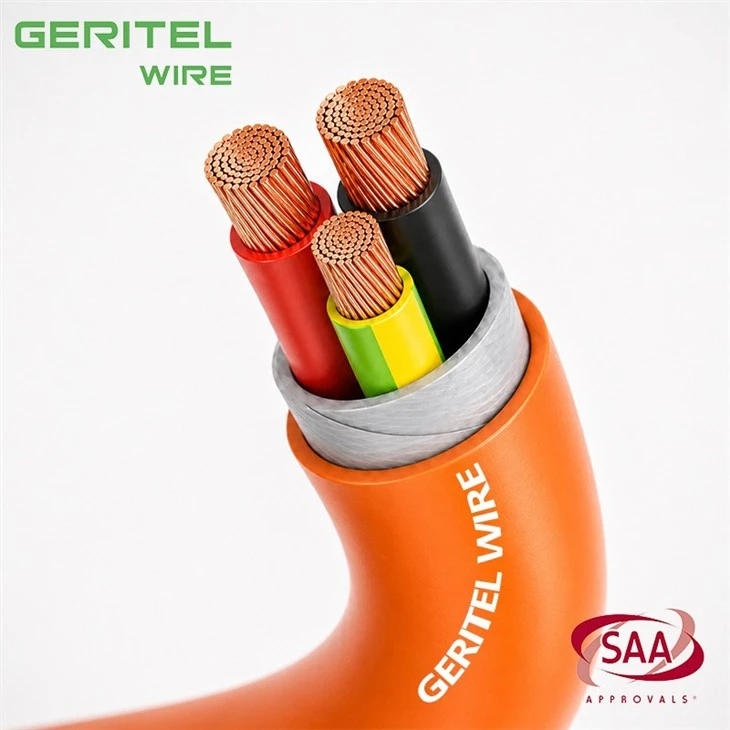

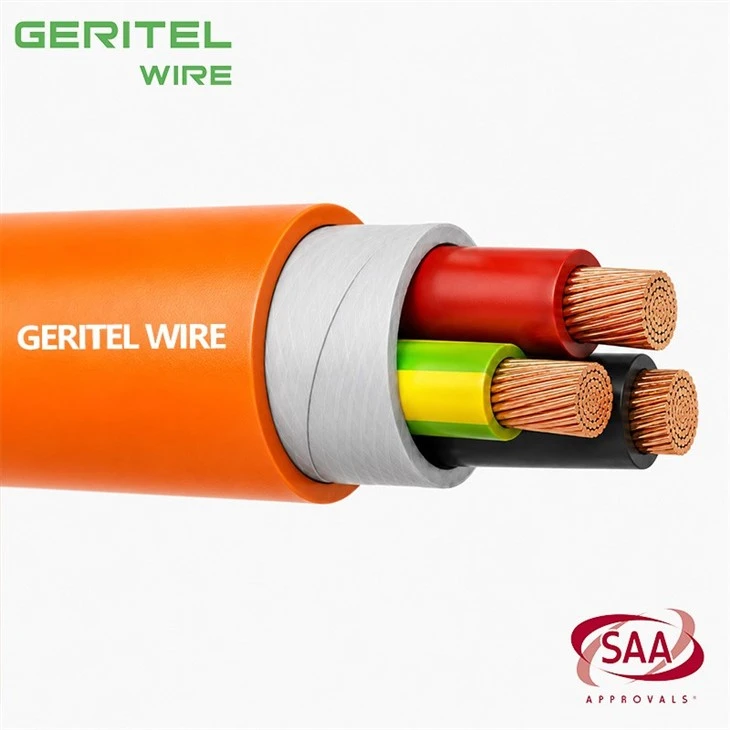

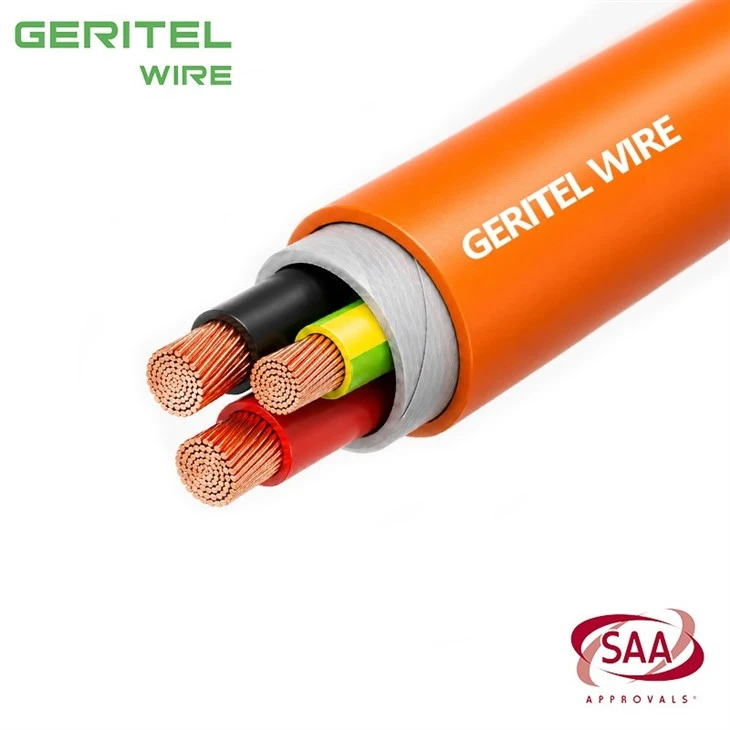

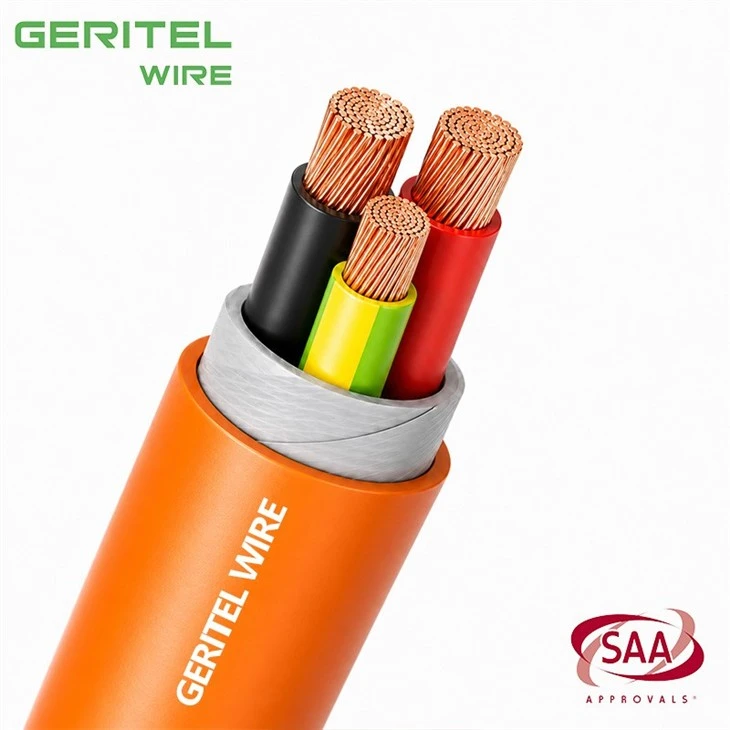

PRODUCT REAL SHOT

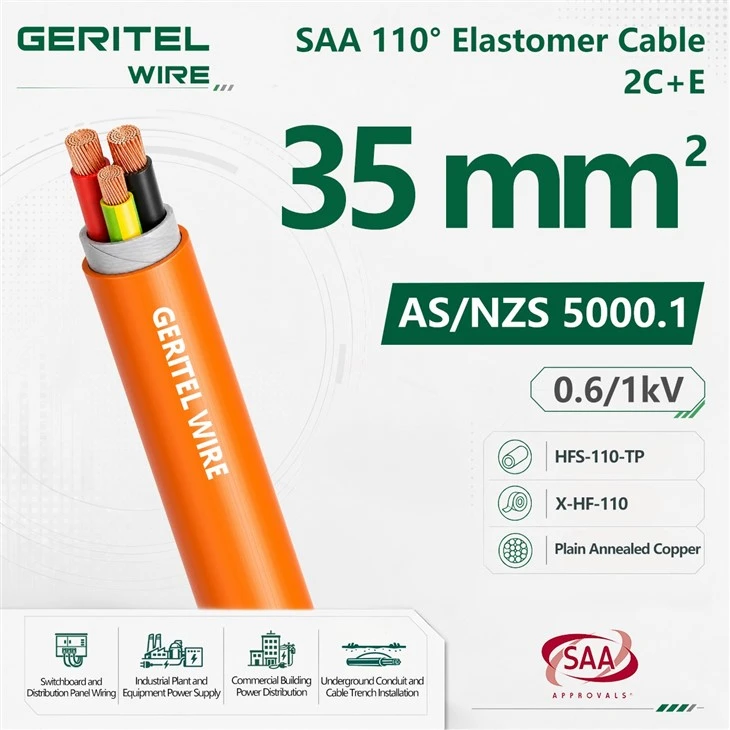

2×35+1×10E 2 core + earth cable

Industrial Plant 2C+E Feeder Cable with 110°C Rating

The 2×35+1×10E elastomer power cable is developed for protected industrial and building circuits requiring flexible handling, reliable earthing and a 110°C conductor rating. Its Class 5 annealed copper multicore cable construction supports neater bends and terminations in MCC rooms, switchboards and process-area service panels. X-HF-110 core insulation and an HFS-110-TP sheath form an LSHF cable for factory distribution with low-smoke, halogen-free and flame-retardant performance. It can be specified as a fixed installation cable for equipment feeders, submains, conduit routes, trenches and protected ducts. GERITEL WIRE assists with specification review, SAA documentation, production testing, project labels, drum planning and international shipment.

PRODUCT SPECIFICATIONS

2×35+1×10E 2 core and earth cable

Applications

Flexible single core X-HF-110 insulated and HFS-110-TP sheathed cable for mains, submains and subcircuits unenclosed, enclosed in conduit or in underground ducts for building and industrial plants where not subject to mechanical damage. Suitable where space is at a premium and/or where conditions of overload may occur.

SPECIFICATIONS
Approvals	Suitable for fixed applications only in accordance with AS/NZS 3000+AS/NZS 5000.1
Behaviour in flame and fire:	Flame propagation - AS/NZS IEC 60332-1
Temperature range	Maximum operating temperature: +110°C Minimum operating temperature: -25°C
Minimum bending radius	Installed cables: 4D During installation: 6D
Resistance to	Chemical exposure: OccasionaI Mechanical impact: Light Water exposure: Uccasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Flexible bunched annealed copper conductor to A5/NZ5 1125 (Class 5). Insulation: X-HF-110 Colour:Natural Sheath: HFS-110-TP Colour: Orange
Installation conditions	In free air In conduit In trench In duct

Core x cross- section mm²
	Conductor Diameter		Nominal insulation thickness		Nominal sheath thickness mm	Approx. overall diamete mm	Approx. weight kg/km
	phase mm	earth mm	phase mm	earth mm	Nominal sheath thickness mm	Approx. overall diamete mm	Approx. weight kg/km
2x10+1x4E	0.40	0.30	0.7	0.7	1.8	16.3	385
2x16+1x6E	0.40	0.30	0.7	0.7	1.8	17.4	515
2x25+1x6E	0.40	0.30	0.9	0.7	1.8	19.9	708
2x35+1x10E	0.40	0.40	0.9	0.7	1.8	22.9	969
2x50+1x16E	0.40	0.40	1.0	0.7	1.8	26.4	1344
2x70+1x25E	0.50	0.40	1.1	0.9	1.8	30.6	1867
2x95+1x25E	0.50	0.40	1.1	0.9	1.9	33.3	2313
2x120+1x35E	0.50	0.40	1.2	0.9	2.0	37.2	2945
2x150+1x50E	0.50	0.40	1.4	1.0	2..1	41.7	3718
2x185+1x70E	0.50	0.50	1.6	1.1	2.3	46.6	4634
2x240+1x95E	0.50	0.50	1.7	1.1	2.4	52.5	6015

mm²	Reactance at 50Hz (ohm/km)
		Current Rating (A)				Electrical Characteristics
		Spaced	Touching surface	Metallic wiring enclosure in air	Underground duct one duct	Maximum DC Resistance 20°C Ω/km
10	0.0810	94	88	75	84	1.91
16	0.0779	124	116	100	109	1.21
25	0.0783	163	154	129	139	0.780
35	0.0761	202	190	163	171	0.554
50	0.0754	254	238	202	209	0.386
70	0.0744	318	299	257	259	0.272
95	0.0729	381	357	303	304	0.206
120	0.0723	450	421	362	357	0.161
150	0.0728	515	482	412	403	0.129
185	0.0730	586	547	474	456	0.106
240	0.0722	698	625	577	611	0.0801

CERTIFICATIONS

2×35+1×10E LSZH cable

2×35+1×10E LSHF cable

PACKAGING

Plastic Reel

Small Wooden Reel

Large Wooden Reel

APPLICATION

Industrial Equipment and Motor Power Supply

Switchboard and Distribution Panel Wiring

Underground Cable Trench and Conduit Installation

CASE

Induction Melting Furnace Power System

Mining Processing Plant MCC and Substation UpgradeModular Homes

Steel Mill Walking Beam Furnace Electrical Installation

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

110°C flexible multicore cable

CUSTOMER PHOTOS

110°C industrial installation cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Are the copper conductors tinned?

The standard construction shown in the product data uses plain annealed copper, not automatically tinned copper. A tinned-copper request changes the construction and must be reviewed separately. GERITEL WIRE states the conductor finish clearly in the 2C+E cable specification before production.

What does X-HF-110 insulation provide?

X-HF-110 is a halogen-free insulation system designed for a 110°C conductor temperature class. In an X-HF-110 insulated cable, the material supports heat resistance and low-fire-hazard performance while the electrical design remains subject to the relevant standard. GERITEL WIRE provides the material designation in the datasheet.

What is HFS-110-TP?

HFS-110-TP is the halogen-free thermoplastic sheath material used around the multicore assembly. The HFS-110-TP sheathed cable provides mechanical protection, orange identification and low-smoke flame-performance characteristics. GERITEL WIRE confirms sheath thickness and overall diameter for the ordered size.

Is the cable PVC-free?

The current X-HF-110/HFS-110-TP construction is described as a PVC-free power cable using halogen-free insulation and sheath compounds. GERITEL WIRE can provide the available technical declaration or test documentation so a project team does not rely only on a marketing phrase.
