2×95+1×25E elastomer cable

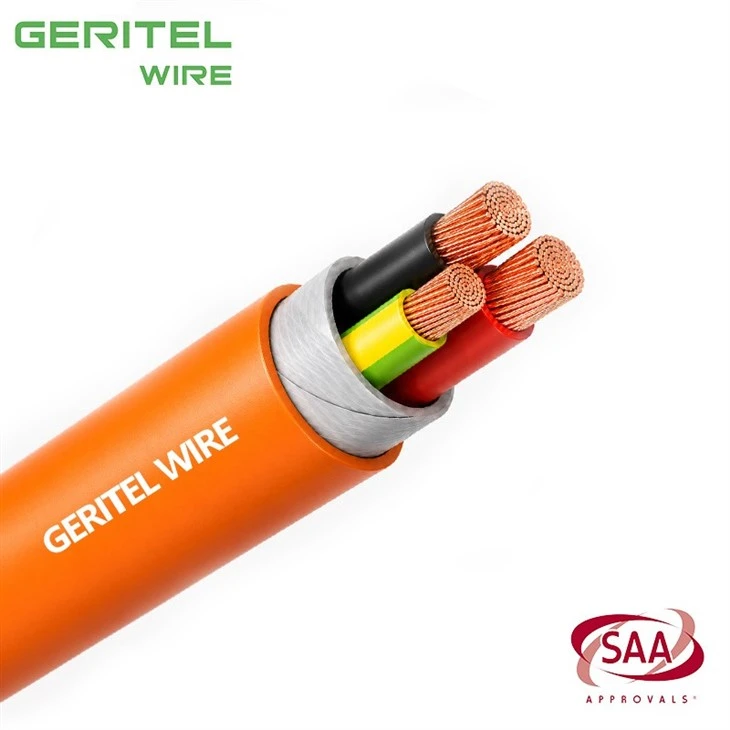

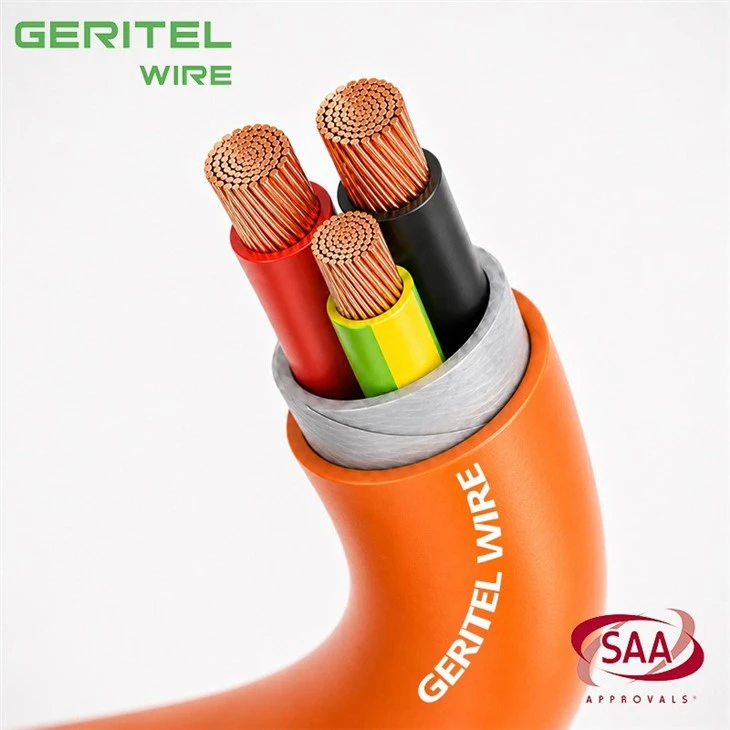

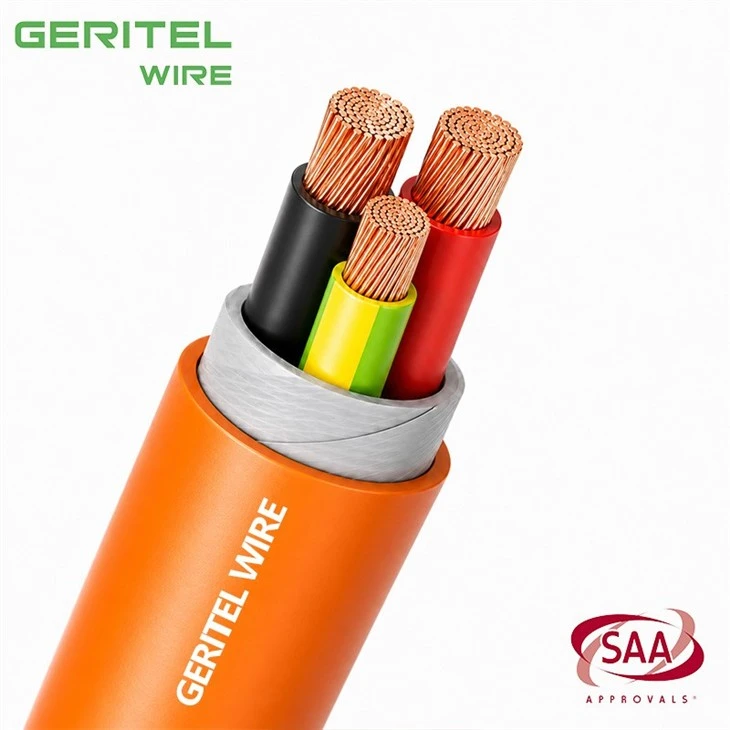

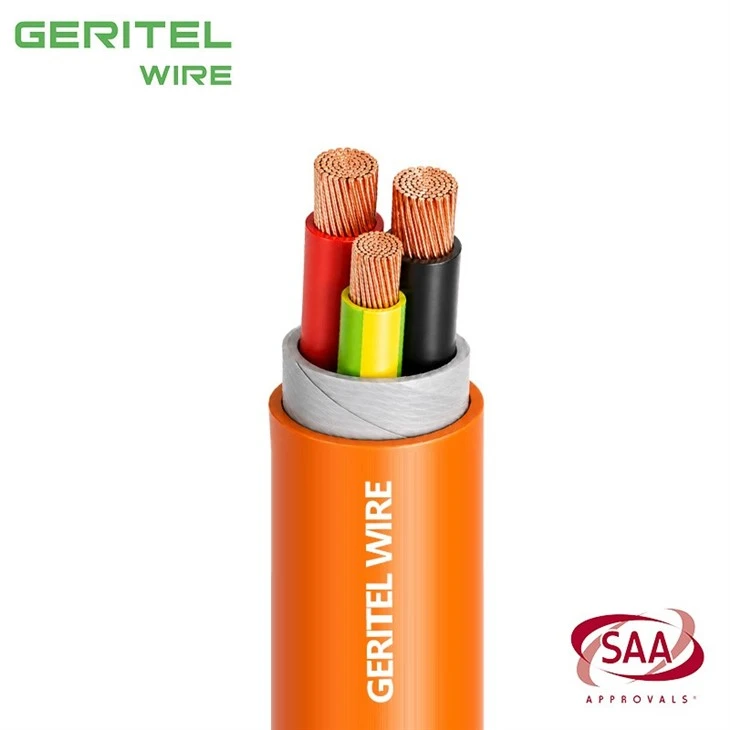

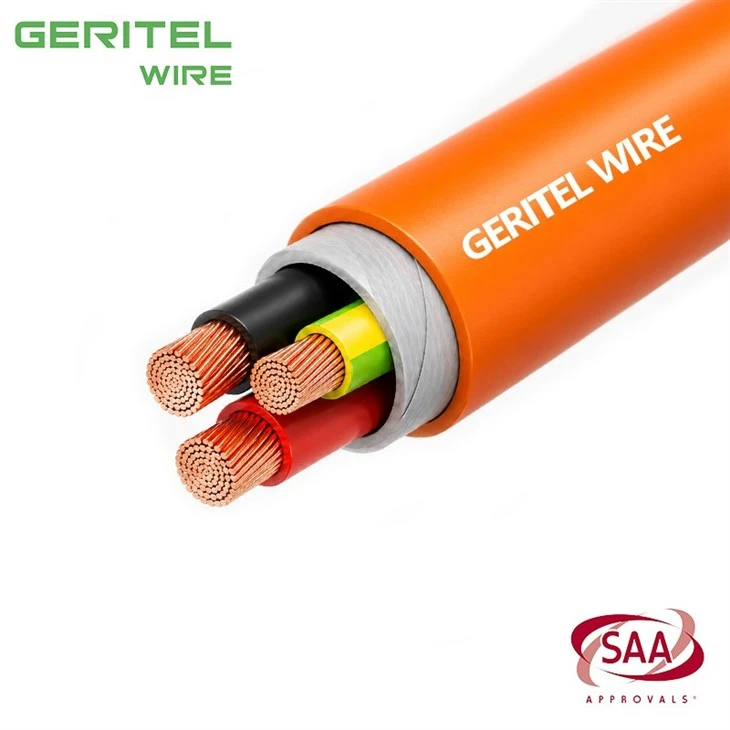

PRODUCT REAL SHOT

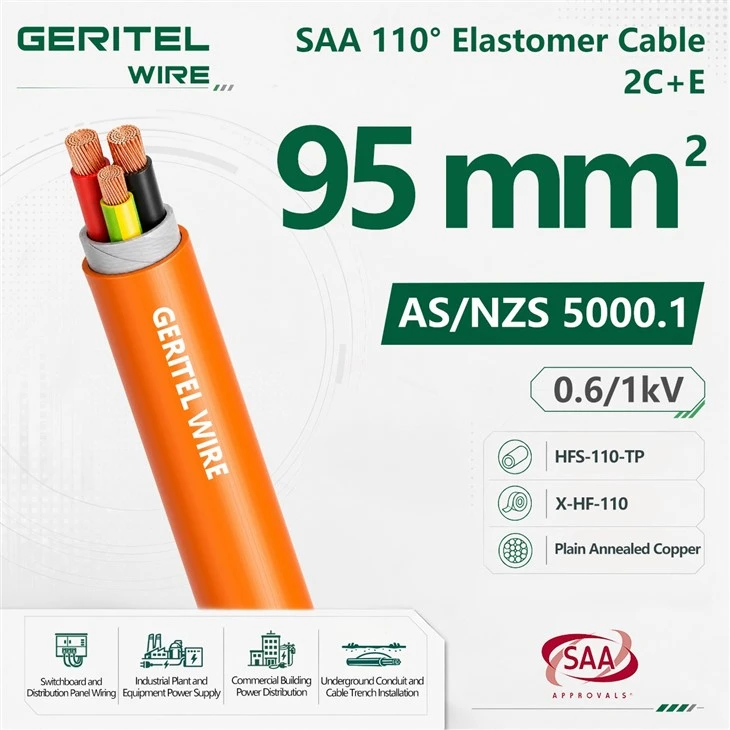

2×95+1×25E 2 core + earth cable

Low Smoke Power Cable for Transformer and Switchgear Rooms

The 2×95+1×25E X-HF-110 cable is designed for higher-current fixed circuits connecting main switchboards, transformer rooms and industrial distribution areas. Two 95mm² Class 5 active cores and a 25mm² earth conductor form a flexible copper mains cable that is easier to position than a rigid multicore option of similar capacity. The 0.6/1kV construction can be selected as a transformer room feeder cable after engineering checks for load, voltage drop, fault level and installation method. X-HF-110 insulation and the HFS-110-TP sheath make it an LSZH multicore cable for switchboards with a continuous conductor temperature rating up to 110°C. GERITEL WIRE supports cable schedules, dimensional data, SAA document matching, factory testing and export packing.

PRODUCT SPECIFICATIONS

2×70+1×25E 2 core and earth cable

Applications

Flexible single core X-HF-110 insulated and HFS-110-TP sheathed cable for mains, submains and subcircuits unenclosed, enclosed in conduit or in underground ducts for building and industrial plants where not subject to mechanical damage. Suitable where space is at a premium and/or where conditions of overload may occur.

SPECIFICATIONS
Approvals	Suitable for fixed applications only in accordance with AS/NZS 3000+AS/NZS 5000.1
Behaviour in flame and fire:	Flame propagation - AS/NZS IEC 60332-1
Temperature range	Maximum operating temperature: +110°C Minimum operating temperature: -25°C
Minimum bending radius	Installed cables: 4D During installation: 6D
Resistance to	Chemical exposure: OccasionaI Mechanical impact: Light Water exposure: Uccasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Flexible bunched annealed copper conductor to A5/NZ5 1125 (Class 5). Insulation: X-HF-110 Colour:Natural Sheath: HFS-110-TP Colour: Orange
Installation conditions	In free air In conduit In trench In duct

Core x cross- section mm²
	Conductor Diameter		Nominal insulation thickness		Nominal sheath thickness mm	Approx. overall diamete mm	Approx. weight kg/km
	phase mm	earth mm	phase mm	earth mm	Nominal sheath thickness mm	Approx. overall diamete mm	Approx. weight kg/km

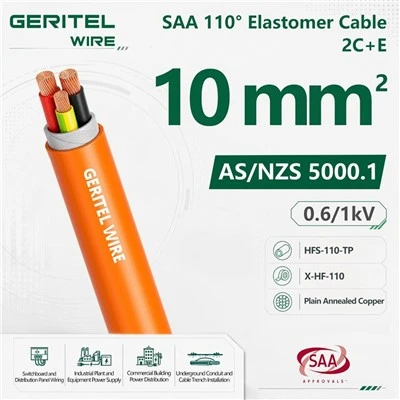

2x10+1x4E	0.40	0.30	0.7	0.7	1.8	16.3	385
2x16+1x6E	0.40	0.30	0.7	0.7	1.8	17.4	515
2x25+1x6E	0.40	0.30	0.9	0.7	1.8	19.9	708
2x35+1x10E	0.40	0.40	0.9	0.7	1.8	22.9	969
2x50+1x16E	0.40	0.40	1.0	0.7	1.8	26.4	1344
2x70+1x25E	0.50	0.40	1.1	0.9	1.8	30.6	1867
2x95+1x25E	0.50	0.40	1.1	0.9	1.9	33.3	2313
2x120+1x35E	0.50	0.40	1.2	0.9	2.0	37.2	2945
2x150+1x50E	0.50	0.40	1.4	1.0	2..1	41.7	3718
2x185+1x70E	0.50	0.50	1.6	1.1	2.3	46.6	4634
2x240+1x95E	0.50	0.50	1.7	1.1	2.4	52.5	6015

mm²	Reactance at 50Hz (ohm/km)
		Current Rating (A)				Electrical Characteristics
		Spaced	Touching surface	Metallic wiring enclosure in air	Underground duct one duct	Maximum DC Resistance 20°C Ω/km
10	0.0810	94	88	75	84	1.91
16	0.0779	124	116	100	109	1.21
25	0.0783	163	154	129	139	0.780
35	0.0761	202	190	163	171	0.554
50	0.0754	254	238	202	209	0.386
70	0.0744	318	299	257	259	0.272
95	0.0729	381	357	303	304	0.206
120	0.0723	450	421	362	357	0.161
150	0.0728	515	482	412	403	0.129
185	0.0730	586	547	474	456	0.106
240	0.0722	698	625	577	611	0.0801

CERTIFICATIONS

2×95+1×25E 2 core and earth cable

2×95+1×25E LSZH cable

PACKAGING

Plastic Reel

Small Wooden Reel

Large Wooden Reel

APPLICATION

Industrial Equipment and Motor Power Supply

Switchboard and Distribution Panel Wiring

Underground Cable Trench and Conduit Installation

CASE

Induction Melting Furnace Power System

Mining Processing Plant MCC and Substation UpgradeModular Homes

Steel Mill Walking Beam Furnace Electrical Installation

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

free air installation cable

CUSTOMER PHOTOS

trench installation power cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

Class 5 multicore cable for switchboards

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Does a custom sheath colour remain SAA approved?

Not automatically. A colour or material change may require technical assessment because certification is tied to the approved construction and marking. GERITEL WIRE reviews every custom colour SAA cable request before quoting so buyers avoid a certificate mismatch.

Can you provide the certificate with the shipment?

GERITEL WIRE can provide digital SAA certificate pages and include the agreed compliance documents in the shipping file. The SAA cable document package is prepared against the final sizes, quantities and purchase-order description.

Is the product compliant with AS/NZS 4507?

The current product data references AS/NZS 4507 for low-fire-hazard cable performance. GERITEL WIRE can include the available AS/NZS 4507 cable evidence in the project submittal, while the consultant confirms the exact project requirement.

What flame propagation tests are referenced?

The current technical data references IEC 60332-1 and bunched-cable flame performance terminology. This supports a flame retardant 2C+E cable claim but does not automatically mean circuit integrity during fire. GERITEL WIRE keeps the claims aligned with the available reports.
