Conductors: Stranded tinned annealed copper conductor.
-
Insulation: EPR.
-
Filling: Elastomer centre filler.
-
Pilot/Control Cores: EPR covered and composite screened flexible stranded tinned copper conductor.
-
Individual Composite Screen (earth conductor): Tinned annealed copper braiding interwoven with polyester yarn.
-
Sheath: Heavy duty CPE sheath.
Application

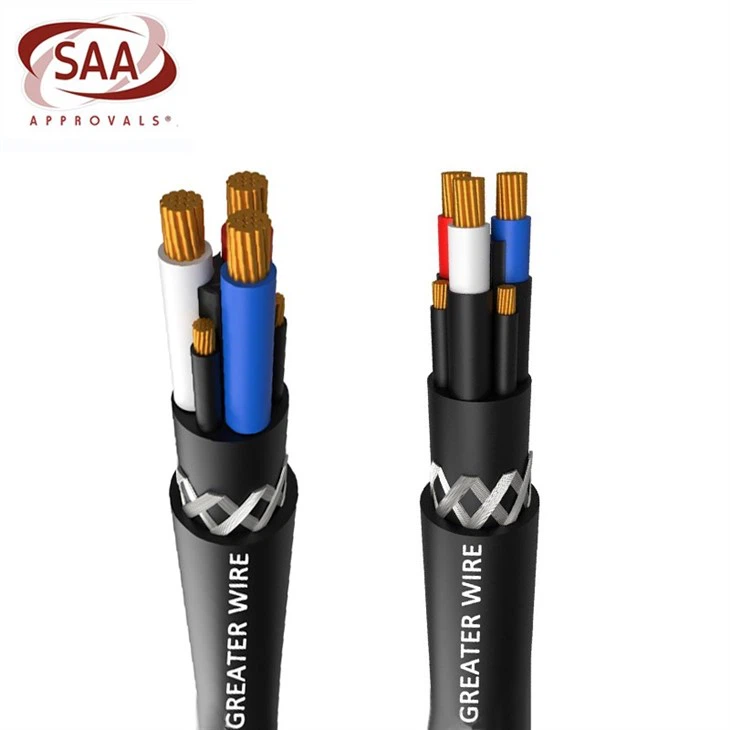

Type 2S 1.1/1.1kV & 3.3/3.3kV Individually Screened Mining Cable is specifically designed for use in harsh underground mining environments where durability, flexibility, and electrical reliability are critical. This cable is ideal for the power and control wiring of mobile and stationary mining equipment, including continuous miners, longwall shearers, pumps, and lighting systems. Its individually screened cores effectively reduce electromagnetic interference, making it especially suitable for applications that involve sensitive control circuits, pilot cores, or instrumentation.
Feature
Type 2S 1.1/1.1kV & 3.3/3.3kV Individually Screened Mining Cable is a robust and high-performance solution designed for demanding underground mining applications. Type 2S cables are commonly used for interconnecting mining machinery, such as continuous miners and longwall equipment, where a flexible yet tough rubber-sheathed cable is essential. They are particularly well-suited for longwall lighting circuits and installations where twisted pair and screened control cores are required. With voltage ratings of both 1.1/1.1kV and 3.3/3.3kV, this cable series supports a wide range of low to medium voltage mining power and control applications.
Certification
Type 2S 1.1/1.1kV & 3.3/3.3kV individually screened mining cable has successfully obtained SAA certification, demonstrating compliance with stringent safety and quality standards required for the Oceania market. To ensure consistent product excellence, all raw materials are sourced exclusively from qualified, long-term partner suppliers. Before any materials are accepted into production, they must be accompanied by valid material certifications and third-party test reports. These documents verify that the materials fully meet the critical requirements for electrical performance, flame retardancy, and environmental durability as specified by relevant cable standards. This rigorous material control process guarantees that every cable produced maintains high reliability and safety in demanding mining environments.
Package
Company Introduction
Greater Wire is a reliable manufacturer of Australian-standard mining cables, with a strong focus on producing high-performance solutions tailored for the mining industry. With over 30 years of specialized production experience, the company operates a modern facility equipped with advanced automated machinery, precision testing systems, and a streamlined quality control process. All mining cables are engineered in strict accordance with AS/NZS standards, ensuring exceptional performance in demanding underground and surface mining conditions.
customer
Partner
Hot Tags: type 2s 1.1/1.1kv & 3.3/3.3kv individually screened mining cable, China type 2s 1.1/1.1kv & 3.3/3.3kv individually screened mining cable manufacturers, suppliers, factory
| Number of Cores | Nominal Conductor Area | Strand Size | Insulation Thickness | Core Screen | Pilot/Earth Conductor | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight | |||
| Strand Size | Area of Screen | Number of pilots | Strand Size | Thickness of Covering | |||||||
| mm² | No/mm | mm | No/mm | mm² | No/mm | mm | mm | mm | kg/100m | ||
| Type 2S 1.1/1kV Individually Screened | |||||||||||
| 3 | 10 | 77/0.40 | 1.2 | 0.2 | 7.9 | 3 | – | – | 1.8 | 22.1 | 69 |
| 4 | 10 | 77/0.40 | 1.2 | 0.2 | 7.9 | 4 | – | – | 1.8 | 23 | 93 |
| 2 | 16 | 126/0.40 | 1.2 | 0.2 | 9 | 2 | – | – | 1.8 | 22 | 81 |
| 3 | 16 | 126/0.40 | 1.2 | 0.2 | 9 | 3 | – | – | 1.8 | 23.4 | 100 |
| 4 | 16 | 126/0.40 | 1.2 | 0.2 | 9 | 4 | – | – | 1.8 | 26.8 | 135 |
| 3 | 10 | 77/0.40 | 1.2 | 0.2 | 7.9 | 3 | 30/0.20 | 1 | 1.8 | 22.5 | 87 |
| 2 | 16 | 126/0.40 | 1.2 | 0.2 | 9 | 2 | 30/0.20 | 1 | 1.8 | 22.7 | 88 |
| 3 | 16 | 126/0.40 | 1.2 | 0.2 | 9 | 3 | 30/0.20 | 1 | 1.8 | 27.7 | 130 |
| 3 | 25 | 209/0.40 | 1.4 | 0.2 | 11.3 | 3 | 30/0.20 | 1 | 1.8 | 29.2 | 165 |
| 3 | 35 | 285/0.40 | 1.4 | 0.2 | 12.4 | 3 | 30/0.20 | 1 | 1.8 | 31.6 | 200 |
| 3 | 50 | 380/0.40 | 1.6 | 0.3 | 17.5 | 3 | 30/0.20 | 1 | 1.9 | 36.1 | 260 |
| Type 2S 1.1/1kV Individually and Collectively Screened | |||||||||||
| 30 | 1.5 | 30/0.25 | 1 | 0.3 | 14 | – | – | – | 1.9 | 32.6 | 170 |
| Type 2S 3.3/3.3Kv Individually Screened | |||||||||||
| 3 | 10 | 77/0.40 | 3 | 0.2 | 11.3 | 3 | 30/0.25 | 1 | 1.8 | 28.9 | 130 |
| 3 | 16 | 126/0.40 | 3 | 0.2 | 12.4 | 3 | 30/0.25 | 1 | 1.8 | 31.3 | 160 |
| 3 | 25 | 209/0.40 | 3 | 0.2 | 13.6 | 3 | 30/0.25 | 1 | 1.9 | 34.8 | 210 |
| 3 | 35 | 285/0.40 | 3 | 0.2 | 15.3 | 3 | 30/0.25 | 1 | 2 | 37.8 | 250 |
| 3 | 50 | 380/0.40 | 3 | 0.2 | 17 | 3 | 30/0.25 | 1 | 2.1 | 41.3 | 305 |
| 3 | 70 | 203/0.67 | 3 | 0.3 | 30.5 | 3 | 30/0.25 | 1 | 2.2 | 46.8 | 415 |
| 3 | 95 | 259/0.67 | 3 | 0.3 | 30.5 | 3 | 30/0.25 | 1 | 2.3 | 49.6 | 490 |
| 3 | 120 | 336/0.67 | 3 | 0.4 | 47.5 | 3 | 30/0.25 | 1 | 2.5 | 55 | 620 |
