Type 409 1.1 To 22KV Miner Cable AS/NZS 2802

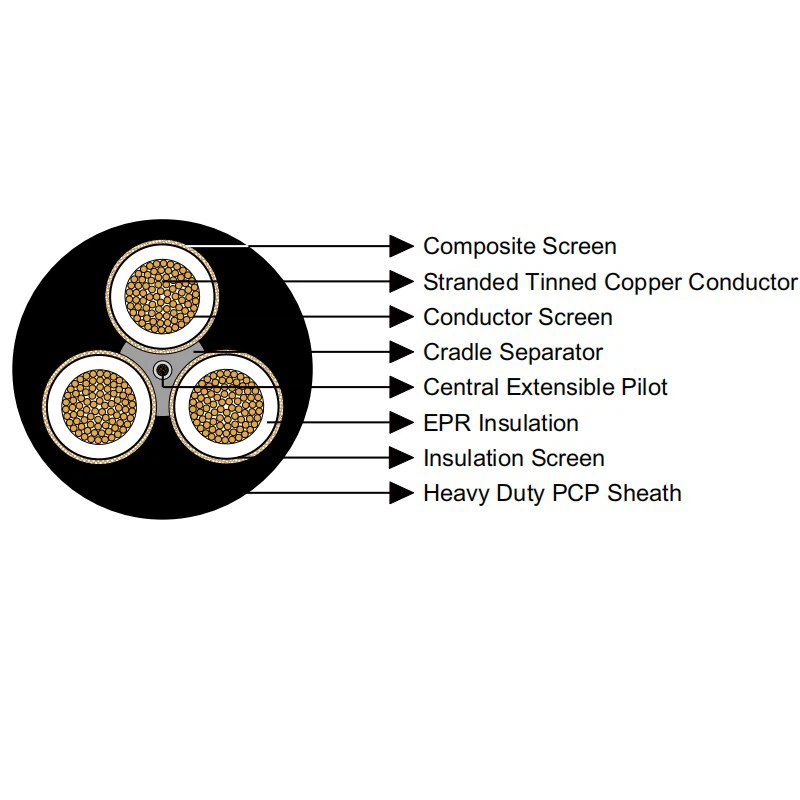

• 3×Conductors: Flexible stranded tinned annealed copper conductor.

• Conductor Screen: Semiconductive compound (for cables having a voltage rating of 3.3/3.3kV and above).

• Insulation: EPR.

• Insulation Screen: Semiconductive elastomer.

• Composite Screen (earth conductor): Tinned annealed copper braiding interwoven with polyester yarn.

• Cradle Separator: Semiconductive PCP.

• 1×Central Extensible Pilot: EPR covered flexible stranded tinned copper conductor.

• Sheath: Heavy duty PCP sheath. Heavy duty CPE/CSP sheath can be offered upon request

Application

Type 409 1.1kV to 22kV miner cables are widely used in various underground and open-pit mining environments, especially for power connections of heavy mining equipment, electric excavators, electric shovels, drilling rigs, hoisting systems and mobile power supply devices. Its highly flexible design and sturdy structure make it very suitable for use in applications with frequent movement, winding and dragging. Due to its excellent resistance to mechanical shock, oil, flame retardancy and abrasion, the cable can maintain stable operation under extreme conditions such as humidity, corrosive gas and dense dust. The configuration of the central pilot core also enables it to achieve remote control and status feedback in the intelligent monitoring system, effectively improving the automation and safety level of the mine power system. As a professional mining cable that complies with the AS/NZS 2802 standard, Type 409 is a reliable solution for high voltage and high current transmission scenarios, ensuring the continuity of mine operations and the safety of personnel and equipment.

Certification

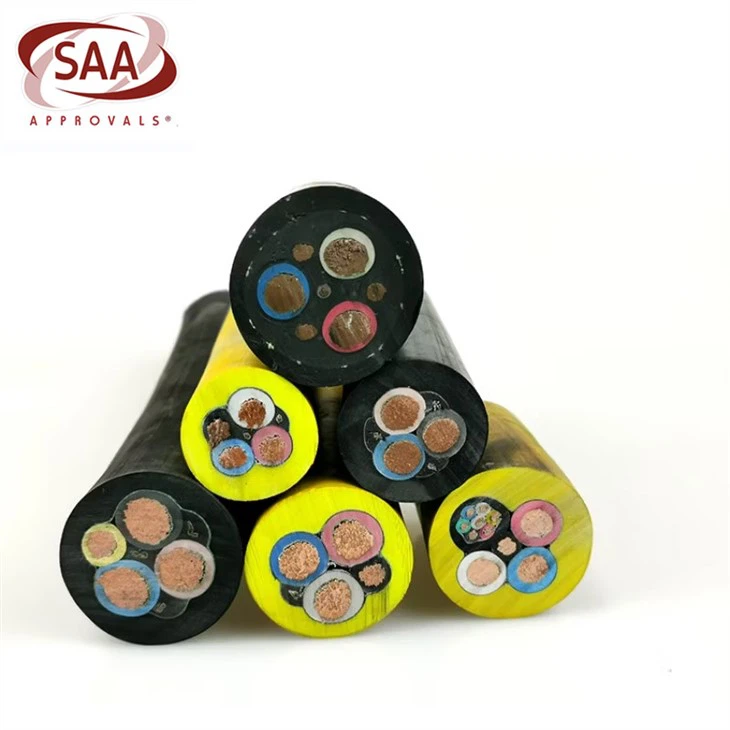

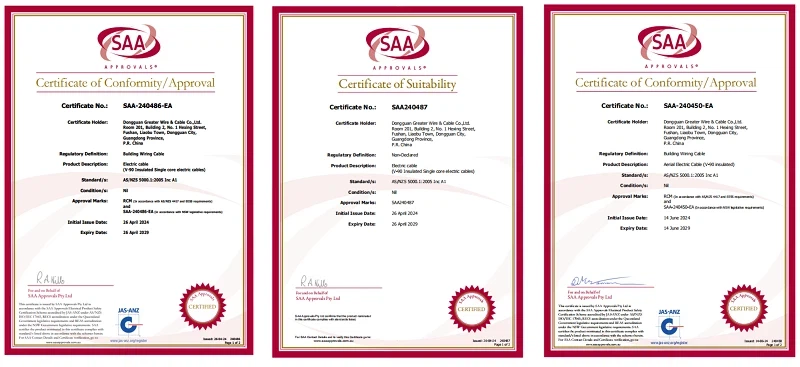

Type 409 miner cables have SAA certification, which means that the product meets the strict standards of Australia and New Zealand in terms of safety, electrical performance and quality. Certified Type 409 cables can legally enter the Australian and New Zealand markets and are widely used in key areas such as mines, power systems and industrial construction. They not only improve the compliance and professionalism of the project, but also provide higher safety protection for end users.

Package

Coel Mining Cable Package

Company Introduction

Greater Wire is a trusted Australian standard miner cable manufacturer, specializing in high-performance cables. The mining cables we produce strictly comply with AS/NZS standards, have excellent mechanical strength, flame retardant properties, and resistance to oil, abrasion, and water, and can operate stably in extremely harsh underground and open-pit mining environments. With more than 30 years of production experience and modern manufacturing equipment, our products also cover a variety of mining cable types such as low voltage, medium voltage, rubber sheathed, and soft cables.

customer

wire and cable supplier

Partner

Greater Wire Partner

Hot Tags: type 409 1.1 to 22kv miner cable as/nzs 2802, China type 409 1.1 to 22kv miner cable as/nzs 2802 manufacturers, suppliers, factory

Type 409 11 To 22KV Miner Cable

Nominal Conductor Area	Strand Size	Insulation Thickness	Core Screen		Pilot Conductor		Thickness of Sheath	Nominal Overall Diameter	Nominal Weight
Nominal Conductor Area	Strand Size	Insulation Thickness	Strand Size	Area of Screen	Strand Size	Thickness of Covering	Thickness of Sheath	Nominal Overall Diameter	Nominal Weight
mm²	No/mm	mm	No/mm	mm²	No/mm	mm	mm	mm	kg/100m
Type 409.1 Class 2
6	84/0.30	1.5	7/0.25	7.2	24/0.20	0.8	3.8	30	129
10	77/0.40	1.5	7/0.25	8.6	24/0.20	0.8	3.8	32.6	157
16	126/0.40	1.6	7/0.25	9.6	24/0.20	0.8	4.0	35.8	197
25	209/0.40	1.6	7/0.25	11.3	24/0.20	0.8	4.3	39.7	255
35	285/0.40	1.6	7/0.25	12.4	24/0.20	0.8	4.6	43.1	312
50	380/0.40	1.7	7/0.25	14.1	40/0.20	0.8	5.0	47.7	386
70	203/0.67	1.8	7/0.25	16.5	40/0.20	0.8	5.4	53.9	503
95	259/0.67	2.0	7/0.30	21.8	40/0.20	0.8	6.0	59.3	622
120	336/0.67	2.1	7/0.30	24.7	40/0.20	0.8	6.4	65.1	760
150	427/0.67	2.3	7/0.40	36.1	40/0.20	0.8	6.9	72.1 960
185	518/0.67	2.5	7/0.40	40.5	40/0.20	0.8	7.4	78.6	1160
240	672/0.67	2.8	7/0.50	57.7	40/0.20	0.8	8.2	88.6	1490
300	854/0.67	3.0	7/0.50	63.2	40/0.20	0.8	8.8	96.3	1800
Type 409.3 Class 2
16	126/0.40	3.0	7/0.25	13.1	24/0.20	0.8	5.3	46.2	301
25	209/0.40	3.0	7/0.25	14.8	24/0.20	0.8	5.6	50.1	371
35	285/0.40	3.0	7/0.25	15.8	24/0.20	0.8	5.9	53.5	430
50	380/0.40	3.0	7/0.25	17.2	40/0.20	0.8	6.3	57.6	511
70	203/0.67	3.0	7/0.25	18.6	40/0.20	0.8	6.6	62.5	624
95	259/0.67	3.0	7/0.25	20.3	40/0.20	0.8	7.1	66.2	724
120	336/0.67	3.0	7/0.30	27.2	40/0.20	0.8	7.4	72	880
150	427/0.67	3.0	7/0.40	39.6	40/0.20	0.8	7.8	78	1079
185	518/0.67	3.0	7/0.40	42.2	40/0.20	0.8	8.2	83.4	1251
240	672/0.67	3.0	7/0.40	46.6	40/0.20	0.8	8.8	90.3	1502
300	854/0.67	3.0	7/0.50	63.2	40/0.20	0.8	9.4	98.4	1840
Type 409.6 Class 2
16	126/0.40	5.0	7/0.25	17.2	24/0.20	0.8	6.4	57.3	440
25	209/0.40	5.0	7/0.25	18.6	24/0.20	0.8	6.7	61.2	516
35	285/0.40	5.0	7/0.25	18.6	24/0.20	0.8	7.0	64.6	584
50	380/0.40	5.0	7/0.25	21.3	40/0.20	0.8	7.3	68.5	669
70	203/0.67	5.0	7/0.25	23.4	40/0.20	0.8	7.7	73.7	804
95	259/0.67	5.0	7/0.30	29.2	40/0.20	0.8	8.1	77.8	934
120	336/0.67	5.0	7/0.30	31.7	40/0.20	0.8	8.5	83.1	1090
150	427/0.67	5.0	7/0.40	45.7	40/0.20	0.8	8.9	89.1	1310
185	518/0.67	5.0	7/0.40	48.4	40/0.20	0.8	9.3	94.5	1479
240	672/0.67	5.0	7/0.40	52.8	40/0.20	0.8	9.9	101.4	1749
300	854/0.67	5.0	7/0.50	71.5	40/0.20	0.8	10.4	109.3	2120
Type 409.11 Class 2
25	209/0.40	7.6	7/0.25	23.7	24/0.20	0.8	8.1	75.6	750
35	285/0.40	7.6	7/0.30	30.2	24/0.20	0.8	8.4	79.7	859
50	380/0.40	7.6	7/0.30	31.7	40/0.20	0.8	8.7	83.6	954
70	203/0.67	7.6	7/0.30	34.1	40/0.20	0.8	9.1	88.8	1105
95	259/0.67	7.6	7/0.40	47.5	40/0.20	0.8	9.6	93.7	1290
120	336/0.67	7.6	7/0.40	51.0	40/0.20	0.8	9.9	98.8	1460
150	427/0.67	7.6	7/0.40	53.7	40/0.20	0.8	10.3	103.5	1636
185	518/0.67	7.6	7/0.40	57.2	40/0.20	0.8	10.7	108.8	1830
Type 409.22 Class 2
35	285/0.40	10.5	7/0.40	55.4	24/0.20	0.8	10.0	105	1405
50	380/0.40	10.5	7/0.40	58.1	40/0.20	0.8	10.3	108.9	1525
70	203/0.67	10.5	7/0.40	60.7	40/0.20	0.8	10.7	114	1710
