Name: China Fixed Wiring SDI Cable From 1mm2 To 16mm2 With SAA Approval Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 314973721

Description

Technical Parameters

Certification

single core double insulated cable for submain circuits

PRODUCT REAL SHOT

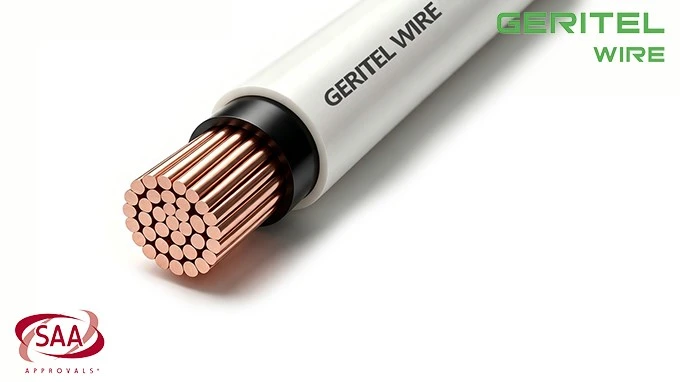

single core double insulated cable for subcircuits

Permanent Building and Equipment Wiring for Conduit Duct and Protected Installation Routes

GERITEL WIRE Fixed Wiring SDI Cable is designed for permanent power distribution rather than portable equipment or repeated movement. Its stranded copper conductor supports dependable current transmission, while V-90 PVC insulation and the additional PVC sheath form a compact protected single-core construction. Typical uses include building mains, floor distribution, final circuits, switchboard wiring and fixed connections to industrial equipment. Cable selection and current rating should follow the applicable installation method, including free air, conduit, thermal insulation, underground ducts or protected trenches. Sizes from 1mm² to 16mm² are available with red or black insulation and a white sheath. OEM printing, cut lengths, reels, packing design and export documentation can be coordinated for wholesalers and project contractors.

PRODUCT SPECIFICATIONS

450 750V SDI wire for final circuits

Applications

PVC INSULATED AND SHEATHED CABLE TO AS/NZS 5000.2. For mains, submains and subcircuits unenclosed, enclosed in conduit,buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

SPECIFICATIONS

CONDUCTOR

Plain annealed copper conductor to AS/NZS 1125

Maximum continuous operating temperature: 75 °C
Can also be operated at temperatures up to 90 °C when not exposed to mechanical deformation (see AS/NZS 3008.1)

INSULATION

V-90 PVC/Colours: Red, Black

Conductor			Cable				Min. installed bending radius mm
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Overall diameter		Approx. mass kg/100m
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Minimum mm	Maximum mm	Approx. mass kg/100m
1.0*	1/1.13	1.13	0.6	3.9	4.1	2.9	15
1.5	7/0.50	1.5	0.6	4.3	4.5	3.5	20
2.5*	1/1.78	1.78	0.7	5.0	5.0	4.9	20
2.5	7/0.67	2.0	0.7	5.2	5.2	5.1	20
4	7/0.85	2.6	0.8	6.2	6.2	7.4	25
6	7/1.04	3.1	0.8	6.7	6.7	10	25
10	7/1.35	4.1	1.0	8.2	8.2	15	35
16	7/1.70	5.1	1.0	9.4	9.4	22	40

Conductor nominal C.S.A mm²	Current rating (a)						Electrical characteristics
	Three phase			Single phase			Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
	Unenclosed Spaced Trefoil A	Buried Direct A	Under- ground in duct A	Unenclosed Spaced A	Buried Direct A	Under- ground in duct A	Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
1.0*	14	21	16	16	24	18	18.1	0.168
1.5	17	27	20	21	31	24	13.6	0.157
2.5*	25	37	28	29	43	33	7.41	0.143
2.5	25	37	28	29	43	33	7.41	0.143
4	33	49	37	39	56	42	4.61	0.137
6	42	61	46	49	71	53	3.08	0.128
10	58	81	61	67	94	71	1.83	0.118
16	77	105	80	89	120	91	1.15	0.111

CERTIFICATIONS

single core double insulated cable for final circuits

PACKAGING

Roll

450 750V SDI wire for switchboard wiring

Plastic Reel

single core double insulated cable for switchboard wiring

Small Wooden Reel

APPLICATION

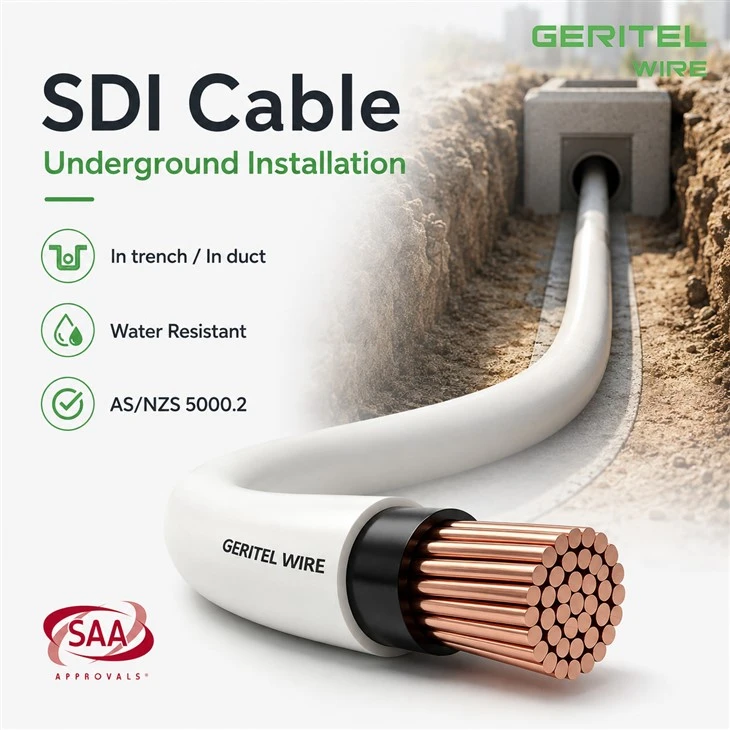

Building Service Corridor & Underground Duct Installation

450 750V SDI wire for distribution board wiring

Electrical Distribution & Switchgear Room

single core double insulated cable for distribution board wiring

Industrial Plant & Control Cabinet Wiring

CASE

75 Castlereagh Street – Sydney, Australia

450 750V SDI wire for panel board wiring

The Canberra Hospital – Main Electrical Switchboard Upgrade, ACT, Australia

single core double insulated cable for panel board wiring

University Switchboard Upgrade – Melbourne, Australia

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

single double insSDI cable for control panel wiring

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

450 750V SDI wire for control panel wiring

single core double insulated cable for control panel wiring

450 750V SDI wire for electrical cabinet wiring

single core double insulated cable for electrical cabinet wiring

SDI cable for fixed equipment connections

GLOBAL CERTIFICATIONS

450 750V SDI wire for fixed equipment connections

CUSTOMER PHOTOS

single core double insulated cable for fixed equipment connections

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

SDI cable for building power distribution

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

450 750V SDI wire for building power distribution

single core double insulated cable for building power distribution

SDI cable for commercial power distribution

450 750V SDI wire for commercial power distribution

SDsingle core double insulated cable for commercial power distribution

SDI cable for industrial power distribution

450 750V SDI wire for industrial power distribution

single core double insulated cable for industrial power distribution

SDI cable for single phase supply circuits

450 750V SDI wire for single phase supply circuits

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

single core double insulated cable for single phase supply circuits

FAQ

Can this SDI product be selected for a mains route?

SDI cable for mains wiring can be selected where its 450/750V rating, conductor size and installation method meet the approved design. Service-provider requirements, voltage drop, fault protection and likely mechanical damage must also be considered.

Is single-core SDI suitable between distribution boards?

SDI wire for submains is commonly used for protected fixed routes between switchboards or distribution points. The designer must choose the conductor size from the load, length, grouping, installation method and applicable derating factors.

Can the product serve lighting and power branch circuits?

SDI cable for final subcircuits may serve suitable fixed lighting, power and equipment circuits when specified by the electrical designer. Correct colour identification, support, enclosure, protection and terminal preparation remain essential.

Is the cable practical for internal switchboard connections?

Switchboard SDI wire can be used for suitable fixed incoming, outgoing and internal connections. Before installation, confirm bend space, lug or terminal compatibility, conductor identification, heat sources and the switchboard manufacturer's instructions.
