Name: China Copper SDI Cable With Red Or Black V90 PVC Core Identification Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 314973379

Description

Technical Parameters

Certification

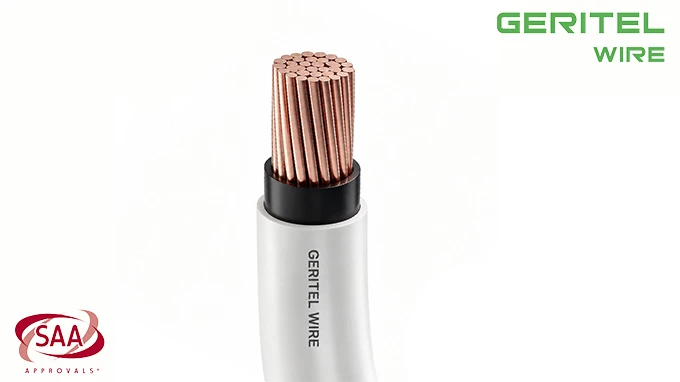

100m roll SDI wire

PRODUCT REAL SHOT

Controlled Copper Stranding for Reliable Residential Commercial and Industrial Distribution

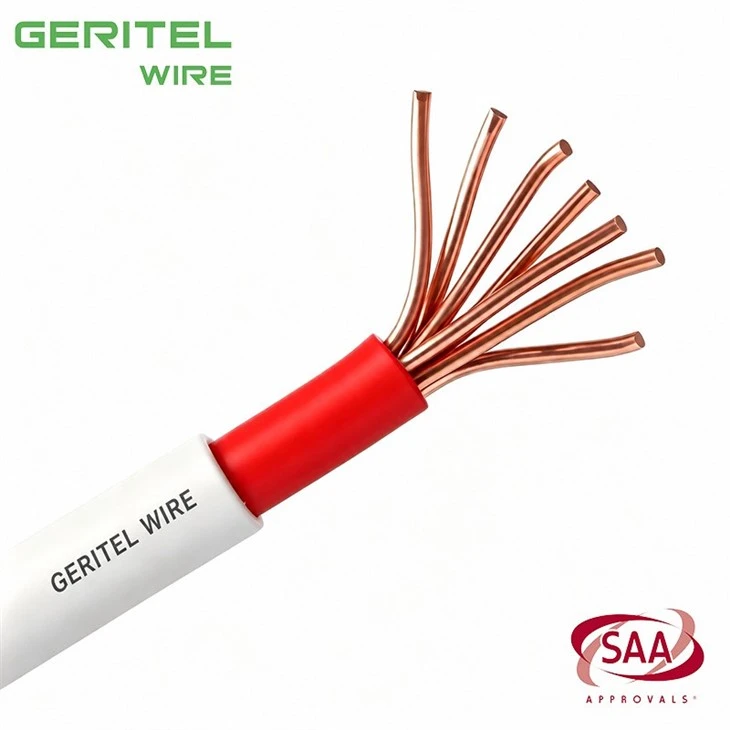

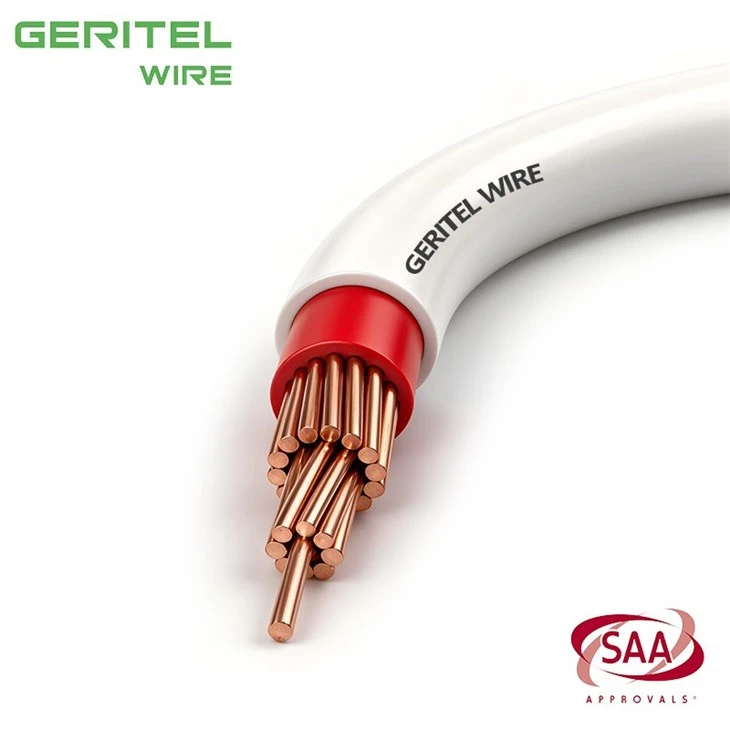

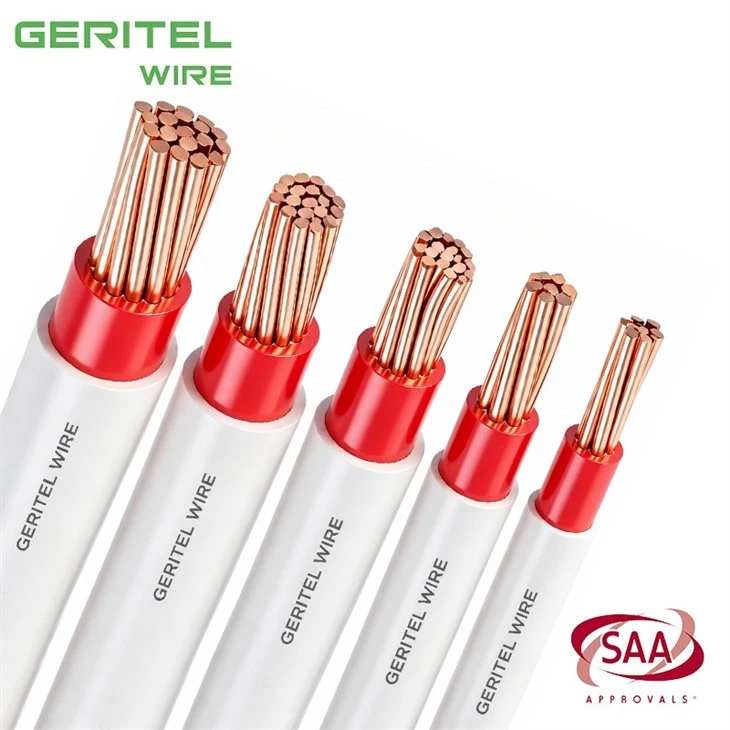

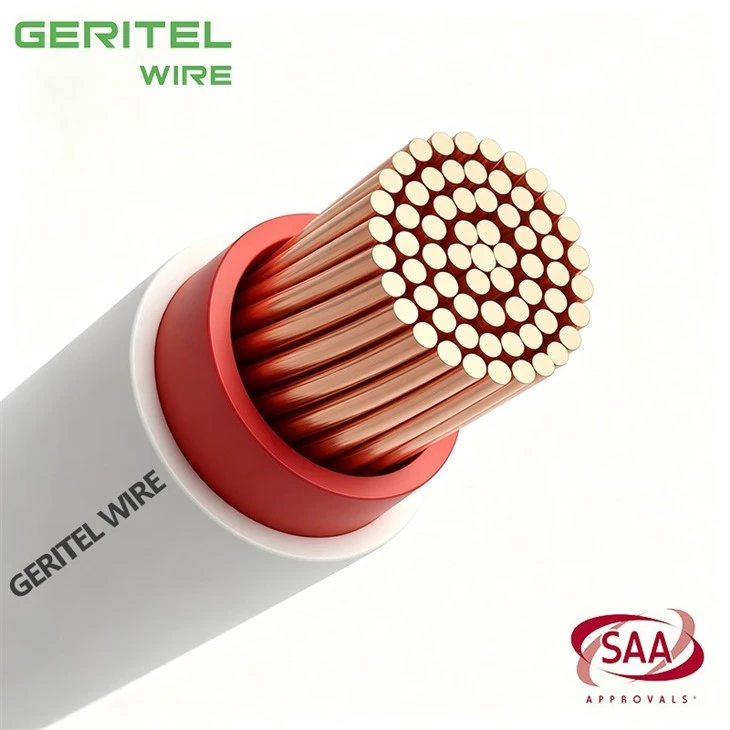

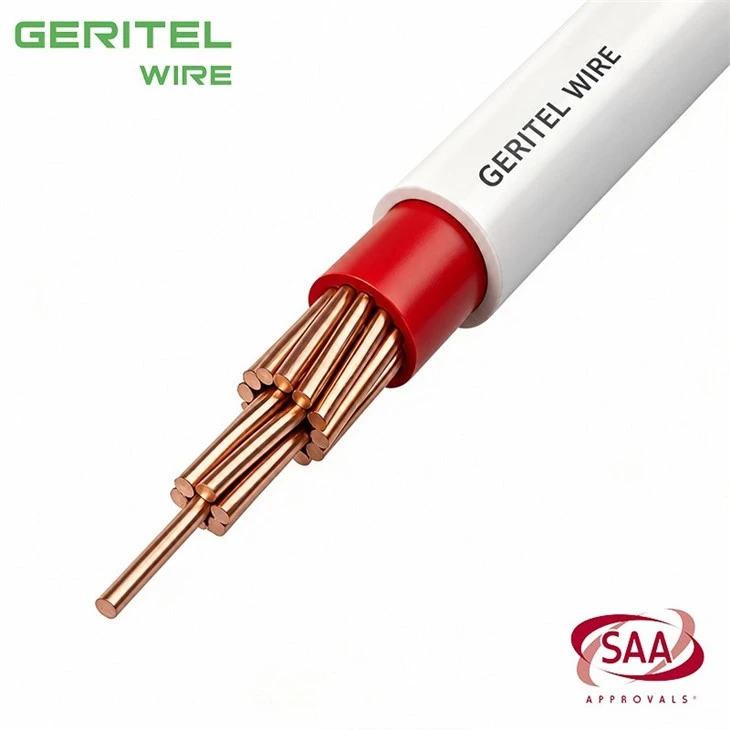

GERITEL WIRE Copper SDI Cable is produced for buyers who prioritize conductor consistency and documented Australian-standard fixed wiring. The stranded annealed copper core is covered with V-90 PVC insulation and a separate PVC sheath, helping protect the insulated conductor during normal handling and installation. Its 450/750V design supports mains, submains, final circuits, switchboard connections and general power distribution in homes, commercial buildings and industrial facilities. Product selection should consider the actual installation method, grouping, ambient conditions and terminal temperature limits. GERITEL WIRE can supply sizes from 1mm² to 16mm² with red or black insulation, white sheath, OEM marking and project-specific reel lengths. SAA certificate SAA-241265-EA is available for compliance review and purchasing records.

PRODUCT SPECIFICATIONS

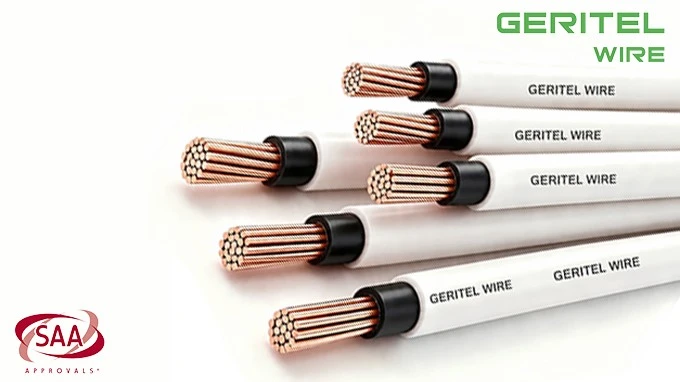

500 metre drum SDI cable

Applications

PVC INSULATED AND SHEATHED CABLE TO AS/NZS 5000.2. For mains, submains and subcircuits unenclosed, enclosed in conduit,buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

SPECIFICATIONS

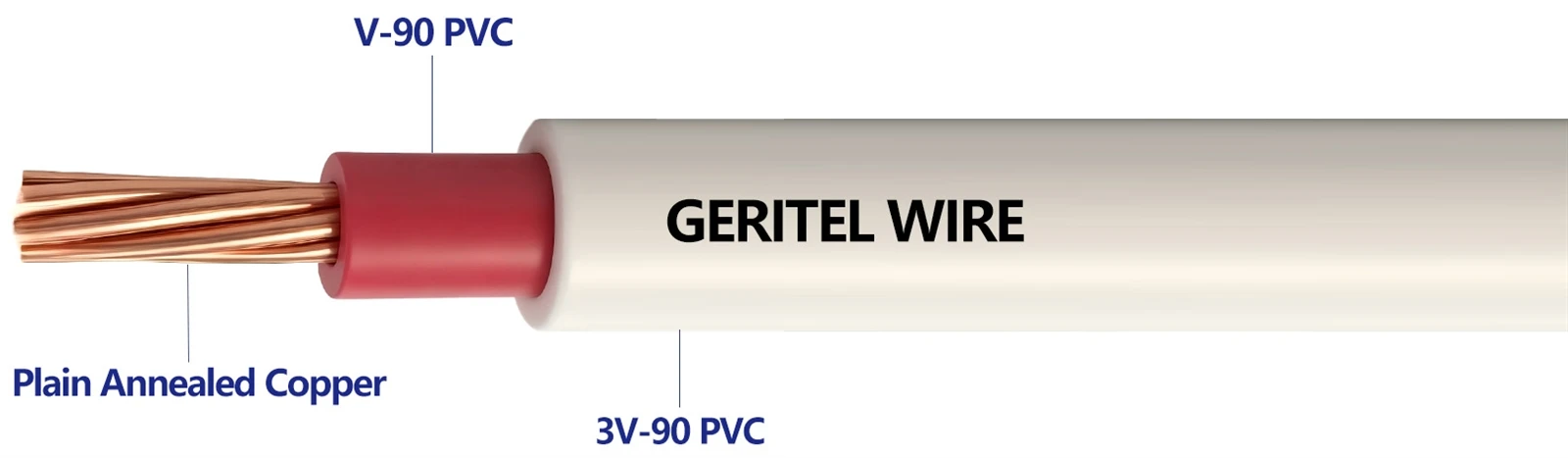

CONDUCTOR

Plain annealed copper conductor to AS/NZS 1125

Maximum continuous operating temperature: 75 °C
Can also be operated at temperatures up to 90 °C when not exposed to mechanical deformation (see AS/NZS 3008.1)

INSULATION

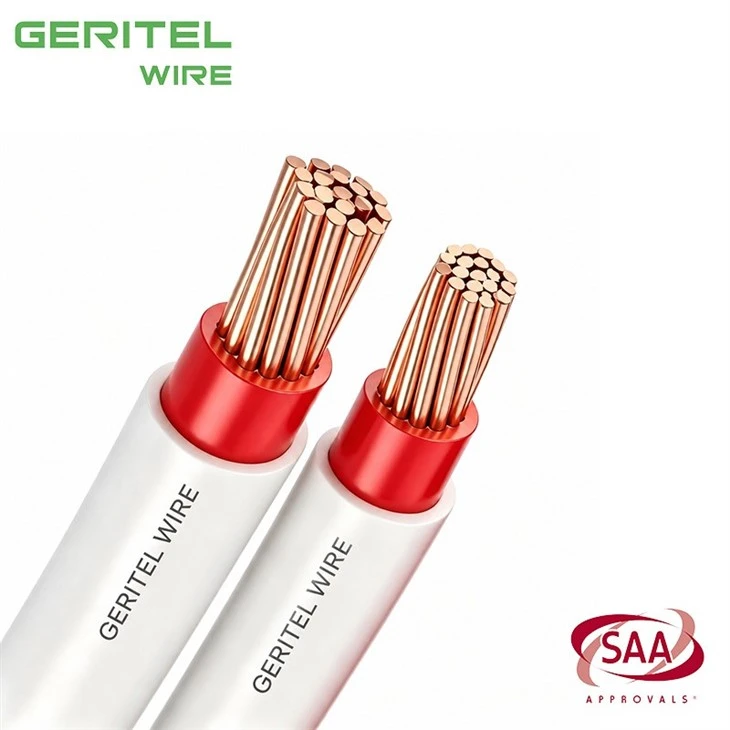

V-90 PVC/Colours: Red, Black

Conductor			Cable				Min. installed bending radius mm
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Overall diameter		Approx. mass kg/100m
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Minimum mm	Maximum mm	Approx. mass kg/100m
1.0*	1/1.13	1.13	0.6	3.9	4.1	2.9	15
1.5	7/0.50	1.5	0.6	4.3	4.5	3.5	20
2.5*	1/1.78	1.78	0.7	5.0	5.0	4.9	20
2.5	7/0.67	2.0	0.7	5.2	5.2	5.1	20
4	7/0.85	2.6	0.8	6.2	6.2	7.4	25
6	7/1.04	3.1	0.8	6.7	6.7	10	25
10	7/1.35	4.1	1.0	8.2	8.2	15	35
16	7/1.70	5.1	1.0	9.4	9.4	22	40

Conductor nominal C.S.A mm²	Current rating (a)						Electrical characteristics
	Three phase			Single phase			Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
	Unenclosed Spaced Trefoil A	Buried Direct A	Under- ground in duct A	Unenclosed Spaced A	Buried Direct A	Under- ground in duct A	Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
1.0*	14	21	16	16	24	18	18.1	0.168
1.5	17	27	20	21	31	24	13.6	0.157
2.5*	25	37	28	29	43	33	7.41	0.143
2.5	25	37	28	29	43	33	7.41	0.143
4	33	49	37	39	56	42	4.61	0.137
6	42	61	46	49	71	53	3.08	0.128
10	58	81	61	67	94	71	1.83	0.118
16	77	105	80	89	120	91	1.15	0.111

CERTIFICATIONS

500 metre drum SDI wire

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Building Service Corridor & Underground Duct Installation

Electrical Distribution & Switchgear Room

Industrial Plant & Control Cabinet Wiring

CASE

75 Castlereagh Street – Sydney, Australia

The Canberra Hospital – Main Electrical Switchboard Upgrade, ACT, Australia

University Switchboard Upgrade – Melbourne, Australia

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

wholesale roll SDI cable

CUSTOMER PHOTOS

wholesale roll SDI wire

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

single core double insulated cable for mains wiring

single core double insulated cable for consumer mains

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

single core double insulated cable for mixed use building wiring

FAQ

Can you give one current rating for each conductor size?

SDI cable current carrying capacity is not one universal value for each size. It changes with installation method, grouping, ambient temperature and other derating factors. The final rating must be calculated from the applicable wiring rules and actual project conditions.

What information is needed to calculate voltage drop?

An SDI wire voltage drop calculation normally requires conductor size, circuit length, design current, supply arrangement and the voltage-drop limit used by the project. We can provide the relevant product information, but the final calculation belongs in the electrical design.

Is this product intended for permanent wiring or portable leads?

This is a fixed wiring SDI cable for permanent electrical installations. It should not be used as a portable extension lead, trailing cable, drag-chain cable or connection that bends repeatedly while equipment is operating.

Can electricians pull the wire through conduit?

SDI wire in conduit is a standard installation option when the route is correctly designed. Installers should check conduit fill, pulling tension, bend radius, grouping and edge protection, and use a pulling method that does not cut or stretch the PVC sheath.
