2.5mm2 stranded copper SDI cable

PRODUCT REAL SHOT

double insulated building wire for circuit breaker connections

Smooth PVC Outer Finish for Efficient Pulling Identification and Permanent Circuit Routing

For projects that need compact fixed wiring with an independent protective covering, GERITEL WIRE PVC Insulated and Sheathed Wire combines a stranded annealed copper conductor with V-90 PVC insulation and a smooth PVC outer sheath. The controlled extrusion process supports even coverage, clean stripping and consistent finished dimensions for efficient installation. This single-core construction is appropriate for building distribution, switchboards, machinery panels and other 450/750V circuits installed in conduit, ducts or protected cable routes. It is not intended as a trailing lead or repeatedly flexed equipment cord. Red and black insulation options help identify circuits, while custom printing, lengths, reels and carton or pallet packing can be prepared for wholesalers, contractors and modular-building manufacturers.

PRODUCT SPECIFICATIONS

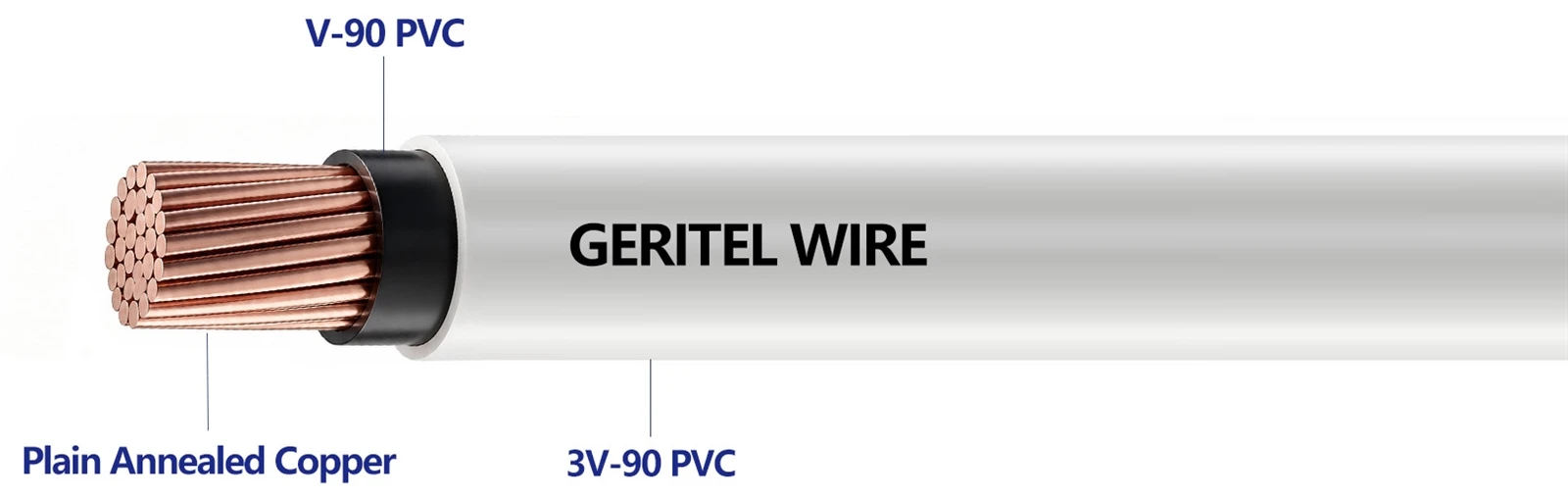

black core white sheath SDI cable

Applications

PVC INSULATED AND SHEATHED CABLE TO AS/NZS 5000.2. For mains, submains and subcircuits unenclosed, enclosed in conduit,buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

SPECIFICATIONS

CONDUCTOR

Plain annealed copper conductor to AS/NZS 1125

Maximum continuous operating temperature: 75 °C
Can also be operated at temperatures up to 90 °C when not exposed to mechanical deformation (see AS/NZS 3008.1)

INSULATION

V-90 PVC/Colours: Red, Black

Conductor			Cable				Min. installed bending radius mm
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Overall diameter		Approx. mass kg/100m
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Minimum mm	Maximum mm	Approx. mass kg/100m
1.0*	1/1.13	1.13	0.6	3.9	4.1	2.9	15
1.5	7/0.50	1.5	0.6	4.3	4.5	3.5	20
2.5*	1/1.78	1.78	0.7	5.0	5.0	4.9	20
2.5	7/0.67	2.0	0.7	5.2	5.2	5.1	20
4	7/0.85	2.6	0.8	6.2	6.2	7.4	25
6	7/1.04	3.1	0.8	6.7	6.7	10	25
10	7/1.35	4.1	1.0	8.2	8.2	15	35
16	7/1.70	5.1	1.0	9.4	9.4	22	40

Conductor nominal C.S.A mm²	Current rating (a)						Electrical characteristics
	Three phase			Single phase			Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
	Unenclosed Spaced Trefoil A	Buried Direct A	Under- ground in duct A	Unenclosed Spaced A	Buried Direct A	Under- ground in duct A	Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
1.0*	14	21	16	16	24	18	18.1	0.168
1.5	17	27	20	21	31	24	13.6	0.157
2.5*	25	37	28	29	43	33	7.41	0.143
2.5	25	37	28	29	43	33	7.41	0.143
4	33	49	37	39	56	42	4.61	0.137
6	42	61	46	49	71	53	3.08	0.128
10	58	81	61	67	94	71	1.83	0.118
16	77	105	80	89	120	91	1.15	0.111

CERTIFICATIONS

black core white sheath SDI wire

PACKAGING

double insulated building wire for RCD board wiring

Roll

single core building wire for RCD board wiring

Plastic Reel

Small Wooden Reel

APPLICATION

red insulation white sheath single core cable

Building Service Corridor & Underground Duct Installation

red insulation white sheath single core wire

Electrical Distribution & Switchgear Room

black insulation white sheath single core cable

Industrial Plant & Control Cabinet Wiring

CASE

black insulation white sheath single core wire

75 Castlereagh Street – Sydney, Australia

The Canberra Hospital – Main Electrical Switchboard Upgrade, ACT, Australia

University Switchboard Upgrade – Melbourne, Australia

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

black and white single core SDI wire

CUSTOMER PHOTOS

colour coded SDI cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

What types of loads may require the 4mm² size?

A 4mm² SDI cable may be considered for larger branch circuits, selected equipment feeds and distribution routes. GERITEL WIRE can provide product data, while the project engineer confirms ampacity, voltage drop, route conditions and terminal compatibility.

Is 6mm² available for feeder or submain work?

Yes. A 6mm² SDI wire can be supplied for suitable feeder, submain or fixed-equipment circuits. The permitted load will vary between conduit, free-air, grouped and underground-duct routes, so the installation method must be included in the size calculation.

Where is the 10mm² product normally considered?

A 10mm² SDI cable is commonly considered for higher-load building distribution, switchboard links and selected submains. Circuit length, grouping, ambient temperature, protective device and terminal rating must be assessed before the size is approved.

Can the 16mm² size be used for consumer mains?

A 16mm² SDI wire may be used in some consumer-main, submain and higher-load fixed distribution designs. Acceptance depends on the calculated load, service-provider requirements, voltage drop, fault protection and local installation rules.
