Name: China White Sheathed SDI Wire With Red Or Black V90 PVC Insulation Options Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 314973469

Description

Technical Parameters

Certification

double insulated building wire for mixed use building wiring

PRODUCT REAL SHOT

single core building wire for mixed use building wiring

SDI cable for high rise building electrical distribution

single double insulated cable for high rise building electrical distribution

Clean White Outer Sheath with Custom Marking for Project and Wholesale Supply

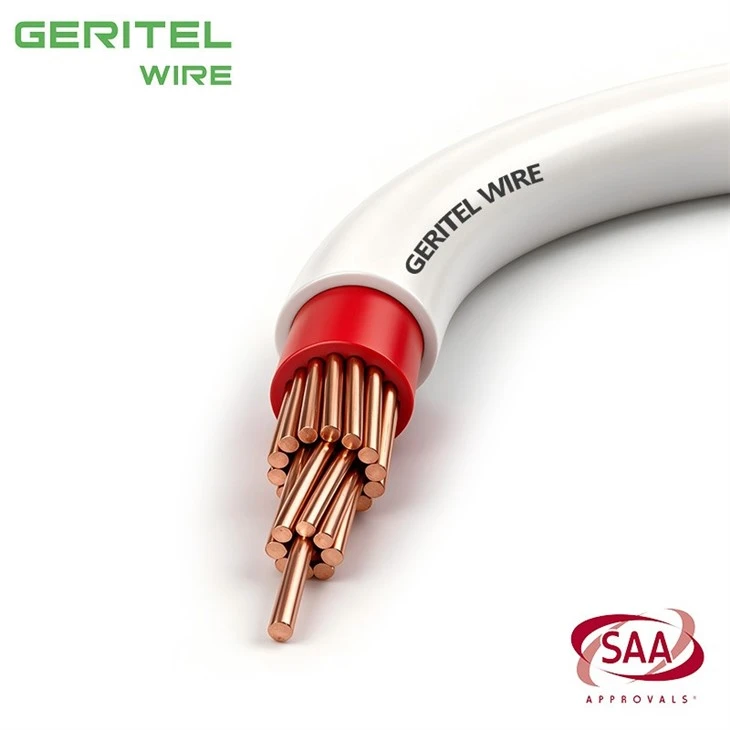

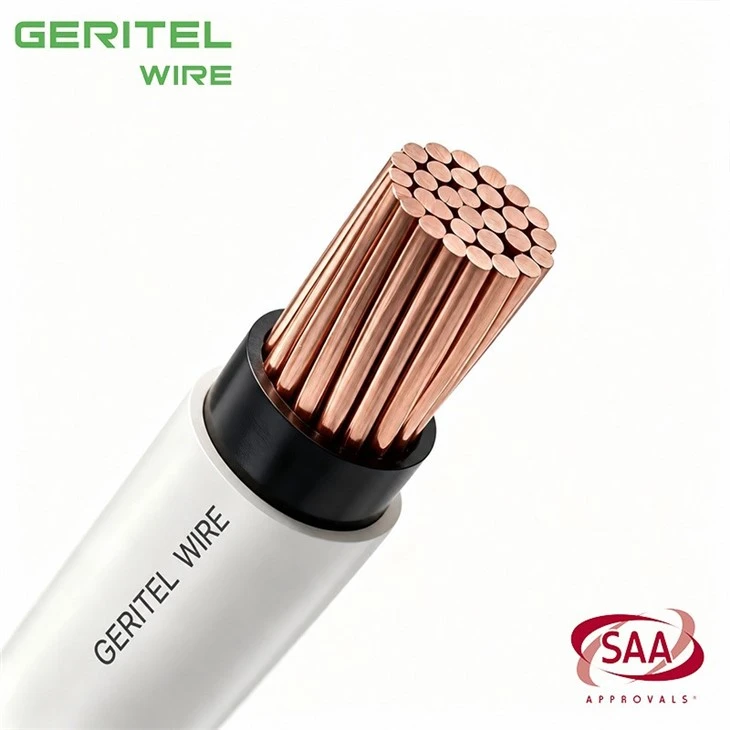

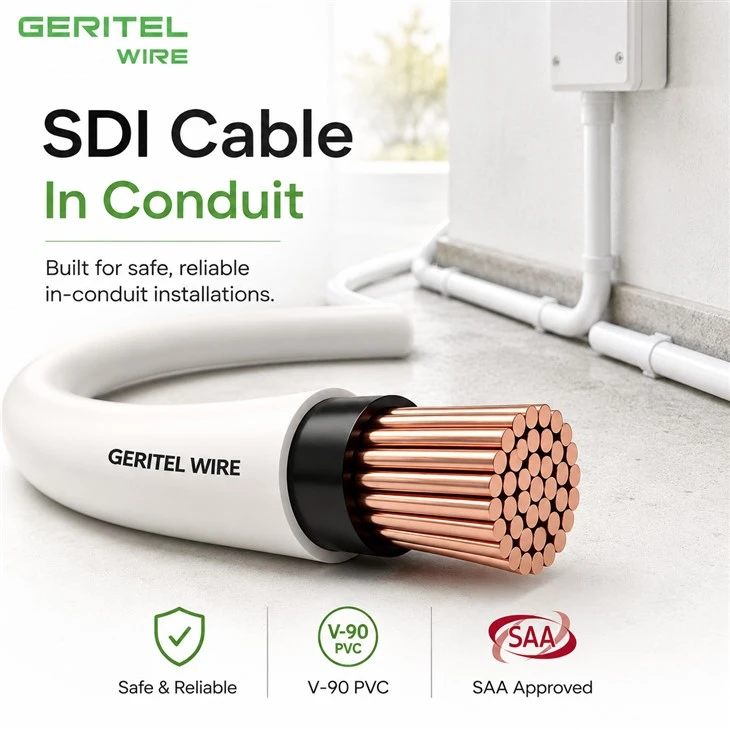

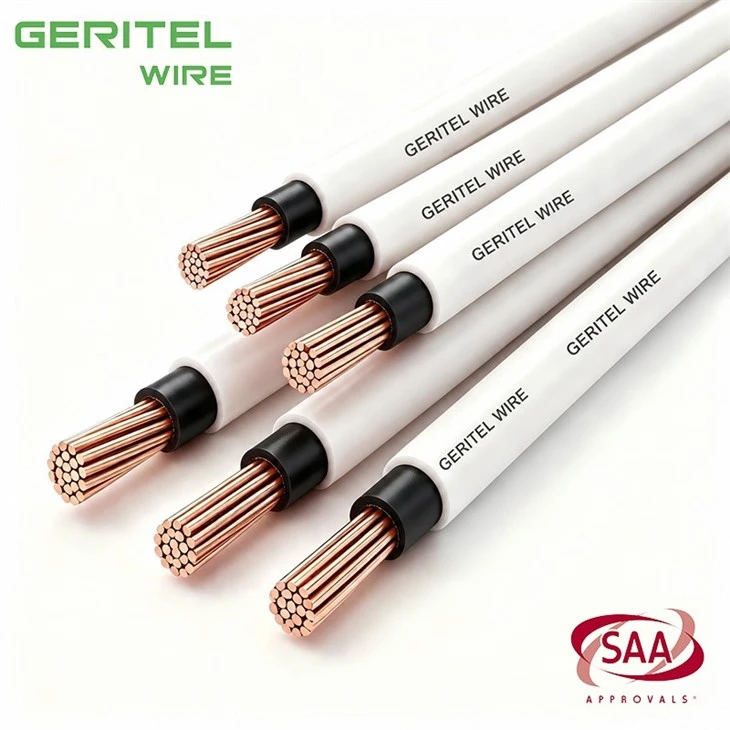

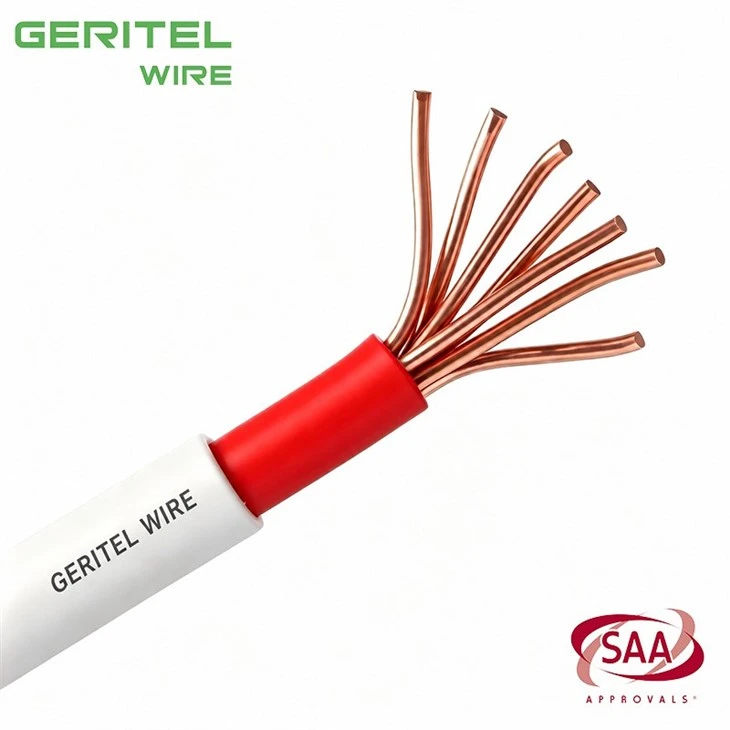

The clean outer finish of GERITEL WIRE White Sheathed SDI Wire protects the V-90 PVC insulated copper core and provides a practical surface for product identification and customized printing. Red or black inner insulation remains visible at termination points, supporting circuit recognition during installation and maintenance. The single-core 450/750V construction is intended for fixed mains, submains and subcircuits in residential, commercial and light industrial electrical systems. It may be routed through conduit, cable ducts and protected service spaces where mechanical damage is not expected. Buyers can match conductor size, insulation colour, print content, reel length and export packaging to their project. GERITEL WIRE also provides responsive specification checks and SAA compliance documentation before production.

PRODUCT SPECIFICATIONS

double insulated building wire for high rise building electrical distribution

Applications

PVC INSULATED AND SHEATHED CABLE TO AS/NZS 5000.2. For mains, submains and subcircuits unenclosed, enclosed in conduit,buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

SPECIFICATIONS

CONDUCTOR

Plain annealed copper conductor to AS/NZS 1125

Maximum continuous operating temperature: 75 °C
Can also be operated at temperatures up to 90 °C when not exposed to mechanical deformation (see AS/NZS 3008.1)

INSULATION

V-90 PVC/Colours: Red, Black

Conductor			Cable				Min. installed bending radius mm
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Overall diameter		Approx. mass kg/100m
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Minimum mm	Maximum mm	Approx. mass kg/100m
1.0*	1/1.13	1.13	0.6	3.9	4.1	2.9	15
1.5	7/0.50	1.5	0.6	4.3	4.5	3.5	20
2.5*	1/1.78	1.78	0.7	5.0	5.0	4.9	20
2.5	7/0.67	2.0	0.7	5.2	5.2	5.1	20
4	7/0.85	2.6	0.8	6.2	6.2	7.4	25
6	7/1.04	3.1	0.8	6.7	6.7	10	25
10	7/1.35	4.1	1.0	8.2	8.2	15	35
16	7/1.70	5.1	1.0	9.4	9.4	22	40

Conductor nominal C.S.A mm²	Current rating (a)						Electrical characteristics
	Three phase			Single phase			Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
	Unenclosed Spaced Trefoil A	Buried Direct A	Under- ground in duct A	Unenclosed Spaced A	Buried Direct A	Under- ground in duct A	Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
1.0*	14	21	16	16	24	18	18.1	0.168
1.5	17	27	20	21	31	24	13.6	0.157
2.5*	25	37	28	29	43	33	7.41	0.143
2.5	25	37	28	29	43	33	7.41	0.143
4	33	49	37	39	56	42	4.61	0.137
6	42	61	46	49	71	53	3.08	0.128
10	58	81	61	67	94	71	1.83	0.118
16	77	105	80	89	120	91	1.15	0.111

CERTIFICATIONS

single core building wire for high rise building electrical distribution

PACKAGING

Roll

single double insulated cable for industrial plant wiring

Plastic Reel

single core double insulated cable for industrial plant wiring

Small Wooden Reel

APPLICATION

double insulated building wire for industrial plant wiring

Building Service Corridor & Underground Duct Installation

single core building wire for industrial plant wiring

Electrical Distribution & Switchgear Room

SDI cable for factory power distribution

Industrial Plant & Control Cabinet Wiring

CASE

single double insulated cable for factory power distribution

75 Castlereagh Street – Sydney, Australia

single core double insulated cable for factory power distribution

The Canberra Hospital – Main Electrical Switchboard Upgrade, ACT, Australia

double insulated building wire for factory power distribution

University Switchboard Upgrade – Melbourne, Australia

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

single core building wire for factory power distribution

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

SDI cable for manufacturing facility wiring

single double insulated cable for manufacturing facility wiring

single core double insulated cable for manufacturing facility wiring

double insulated building wire for manufacturing facility wiring

single core building wire for manufacturing facility wiring

SDI cable for industrial equipment power supply

GLOBAL CERTIFICATIONS

single double insulated cable for industrial equipment power supply

CUSTOMER PHOTOS

single core double insulated cable for industrial equipment power supply

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

double insulated building wire for industrial equipment power supply

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

single core building wire for industrial equipment power supply

SDI cable for machine power supply wiring

single double insulated cable for machine power supply wiring

single core double insulated cable for machine power supply wiring

double insulated building wire for machine power supply wiring

single core building wire for machine power supply wiring

SDI cable for motor control centre wiring

single double insulated cable for motor control centre wiring

single core double insulated cable for motor control centre wiring

double insulated building wire for motor control centre wiring

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

single core building wire for motor control centre wiring

FAQ

May the cable be supported on an open route?

SDI cable in free air may be used where the selected wiring method and local rules permit an unenclosed fixed cable. It must be adequately supported and kept away from likely impact, abrasion, repeated movement and excessive heat.

Is the product suitable for a protected underground duct?

Underground duct SDI wire can be considered when the duct system provides the required mechanical protection and the design addresses moisture, drainage, pulling conditions and derating. The standard cable is not armoured and is not intended for permanent immersion.

Can this cable run through a protected trench system?

SDI cable in protected trench routes may be used when the complete installation provides the protection required by local rules. The contractor must confirm conduit or covers, separation, burial depth, drainage and safeguards against mechanical damage.

Can I place the cable directly in soil without conduit?

Do not treat this standard product as universally approved direct burial SDI cable. Soil, moisture, depth and impact risks must be assessed, and the applicable rules may require conduit, ducting, protective covers or a different cable construction.

Hot Tags: white sheathed sdi wire with red or black v90 pvc insulation options, China white sheathed sdi wire with red or black v90 pvc insulation options manufacturers, suppliers, factory, SAA Approval SDI Cable, sdi cable
