SDI cable for three phase supply circuits

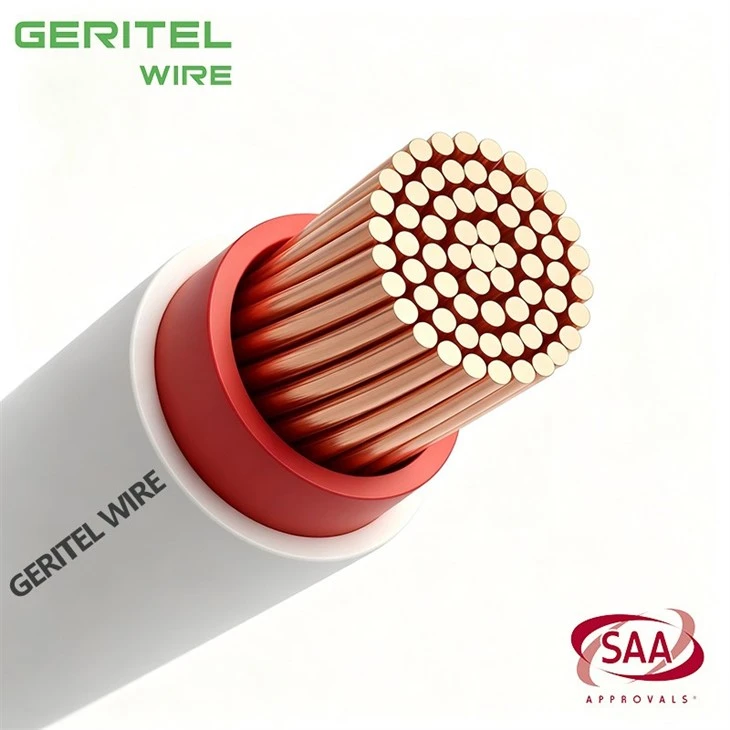

PRODUCT REAL SHOT

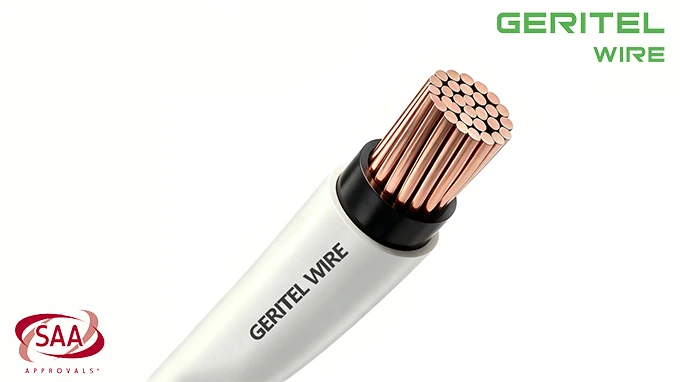

450 750V SDI wire for three phase supply circuits

single core double insulated cable for three phase supply circuits

450 750V Single Core Construction for Distributors Contractors and Project Buyers

For electrical distributors and contractors serving Australia and New Zealand, GERITEL WIRE Australian Standard SDI Wire provides a 450/750V single-core option made with stranded annealed copper, V-90 PVC insulation and a PVC outer sheath. The cable is manufactured for fixed power and lighting circuits where clear construction, consistent dimensions and compliance documentation matter. It can support residential developments, commercial buildings, prefabricated units, switchboards and industrial auxiliary systems when installed in accordance with the project wiring design. Available red or black insulation helps circuit identification, while conductor sizes and reel lengths support stock and project orders. GERITEL WIRE offers OEM sheath marking, customized packaging and SAA certificate SAA-241265-EA for pre-order technical review.

PRODUCT SPECIFICATIONS

single core double insulated cable for feeder circuits

Applications

PVC INSULATED AND SHEATHED CABLE TO AS/NZS 5000.2. For mains, submains and subcircuits unenclosed, enclosed in conduit,buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

SPECIFICATIONS

CONDUCTOR

Plain annealed copper conductor to AS/NZS 1125

Maximum continuous operating temperature: 75 °C
Can also be operated at temperatures up to 90 °C when not exposed to mechanical deformation (see AS/NZS 3008.1)

INSULATION

V-90 PVC/Colours: Red, Black

Conductor			Cable				Min. installed bending radius mm
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Overall diameter		Approx. mass kg/100m
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Minimum mm	Maximum mm	Approx. mass kg/100m
1.0*	1/1.13	1.13	0.6	3.9	4.1	2.9	15
1.5	7/0.50	1.5	0.6	4.3	4.5	3.5	20
2.5*	1/1.78	1.78	0.7	5.0	5.0	4.9	20
2.5	7/0.67	2.0	0.7	5.2	5.2	5.1	20
4	7/0.85	2.6	0.8	6.2	6.2	7.4	25
6	7/1.04	3.1	0.8	6.7	6.7	10	25
10	7/1.35	4.1	1.0	8.2	8.2	15	35
16	7/1.70	5.1	1.0	9.4	9.4	22	40

Conductor nominal C.S.A mm²	Current rating (a)						Electrical characteristics
	Three phase			Single phase			Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
	Unenclosed Spaced Trefoil A	Buried Direct A	Under- ground in duct A	Unenclosed Spaced A	Buried Direct A	Under- ground in duct A	Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
1.0*	14	21	16	16	24	18	18.1	0.168
1.5	17	27	20	21	31	24	13.6	0.157
2.5*	25	37	28	29	43	33	7.41	0.143
2.5	25	37	28	29	43	33	7.41	0.143
4	33	49	37	39	56	42	4.61	0.137
6	42	61	46	49	71	53	3.08	0.128
10	58	81	61	67	94	71	1.83	0.118
16	77	105	80	89	120	91	1.15	0.111

CERTIFICATIONS

SDI cable for incoming supply wiring

PACKAGING

450 750V SDI wire for incoming supply wiring

Roll

single core double insulated cable for incoming supply wiring

Plastic Reel

Small Wooden Reel

APPLICATION

450 750V SDI wire for meter board wiring

Building Service Corridor & Underground Duct Installation

single core double insulated cable for meter board wiring

Electrical Distribution & Switchgear Room

Industrial Plant & Control Cabinet Wiring

CASE

75 Castlereagh Street – Sydney, Australia

single core double insulated cable for plant room wiring

The Canberra Hospital – Main Electrical Switchboard Upgrade, ACT, Australia

University Switchboard Upgrade – Melbourne, Australia

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

450 750V SDI wire for machinery panel wiring

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

single core double insulated cable for machinery panel wiring

SDI cable for lighting distribution circuits

single core building wire for cable tray routing

450 750V SDI wire for lighting distribution circuits

single core double insulated cable for lighting distribution circuits

GLOBAL CERTIFICATIONS

SDI cable for socket outlet circuits

CUSTOMER PHOTOS

450 750V SDI wire for socket outlet circuits

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

single core double insulated cable for socket outlet circuits

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

single double iSDI cable for HVAC auxiliary power

450 750V SDI wire for HVAC auxiliary power

single core double insulated cable for HVAC auxiliary power

450 750V SDI wire for building services wiring

single double insulated cable for wall cavity wiring

single core double insulated cable for wall cavity wiring

single core double insulated cable for building services wiring

450 750V SDI wire for free air installation

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

single core double insulated cable for free air installation

FAQ

Can the cable be routed inside an industrial control panel?

Control panel SDI cable may be used for suitable fixed power connections when the 450/750V PVC construction meets the panel design. It is not a flexible automation cable, so movement, tight bends, heat and terminal space must be reviewed.

How tightly can the wire be bent?

The correct SDI wire bend radius depends on conductor size and whether the cable is under pulling tension or already installed. Use the value in the agreed product data, avoid sharp kinks and protect the sheath at entries and edges.

Where can the product be used in residential projects?

Residential SDI cable may be specified for suitable mains, submains, switchboard links and final fixed circuits. The electrical design must select the correct size and installation method, and the route should be protected wherever physical damage is likely.

Is this wire relevant to offices and retail buildings?

Commercial building SDI wire can support suitable fixed distribution in offices, shops, service rooms and distribution-board routes. Designers should account for containment, grouping, fire strategy, route access and local compliance requirements.
