Name: China Red Insulation SDI Cable With White PVC Outer Sheath And Copper Conductor Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 314974308

Description

Technical Parameters

Certification

single core double insulated cable for ceiling space wiring

PRODUCT REAL SHOT

double insulated building wire for ceiling space wiring

single core building wire for ceiling space wiring

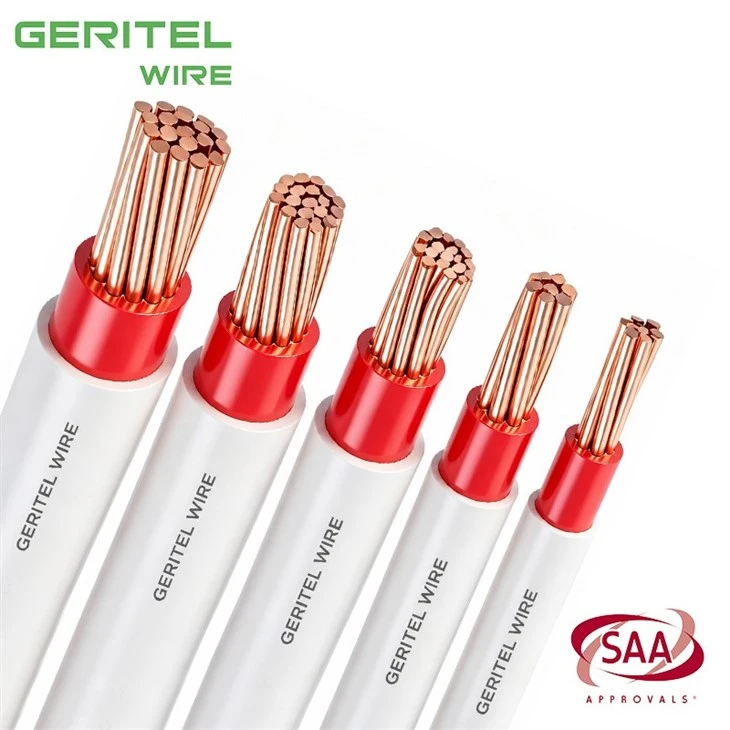

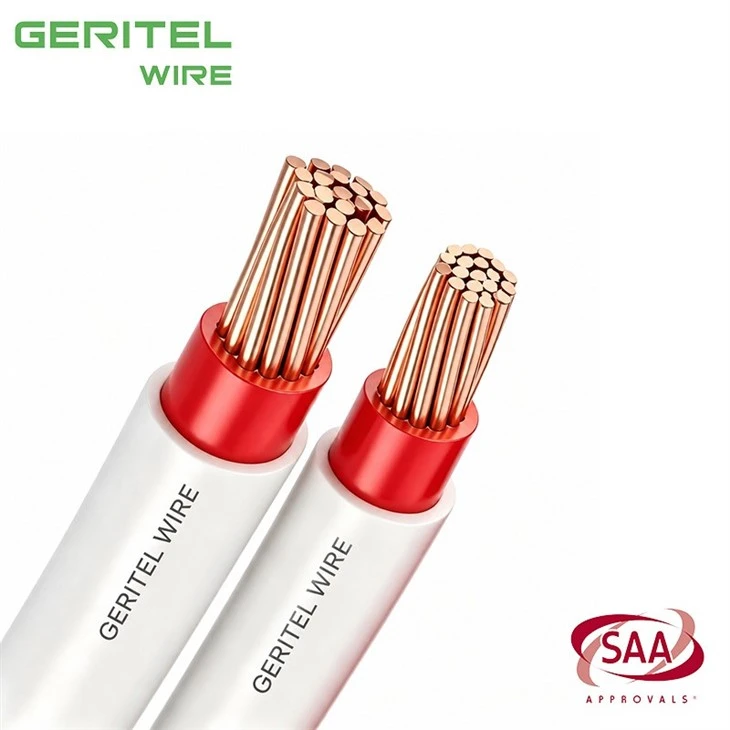

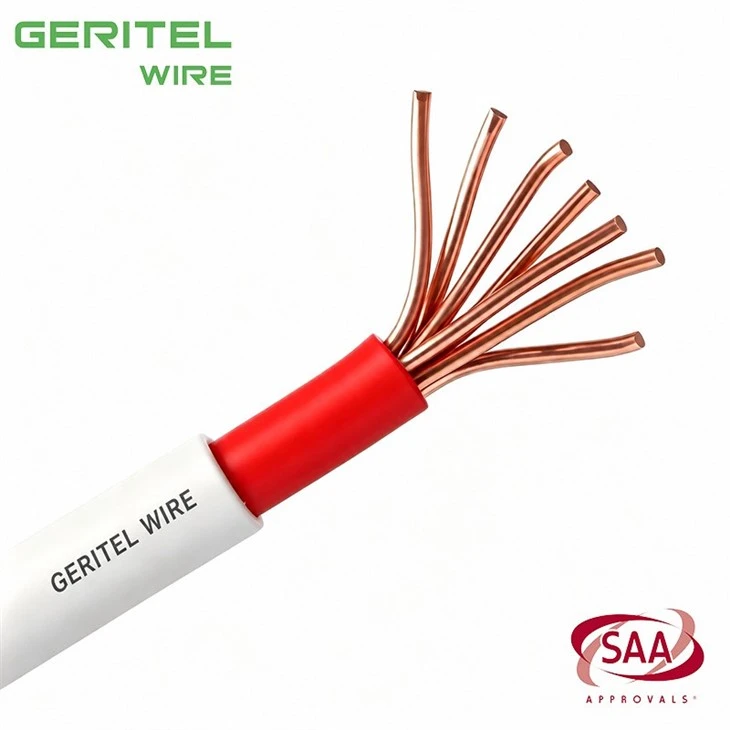

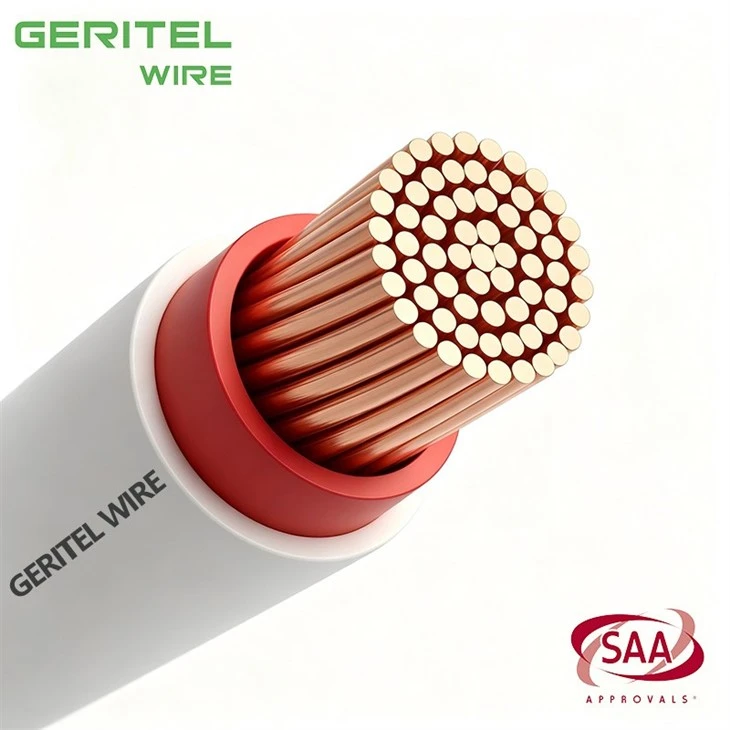

Clearly Identified Red V90 Core for Mains Switchboards and General Fixed Distribution

GERITEL WIRE Red Insulation SDI Cable combines a clearly identified V-90 PVC core with a white protective PVC sheath for 450/750V fixed wiring. The stranded annealed copper conductor is manufactured with controlled strand arrangement and consistent cross-section, while uniform insulation and sheathing help achieve a smooth finish and practical stripping performance. This colour option can be specified for circuit identification in mains, submains, switchboards and general building distribution, subject to the project's wiring rules. Suitable routes may include free air, conduit and protected ducts where damaging mechanical stress is avoided. Sizes from 1mm² to 16mm², customized print, reel length and export packing are available, supported by GERITEL WIRE's technical confirmation and SAA documentation.

PRODUCT SPECIFICATIONS

single core double insulated cable for free air installation

Applications

PVC INSULATED AND SHEATHED CABLE TO AS/NZS 5000.2. For mains, submains and subcircuits unenclosed, enclosed in conduit,buried or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

SPECIFICATIONS

CONDUCTOR

Plain annealed copper conductor to AS/NZS 1125

Maximum continuous operating temperature: 75 °C
Can also be operated at temperatures up to 90 °C when not exposed to mechanical deformation (see AS/NZS 3008.1)

INSULATION

V-90 PVC/Colours: Red, Black

Conductor			Cable				Min. installed bending radius mm
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Overall diameter		Approx. mass kg/100m
Nominal C.S.A mm²	Number and diameter of wires No/mm	Nominal diameter mm	Nominal nsulation thickness mm	Minimum mm	Maximum mm	Approx. mass kg/100m
1.0*	1/1.13	1.13	0.6	3.9	4.1	2.9	15
1.5	7/0.50	1.5	0.6	4.3	4.5	3.5	20
2.5*	1/1.78	1.78	0.7	5.0	5.0	4.9	20
2.5	7/0.67	2.0	0.7	5.2	5.2	5.1	20
4	7/0.85	2.6	0.8	6.2	6.2	7.4	25
6	7/1.04	3.1	0.8	6.7	6.7	10	25
10	7/1.35	4.1	1.0	8.2	8.2	15	35
16	7/1.70	5.1	1.0	9.4	9.4	22	40

Conductor nominal C.S.A mm²	Current rating (a)						Electrical characteristics
	Three phase			Single phase			Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
	Unenclosed Spaced Trefoil A	Buried Direct A	Under- ground in duct A	Unenclosed Spaced A	Buried Direct A	Under- ground in duct A	Maximum D.C. esistance at 20°C Ω/km	Reactance per core (Trefoil, Touching) Ω/km
1.0*	14	21	16	16	24	18	18.1	0.168
1.5	17	27	20	21	31	24	13.6	0.157
2.5*	25	37	28	29	43	33	7.41	0.143
2.5	25	37	28	29	43	33	7.41	0.143
4	33	49	37	39	56	42	4.61	0.137
6	42	61	46	49	71	53	3.08	0.128
10	58	81	61	67	94	71	1.83	0.118
16	77	105	80	89	120	91	1.15	0.111

CERTIFICATIONS

double insulated building wire for free air installation

PACKAGING

single core building wire for free air installation

Roll

SDI cable for underground duct installation

Plastic Reel

single double insulated cable for underground duct installation

Small Wooden Reel

APPLICATION

single core double insulated cable for underground duct installation

Building Service Corridor & Underground Duct Installation

double insulated building wire for underground duct installation

Electrical Distribution & Switchgear Room

single core building wire for underground duct installation

Industrial Plant & Control Cabinet Wiring

CASE

single double insulated cable for protected underground wiring

75 Castlereagh Street – Sydney, Australia

single core double insulated cable for protected underground wiring

The Canberra Hospital – Main Electrical Switchboard Upgrade, ACT, Australia

double insulated building wire for protected underground wiring

University Switchboard Upgrade – Melbourne, Australia

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

single core building wire for protected underground wiring routing

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

SDI cable for trench installation with protection

single double insulated cable for trench installation with protection

single core double insulated cable for trench installation with protection

double insulated building wire for trench installation with protection

single core building wire for trench installation with protection

SDI cable for buried cable with mechanical protection

GLOBAL CERTIFICATIONS

single double insulated cable for buried cable with mechanical protection

CUSTOMER PHOTOS

single core double insulated cable for buried cable with mechanical protection

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

double insulated building wire for buried cable with mechanical protection

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

single core building wire for buried cable with mechanical protection

single double insulated cable for service riser wiring

single core double insulated cable for service riser wiring

double insulated building wire for service riser wiring

single core building wire for service riser wiring

SDI cable for electrical riser distribution

single double insulated cable for electrical riser distribution

single core double insulated cable for electrical riser distribution

double insulated building wire for electrical riser distribution

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

single core building wire for electrical riser distribution

FAQ

Can factories use this cable for equipment power?

Industrial plant SDI cable can be used for protected fixed distribution, switchboards and suitable equipment feeds. A different product may be necessary where the route is exposed to continuous movement, aggressive chemicals, heavy impact or special fire-performance requirements.

Can GERITEL supply SDI for prefabricated building production?

Modular building SDI wire can be used for suitable permanent AC circuits in prefabricated homes and factory-built units. The installation must be secured for transport and protected from sharp metal edges during manufacturing, delivery and final site assembly.

Is the cable suitable for data centre building services?

Data centre auxiliary SDI cable may be considered for suitable fixed AC services such as lighting, ventilation controls and facility distribution. It is not a data-transmission, server-flex or fire-survival cable, so the facility specification must be checked first.

Can it be used around a battery energy storage facility?

Energy storage auxiliary SDI wire may suit fixed 450/750V AC services such as lighting, ventilation, monitoring panels and auxiliary distribution. It is not intended for battery-module links, high-voltage DC outputs or flexible battery connections.
