Name: China 600V 14/3 AC90 Copper Armoured Cable CUL CSA For Building Wiring Manufacturers Suppliers Factory - Greater Wire
Brand: Greater Wire
SKU: 318496250

Description

Technical Parameters

Certification

Dongguan Greater Wire & Cable Co., Ltd. is one of the leading manufacturers and suppliers of 600v 14/3 ac90 copper armoured cable cul csa for building wiring in China, also supports customized service. Please rest assured to wholesale durable 600v 14/3 ac90 copper armoured cable cul csa for building wiring made in China here from our factory. If you have any enquiry about free sample, please feel free to email us.

14/3 AC90 cable

PRODUCT REAL SHOT

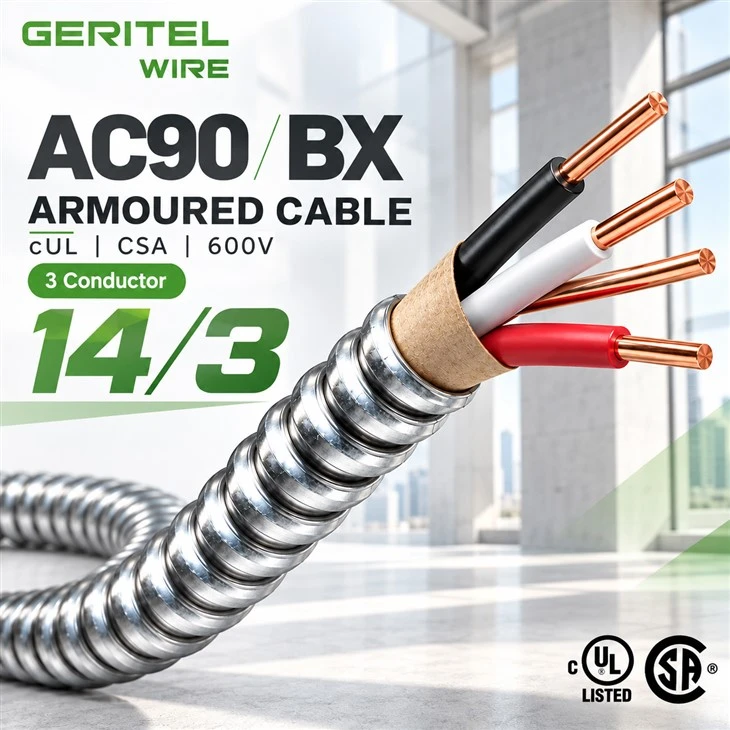

AC90 14/3 cable

Light-duty BX building wire for lighting switching and general branch circuits

14/3 AC90 cable is built for lighting, switching and general branch-circuit wiring in apartments, offices, retail interiors and other dry indoor building spaces. It combines three insulated copper circuit conductors with RW90 XLPE insulation, a bare copper bonding conductor, paper wrap and flexible interlocked aluminum armour in a 600V building-wire construction. The armour provides practical mechanical protection while keeping the cable easy to route through walls, ceilings and service spaces. GERITEL WIRE supplies 14 AWG 3 conductor BX cable with custom marking, coil or reel packaging, batch documentation and repeat production support. This size is positioned for permanent dry indoor wiring where AC90/BX is permitted. Final ampacity, overcurrent protection, connector selection and installation method should follow the exact product data, terminal ratings and applicable Canadian electrical code.

PRODUCT SPECIFICATIONS

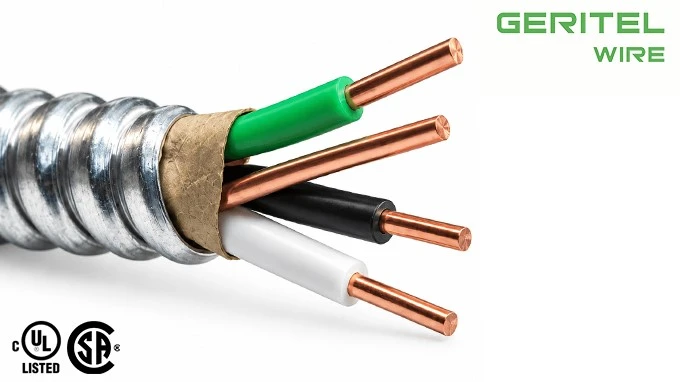

BX 14/3 cable

APPLICATIONS

Manufactured, tested and certified in Canada, GERITEL WIRE AC90 armoured building wire is rated FT4-ST1 for -40°C to 90°C. Engineered specifically for demanding environments, superior flammability and smoke emission performance.

For use in ventilated, non-ventilated and ladder-type cable trays.

For dry locations, in ceiling air-handling plenums, exposed or concealed wiring and service entrance above ground.

SPECIFICATIONS
Conductor	Solid Soft Copper, ASTM B3 8-2 AWG - Stranded Soft Copper, ASTM B8
Insulation	Cross-linked Polyethylene (XLPE) CSA Type XL 90°C dry/wet 600V Halogen-Free
Colour Code	Black, White and Red / Black, White and Green
Bonding Conductor	Solid ASTM B3 or Stranded ASTM B8 Soft Bare Copper
Armour	Aluminum (AIA) or Galvanized Steel (SIA) Interlock Armour
Specifications and Compliance	CSA C22.2 No. 51, Armoured Cables (Type AC90) CSA C22.2 No. 38 Thermoset-insulated wires and cables (Type RW90) CSA C22.2 No. 2556 FT4-ST1/UL 1685 Vertical-Tray Flame Test IEEE 383 & 1202, ICEA T-30-520 (70,000 BTU/hr) Vertical Flame Test rated -40°C Cold Bend and -40°C Cold Impact Limited Smoke and Halogen Free

AC90 & ISO-AC90 600V CSA FT4-ST1 LSZH

AC90

Power Conductor		Ground Conductor	Insulation Thickness		Armour O.D		Cable Weight		Max Pulling Tension		Min Bend Radius		Ampacity
Count	AWG	AWG	in	mm	in	mm	lbs/Mft	kg/km	lbs	kg	in	mm	A
2	14	14	0.030	0.76	0.430	10.9	81	120	66	30	6.0	151	25
2	12	14	0.030	0.76	0.454	11.5	99	148	104	47	6.4	164	30
2	10	12	0.030	0.76	0.512	13.0	138	206	166	75	6.9	174	40
3	14	14	0.030	0.76	0.445	11.3	105	156	99	45	6.2	158	25
3	12	14	0.030	0.76	0.490	12.4	130	193	157	71	6.9	174	30
3	10	12	0.030	0.76	0.535	13.6	182	271	249	113	7.5	190	40
3	8/7	10	0.045	1.14	0.714	18.1	309	460	418	190	10.0	254	55
3	6/7	8/7	0.045	1.14	0.770	19.6	417	621	702	318	10.8	274	75
3	4/7	8/7	0.045	1.14	0.940	23.9	601	894	1193	541	13.2	334	95
3	3/7	6/7	0.045	1.14	0.990	25.1	721	1073	1622	736	13.9	352	115
3	2/7	6/7	0.045	1.14	1.040	26.4	891	1326	1922	872	14.6	370	130
4	14	14	0.030	0.76	0.490	12.4	130	193	131	60	6.9	174	20
4	12	14	0.030	0.76	0.535	13.6	166	247	209	95	7.5	190	24
4	10	12	0.030	0.76	0.630	16.0	232	345	332	150	8.8	224	32

ISO-AC90

Conductor Count	Power Conductor	Ins.Ground Conductor	Ground Conductor	Insulation Thickness		Armour O.D		Cable Weight		Max Pulling Tension		Min Bend Radius		Ampacity
Conductor Count	AWG	AWG	AWG	in	mm	in	mm	lbs/Mft	kg/km	lbs	kg	in	mm	A
2	14	14	14	0.030	0.76	0.440	11.2	105	156	66	30	6.2	157	25
2	12	12	14	0.030	0.76	0.485	12.3	138	206	104	47	6.8	173	30
2	10	10	12	0.030	0.76	0.533	13.5	186	277	166	75	7.5	190	40
3	12	12	14	0.030	0.76	0.535	13.6	165	245	157	71	7.5	190	24
3	10	10	12	0.030	0.76	0.591	15.0	232	346	249	113	8.3	210	32

CERTIFICATIONS

BX 14/3 wire

PACKAGING

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

Apartment/Residential Building Electrical Distribution

Commercial Building Electrical Distribution

Industrial Factory Power Distribution

CASE

Calgary Alberta Multi Storey Apartment Construction Upgrade

Toronto Ontario Detached House Basement Panel Upgrade

Vancouver British Columbia Downtown Office Renovation

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

14/3 RW90 AC90 cable

CUSTOMER PHOTOS

14/3 XLPE AC90 cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

What is 3 conductor AC90 cable?

AC90 3 conductor cable is a 600V armoured building cable containing three insulated copper circuit conductors, a bonding conductor, paper wrap and flexible interlocked aluminum armour. It is mainly used for approved dry-location building wiring in Canadian commercial, residential, institutional and light industrial projects.

Is BX another name for AC90 cable?

In Canadian trade language, BX armoured cable is often used as a familiar market term for AC90-style interlocked armoured building cable. AC90 is the more precise technical designation, while BX is widely used in distributor listings, contractor conversations and online searches.

What does 3 conductor mean on AC90 cable?

3 conductor AC90 wire contains three insulated circuit conductors inside the armoured assembly. The bonding conductor is part of the cable construction but is not normally counted as one of the three circuit conductors.

Is 3C the same as 3 conductor AC90?

Yes. AC90 3C cable and 3 conductor AC90 are commonly used to describe the same conductor-count concept. Buyers may also search for three conductor AC90 or 3 core AC90, although 3 conductor is generally the clearest technical wording for the Canadian market.
