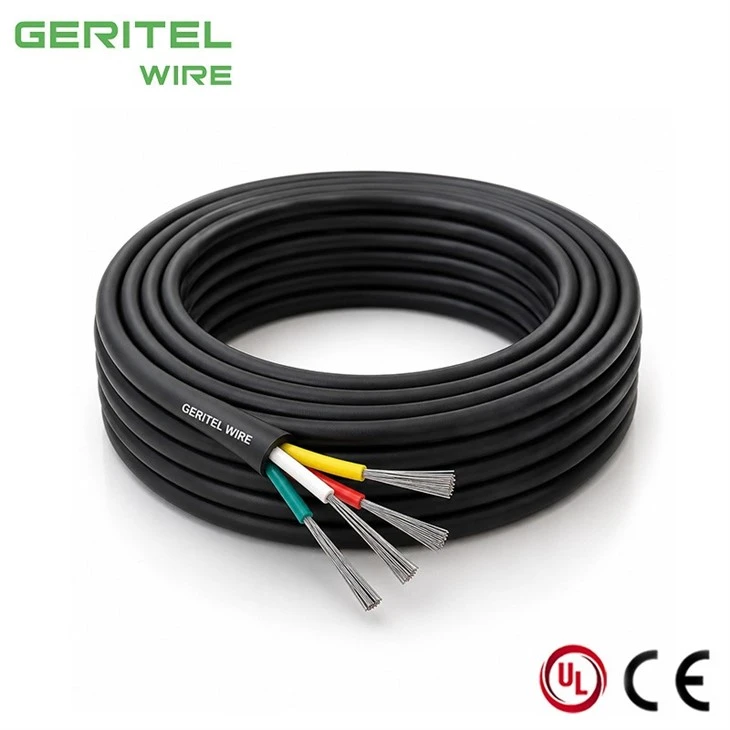

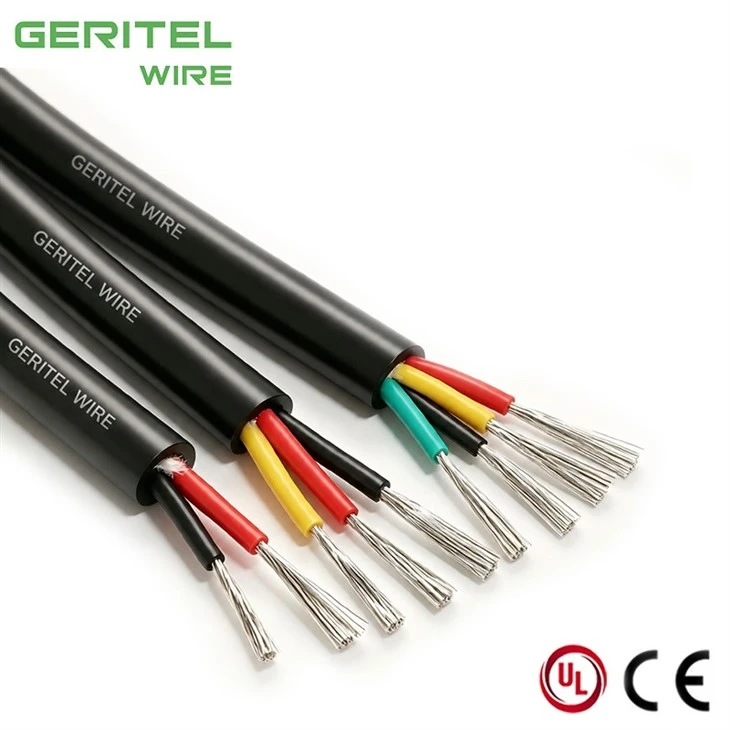

Name: China Battery Formation Oven Cable For Cell Production And Aging Equipment Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 314049835

Description

Technical Parameters

Certification

multicore silicone cable with EN 50363 compound

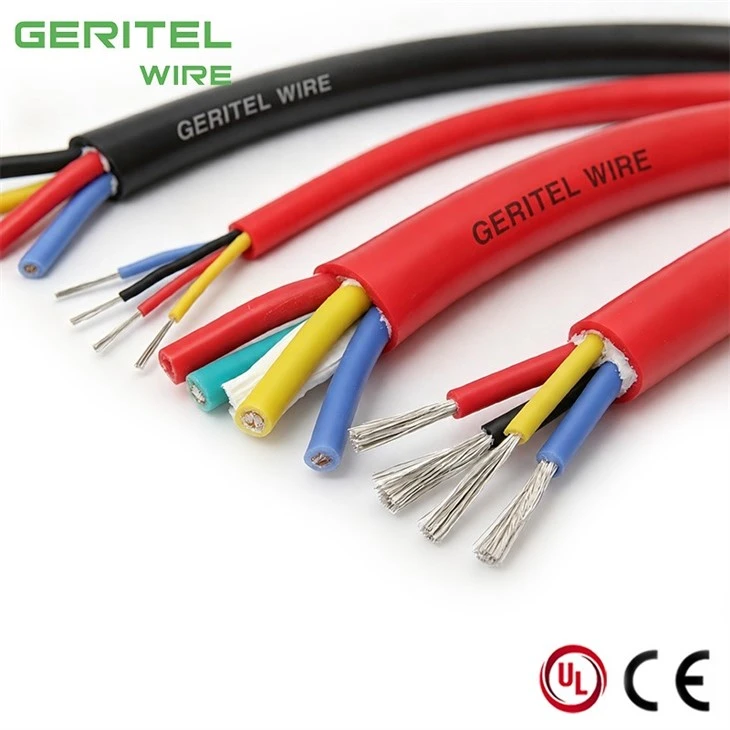

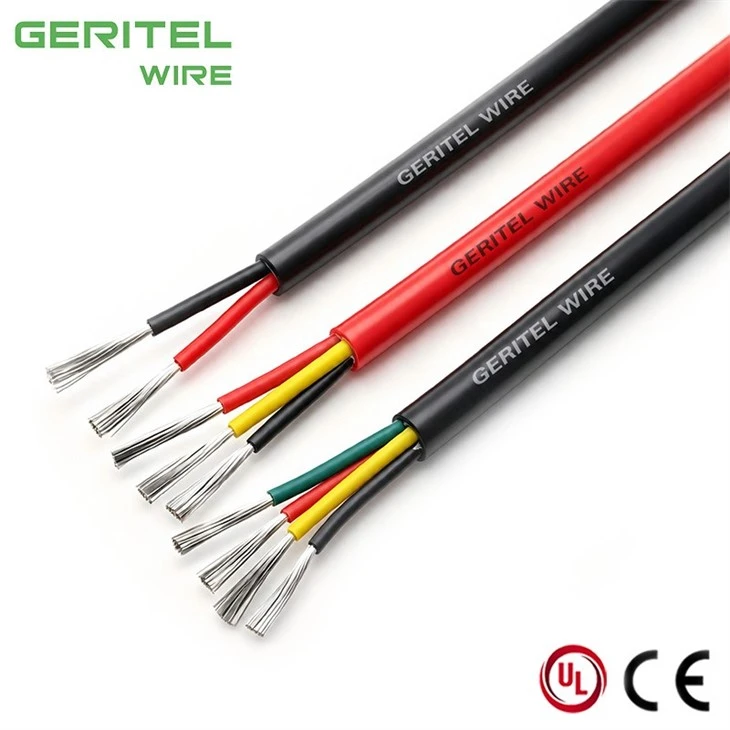

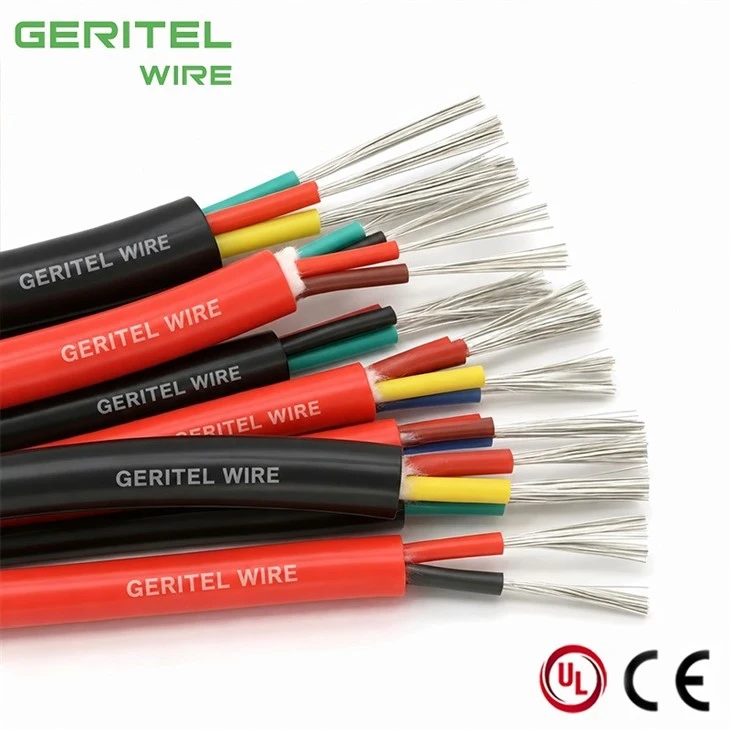

PRODUCT REAL SHOT

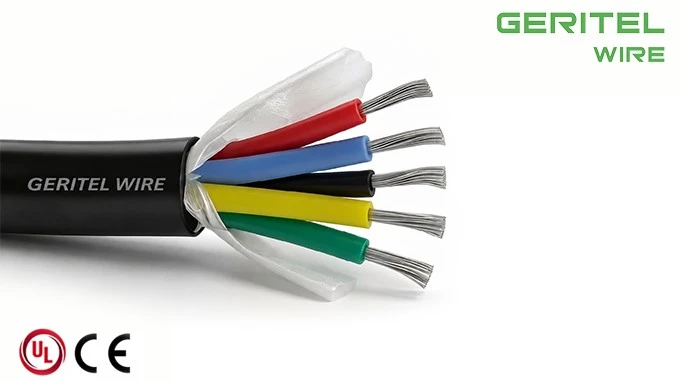

industrial flame retardant silicone cable

flame retardant silicone multicore cable for industry

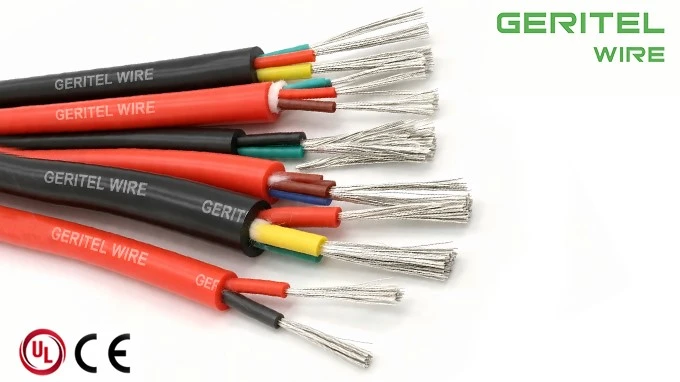

high temperature flame retardant cable for industrial use

Battery Manufacturing Silicone Cable for Drying and Thermal Test Systems

Cell manufacturing uses drying ovens, formation chambers, aging rooms and thermal test equipment that combine elevated heat with dense control wiring. GERITEL WIRE supplies a battery drying oven cable using fine stranded tinned copper, silicone core insulation and a silicone outer sheath for fixed or occasionally moved machine connections. A battery thermal test chamber cable can be customized with practical core identification, jacket marking, reels or cut lengths for OEM assembly. It is not a battery cell lead or high-current pack interconnect. Equipment designers should confirm electrical load, chamber feedthroughs, temperature gradient, chemical exposure and motion profile.

PRODUCT SPECIFICATIONS

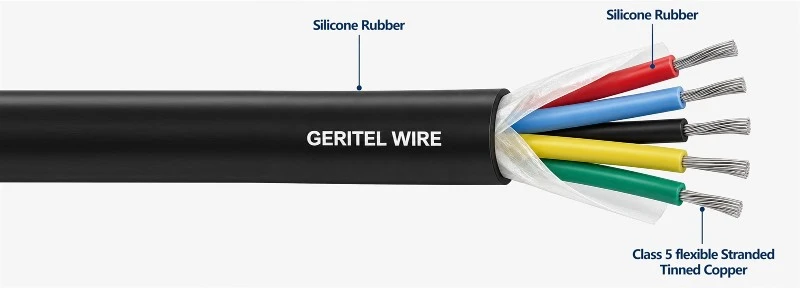

SiHF-J cable manufacturer

Applications

This cable is used for connection of electrical appliances without mechanical stress at increased environmental temperatures, for example in steelworks, but also at low temperatures. Insulation and sheath are resistant to most oils,acids, lyes and oxidants.

SPECIFICATIONS
Voltage Rating Uo/U	300/500V
Temperature Rating	Fixed:-60°C to +200°C
Minimum Bending Radius	Fixed: 5 x overall diameter Flexed: 15 x overall diameter
Conductor	Class 5 flexible Stranded Tinned Copper
Insulation	Silicone rubber
Outer Sheath	Silicone Rubber
Core ldentification	3 cores: Green/Yellow,Blue,Brown 4cores: Green/Yellow,Blue,Black,Grey 5cores: Green/Yellow,Blue,Brown,Black,Grey More than 5 cores: Black numebered +Green/Yellow
Sheath Colour	Red,Black

DIMENSIONS

NO. OF CORES
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
3	0.75	6.8	66
3	1	7.4	78
3	1.5	8	98
3	2.5	9.7	152
3	4	11.5	249
3	6	14.2	352
4	0.75	7.8	84
4	1	8	95
4	1.5	8.8	122
4	2.5	10.6	189
4	4	13	330
4	6	16.2	429
4	10	21.4	710
4	16	24	1014
4	25	29.3	1460
4	35	33	2044
4	50	34	2990
5	0.75	8.5	101
5	1	8.8	116
5	1.50	9.6	148
5	2.5	11.6	229
5	4	15	359
5	6	17.7	564
5	10	22.5	900
5	16	26.9	1206
5	35	36.7	2850
7	0.75	9.6	158
7	1	10	177
7	1.5	10.9	232
7	2.5	13.2	348
7	4	16.2	487
7	6	19.3	685
12	0.75	11.1	178
12	1.5	14.8	332
12	2.5	18	530
18	0.75	13.3	260
18	1.5	17.6	510
24	1.5	20.2	635
25	0.75	15.6	370

CERTIFICATIONS

SiHF-J silicone cable manufacturer

PACKAGING

Roll

high temperature silicone cable manufacturer

Plastic Reel

Small Wooden Reel

APPLICATION

HVAC & Refrigeration Systems

Industrial Automation & Machinery

high temperature silicone cable supplier

Industrial Control Cabinet Wiring

CASE

Northern Steel High-Temperature Control Upgrade Project

OceanStar Marine Electrical Retrofit Project

PolarFresh Industrial Refrigeration Expansion Project

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

high temperature silicone cable wholesaler

GLOBAL CERTIFICATIONS

silicone multicore cable exporter

CUSTOMER PHOTOS

high temperature silicone cable exporter

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

high temperature silicone cable distributor

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Can SiHF-J be used in modular telecom shelters?

A telecom shelter HVAC cable can serve heater, fan, defrost and enclosure-control circuits facing high or low temperatures. GERITEL WIRE verifies voltage, condensation, external exposure and gland sealing; the cable is not automatically suitable for outdoor feeder, antenna or data-transmission use.

Can the cable be used in food-processing machinery?

A food processing equipment cable can be installed in ovens, dryers, refrigeration units and machine enclosures where heat and cold resistance are needed. GERITEL WIRE checks cleaning chemicals and routing, but standard SiHF-J should not be claimed as direct-food-contact cable unless the required hygiene approval is documented.

Can GERITEL manufacture SiHF-J to our drawing?

As a custom SiHF-J cable manufacturer, GERITEL WIRE can review core count, conductor size, colour schedule, sheath colour, marking, length and packing requirements. Feasibility, compliance and minimum quantity are confirmed before approval; a construction drawing or sample can be used to lock the order specification.

What information should I send when requesting a quotation?

To obtain an accurate quote from a SiHF-J cable supplier, send conductor size, number of cores, voltage, operating temperature, movement, chemicals, required length, sheath colour, marking, certification and destination. GERITEL WIRE reviews missing technical details before pricing so the offer is comparable and production-ready.
