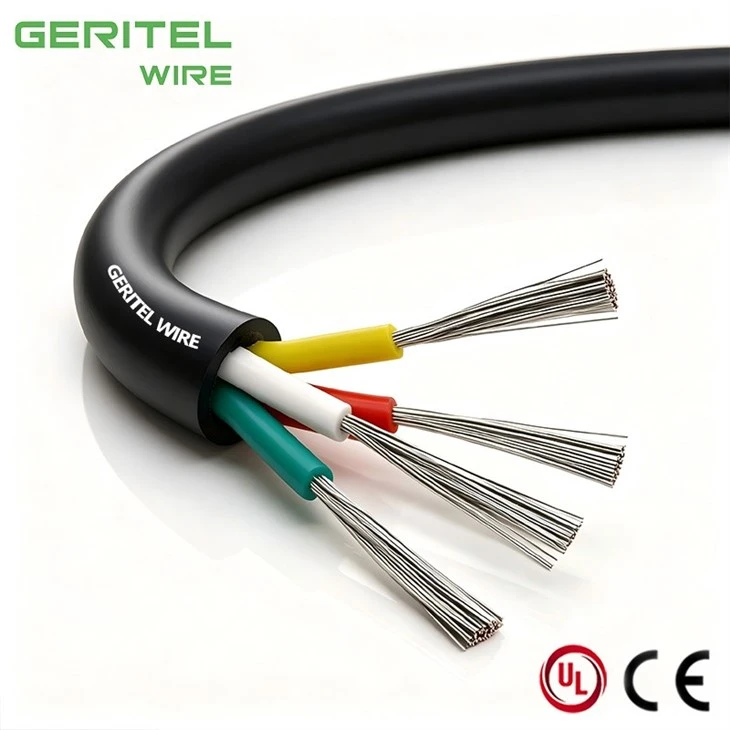

HD 308 multicore silicone cable

PRODUCT REAL SHOT

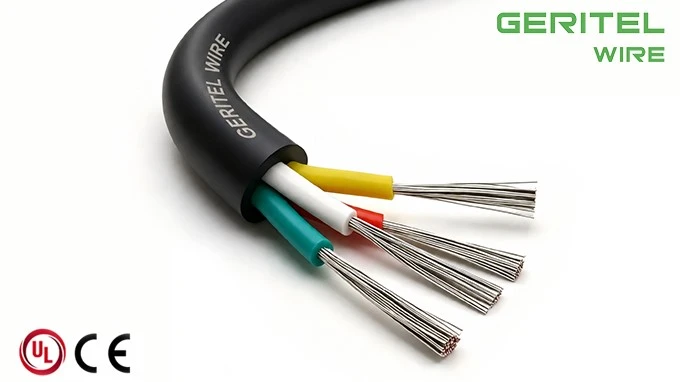

silicone control cable with HD 308 core colours

SiHF-J VDE 0293 core identification cable

VDE 0293 multicore silicone cable

ESS Auxiliary Control Cable for Cooling, Heating and Ventilation Equipment

Containerized energy storage depends on cooling, heating and ventilation to keep battery modules within their operating window. GERITEL WIRE offers a battery container cooling system cable with Class 5 tinned copper conductors, silicone insulation and silicone sheath for fixed equipment connections inside qualified HVAC or heater assemblies. It can also be evaluated as a silicone cable for energy storage cabinet heater where current, temperature, routing and flame requirements match the ordered construction. This is not an ESS main DC power cable or battery interconnect. Integrators must separately specify high-current, communication and fire-survival circuits. Final selection should confirm load, temperature, routing and mechanical protection.

PRODUCT SPECIFICATIONS

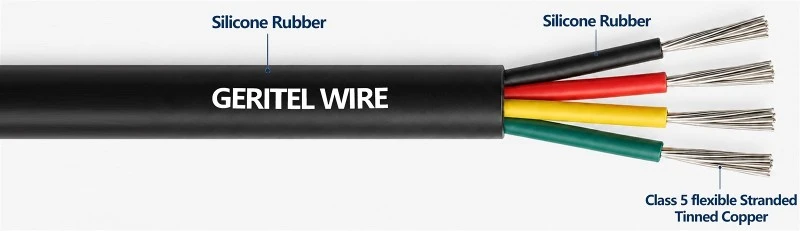

silicone control cable with VDE 0293 core colours

Applications

This cable is used for connection of electrical appliances without mechanical stress at increased environmental temperatures, for example in steelworks, but also at low temperatures. Insulation and sheath are resistant to most oils,acids, lyes and oxidants.

SPECIFICATIONS
Voltage Rating Uo/U	300/500V
Temperature Rating	Fixed:-60°C to +200°C
Minimum Bending Radius	Fixed: 5 x overall diameter Flexed: 15 x overall diameter
Conductor	Class 5 flexible Stranded Tinned Copper
Insulation	Silicone rubber
Outer Sheath	Silicone Rubber
Core ldentification	3 cores: Green/Yellow,Blue,Brown 4cores: Green/Yellow,Blue,Black,Grey 5cores: Green/Yellow,Blue,Brown,Black,Grey More than 5 cores: Black numebered +Green/Yellow
Sheath Colour	Red,Black

DIMENSIONS

NO. OF CORES
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
3	0.75	6.8	66
3	1	7.4	78
3	1.5	8	98
3	2.5	9.7	152
3	4	11.5	249
3	6	14.2	352
4	0.75	7.8	84
4	1	8	95
4	1.5	8.8	122
4	2.5	10.6	189
4	4	13	330
4	6	16.2	429
4	10	21.4	710
4	16	24	1014
4	25	29.3	1460
4	35	33	2044
4	50	34	2990
5	0.75	8.5	101
5	1	8.8	116
5	1.50	9.6	148
5	2.5	11.6	229
5	4	15	359
5	6	17.7	564
5	10	22.5	900
5	16	26.9	1206
5	35	36.7	2850
7	0.75	9.6	158
7	1	10	177
7	1.5	10.9	232
7	2.5	13.2	348
7	4	16.2	487
7	6	19.3	685
12	0.75	11.1	178
12	1.5	14.8	332
12	2.5	18	530
18	0.75	13.3	260
18	1.5	17.6	510
24	1.5	20.2	635
25	0.75	15.6	370

CERTIFICATIONS

SiHF-J IEC 60754 halogen free cable

PACKAGING

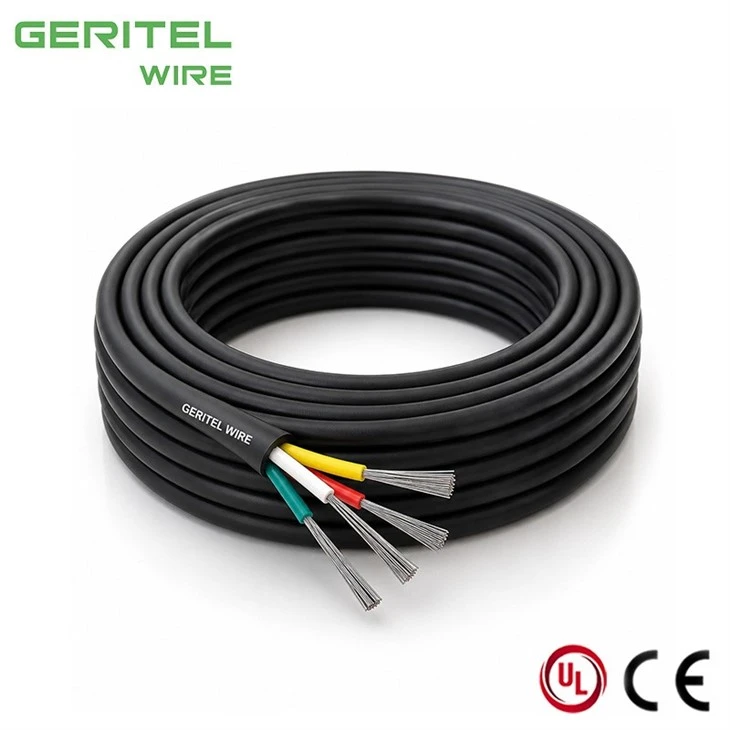

Roll

Plastic Reel

high temperature silicone cable to IEC 60754

Small Wooden Reel

APPLICATION

SiHF-J Low Voltage Directive compliant cable

HVAC & Refrigeration Systems

Industrial Automation & Machinery

CE Low Voltage Directive high temperature cable

Industrial Control Cabinet Wiring

CASE

silicone multicore cable for Low Voltage Directive compliance

Northern Steel High-Temperature Control Upgrade Project

OceanStar Marine Electrical Retrofit Project

PolarFresh Industrial Refrigeration Expansion Project

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

PFAS free silicone cable

CUSTOMER PHOTOS

PFAS free silicone multicore cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

high temperature silicone cable to EN 50525

high temperature silicone cable to DIN EN 50525

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Is this cable suitable for solar inverter wiring?

A solar inverter auxiliary cable may connect cooling fans, anti-condensation heaters and internal controls when the 300/500V rating and equipment standard permit. GERITEL WIRE does not substitute standard SiHF-J for PV1-F DC string cable or outdoor array wiring and will confirm the exact auxiliary function before quotation.

Can SiHF-J be used inside a wind turbine?

A wind turbine heater cable may serve cabinet heaters, nacelle HVAC, sensors or protected auxiliaries exposed to temperature variation. GERITEL WIRE requires the movement and torsion profile because standard SiHF-J is not automatically a tower-loop or continuous-torsion cable; those routes need purpose-designed products.

Can the cable be used on hydrogen production equipment?

A hydrogen equipment auxiliary cable may be considered for heaters, fans, sensors and control enclosures outside classified or pressure-containing functions. GERITEL WIRE asks for hazardous-area classification, gas exposure and equipment standard and does not claim explosion-proof approval without the required evidence.

Where would SiHF-J fit in a data center?

A data center generator heater cable may connect anti-condensation heaters, cooling auxiliaries or protected genset controls exposed to heat. GERITEL WIRE keeps this scope separate from server power distribution, Ethernet and fire-survival circuits, helping the data-center contractor select the right product for each system.
