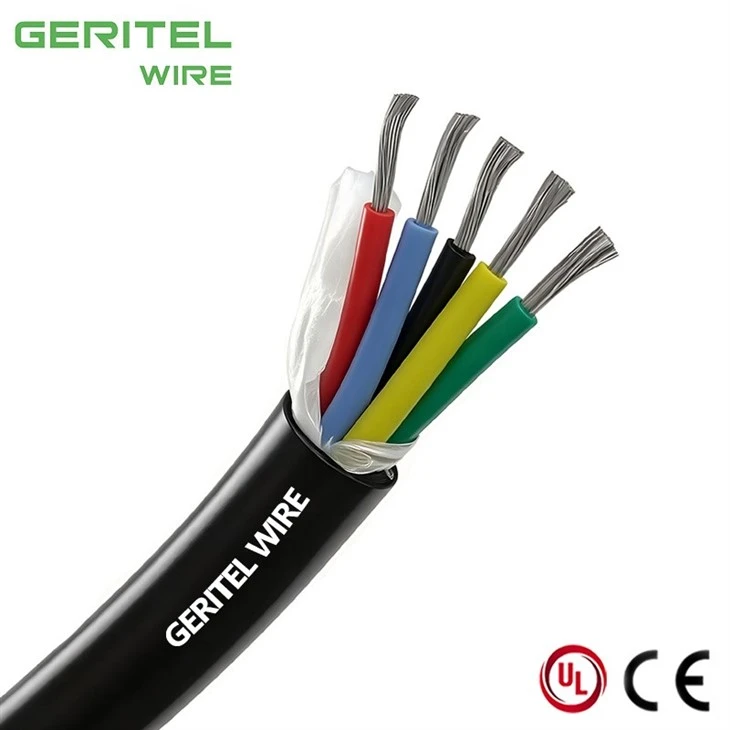

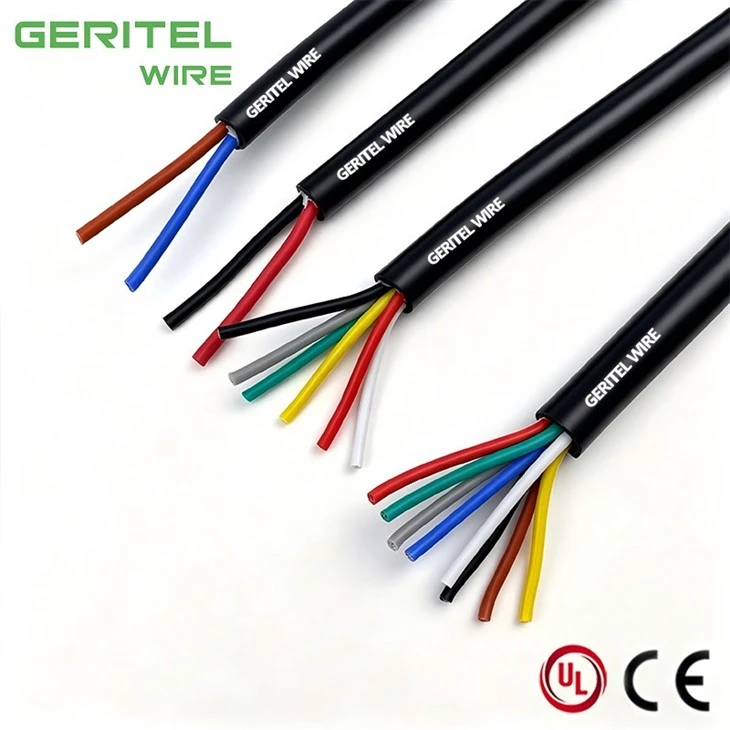

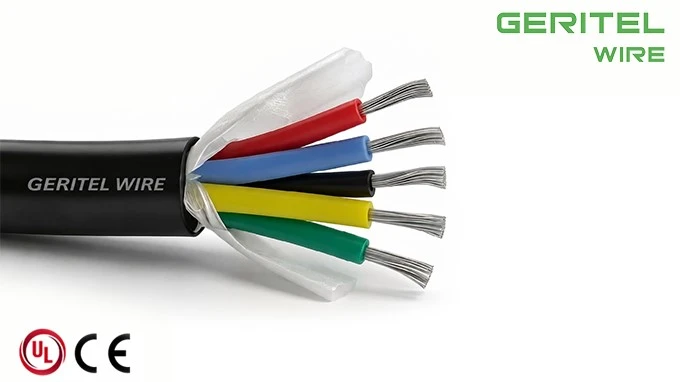

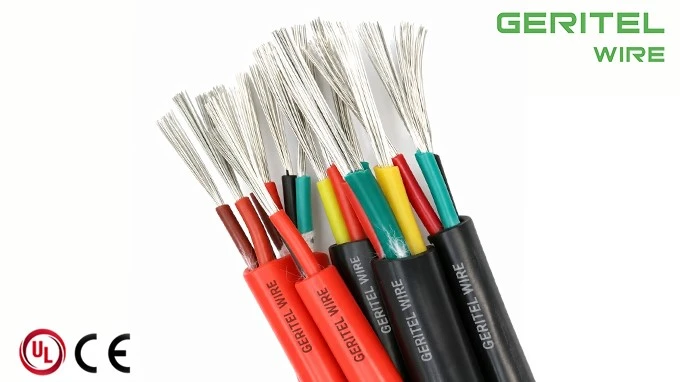

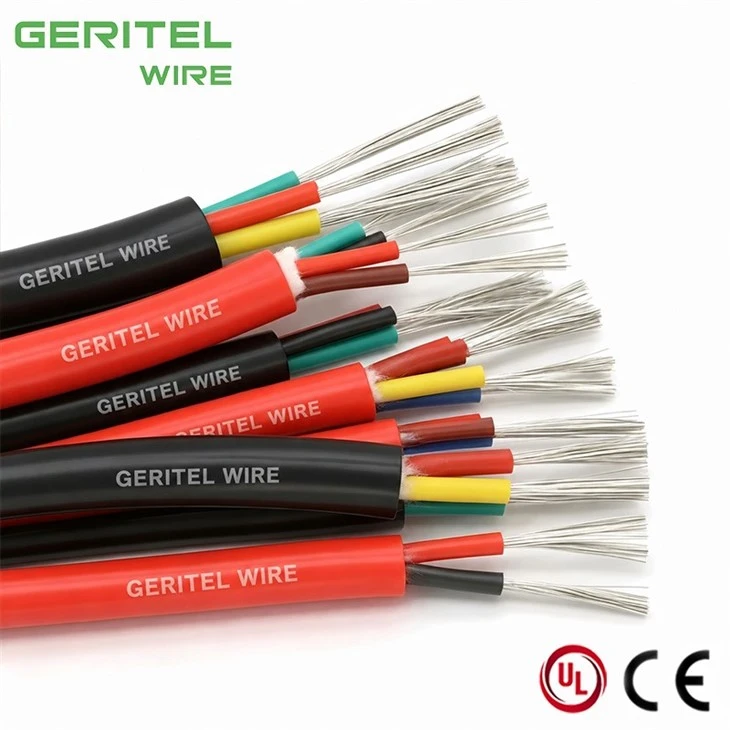

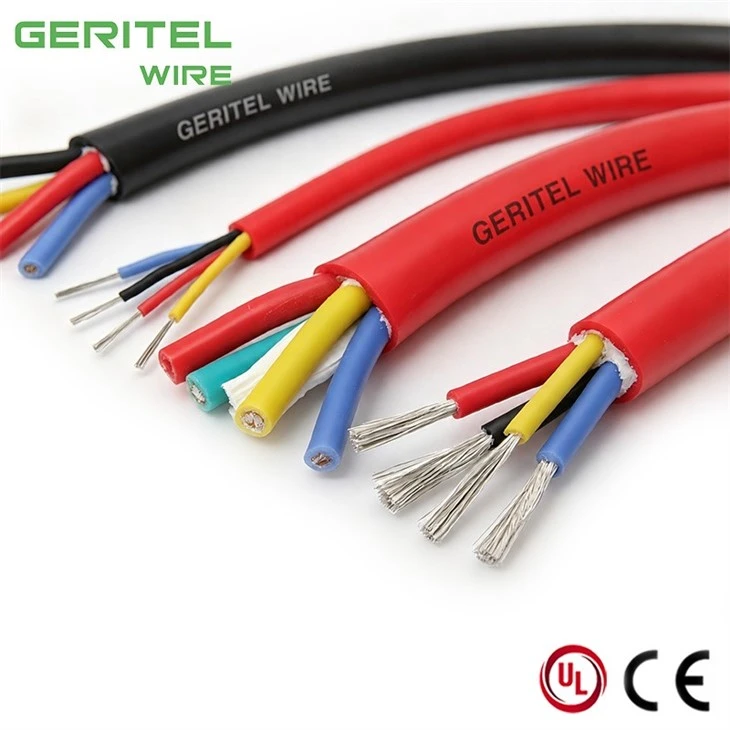

PRODUCT REAL SHOT

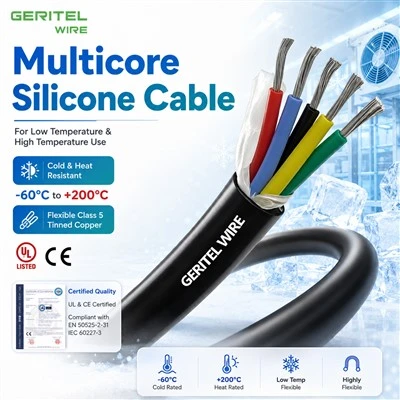

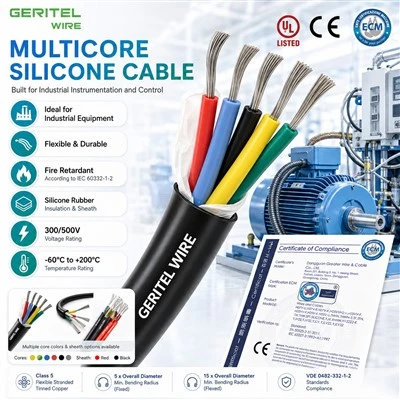

Capsule House Heating Cable for Space-Constrained Equipment Modules
PRODUCT SPECIFICATIONS
Applications

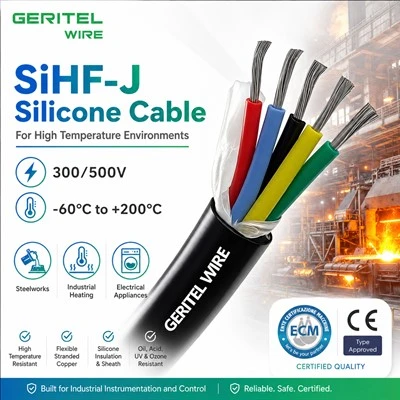

This cable is used for connection of electrical appliances without mechanical stress at increased environmental temperatures, for example in steelworks, but also at low temperatures. Insulation and sheath are resistant to most oils,acids, lyes and oxidants.
| SPECIFICATIONS | |
| Voltage Rating Uo/U | 300/500V |
| Temperature Rating | Fixed:-60°C to +200°C |
| Minimum Bending Radius |
Fixed: 5 x overall diameter Flexed: 15 x overall diameter |

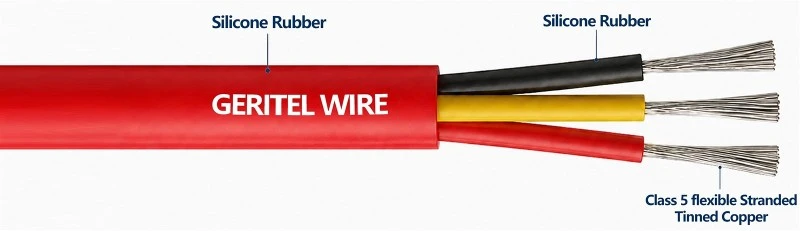

| Conductor | Class 5 flexible Stranded Tinned Copper |
| Insulation | Silicone rubber |
| Outer Sheath | Silicone Rubber |
| Core ldentification |
3 cores: Green/Yellow,Blue,Brown 4cores: Green/Yellow,Blue,Black,Grey 5cores: Green/Yellow,Blue,Brown,Black,Grey More than 5 cores: Black numebered +Green/Yellow |
| Sheath Colour | Red,Black |
DIMENSIONS
| NO. OF CORES |
|||
|
NOMINAL CROSS SECTIONAL AREA mm² |
NOMINAL OVERALL DIAMETER mm |
NOMINAL WEIGHT kg/km |
|
| 3 | 0.75 | 6.8 | 66 |
| 3 | 1 | 7.4 | 78 |
| 3 | 1.5 | 8 | 98 |
| 3 | 2.5 | 9.7 | 152 |
| 3 | 4 | 11.5 | 249 |
| 3 | 6 | 14.2 | 352 |
| 4 | 0.75 | 7.8 | 84 |
| 4 | 1 | 8 | 95 |
| 4 | 1.5 | 8.8 | 122 |
| 4 | 2.5 | 10.6 | 189 |
| 4 | 4 | 13 | 330 |
| 4 | 6 | 16.2 | 429 |
| 4 | 10 | 21.4 | 710 |
| 4 | 16 | 24 | 1014 |
| 4 | 25 | 29.3 | 1460 |
| 4 | 35 | 33 | 2044 |
| 4 | 50 | 34 | 2990 |
| 5 | 0.75 | 8.5 | 101 |
| 5 | 1 | 8.8 | 116 |
| 5 | 1.50 | 9.6 | 148 |
| 5 | 2.5 | 11.6 | 229 |
| 5 | 4 | 15 | 359 |
| 5 | 6 | 17.7 | 564 |
| 5 | 10 | 22.5 | 900 |
| 5 | 16 | 26.9 | 1206 |
| 5 | 35 | 36.7 | 2850 |
| 7 | 0.75 | 9.6 | 158 |
| 7 | 1 | 10 | 177 |
| 7 | 1.5 | 10.9 | 232 |
| 7 | 2.5 | 13.2 | 348 |
| 7 | 4 | 16.2 | 487 |
| 7 | 6 | 19.3 | 685 |
| 12 | 0.75 | 11.1 | 178 |
| 12 | 1.5 | 14.8 | 332 |
| 12 | 2.5 | 18 | 530 |
| 18 | 0.75 | 13.3 | 260 |
| 18 | 1.5 | 17.6 | 510 |
| 24 | 1.5 | 20.2 | 635 |
| 25 | 0.75 | 15.6 | 370 |
CERTIFICATIONS
PACKAGING

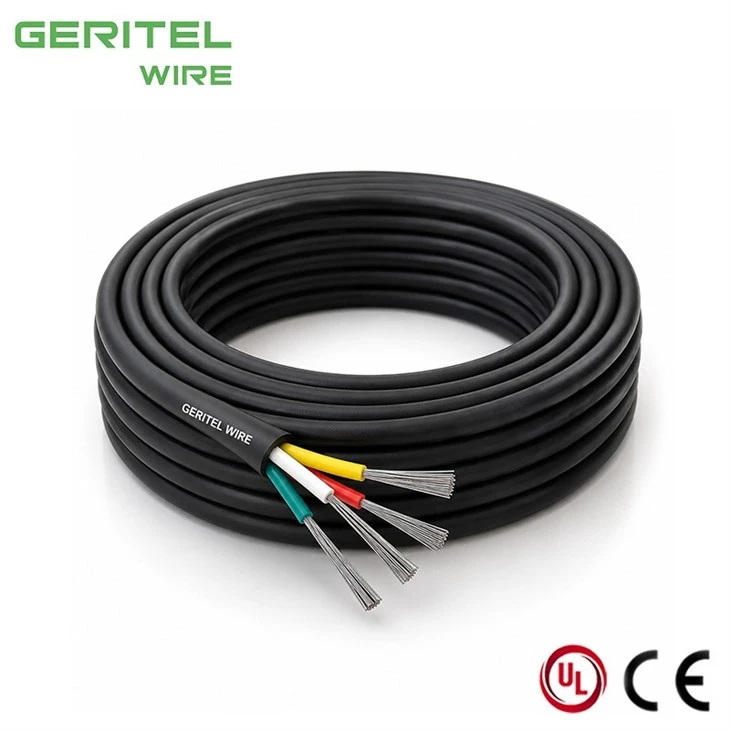

Roll
