Name: China Modular House HVAC Cable For Heat Pumps And Integrated Equipment Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 314004022

Description

Technical Parameters

Certification

acid resistant multicore silicone cable

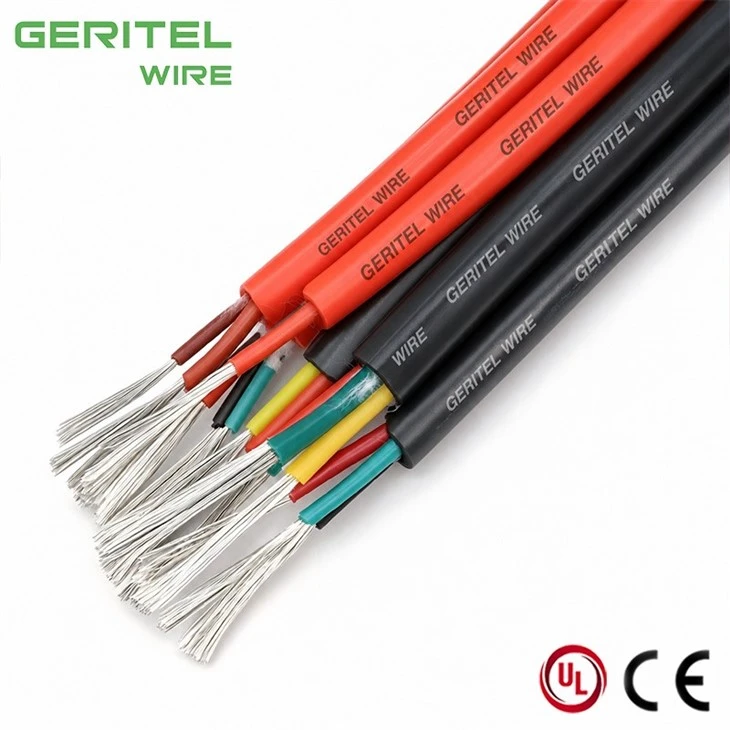

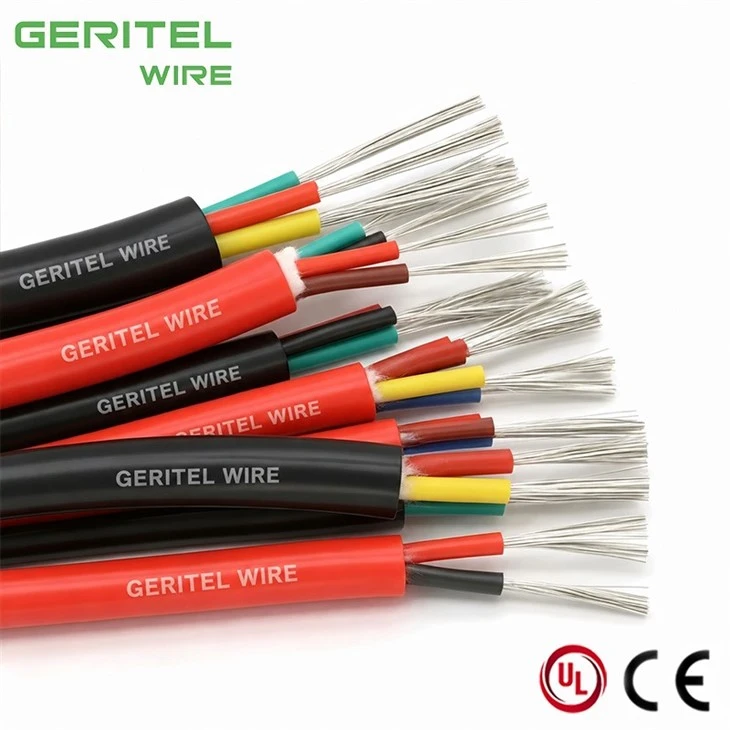

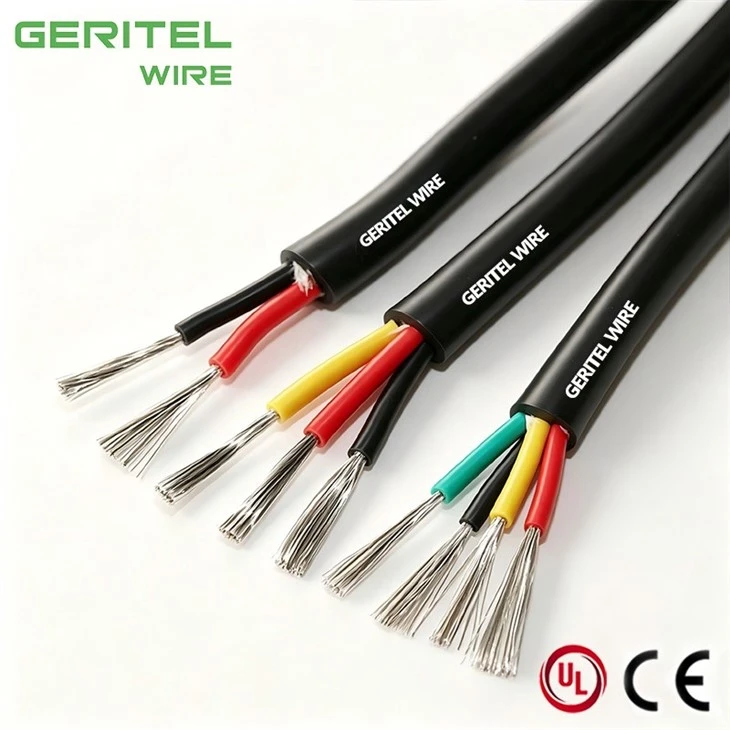

PRODUCT REAL SHOT

silicone cable for high temperature control wiring

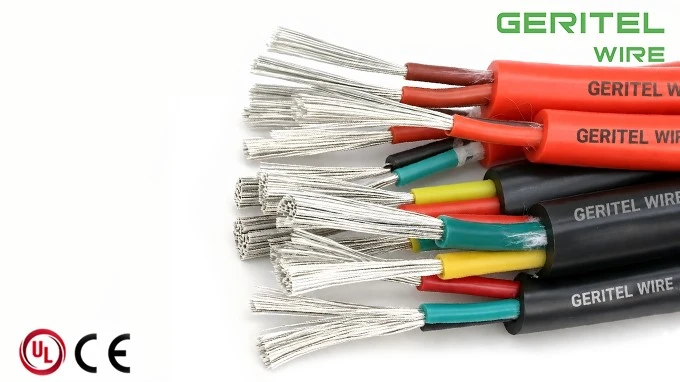

alkali resistant multicore silicone cable

Integrated House Silicone Cable for Heating and Appliance Connections

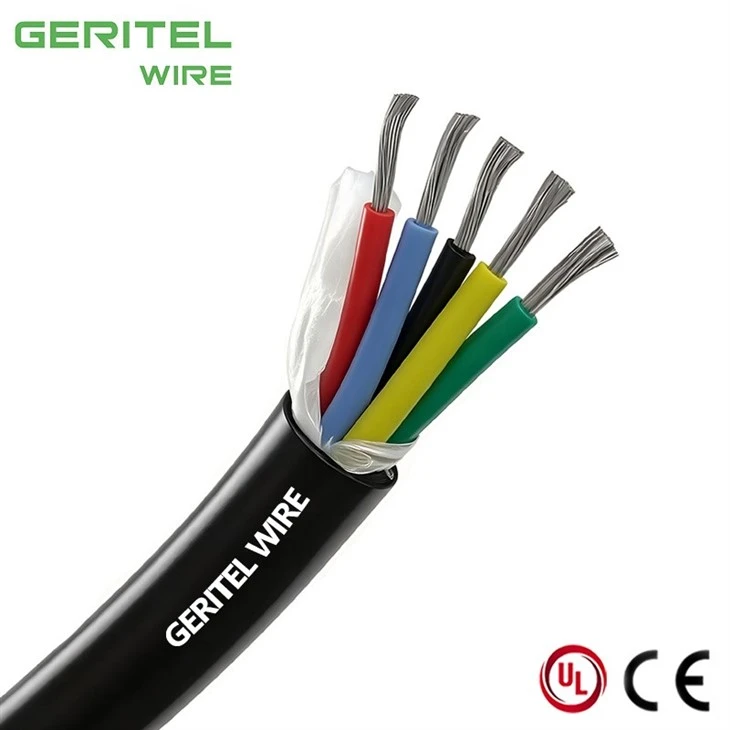

Factory-built homes bring HVAC units, heaters, compact kitchens and prefabricated service modules into a controlled assembly line. GERITEL WIRE offers a prefabricated house heating cable for equipment-level connections that face elevated temperature or cold-start conditions, using flexible tinned copper conductors with silicone insulation and sheath. It can also be considered as a silicone cable for modular building kitchen equipment where ovens, fans or heaters require fixed, low-stress wiring. This SiHF-J product is not presented as general in-wall building cable; the building standard, circuit method, protection and local approval must be selected separately.

PRODUCT SPECIFICATIONS

chemical resistant silicone cable

Applications

This cable is used for connection of electrical appliances without mechanical stress at increased environmental temperatures, for example in steelworks, but also at low temperatures. Insulation and sheath are resistant to most oils,acids, lyes and oxidants.

SPECIFICATIONS
Voltage Rating Uo/U	300/500V
Temperature Rating	Fixed:-60°C to +200°C
Minimum Bending Radius	Fixed: 5 x overall diameter Flexed: 15 x overall diameter
Conductor	Class 5 flexible Stranded Tinned Copper
Insulation	Silicone rubber
Outer Sheath	Silicone Rubber
Core ldentification	3 cores: Green/Yellow,Blue,Brown 4cores: Green/Yellow,Blue,Black,Grey 5cores: Green/Yellow,Blue,Brown,Black,Grey More than 5 cores: Black numebered +Green/Yellow
Sheath Colour	Red,Black

DIMENSIONS

NO. OF CORES
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
3	0.75	6.8	66
3	1	7.4	78
3	1.5	8	98
3	2.5	9.7	152
3	4	11.5	249
3	6	14.2	352
4	0.75	7.8	84
4	1	8	95
4	1.5	8.8	122
4	2.5	10.6	189
4	4	13	330
4	6	16.2	429
4	10	21.4	710
4	16	24	1014
4	25	29.3	1460
4	35	33	2044
4	50	34	2990
5	0.75	8.5	101
5	1	8.8	116
5	1.50	9.6	148
5	2.5	11.6	229
5	4	15	359
5	6	17.7	564
5	10	22.5	900
5	16	26.9	1206
5	35	36.7	2850
7	0.75	9.6	158
7	1	10	177
7	1.5	10.9	232
7	2.5	13.2	348
7	4	16.2	487
7	6	19.3	685
12	0.75	11.1	178
12	1.5	14.8	332
12	2.5	18	530
18	0.75	13.3	260
18	1.5	17.6	510
24	1.5	20.2	635
25	0.75	15.6	370

CERTIFICATIONS

chemical resistant SiHF-J cable

PACKAGING

chemical resistant multicore silicone cable

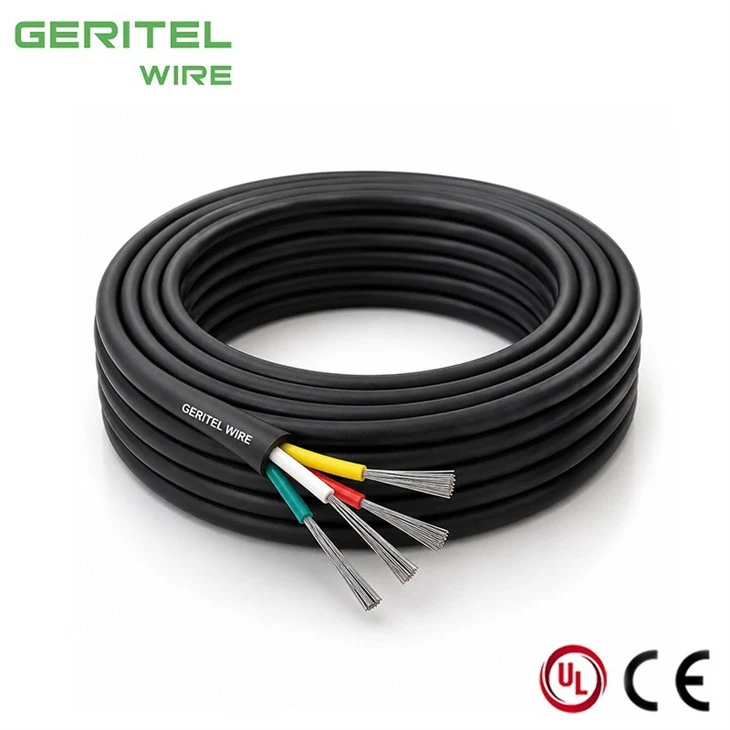

Roll

Plastic Reel

Small Wooden Reel

APPLICATION

ozone resistant multicore silicone cable

HVAC & Refrigeration Systems

Industrial Automation & Machinery

Industrial Control Cabinet Wiring

CASE

oxygen resistant multicore silicone cable

Northern Steel High-Temperature Control Upgrade Project

OceanStar Marine Electrical Retrofit Project

PolarFresh Industrial Refrigeration Expansion Project

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

weather resistant multicore silicone cable

GLOBAL CERTIFICATIONS

humidity resistant silicone cable

CUSTOMER PHOTOS

humidity resistant SiHF-J cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

humidity resistant multicore silicone cable

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

sea water resistant multicore silicone cable

aging resistant multicore silicone cable

highly flexible multicore silicone cable

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Will SiHF-J resist oil mist in a factory?

The datasheet states resistance to most oils, so an oil resistant silicone cable may be suitable for incidental factory exposure. Compatibility depends on oil type, concentration, temperature and contact duration. GERITEL WIRE asks for the fluid name or SDS and recommends a sample immersion check when exposure is critical.

Can the sheath tolerate acids?

The product description covers resistance to most acids, but acid resistant silicone cable performance is not universal. GERITEL WIRE needs the chemical name, concentration, temperature, cleaning cycle and immersion duration before confirming suitability; a controlled sample test may be recommended for severe service.

Is the cable resistant to caustic or alkaline cleaning chemicals?

An alkali resistant silicone cable may tolerate many lyes or alkaline solutions, yet concentration and temperature can change results significantly. GERITEL WIRE reviews the cleaning agent or SDS and can supply sample material for compatibility evaluation rather than offering a blanket chemical-resistance promise.

How does silicone cable perform around ozone?

Silicone is generally valued in ozone-exposed environments, making ozone resistant silicone cable relevant to some industrial equipment and electrical rooms. GERITEL WIRE still checks combined exposure to heat, UV, oils and mechanical stress because total service conditions, not one chemical property, determine cable life.
