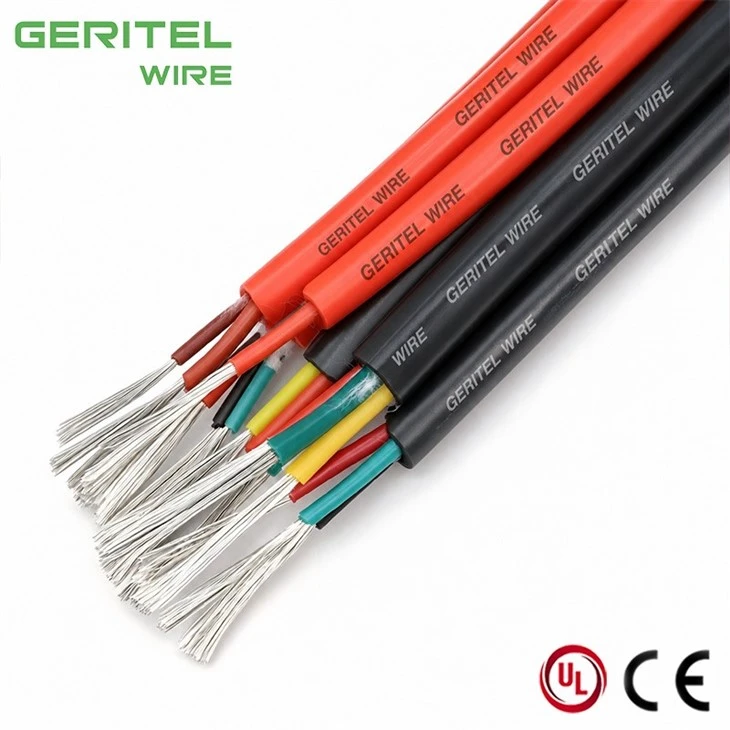

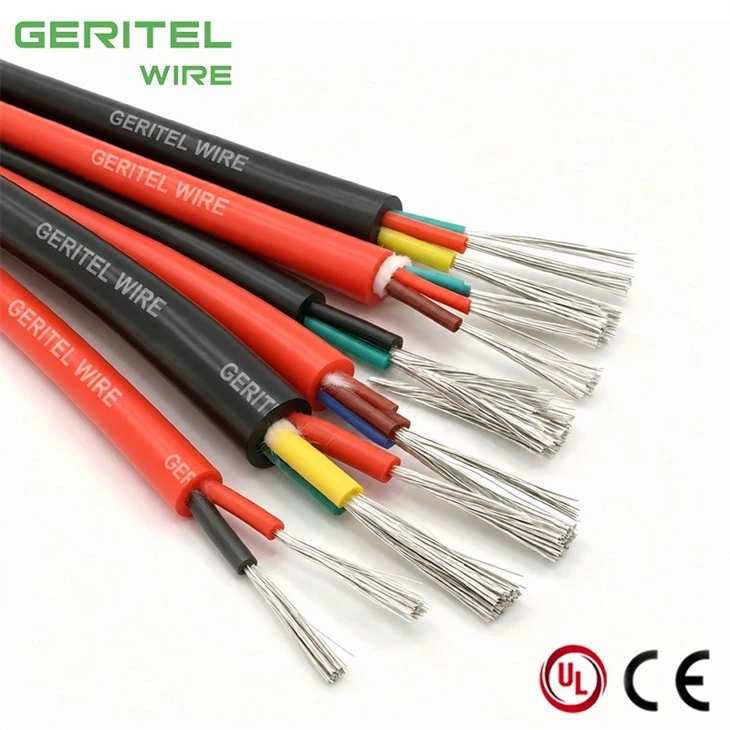

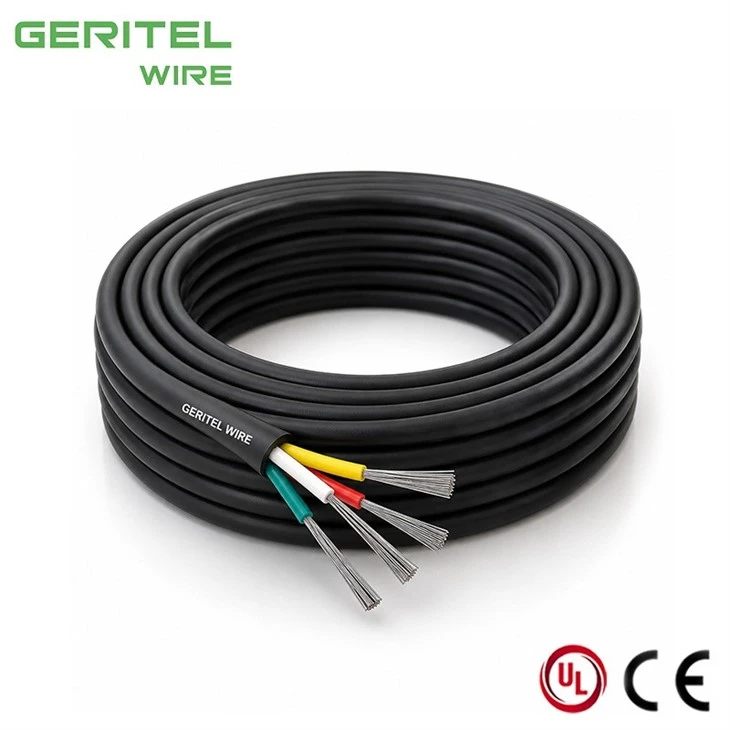

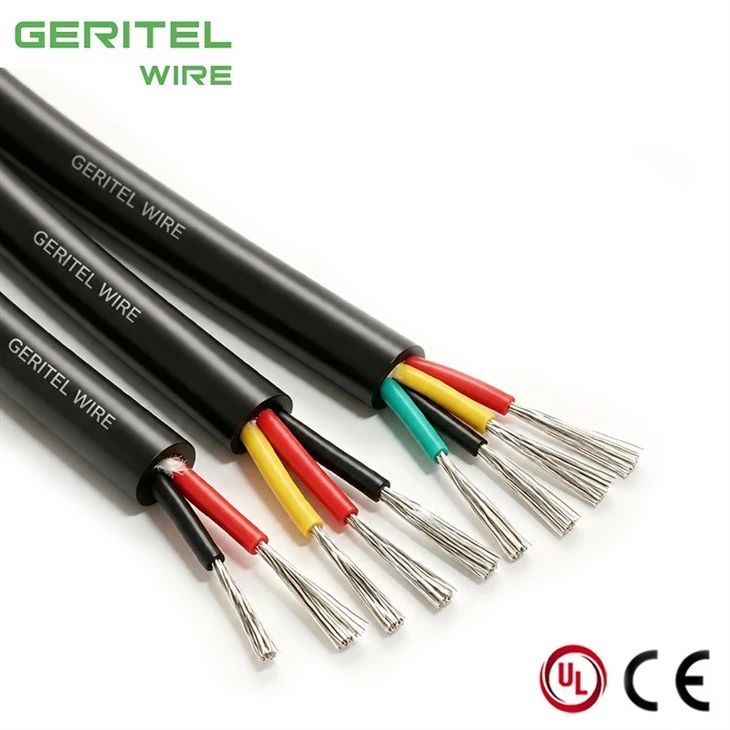

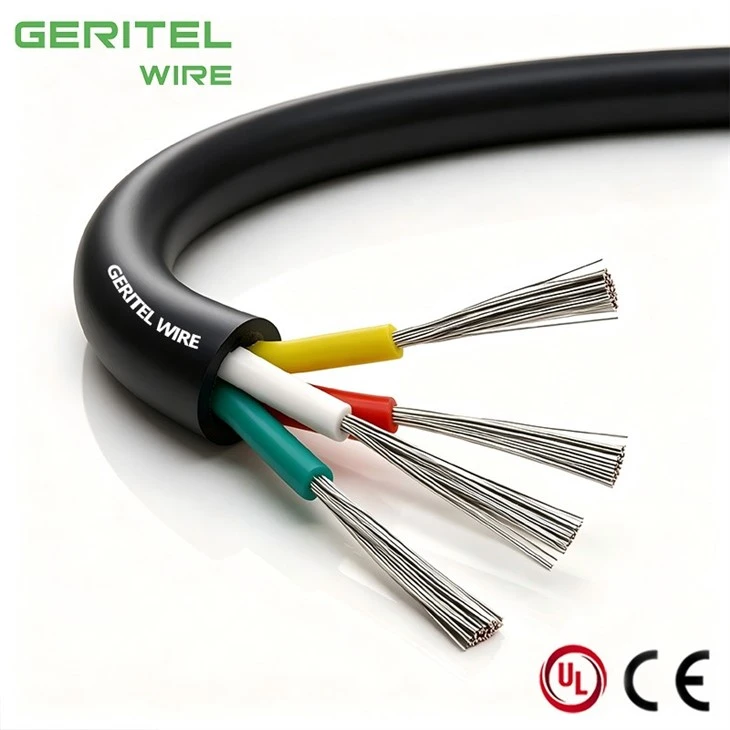

Name: China Industrial Dryer Cable For Textile And Paper Processing Machinery Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 313956256

Description

Technical Parameters

Certification

high temperature resistant silicone cable

PRODUCT REAL SHOT

high temperature resistant multicore silicone cable

heat resistant multicore silicone cable

Heat Resistant Textile Machine Cable for Heated Production Zones

Dryers, calenders, heated rollers and curing stations can expose machine wiring to warm surfaces, oil and temperature cycling. GERITEL WIRE supplies a paper machine silicone cable formed from Class 5 stranded tinned copper, silicone core insulation and a silicone rubber outer sheath. The flexible multicore design supports fixed equipment routes and service loops with only occasional movement, helping machine builders connect heaters, fans and local controls in textile and paper lines. As a printing press dryer cable, it should be protected from abrasion, pulling force and continuous guided travel. Available technical records can be checked against the final ordered construction.

PRODUCT SPECIFICATIONS

extreme temperature resistant silicone cable

Applications

This cable is used for connection of electrical appliances without mechanical stress at increased environmental temperatures, for example in steelworks, but also at low temperatures. Insulation and sheath are resistant to most oils,acids, lyes and oxidants.

SPECIFICATIONS
Voltage Rating Uo/U	300/500V
Temperature Rating	Fixed:-60°C to +200°C
Minimum Bending Radius	Fixed: 5 x overall diameter Flexed: 15 x overall diameter
Conductor	Class 5 flexible Stranded Tinned Copper
Insulation	Silicone rubber
Outer Sheath	Silicone Rubber
Core ldentification	3 cores: Green/Yellow,Blue,Brown 4cores: Green/Yellow,Blue,Black,Grey 5cores: Green/Yellow,Blue,Brown,Black,Grey More than 5 cores: Black numebered +Green/Yellow
Sheath Colour	Red,Black

DIMENSIONS

NO. OF CORES
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
3	0.75	6.8	66
3	1	7.4	78
3	1.5	8	98
3	2.5	9.7	152
3	4	11.5	249
3	6	14.2	352
4	0.75	7.8	84
4	1	8	95
4	1.5	8.8	122
4	2.5	10.6	189
4	4	13	330
4	6	16.2	429
4	10	21.4	710
4	16	24	1014
4	25	29.3	1460
4	35	33	2044
4	50	34	2990
5	0.75	8.5	101
5	1	8.8	116
5	1.50	9.6	148
5	2.5	11.6	229
5	4	15	359
5	6	17.7	564
5	10	22.5	900
5	16	26.9	1206
5	35	36.7	2850
7	0.75	9.6	158
7	1	10	177
7	1.5	10.9	232
7	2.5	13.2	348
7	4	16.2	487
7	6	19.3	685
12	0.75	11.1	178
12	1.5	14.8	332
12	2.5	18	530
18	0.75	13.3	260
18	1.5	17.6	510
24	1.5	20.2	635
25	0.75	15.6	370

CERTIFICATIONS

extreme temperature resistant SiHF-J cable

PACKAGING

extreme temperature resistant multicore silicone cable

Roll

Plastic Reel

wide temperature range multicore silicone cable

Small Wooden Reel

APPLICATION

HVAC & Refrigeration Systems

Industrial Automation & Machinery

low temperature flexible multicore silicone cable

Industrial Control Cabinet Wiring

CASE

Northern Steel High-Temperature Control Upgrade Project

OceanStar Marine Electrical Retrofit Project

PolarFresh Industrial Refrigeration Expansion Project

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

heat and cold resistant multicore silicone cable

self extinguishing multicore silicone cable

GLOBAL CERTIFICATIONS

halogen free SiHF-J cable

CUSTOMER PHOTOS

halogen free multicore silicone cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

low smoke zero halogen multicore silicone cable

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Can I receive flame-test and material documents with the order?

A silicone cable test report package can be discussed before production and may include the relevant product datasheet, inspection data and available compliance documents. GERITEL WIRE records document requirements on the quotation and purchase order, helping buyers avoid requesting project-critical files only after shipment.

How do I know a certificate covers my exact SiHF-J size?

For SiHF-J cable certification, compare the certificate holder, product family, model list, standard, issue date, expiry date and any size restrictions with the quotation. GERITEL WIRE performs this cross-check and can explain whether a file is product certification, a compliance declaration or only a component report.

Can GERITEL supply a RoHS declaration?

If the project requires RoHS silicone cable, state the directive version and any customer-specific restricted-substance list at inquiry stage. GERITEL WIRE will confirm the available material declaration or test evidence for the ordered construction and include the agreed document requirement in the order record.

Is SiHF-J approved for installation in public buildings under CPR?

A CPR silicone cable must have a declared reaction-to-fire class and supporting documentation for the exact product placed on the EU market. Standard SiHF-J wording alone is not enough. GERITEL WIRE asks for the required Euroclass and country rules before confirming whether the offered construction is suitable.
