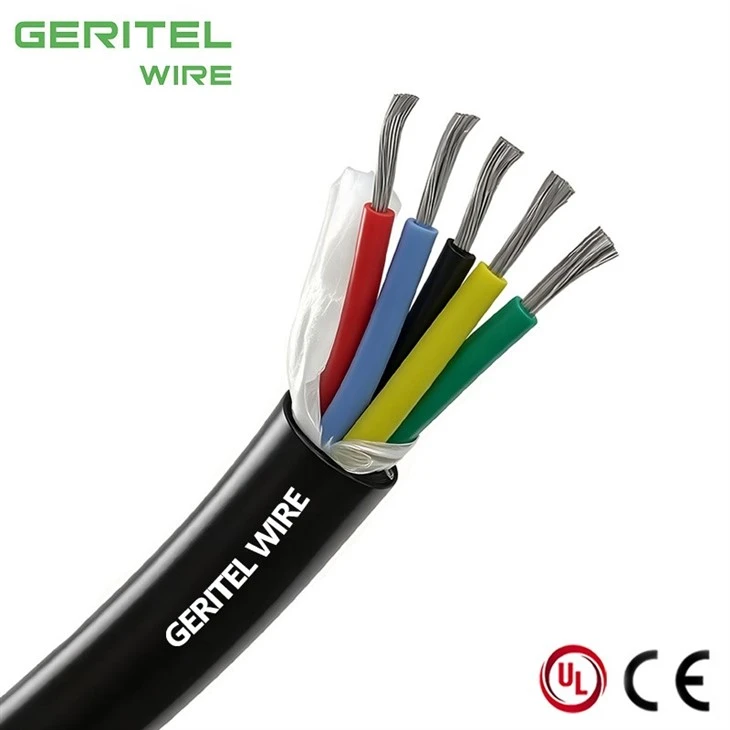

Name: China Hydrogen Electrolyzer Heater Cable For Thermal And Auxiliary Controls Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 314041707

Description

Technical Parameters

Certification

outdoor silicone multicore cable

PRODUCT REAL SHOT

weather resistant silicone control cable for outdoor use

SiHF-J cable for low mechanical stress applications

silicone cable for low mechanical stress

Fuel Cell Thermal Management Cable for Protected Equipment Wiring

Hydrogen production and fuel-cell equipment may include enclosure heaters, dryers, ventilation systems and temperature-control modules with localized heat. GERITEL WIRE can supply a hydrogen compressor auxiliary cable using flexible tinned copper conductors, silicone insulation and a silicone outer sheath for fixed, protected equipment connections. A silicone control cable for electrolyzer equipment must remain outside any assumption of hazardous-area or hydrogen approval unless the complete installation and certificate scope support it. Engineers should assess gas zoning, sealing, chemical exposure, current, temperature and mechanical protection before selection.

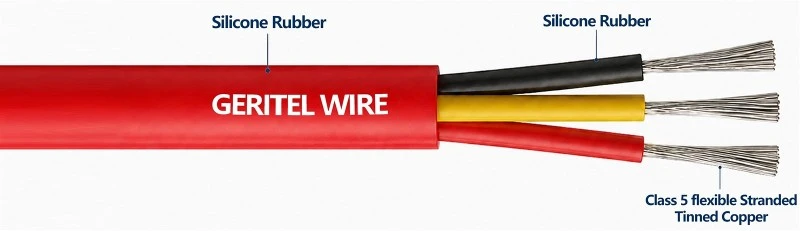

PRODUCT SPECIFICATIONS

high temperature cable for low mechanical stress

Applications

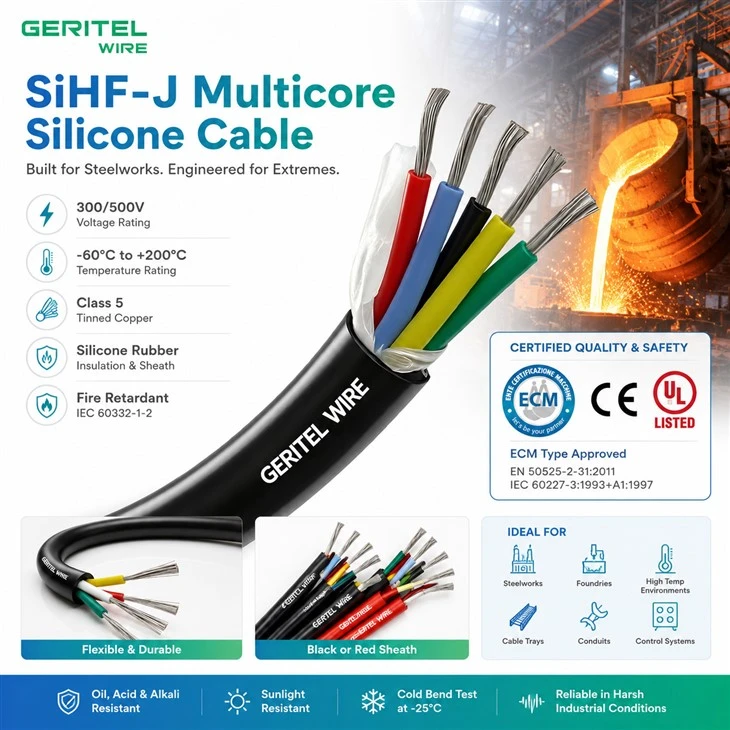

This cable is used for connection of electrical appliances without mechanical stress at increased environmental temperatures, for example in steelworks, but also at low temperatures. Insulation and sheath are resistant to most oils,acids, lyes and oxidants.

SPECIFICATIONS
Voltage Rating Uo/U	300/500V
Temperature Rating	Fixed:-60°C to +200°C
Minimum Bending Radius	Fixed: 5 x overall diameter Flexed: 15 x overall diameter
Conductor	Class 5 flexible Stranded Tinned Copper
Insulation	Silicone rubber
Outer Sheath	Silicone Rubber
Core ldentification	3 cores: Green/Yellow,Blue,Brown 4cores: Green/Yellow,Blue,Black,Grey 5cores: Green/Yellow,Blue,Brown,Black,Grey More than 5 cores: Black numebered +Green/Yellow
Sheath Colour	Red,Black

DIMENSIONS

NO. OF CORES
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
3	0.75	6.8	66
3	1	7.4	78
3	1.5	8	98
3	2.5	9.7	152
3	4	11.5	249
3	6	14.2	352
4	0.75	7.8	84
4	1	8	95
4	1.5	8.8	122
4	2.5	10.6	189
4	4	13	330
4	6	16.2	429
4	10	21.4	710
4	16	24	1014
4	25	29.3	1460
4	35	33	2044
4	50	34	2990
5	0.75	8.5	101
5	1	8.8	116
5	1.50	9.6	148
5	2.5	11.6	229
5	4	15	359
5	6	17.7	564
5	10	22.5	900
5	16	26.9	1206
5	35	36.7	2850
7	0.75	9.6	158
7	1	10	177
7	1.5	10.9	232
7	2.5	13.2	348
7	4	16.2	487
7	6	19.3	685
12	0.75	11.1	178
12	1.5	14.8	332
12	2.5	18	530
18	0.75	13.3	260
18	1.5	17.6	510
24	1.5	20.2	635
25	0.75	15.6	370

CERTIFICATIONS

flexible silicone control cable without mechanical stress

PACKAGING

Roll

silicone control cable without tensile stress

Plastic Reel

high temperature connecting cable without tensile stress

Small Wooden Reel

APPLICATION

flexible silicone cable for free movement without tensile stress

HVAC & Refrigeration Systems

Industrial Automation & Machinery

silicone multicore cable for electrical installations

Industrial Control Cabinet Wiring

CASE

high temperature control cable for electrical facilities

Northern Steel High-Temperature Control Upgrade Project

heat resistant connecting cable for electrical installations

OceanStar Marine Electrical Retrofit Project

PolarFresh Industrial Refrigeration Expansion Project

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

silicone multicore cable core identification

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

SiHF-J cable with consecutive core numbering

silicone control cable with consecutive core numbering

IEC 60332-1-2 flame retardant SiHF-J cable

multicore silicone cable to IEC 60332-1-2

GLOBAL CERTIFICATIONS

SiHF-J VDE 0482-332-1-2 cable

CUSTOMER PHOTOS

VDE 0482-332-1-2 silicone cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

multicore silicone cable to VDE 0482-332-1-2

multicore silicone cable with IEC 60228 Class 5 conductor

VDE 0295 flexible conductor silicone cable

SiHF-J cable with VDE 0295 Class 5 conductor

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Can this cable be used in modular-house heating equipment?

A modular house heating cable can be considered inside factory-built heaters, ventilation units, hot-water equipment or appliances when the relevant equipment standard accepts 300/500V SiHF-J. GERITEL WIRE does not position it as general building mains cable and checks local code and final appliance requirements with the buyer.

Is SiHF-J suitable for prefabricated-house electrical systems?

A prefabricated house equipment cable is useful for localized high-temperature connections in HVAC, cooking, heating or utility modules. GERITEL WIRE separates these equipment circuits from ordinary building wiring and confirms voltage, fire documentation and installation method before supplying project-specific lengths.

Where can SiHF-J be used in battery energy storage systems?

An energy storage HVAC cable may be used for enclosure heaters, cooling fans, defrost circuits and thermal-management controls when voltage and routing are suitable. GERITEL WIRE does not market standard SiHF-J as the main battery DC cable; our team confirms the auxiliary circuit and environmental requirements first.

Can SiHF-J be used in lithium-battery production equipment?

A battery drying oven cable can support heaters, blowers, sensors and controls in protected hot-zone wiring. GERITEL WIRE reviews the oven temperature profile, chemical exposure, clean-production requirements and movement, then supplies approved core identification and packaging for equipment manufacturing.
