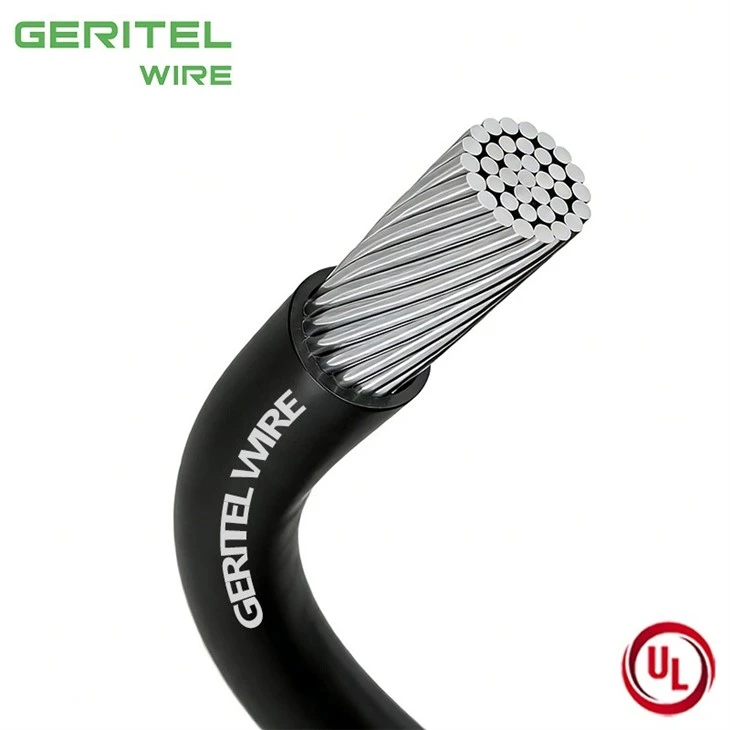

PRODUCT REAL SHOT
Lightweight Thermoset Feeder Wiring for Factory Assembled Commercial and Residential Structures
PRODUCT SPECIFICATIONS
APPLICATIONS
Type USE-2, RHH or RHW-2 cables with Aluminum Alloy 8000 Series conductors are suitable for use in conduit and raceways installed underground in wet locations, and where condensation and moisture accumulations within the conduit do not exceed 90°C. Permitted for Type USE-2 per UL-854 for applications requiring direct burial. For applications requiring Type RHH or RHW-2, conductor temperatures shall not exceed 90°C in wet or dry locations. Type USE-2 is permitted for 600 volt applications. Type RHH/RHW-2 is permitted for applications up to 1000 volts.
FEATURES
10 AWG and larger rated for Sunlight Resistance. Cables comply with UL's FT-2 (horizontal wire flame). On 250 KCMIL and larger, sequential foot markings located every foot for easy measuring. For 1 AWG through 4/0 AWG, sequential foot markings on master reels only unless otherwise specified. 1/0 AWG and larger are rated for cable tray use and comply with UL-1685-Method 1 (70,000 Btu/hr) flame test. Excellent ruggedized and mechanical protection.
| SPECIFICATIONS | |
| Standards | Underwriters Laboratories® Standards UL-44, UL-854, UL-1581, UL-1685, UL-2556; Compact Stranded Aluminum Alloy 8000 Series per ASTM B800, ASTM B801,ASTM B836; Federal Specification AA-59544; NEMA WC70/ICEA S-95-658; NEMA RV-4; NFPA 70 (NEC®); RoHS Compliant; American National Standards Institute; UL-1685 Method 1 Flame Test; ICEA S-81-570; MasterSpec Division 26 Sections 260519, 260523; VW-1 or IEEE 1202 (FT4) optional. |
| Conductors | Compact Stranded Conductors, Aluminum Alloy 8000 Series per ASTM B800, ASTM B801 and ASTM B836 |
| Insulation | Cross-linked polyethylene (XLPE) per UL-44 and UL-854. Sunlight-resistant in all colors 8 AWG and larger |
| Conductors | Compact Diameter of Aluminum Conductor (in) |
XLPE Insulation Thickness (in) |
Outside Diameter (in) |
Approximate Net Weight (lbs/1000 ft) |
Allowable Ampacities (Amps)1 |
Standard Packaging (ft) |
||
| Size (AWG or KCMIL) |
No. of Strands |
75°C | 90°C | |||||
| 8 | 7 | 0.134 | 0.060 | 0.254 | 32 | 40 | 45 | 500' 1000' 2500' 5000' Reels |
| 6 | 7 | 0.169 | 0.060 | 0.289 | 44 | 50 | 55 | 500' 1000' 2500' 5000' Reels |
| 4 | 7 | 0.213 | 0.060 | 0.333 | 62 | 65 | 75 | 500' 1000' 2500' 5000' Reels |
| 3 | 7 | 0.238 | 0.060 | 0.358 | 78 | 75 | 85 | 500' 1000' 2500' 5000' Reels |
| 2 | 7 | 0.268 | 0.060 | 0.388 | 90 | 90 | 100 | 500' 1000' 2500' 5000' Reels |
| 1 | 7 | 0.299 | 0.080 | 0.459 | 120 | 100 | 115 | 500' 1000' 2500' 5000' Reels |
| 1/0 | 7 | 0.336 | 0.080 | 0.496 | 150 | 120 | 135 | 500' 1000' 2500' 5000' Reels |
| 2/0 | 12 | 0.376 | 0.080 | 0.536 | 176 | 135 | 150 | 500' 1000' 2500' 5000' Reels |
| 3/0 | 15 | 0.423 | 0.080 | 0.583 | 216 | 155 | 175 | 500' 1000' 2500' 5000' Reels |
| 4/0 | 19 | 0.475 | 0.080 | 0.635 | 262 | 180 | 205 | 500' 1000' 2500' 5000' Reels |
| 250 | 21 | 0.520 | 0.095 | 0.710 | 320 | 205 | 230 | 500' 1000' 2500' 4000' Reels |
| 300 | 22 | 0.570 | 0.095 | 0.760 | 375 | 230 | 260 | 500' 1000' 3500' Reels |
| 350 | 24 | 0.616 | 0.095 | 0.806 | 450 | 250 | 280 | 500' 1000' 3000' Reels |
| 400 | 27 | 0.659 | 0.095 | 0.849 | 484 | 270 | 305 | 500' 1000' 3000' Reels |
| 500 | 34 | 0.736 | 0.095 | 0.926 | 583 | 310 | 350 | 500' 1000' 2500' Reels |
| 600 | 41 | 0.813 | 0.110 | 1.033 | 710 | 340 | 385 | 500' 1000' 2000' Reels |
| 700 | 45 | 0.877 | 0.110 | 1.097 | 810 | 375 | 425 | 500' 1000' 1500' Reels |
| 750 | 47 | 0.908 | 0.110 | 1.128 | 865 | 385 | 435 | 500' 1000' 1500' Reels |
| 900 | 58 | 0.999 | 0.110 | 1.219 | 1015 | 425 | 480 | 500' 1000' Reels |
| 1000 | 61 | 1.060 | 0.110 | 1.280 | 1096 | 445 | 500 | 500' 1000' Reels |
| 1 Ampacity of conductors are based on the National Electrical Code (NFPA 70) Table 310.15(B)(16). See 110.14(C), 240.4(D) and 310.15(B) for other limitations where applicable. The above data is approximate and subject to manufacturing tolerances. |
||||||||
CERTIFICATIONS
PACKAGING
Roll
Small Wooden Reel
Large Wooden Reel
