Name: China UL44 Aluminum RHH Cable For Renewable Energy Electrical Rooms Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 317789556

Description

Technical Parameters

Certification

AA-8000 series aluminum aluminum RHH wire

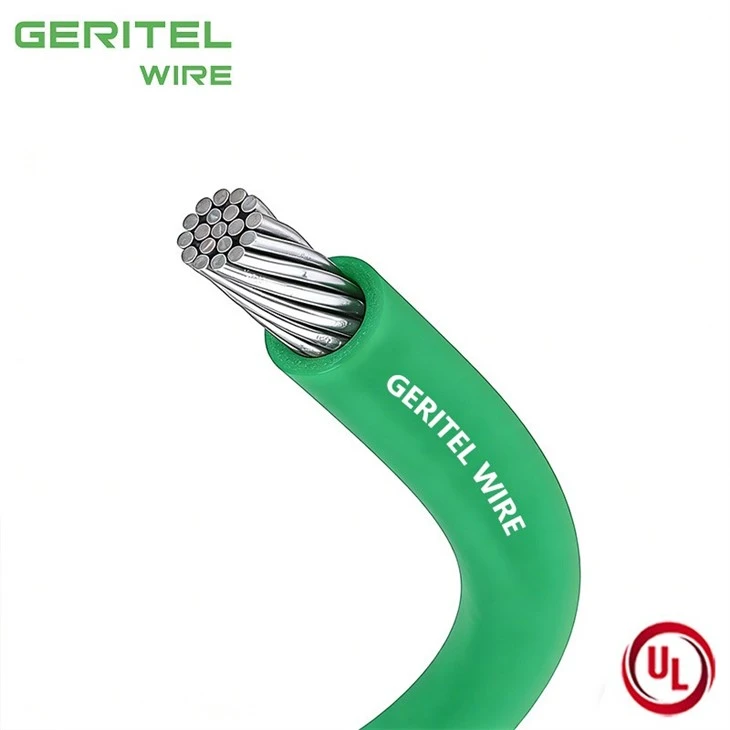

PRODUCT REAL SHOT

aluminum RHH cable AA-8000 series aluminum

AA-8176 aluminum alloy aluminum RHH wire

aluminum RHH cable AA-8176 aluminum alloy

Class B stranding aluminum RHH wire

Facility Side Thermoset Power Wiring for Solar Wind Microgrid and Clean Energy Projects

Aluminum RHH Cable for Renewable Energy can be used for protected facility-side power distribution in solar, wind and microgrid projects where the electrical design specifies UL44 RHH conductors. GERITEL WIRE manufactures stranded aluminum conductors with thermoset insulation for 90°C dry-location service in electrical rooms, switchgear and fixed feeder pathways. Renewable Energy Aluminum RHH Wire should be distinguished from dedicated PV wire used on photovoltaic circuits unless the exact cable also carries the required photovoltaic listing. GERITEL WIRE supplies UL44 Aluminum Power Cable with voltage options, customized identification, reel lengths, packaging and scheduled production for EPC contractors and clean-energy project buyers.

PRODUCT SPECIFICATIONS

aluminum RHH cable Class B stranding

APPLICATIONS

Type USE-2, RHH or RHW-2 cables with Aluminum Alloy 8000 Series conductors are suitable for use in conduit and raceways installed underground in wet locations, and where condensation and moisture accumulations within the conduit do not exceed 90°C. Permitted for Type USE-2 per UL-854 for applications requiring direct burial. For applications requiring Type RHH or RHW-2, conductor temperatures shall not exceed 90°C in wet or dry locations. Type USE-2 is permitted for 600 volt applications. Type RHH/RHW-2 is permitted for applications up to 1000 volts.

FEATURES

10 AWG and larger rated for Sunlight Resistance. Cables comply with UL's FT-2 (horizontal wire flame). On 250 KCMIL and larger, sequential foot markings located every foot for easy measuring. For 1 AWG through 4/0 AWG, sequential foot markings on master reels only unless otherwise specified. 1/0 AWG and larger are rated for cable tray use and comply with UL-1685-Method 1 (70,000 Btu/hr) flame test. Excellent ruggedized and mechanical protection.

SPECIFICATIONS
Standards	Underwriters Laboratories® Standards UL-44, UL-854, UL-1581, UL-1685, UL-2556; Compact Stranded Aluminum Alloy 8000 Series per ASTM B800, ASTM B801,ASTM B836; Federal Specification AA-59544; NEMA WC70/ICEA S-95-658; NEMA RV-4; NFPA 70 (NEC®); RoHS Compliant; American National Standards Institute; UL-1685 Method 1 Flame Test; ICEA S-81-570; MasterSpec Division 26 Sections 260519, 260523; VW-1 or IEEE 1202 (FT4) optional.
Conductors	Compact Stranded Conductors, Aluminum Alloy 8000 Series per ASTM B800, ASTM B801 and ASTM B836
Insulation	Cross-linked polyethylene (XLPE) per UL-44 and UL-854. Sunlight-resistant in all colors 8 AWG and larger

Conductors		Compact Diameter of Aluminum Conductor (in)	XLPE Insulation Thickness (in)	Outside Diameter (in)	Approximate Net Weight (lbs/1000 ft)	Allowable Ampacities (Amps)¹		Standard Packaging (ft)
Size (AWG or KCMIL)	No. of Strands	Compact Diameter of Aluminum Conductor (in)	XLPE Insulation Thickness (in)	Outside Diameter (in)	Approximate Net Weight (lbs/1000 ft)	75°C	90°C	Standard Packaging (ft)
8	7	0.134	0.060	0.254	32	40	45	500' 1000' 2500' 5000' Reels
6	7	0.169	0.060	0.289	44	50	55	500' 1000' 2500' 5000' Reels
4	7	0.213	0.060	0.333	62	65	75	500' 1000' 2500' 5000' Reels
3	7	0.238	0.060	0.358	78	75	85	500' 1000' 2500' 5000' Reels
2	7	0.268	0.060	0.388	90	90	100	500' 1000' 2500' 5000' Reels
1	7	0.299	0.080	0.459	120	100	115	500' 1000' 2500' 5000' Reels
1/0	7	0.336	0.080	0.496	150	120	135	500' 1000' 2500' 5000' Reels
2/0	12	0.376	0.080	0.536	176	135	150	500' 1000' 2500' 5000' Reels
3/0	15	0.423	0.080	0.583	216	155	175	500' 1000' 2500' 5000' Reels
4/0	19	0.475	0.080	0.635	262	180	205	500' 1000' 2500' 5000' Reels
250	21	0.520	0.095	0.710	320	205	230	500' 1000' 2500' 4000' Reels
300	22	0.570	0.095	0.760	375	230	260	500' 1000' 3500' Reels
350	24	0.616	0.095	0.806	450	250	280	500' 1000' 3000' Reels
400	27	0.659	0.095	0.849	484	270	305	500' 1000' 3000' Reels
500	34	0.736	0.095	0.926	583	310	350	500' 1000' 2500' Reels
600	41	0.813	0.110	1.033	710	340	385	500' 1000' 2000' Reels
700	45	0.877	0.110	1.097	810	375	425	500' 1000' 1500' Reels
750	47	0.908	0.110	1.128	865	385	435	500' 1000' 1500' Reels
900	58	0.999	0.110	1.219	1015	425	480	500' 1000' Reels
1000	61	1.060	0.110	1.280	1096	445	500	500' 1000' Reels
¹ Ampacity of conductors are based on the National Electrical Code (NFPA 70) Table 310.15(B)(16). See 110.14(C), 240.4(D) and 310.15(B) for other limitations where applicable. The above data is approximate and subject to manufacturing tolerances.

CERTIFICATIONS

compact stranded conductor aluminum RHH wire

PACKAGING

aluminum RHH cable compact stranded conductor

Roll

thermoset cable standard aluminum RHH wire

Small Wooden Reel

aluminum RHH cable thermoset cable standard

Large Wooden Reel

APPLICATION

aluminum RHH cable aluminum building wire standard

Underground Conduit Installation

aluminum building wire standard aluminum RHH wire

Conduit Wiring

aluminum feeder wire standard aluminum RHH wire

Feeder Circuit Wiring

CASE

silicone free XLPE insulation aluminum RHH cable

Tesla Gigafactory Texas

aluminum RHH cable aluminum feeder wire standard

Stanford University California USA

service entrance wire standard aluminum RHH wire

Mayo Clinic Hospital, Saint Marys Campus

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

aluminum RHH cable service entrance wire standard

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

RHH aluminum building wire silicone free XLPE insulation

direct burial wire standard aluminum RHH wire

aluminum RHH cable direct burial wire standard

wet location wire standard aluminum RHH wire

aluminum RHH cable wet location wire standard

aluminum RHH wire with abrasion resistant XLPE insulation

GLOBAL CERTIFICATIONS

PV wire standard aluminum RHH wire

CUSTOMER PHOTOS

RHH 1000 volt certification aluminum RHH wire

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

aluminum RHH cable RHH 1000 volt certification

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

RHH 2000 volt certification aluminum RHH wire

aluminum RHH cable RHH 2000 volt certification

UL listed aluminum RHH wire aluminum RHH wire

aluminum RHH cable UL listed aluminum RHH wire

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

What is the MOQ for Aluminum RHH Wire?

The Aluminum RHH Wire MOQ depends on conductor size, voltage, insulation color, custom printing and packaging requirements. Standard production configurations may have different minimums from special OEM orders. Send your size list and quantities to GERITEL WIRE so we can confirm the practical production minimum for each item.

How do I request a quotation for Aluminum RHH Cable?

For an Aluminum RHH Cable quotation, provide conductor sizes, voltage, quantities, required type designation, color, reel or cut length, destination and any special certification or packaging requirements. The more complete the cable schedule, the more accurately GERITEL WIRE can calculate material, production and shipping requirements.

Can GERITEL quote mixed sizes in one order?

As an Aluminum RHH Wire supplier, GERITEL WIRE can review orders containing multiple AWG and kcmil sizes for a single project or distribution shipment. Mixed-size production should be planned early so reel quantities, packaging and loading can be coordinated efficiently. Send the full bill of quantities for a consolidated quotation.

Can you provide samples before a bulk order?

An Aluminum RHH Wire sample may be available for technical review depending on the conductor size, requested construction and current production availability. Sample requirements should be discussed before the bulk order, especially when custom printing or color is involved. GERITEL WIRE can confirm sample options during quotation.

Hot Tags: ul44 aluminum rhh cable for renewable energy electrical rooms, China ul44 aluminum rhh cable for renewable energy electrical rooms manufacturers, suppliers, factory
