Name: China Aluminum RHH Wire For Solar Inverter Rooms And Switchgear Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 317789678

Description

Technical Parameters

Certification

aluminum RHH wire factory direct

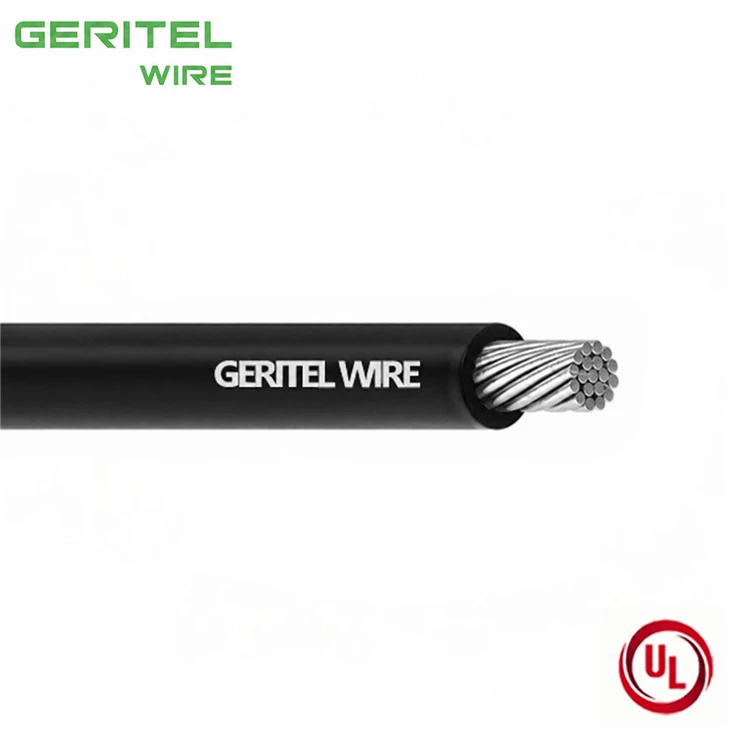

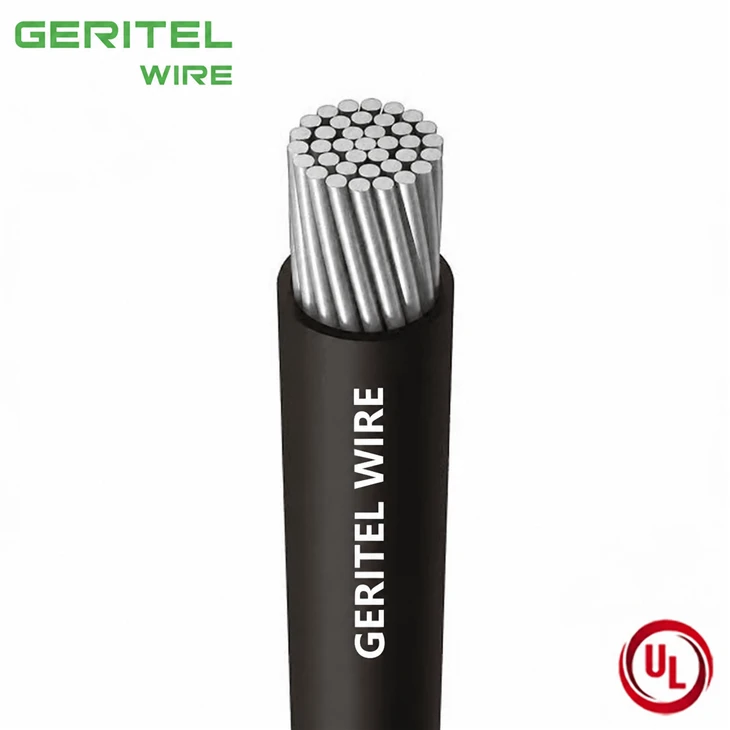

PRODUCT REAL SHOT

aluminum RHH cable wholesale supplier

Thermoset Facility Power Conductor for Protected Renewable Energy Distribution Systems

Aluminum RHH Wire for Solar Inverter Rooms can support protected facility power distribution where UL44 RHH conductors are specified for dry electrical spaces. The stranded aluminum conductor offers a lighter installation option for feeder runs, while thermoset insulation supports 90°C service around inverter rooms, electrical equipment and switchgear pathways. Solar Facility Aluminum RHH Cable is different from photovoltaic module-circuit wire and should only be used according to the project design and exact product listing. GERITEL WIRE supplies Aluminum RHH Switchgear Wire with multiple voltage markings, project-specific printing, reel lengths and packaging for solar EPC contractors, equipment suppliers and distribution partners.

PRODUCT SPECIFICATIONS

UL44 RHH aluminum wire wholesale supplier

APPLICATIONS

Type USE-2, RHH or RHW-2 cables with Aluminum Alloy 8000 Series conductors are suitable for use in conduit and raceways installed underground in wet locations, and where condensation and moisture accumulations within the conduit do not exceed 90°C. Permitted for Type USE-2 per UL-854 for applications requiring direct burial. For applications requiring Type RHH or RHW-2, conductor temperatures shall not exceed 90°C in wet or dry locations. Type USE-2 is permitted for 600 volt applications. Type RHH/RHW-2 is permitted for applications up to 1000 volts.

FEATURES

10 AWG and larger rated for Sunlight Resistance. Cables comply with UL's FT-2 (horizontal wire flame). On 250 KCMIL and larger, sequential foot markings located every foot for easy measuring. For 1 AWG through 4/0 AWG, sequential foot markings on master reels only unless otherwise specified. 1/0 AWG and larger are rated for cable tray use and comply with UL-1685-Method 1 (70,000 Btu/hr) flame test. Excellent ruggedized and mechanical protection.

SPECIFICATIONS
Standards	Underwriters Laboratories® Standards UL-44, UL-854, UL-1581, UL-1685, UL-2556; Compact Stranded Aluminum Alloy 8000 Series per ASTM B800, ASTM B801,ASTM B836; Federal Specification AA-59544; NEMA WC70/ICEA S-95-658; NEMA RV-4; NFPA 70 (NEC®); RoHS Compliant; American National Standards Institute; UL-1685 Method 1 Flame Test; ICEA S-81-570; MasterSpec Division 26 Sections 260519, 260523; VW-1 or IEEE 1202 (FT4) optional.
Conductors	Compact Stranded Conductors, Aluminum Alloy 8000 Series per ASTM B800, ASTM B801 and ASTM B836
Insulation	Cross-linked polyethylene (XLPE) per UL-44 and UL-854. Sunlight-resistant in all colors 8 AWG and larger

Conductors		Compact Diameter of Aluminum Conductor (in)	XLPE Insulation Thickness (in)	Outside Diameter (in)	Approximate Net Weight (lbs/1000 ft)	Allowable Ampacities (Amps)¹		Standard Packaging (ft)
Size (AWG or KCMIL)	No. of Strands	Compact Diameter of Aluminum Conductor (in)	XLPE Insulation Thickness (in)	Outside Diameter (in)	Approximate Net Weight (lbs/1000 ft)	75°C	90°C	Standard Packaging (ft)
8	7	0.134	0.060	0.254	32	40	45	500' 1000' 2500' 5000' Reels
6	7	0.169	0.060	0.289	44	50	55	500' 1000' 2500' 5000' Reels
4	7	0.213	0.060	0.333	62	65	75	500' 1000' 2500' 5000' Reels
3	7	0.238	0.060	0.358	78	75	85	500' 1000' 2500' 5000' Reels
2	7	0.268	0.060	0.388	90	90	100	500' 1000' 2500' 5000' Reels
1	7	0.299	0.080	0.459	120	100	115	500' 1000' 2500' 5000' Reels
1/0	7	0.336	0.080	0.496	150	120	135	500' 1000' 2500' 5000' Reels
2/0	12	0.376	0.080	0.536	176	135	150	500' 1000' 2500' 5000' Reels
3/0	15	0.423	0.080	0.583	216	155	175	500' 1000' 2500' 5000' Reels
4/0	19	0.475	0.080	0.635	262	180	205	500' 1000' 2500' 5000' Reels
250	21	0.520	0.095	0.710	320	205	230	500' 1000' 2500' 4000' Reels
300	22	0.570	0.095	0.760	375	230	260	500' 1000' 3500' Reels
350	24	0.616	0.095	0.806	450	250	280	500' 1000' 3000' Reels
400	27	0.659	0.095	0.849	484	270	305	500' 1000' 3000' Reels
500	34	0.736	0.095	0.926	583	310	350	500' 1000' 2500' Reels
600	41	0.813	0.110	1.033	710	340	385	500' 1000' 2000' Reels
700	45	0.877	0.110	1.097	810	375	425	500' 1000' 1500' Reels
750	47	0.908	0.110	1.128	865	385	435	500' 1000' 1500' Reels
900	58	0.999	0.110	1.219	1015	425	480	500' 1000' Reels
1000	61	1.060	0.110	1.280	1096	445	500	500' 1000' Reels
¹ Ampacity of conductors are based on the National Electrical Code (NFPA 70) Table 310.15(B)(16). See 110.14(C), 240.4(D) and 310.15(B) for other limitations where applicable. The above data is approximate and subject to manufacturing tolerances.

CERTIFICATIONS

aluminum RHH wire bulk supplier

PACKAGING

Roll

Small Wooden Reel

Large Wooden Reel

APPLICATION

Underground Conduit Installation

Conduit Wiring

Feeder Circuit Wiring

CASE

Tesla Gigafactory Texas

Stanford University California USA

Mayo Clinic Hospital, Saint Marys Campus

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

UL44 aluminum RHH wire for photovoltaic power systems

UL44 RHH aluminum wire custom manufacturer

aluminum RHH cable for microgrid facilities

RHH aluminum power cable for microgrid facilities

GLOBAL CERTIFICATIONS

UL44 RHH aluminum wire project supplier

CUSTOMER PHOTOS

aluminum RHH wire industrial supplier

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

UL44 RHH aluminum wire industrial supplier

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

aluminum RHH wire building wire supplier

aluminum RHH cable building wire supplier

UL44 RHH aluminum wire building wire supplier

aluminum RHH wire for industrial switchgear

UL44 RHH aluminum wire power cable supplier

aluminum RHH cable feeder cable supplier

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

UL44 RHH aluminum wire feeder cable supplier

FAQ

Can GERITEL provide private-label packaging?

private label Aluminum RHH Cable packaging can be discussed for distributor and OEM programs, subject to quantity and branding requirements. Required product identification and traceability must remain accurate. GERITEL WIRE can review reel labels, outer packaging and customer artwork as part of the production approval process.

Can the reel label include our project information?

project labeled Aluminum RHH Wire can simplify receiving and installation by identifying conductor size, length, project code or destination area on each reel. GERITEL WIRE can review customer label requirements before production. Required product and traceability information will still be maintained on the appropriate labels and cable marking.

Can GERITEL supply Aluminum RHH Wire to distributors?

Aluminum RHH Wire distributor supply can be planned for repeat stock orders, mixed sizes and private-label programs. GERITEL WIRE can coordinate standard specifications, packaging and production schedules to help distributors maintain consistent product presentation. Forecasts and repeat-order planning can improve manufacturing efficiency.

Can electrical contractors buy directly from GERITEL?

factory direct Aluminum RHH Wire can be supplied to qualified project and B2B customers based on the order quantity, destination and specification. Contractors should provide a complete cable schedule so GERITEL WIRE can review sizes, voltages, lengths and delivery requirements. Project-based packaging can also be discussed.

Hot Tags: aluminum rhh wire for solar inverter rooms and switchgear, China aluminum rhh wire for solar inverter rooms and switchgear manufacturers, suppliers, factory
