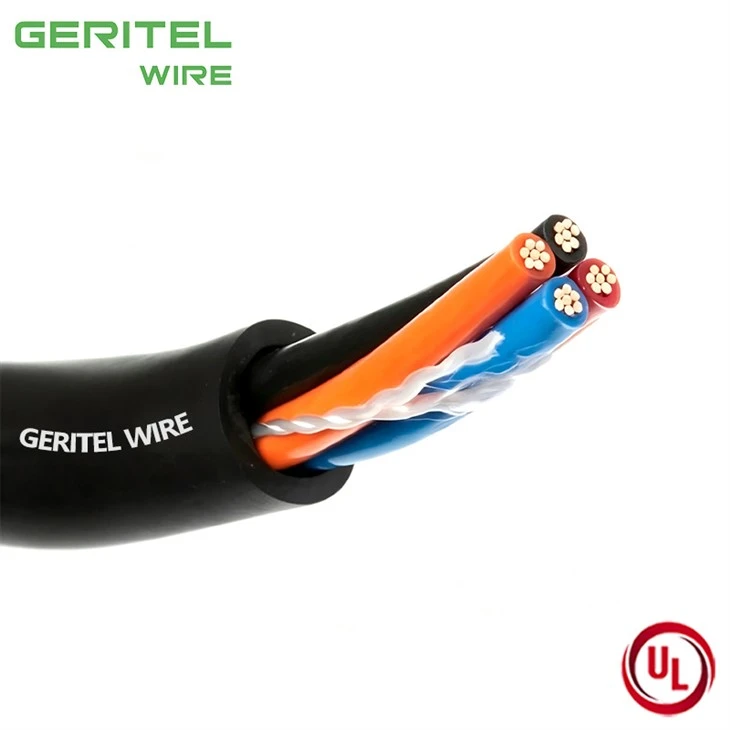

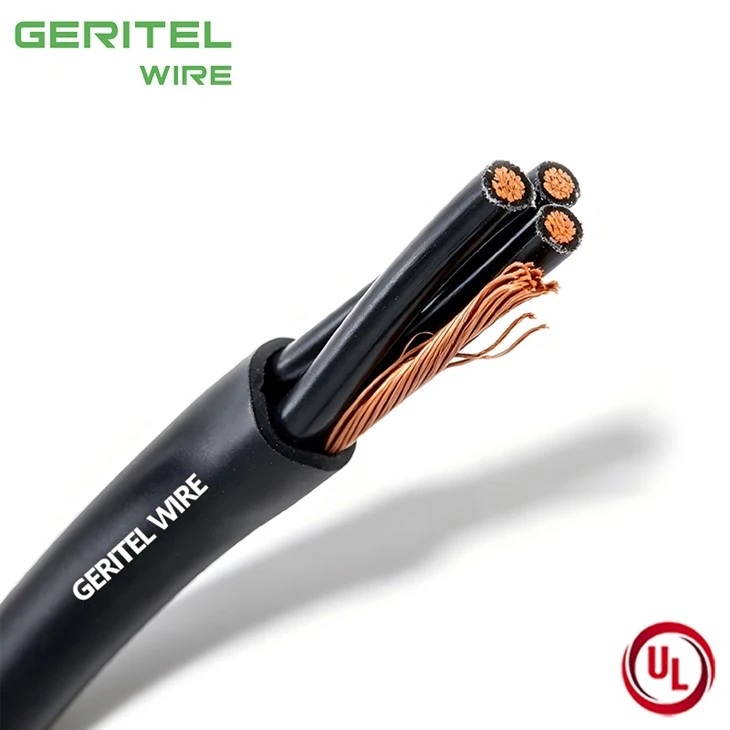

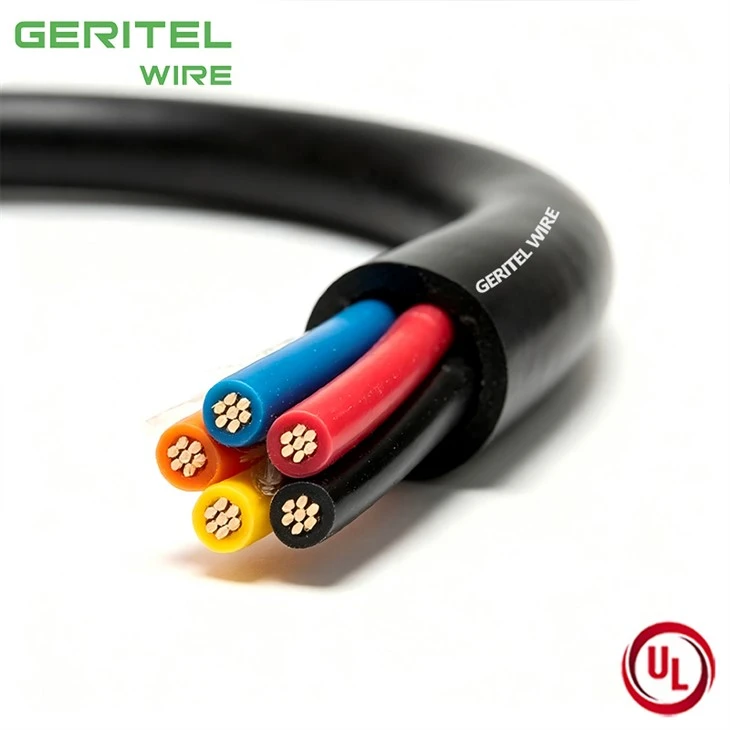

PRODUCT REAL SHOT

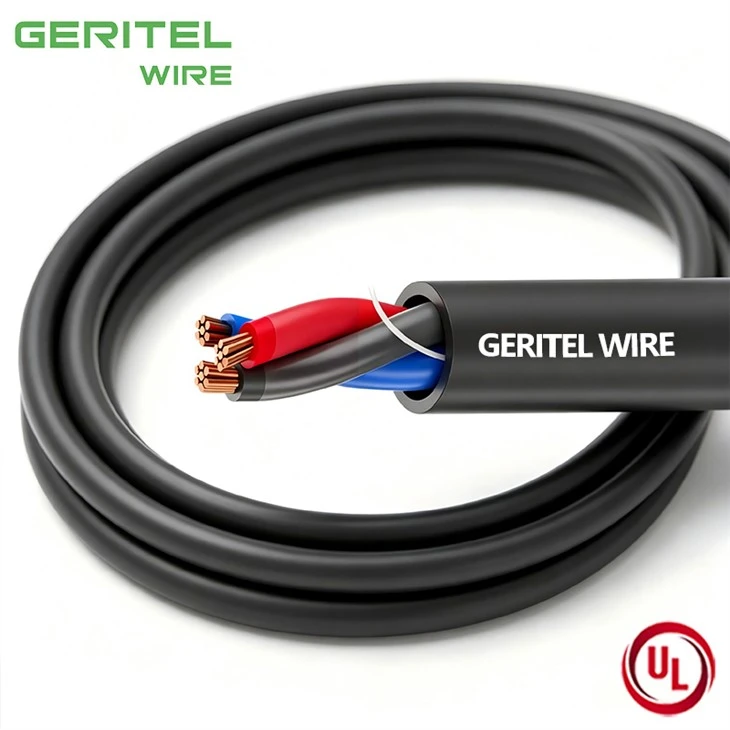

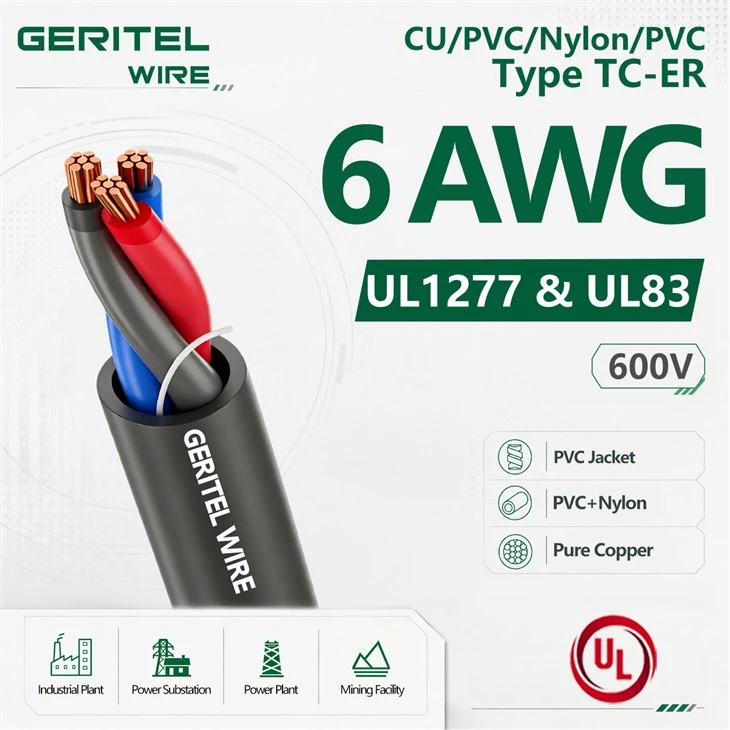

UL1277 6 AWG TC-ER Tray Cable With THHN THWN-2 Conductors

UL1277 6 AWG TC-ER Tray Cable with THHN THWN-2 Conductors

This UL1277 certified 6 AWG TC-ER tray cable features dual-rated THHN/THWN-2 annealed copper conductors with 90°C wet/dry temperature resistance and 600V voltage rating. Equipped with crush & impact resistant outer jacket and FT4 flame retardant property, it holds TC-ER exposed run approval under NEC 336, allowing up to 6 feet unsupported open wiring between cable trays and industrial equipment. Compact cabled structure with built-in pull tape simplifies field stripping, while oil, UV and moisture resistance fits factory automation, MCC panel and heavy-load power distribution projects for North American industrial sites.

PRODUCT SPECIFICATIONS

Control Tray Cable

Product Description

The PVC/Nylon/PVC (THHN/THWN-2), 600V Power, TC-ER Direct Burial Cable consist of fully annealed bare copper Class B stranded conductors, covered with Polyvinyl Chloride (PVC) and oil and gas resistant Nylon insulation, unshielded and black PVC jacket. These cables are used in industrial power.

Applications

In conduit, duct, free air, raceways and direct burial, primary installations include cable trays, and outdoor locations
In wet or dry locations
Approved for Class I, Div. 2 industrial hazardous locations per NEC
Permitted for Exposed Run (ER) use in accordance with NEC for 3 or more conductors

Features

Rated at 90°C wet or dry
Ripcord (as needed)
Excellent sunlight resistance
Meets cold bend test at -25°C

SPECIFICATIONS
Conductor Count	Available in 3 or 4 conductors
Conductor	Fully annealed bare copper Class B compressed strand per ASTM B8
Gauge Sizes	Available in 12 AWG through 750 kcmil
Insulation	Polyvinyl Chloride (PVC) covered with All gauges are type THHN/THWN-2
Color Coding	Per ICEA S-58-679 Method 4 or Method 1, Table E-1 (K-1) or E-2 (K-2); additional color coding options available
Fillers	Non-hygroscopic fillers, as necessary to obtain a circular cross section
Ground Conductor	Uninsulated bare copper ground Optional: Insulated ground
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	00000 FT GREATER WIRE XXXAWG XX/C THHN/THWN-2 PVC JKT 600V 90C WET OR DRY TYPE TC-ER (UL) SUN RES DIR BURIAL MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B3, ASTM B8 UL 83 UL1277 UL 1685 (flame exposure test) ANSI/NEMA WC 70/ICEA S-95-658 FT4/IEEE1202 (flame compliance) NEC
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant

TC-ER Tray Cable with THHN/THWN-2 Copper Conductors Data Sheet

Conductor Count	Conductor Size AWG/kcmil	Ground Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
3	12	12	0.020(0.51)	0.045(1.14)	0.39(9.9)	135(195)
4	12	12	0.020(0.51)	0.045(1.14)	0.43(10.8)	160 (237)
3	10	10	0.025(0.64)	0.045(1.14)	0.46(11.8)	200(291)
4	10	10	0.025(0.64)	0.045(1.14)	0.51(12.9)	240(356)
3	8	10	0.036(0.91)	0.060(1.52)	0.61(15.5)	305(453)
4	8	10	0.036(0.91)	0.060(1.52)	0.67(17.0)	380(561)
3	6	8	0.038(0.97)	0.060(1.52)	0.70(17.7)	440(652)
4	6	8	0.038(0.97)	0.060(1.52)	0.77(19.4)	550(812)
3	4	8	0.049(1.24)	0.060(1.52)	0.85(21.5)	640(952)
4	4	8	0.049(1.24)	0.080(2.03)	0.97(24.7)	850(1,260)
3	2	6	0.049(1.24)	0.080(2.03)	1.01(25.8)	980(1,455)
4	2	6	0.049(1.24)	0.080(2.03)	1.11(28.3)	1.235(1.836)
3	1	6	0.060(1.52)	0.080(2.03)	1.15(29.1)	1,210(1,800)
4	1	6	0.060(1.52)	0.080(2.03)	1.26(32.1)	1,540(2,286)
3	1/0	6	0.060(1.52)	0.080(2.03)	1.23(31.3)	1,450(2,154)
4	1/0	6	0.060(1.52)	0.080(2.03)	1.36(34.5)	1,850(2,750)
3	2/0	6	0.060(1.52)	0.080(2.03)	1.32(33.7)	1,745 (2,592)
4	2/0	6	0.060(1.52)	0.080(2.03)	1.46(37.2)	2,235(3,326)
3	3/0	4	0.060(1.52)	0.080(2.03)	1.44(36.5)	2,160(3,209)
4	3/0	4	0.060(1.52)	0.080(2.03)	1.59(40.3)	2,770(4,116)
3	4/0	4	0.060(1.52)	0.080(2.03)	1.56(39.5)	2,615(3,890)
4	4/0	4	0.060(1.52)	0.080(2.03)	1.72(43.7)	3,370(5,012)
3	250	4	0.071(1.80)	0.080(2.03)	1.71(43.4)	3,080(4581)
4	250	4	0.071(1.80)	0.110(2.79)	1.95(49.6)	4,090(6,083)
3	350	3	0.071(1.80)	0.110(2.79)	1.99(50.5)	4.265(6.340)
4	350	3	0.071(1.80)	0.110(2.79)	2.2(55.9)	5,505(8,186)
3	500	2	0.071(1.80)	0.110(2.79)	2.27(57.6)	5.850(8.701)
4	500	2	0.071(1.80)	0.110(2.79)	2.51(63.8)	7,580(11,276)
3	750	1	0.082(2.08)	0.110(2.79)	2.70(68.6)	8,535(12,700)
4	750	1	0.082(2.08)	0.140(3.56)	3.06(77.8)	11.295(16,807)

CERTIFICATIONS

UL1277 Tray Cable

PACKAGING

Large Wooden Reel

Large Wooden Reel

APPLICATION

Industrial Plant

Mining Facility

Power Plant

CASE

Battery energy storage system

Bechatw Power Station

Bingham Canyon Mine

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

Copper Tray Cable

CUSTOMER PHOTOS

Industrial Electrical Cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

What's the core advantage of TC-ER rating over standard TC tray cable?

Ordinary TC cables can only be fully enclosed inside trays or conduits without exposed segments, while TC-ER passes strict UL1569 mechanical tests. It permits 6 feet unprotected exposed transition from trays to machinery without extra conduits, cutting installation materials and labor costs greatly.

Why are THHN/THWN-2 dual-rated conductors adopted for this 6 AWG TC-ER cable?

THHN/THWN-2 insulation combines heat-resistant PVC and nylon barrier, supporting stable operation in both high-temperature dry workshops and damp buried/outdoor environments. It resists factory oil and chemical corrosion, and delivers a longer service life than single-layer PVC insulated wires.

What is the standard ampacity of this 6 AWG TC-ER cable and matching circuit breaker?

Per NEC Table 310.16, the 6 AWG THHN copper conductor has a base ampacity of 115A at 90°C dry locations. Considering 75℃ terminal temperature limit, usable ampacity is 100A, which matches a 100A circuit breaker; ampacity derating is required when bundling over 3 current-carrying conductors.

Can this UL1277 TC-ER cable be used for both indoor tray wiring and outdoor exposed runs?

Yes. Its UV-stabilized, moisture-proof PVC outer jacket supports indoor tray layout, outdoor overhead exposed installation and direct underground burial. You need to add mechanical protection where the cable rubs against sharp metal edges, and fix the cable with metal brackets every 6 feet for outdoor exposed sections.
