Name: China 16mm² Flexible Copper Welding Cable For Solar Battery Banks Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 309091663

Description

Technical Parameters

Certification

16mm2 welding cable

PRODUCT REAL SHOT

1 x 16mm2 welding cable

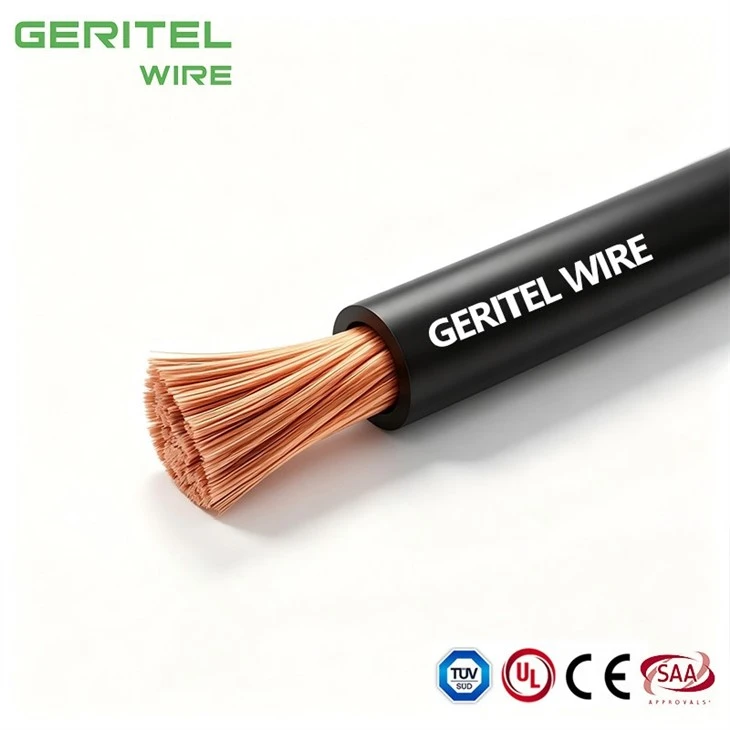

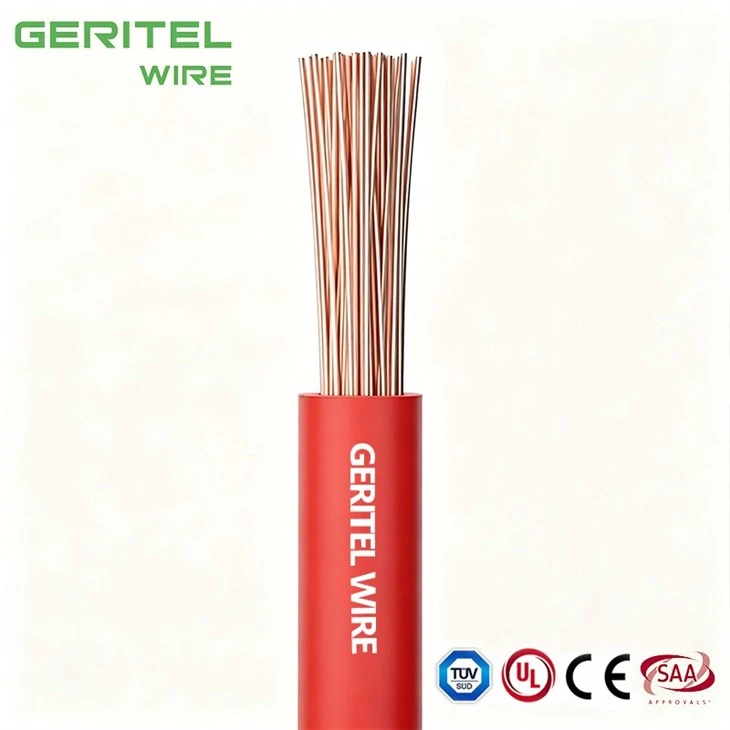

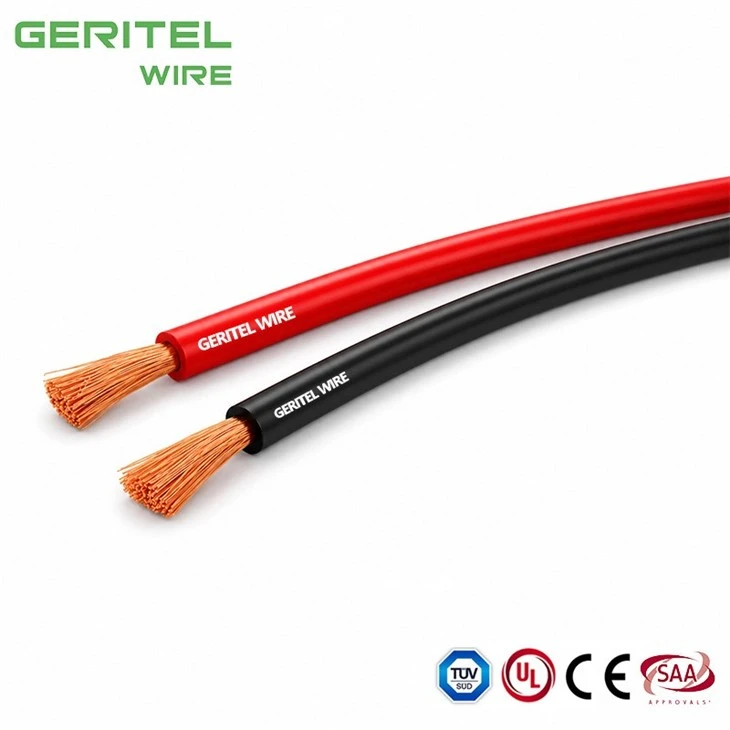

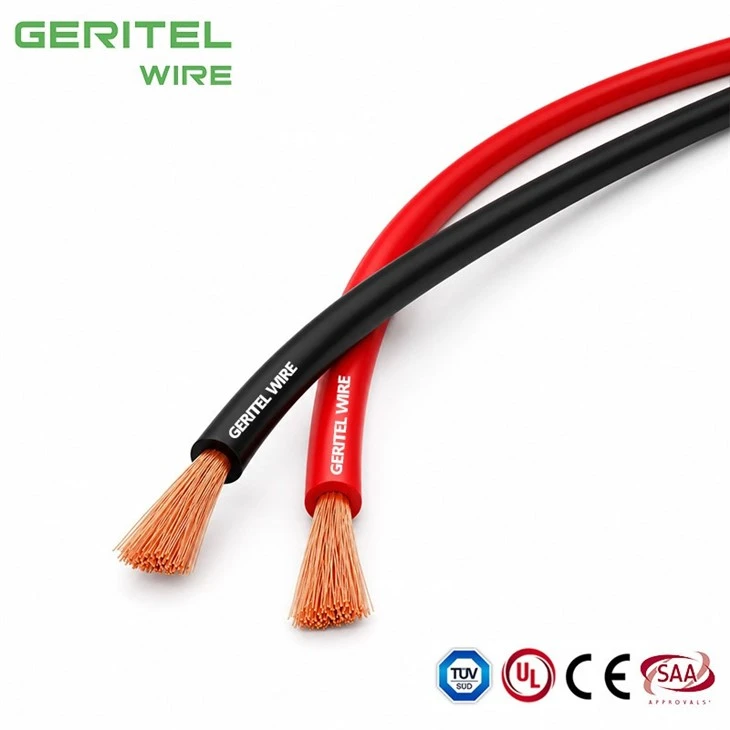

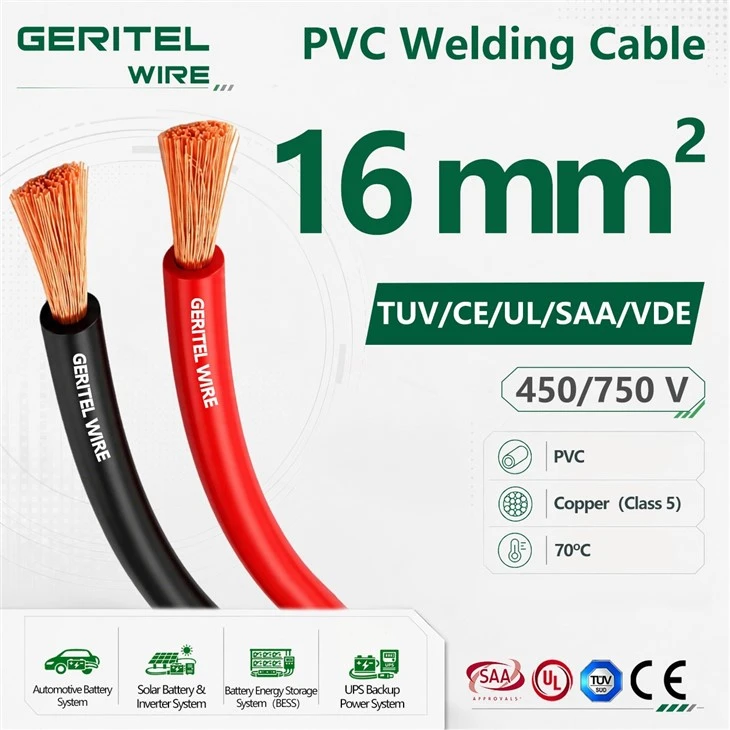

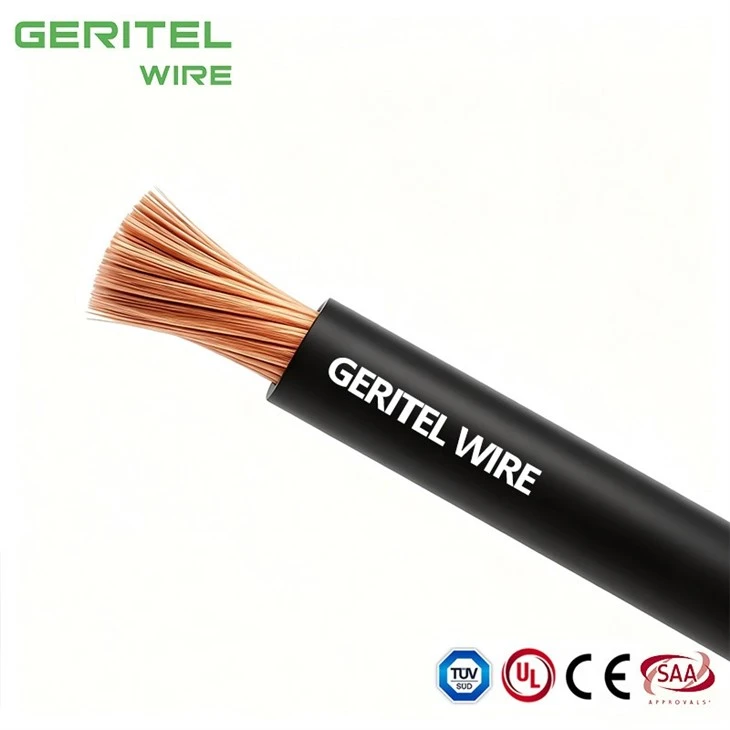

16mm² Heavy-Duty Flexible Welding Cable for DC Distribution

The 16mm² CU Class 5/PVC cable is a flexible heavy-duty conductor for battery systems, inverter links, charging equipment, industrial vehicles and DC power distribution. Class 5 copper stranding allows repeated bending and helps the cable fit around cabinets, trays and terminals without excessive stiffness. This 16mm² welding cable is offered in red, black and customized colors with optional printing and project lengths. As a flexible welding power cable, it suits medium-current connections requiring dependable copper performance and efficient termination. GERITEL WIRE monitors conductor resistance, insulation dimensions and finished appearance to provide consistent PVC welding cable for OEM production and sourcing.

PRODUCT SPECIFICATIONS

1x16mm2 welding cable

Application

GERITEL WIRE H05V-K & H07V-K cable has been specially designed for installations that reguire a flexible cable due to the complex nature of their layout.
This cable is especially suitable for domestic wiring.
It may also be used for eguipment wiring,distributors,cabinets and tighting.

SPECIFICATIONS
Conductor	Electrolytic annealed copper, class 5 (flexible) according to EN60228 and IEC 60228.
Insulation	Extra sliding flexible polyvinyl chloride type TI1 according to EN50363-3
Thermal performance	Maximum conductor temperature: 70°C. Maximum short-circuit temperature: 160°C (max. 5 s).Minimum installation and handling temperature: 5°C.Minimum service temperature: -40°C (fixed and protectedinstallations).
Fire performance	Flame non-propagation according to EN 60332-1/IEC 60332-1. Reaction to fire CPR: Eca according to EN 50575. Reduced halogen emission. Chlorine < 15%.
Mechanical performance	Minimum bending radius: 5x cable diameter.
Environmental performance	Chemical & Oil resistance: Acceptable.
Installation conditions	In conduit.
Other	Meter by meter marking. (from 10 mm2 onwards).

Cross-section (mm2)	Diameter (mm)	Weight (kg/km)	In conduit 2 cond. (A)	In conduit 3 cond. (A)	Voltage drop (V/A·km)


1x1.5	2.9	19	17.5	15.5	31.9
1x2.5	3.6	30	24	21	19.2
1x4	4.1	44	32	28	11.9
1x6	4.6	61	41	36	7.92
1x10	5.9	105	57	50	4.58
1x16	7.0	160	76	68	2.90
1x25	8.7	245	101	89	1.87
1x35	9.9	335	125	110	1.33
1x50	11.8	480	151	134	0.926
1x70	13.5	655	192	171	0.653
1x95	15.6	865	232	207	0.494
1x120	17.3	1.095	269	239	0.386
1x150	19.2	1.380	-	275	0.310
1x185	21.5	1.675	-	314	0.254
1x240	24.5	2.210	-	370	0.192
1x300	26.9	2.795	-	430	0.153

CERTIFICATIONS

16mm2 PVC welding cable

PACKAGING

Plastic Reel

Small Wooden Reel

Large Wooden Reel

APPLICATION

Eastport Steel Fabrication Expansion

North Valley Oil Pipeline Maintenance

Riverside Industrial Equipment Welding Upgrade

CASE

Construction Site Pipe Welding

Industrial Welding Workshop

Precision Metal Fabrication Welding

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

solar inverter welding cable

CUSTOMER PHOTOS

power inverter welding cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

How do I choose the correct welding cable size?

Start with maximum welding current, duty cycle, combined lead length, voltage drop, ambient temperature and terminal rating. GERITEL WIRE uses these inputs to recommend a welding cable size and can provide samples and conductor-resistance data before mass production.

Do I count one cable length or both welding leads?

Use the combined length of the electrode lead and work-return lead when following welding-machine cable tables. GERITEL WIRE asks for the total welding cable length because a 30 m lead to the workpiece normally means a 60 m electrical circuit.

How does duty cycle affect welding cable size?

A higher duty cycle keeps current flowing longer and increases cable heating. GERITEL WIRE selects welding cable by duty cycle using the machine manual and total circuit length rather than applying a single amp rating to every welding process.

How much voltage drop is acceptable in welding cable?

The acceptable value depends on the welding machine and process because excessive drop can reduce arc performance. GERITEL WIRE calculates welding cable voltage drop from conductor resistance, current and circuit length, then recommends a practical size for technical approval.
