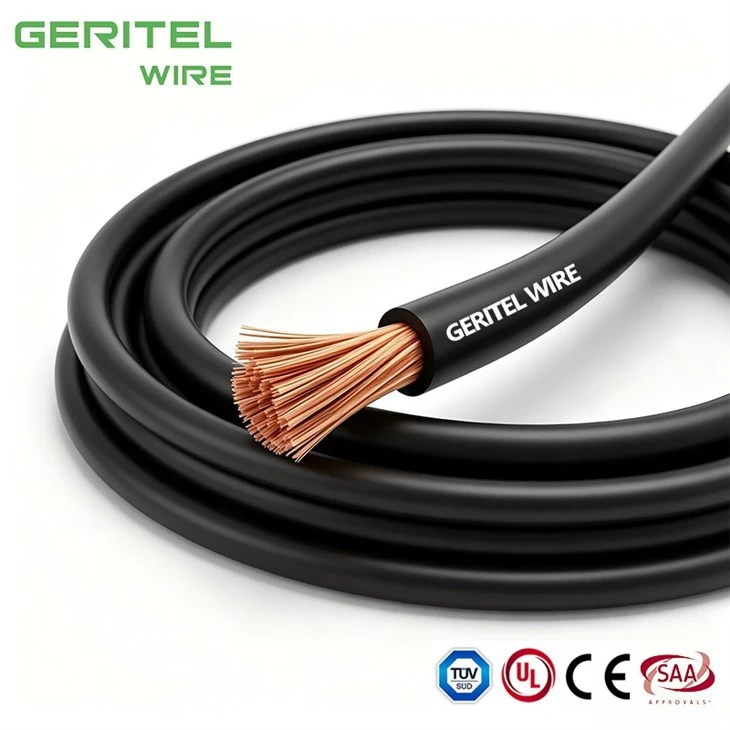

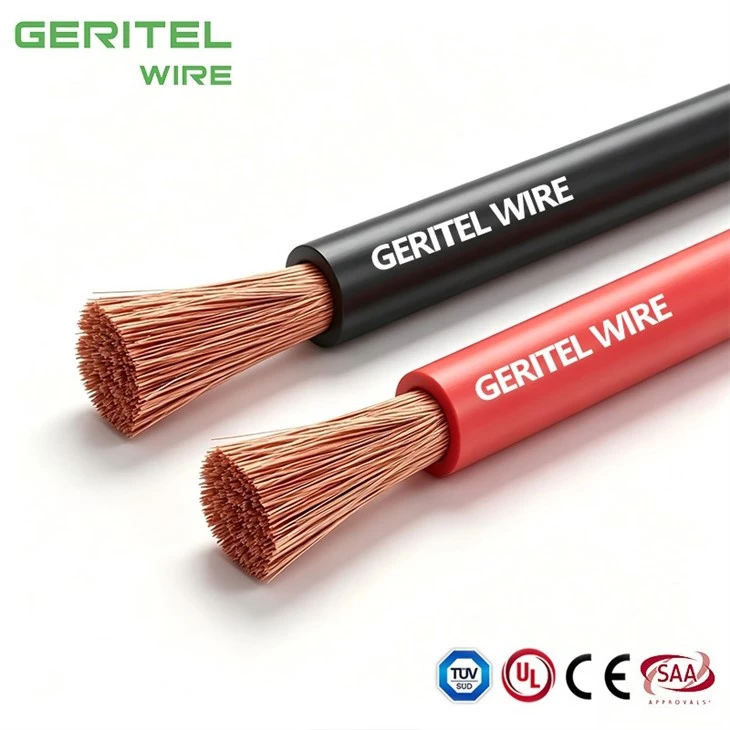

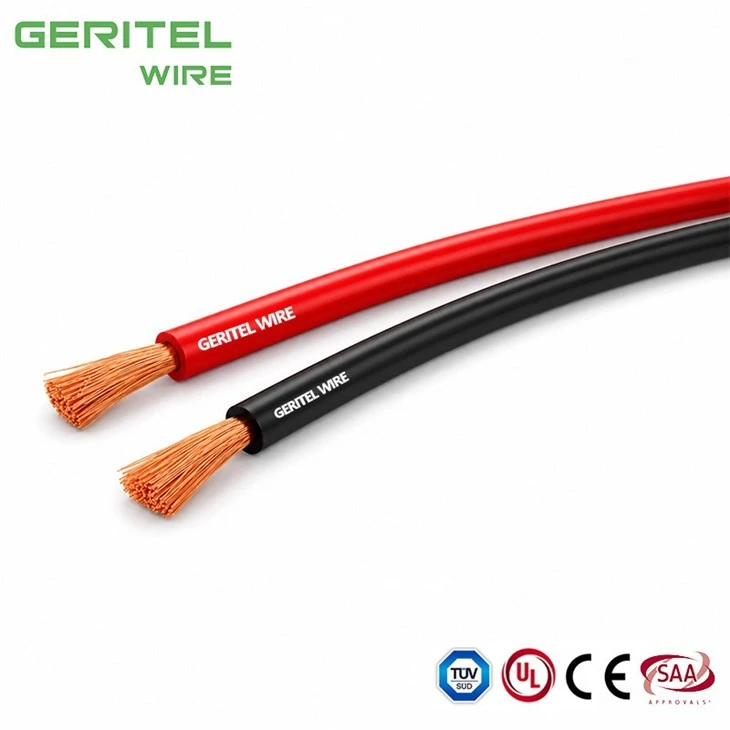

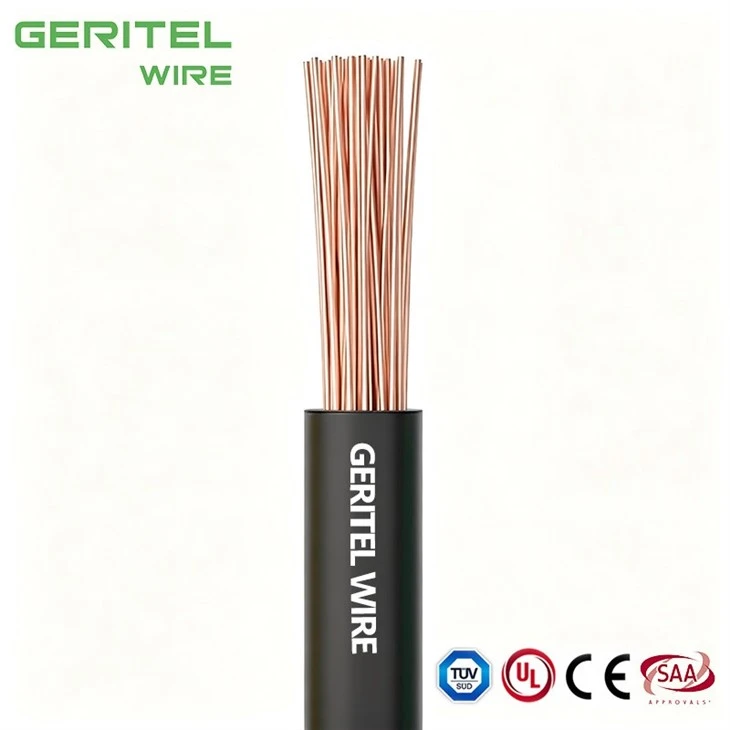

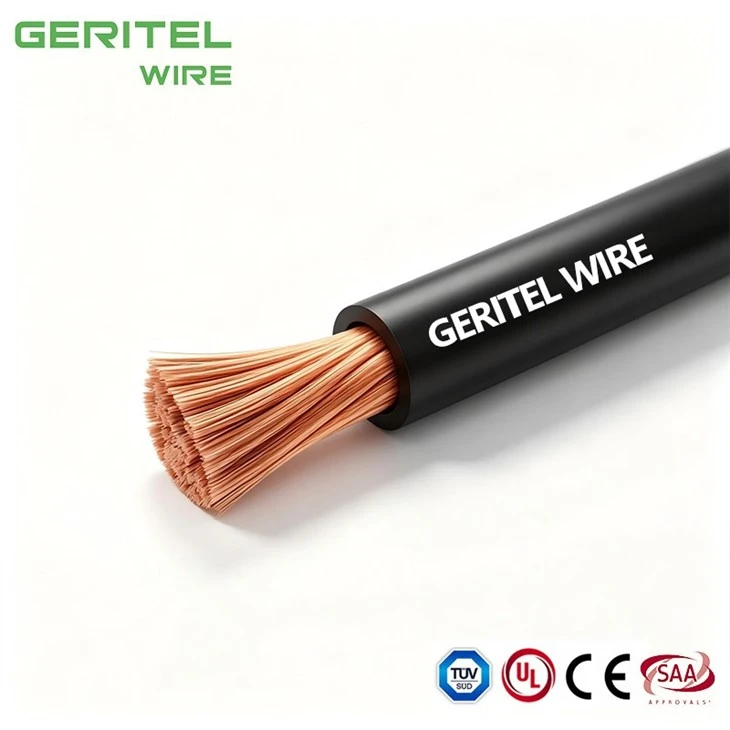

PRODUCT REAL SHOT

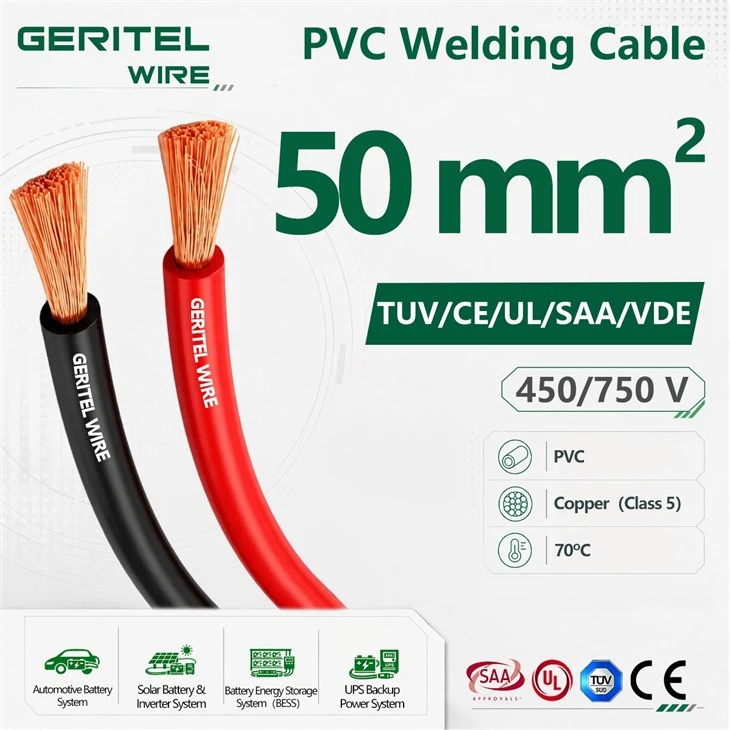

50mm² Flexible Welding Power Cable for Large Battery Banks
PRODUCT SPECIFICATIONS
Application
GERITEL WIRE H05V-K & H07V-K cable has been specially designed for installations that reguire a flexible cable due to the complex nature of their layout.
This cable is especially suitable for domestic wiring.
It may also be used for eguipment wiring,distributors,cabinets and tighting.
| SPECIFICATIONS | |
| Conductor | Electrolytic annealed copper, class 5 (flexible) according to EN60228 and IEC 60228. |
| Insulation | Extra sliding flexible polyvinyl chloride type TI1 according to EN50363-3 |
| Thermal performance | Maximum conductor temperature: 70°C. Maximum short-circuit temperature: 160°C (max. 5 s).Minimum installation and handling temperature: 5°C.Minimum service temperature: -40°C (fixed and protectedinstallations). |
| Fire performance | Flame non-propagation according to EN 60332-1/IEC 60332-1. Reaction to fire CPR: Eca according to EN 50575. Reduced halogen emission. Chlorine < 15%. |
| Mechanical performance | Minimum bending radius: 5x cable diameter. |
| Environmental performance | Chemical & Oil resistance: Acceptable. |
| Installation conditions | In conduit. |
| Other | Meter by meter marking. (from 10 mm2 onwards). |
|
Cross-section (mm2) |
Diameter (mm) |
Weight (kg/km) |
In conduit 2 cond. (A) |
In conduit 3 cond. (A) |
Voltage drop (V/A·km) |
| 1x1.5 | 2.9 | 19 | 17.5 | 15.5 | 31.9 |
| 1x2.5 | 3.6 | 30 | 24 | 21 | 19.2 |
| 1x4 | 4.1 | 44 | 32 | 28 | 11.9 |
| 1x6 | 4.6 | 61 | 41 | 36 | 7.92 |
| 1x10 | 5.9 | 105 | 57 | 50 | 4.58 |
| 1x16 | 7.0 | 160 | 76 | 68 | 2.90 |
| 1x25 | 8.7 | 245 | 101 | 89 | 1.87 |
| 1x35 | 9.9 | 335 | 125 | 110 | 1.33 |
| 1x50 | 11.8 | 480 | 151 | 134 | 0.926 |
| 1x70 | 13.5 | 655 | 192 | 171 | 0.653 |
| 1x95 | 15.6 | 865 | 232 | 207 | 0.494 |
| 1x120 | 17.3 | 1.095 | 269 | 239 | 0.386 |
| 1x150 | 19.2 | 1.380 | - | 275 | 0.310 |
| 1x185 | 21.5 | 1.675 | - | 314 | 0.254 |
| 1x240 | 24.5 | 2.210 | - | 370 | 0.192 |
| 1x300 | 26.9 | 2.795 | - | 430 | 0.153 |
CERTIFICATIONS
PACKAGING
Plastic Reel
Small Wooden Reel
Large Wooden Reel
APPLICATION
Riverside Industrial Equipment Welding Upgrade
CASE
Eastport Steel Fabrication Expansion
North Valley Oil Pipeline Maintenance
Riverside Industrial Equipment Welding Upgrade
