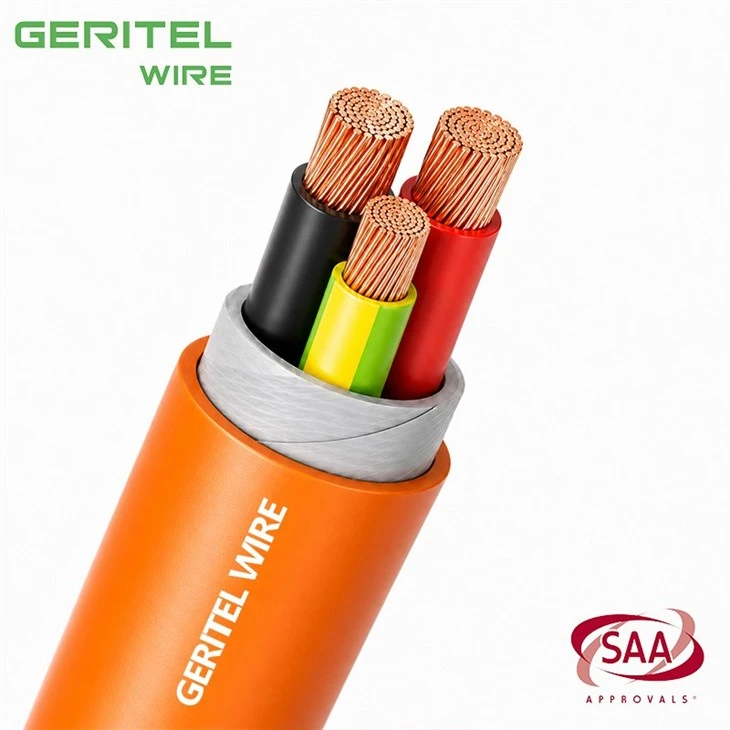

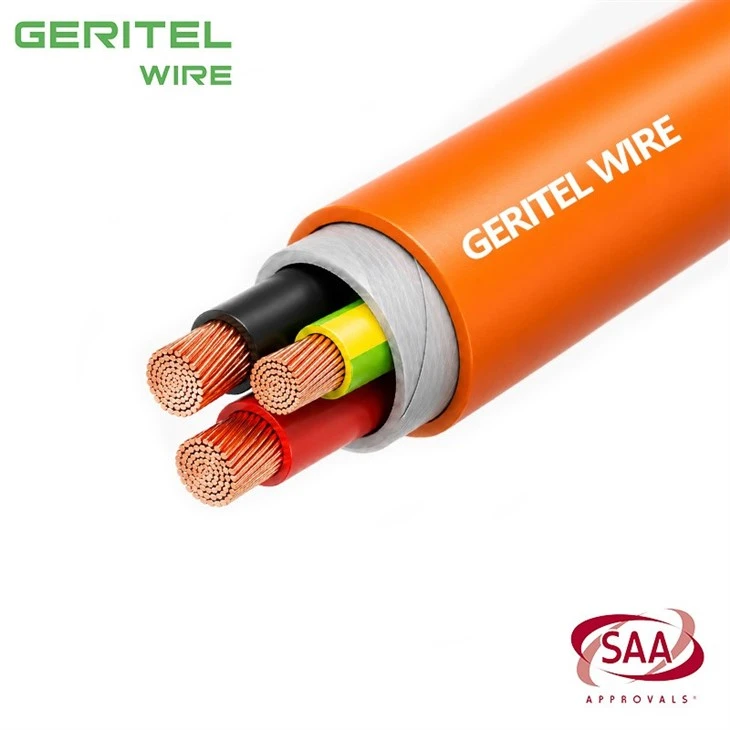

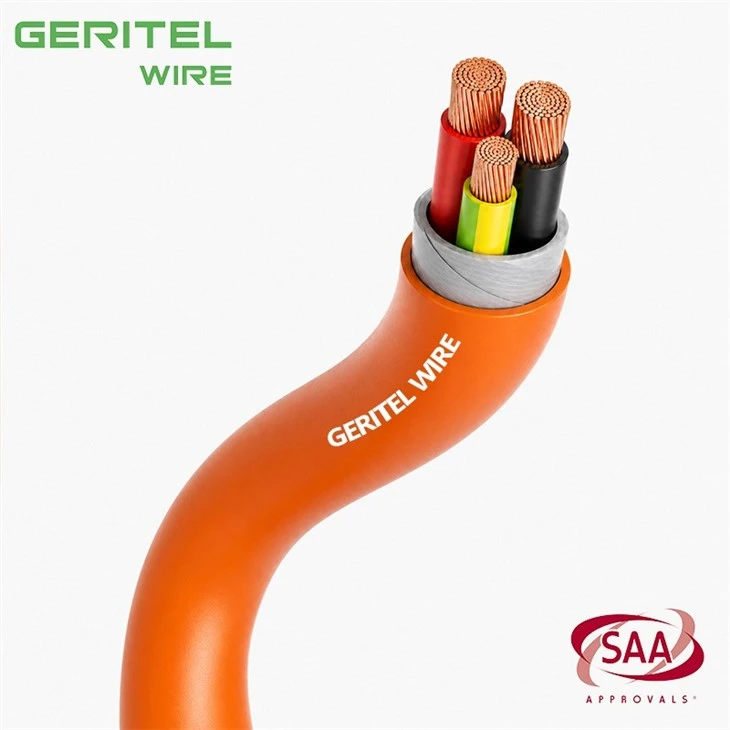

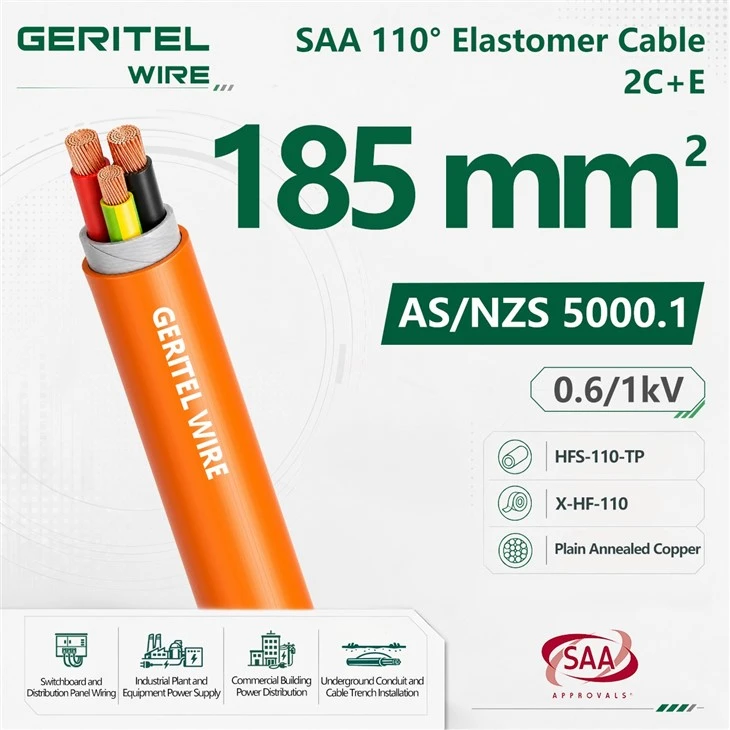

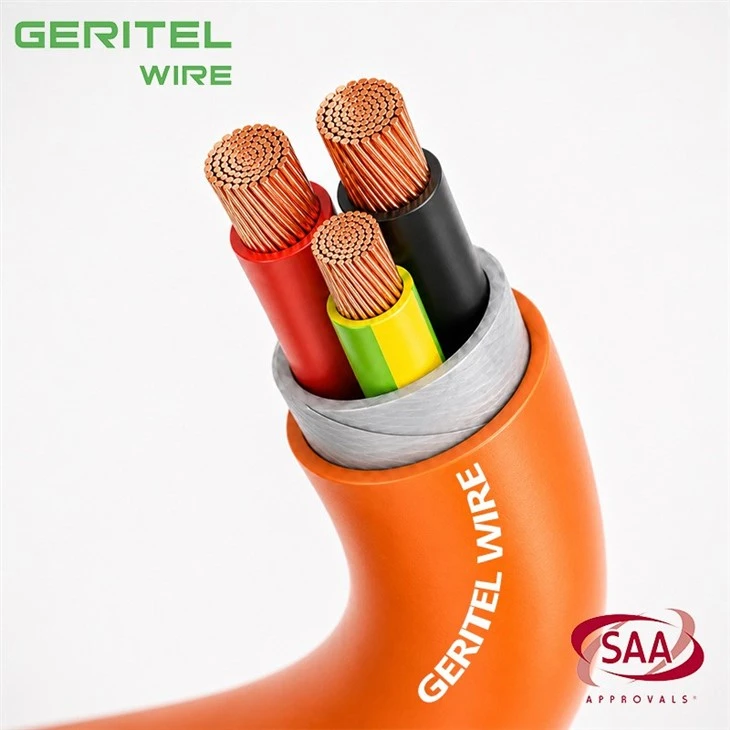

2×185+1×70E 110°C elastomer cable

PRODUCT REAL SHOT

2×185+1×70E 2 core + earth cable

Large Industrial Mains Cable for Plant Distribution

The 2×185+1×70E X-HF-110 cable provides a large flexible 2C+E construction for protected industrial mains and high-capacity building feeders. Its large Class 5 copper multicore cable conductors support more manageable routing and termination in substations, switchrooms and plant distribution areas. Rated 0.6/1kV, the product can function as an industrial main feeder cable when current, fault level, voltage drop, grouping and ambient conditions have been checked. X-HF-110 insulation and an HFS-110-TP sheath form a halogen free cable for power facilities with low-smoke and flame-retardant properties at conductor temperatures up to 110°C. GERITEL WIRE offers technical coordination, certificate review, witnessed inspection, customized drum schedules and export logistics.

PRODUCT SPECIFICATIONS

2×185+1×70E 2 core and earth cable

Applications

Flexible single core X-HF-110 insulated and HFS-110-TP sheathed cable for mains, submains and subcircuits unenclosed, enclosed in conduit or in underground ducts for building and industrial plants where not subject to mechanical damage. Suitable where space is at a premium and/or where conditions of overload may occur.

SPECIFICATIONS
Approvals	Suitable for fixed applications only in accordance with AS/NZS 3000+AS/NZS 5000.1
Behaviour in flame and fire:	Flame propagation - AS/NZS IEC 60332-1
Temperature range	Maximum operating temperature: +110°C Minimum operating temperature: -25°C
Minimum bending radius	Installed cables: 4D During installation: 6D
Resistance to	Chemical exposure: OccasionaI Mechanical impact: Light Water exposure: Uccasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Flexible bunched annealed copper conductor to A5/NZ5 1125 (Class 5). Insulation: X-HF-110 Colour:Natural Sheath: HFS-110-TP Colour: Orange
Installation conditions	In free air In conduit In trench In duct

Core x cross- section mm²
	Conductor Diameter		Nominal insulation thickness		Nominal sheath thickness mm	Approx. overall diamete mm	Approx. weight kg/km
	phase mm	earth mm	phase mm	earth mm	Nominal sheath thickness mm	Approx. overall diamete mm	Approx. weight kg/km
2x10+1x4E	0.40	0.30	0.7	0.7	1.8	16.3	385
2x16+1x6E	0.40	0.30	0.7	0.7	1.8	17.4	515
2x25+1x6E	0.40	0.30	0.9	0.7	1.8	19.9	708
2x35+1x10E	0.40	0.40	0.9	0.7	1.8	22.9	969
2x50+1x16E	0.40	0.40	1.0	0.7	1.8	26.4	1344
2x70+1x25E	0.50	0.40	1.1	0.9	1.8	30.6	1867
2x95+1x25E	0.50	0.40	1.1	0.9	1.9	33.3	2313
2x120+1x35E	0.50	0.40	1.2	0.9	2.0	37.2	2945
2x150+1x50E	0.50	0.40	1.4	1.0	2..1	41.7	3718
2x185+1x70E	0.50	0.50	1.6	1.1	2.3	46.6	4634
2x240+1x95E	0.50	0.50	1.7	1.1	2.4	52.5	6015

mm²	Reactance at 50Hz (ohm/km)
		Current Rating (A)				Electrical Characteristics
		Spaced	Touching surface	Metallic wiring enclosure in air	Underground duct one duct	Maximum DC Resistance 20°C Ω/km
10	0.0810	94	88	75	84	1.91
16	0.0779	124	116	100	109	1.21
25	0.0783	163	154	129	139	0.780
35	0.0761	202	190	163	171	0.554
50	0.0754	254	238	202	209	0.386
70	0.0744	318	299	257	259	0.272
95	0.0729	381	357	303	304	0.206
120	0.0723	450	421	362	357	0.161
150	0.0728	515	482	412	403	0.129
185	0.0730	586	547	474	456	0.106
240	0.0722	698	625	577	611	0.0801

CERTIFICATIONS

2×185+1×70E LSZH cable

2×185+1×70E LSHF cable

PACKAGING

Plastic Reel

Small Wooden Reel

Large Wooden Reel

APPLICATION

Industrial Equipment and Motor Power Supply

Switchboard and Distribution Panel Wiring

Underground Cable Trench and Conduit Installation

CASE

Induction Melting Furnace Power System

Mining Processing Plant MCC and Substation UpgradeModular Homes

Steel Mill Walking Beam Furnace Electrical Installation

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

power distribution cable for IT facilities

GLOBAL CERTIFICATIONS

low smoke cable for healthcare facilities

CUSTOMER PHOTOS

LSZH cable for hospital power distribution

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

halogen free cable for medical buildings

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

multicore cable for emergency facilities

2 core and earth cable for service rooms

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Can this cable be installed in free air?

Yes, free-air installation is included in the technical rating context, but spacing, grouping, ambient temperature and support method affect performance. GERITEL WIRE provides free air 2C+E cable data and the actual diameter for cleat and tray planning.

Can it be pulled through conduit?

Yes, provided conduit fill, bend radius, pulling tension and lubricant compatibility are suitable. The Class 5 cores improve handling, but the outer sheath can still be damaged by excessive force. GERITEL WIRE supplies 2C+E conduit cable diameter and drum information for the pulling plan.

Can the cable be installed in an underground duct?

Yes, protected underground duct installation is included in the product application and current-rating tables. GERITEL WIRE provides underground duct 2C+E cable data, including the assumptions used in the rating table, for consultant review.

Can it be directly buried?

Do not assume unrestricted direct burial from the duct rating alone. Soil, water, mechanical protection, local rules and sheath performance must be checked. GERITEL WIRE reviews a direct buried 2C+E cable request and recommends ducting or another construction when required.
