Name: China 3x25+1x6E SAA 3 Core And Earth LSZH Cable 110C Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 311426664

Description

Technical Parameters

Certification

3×25+1×6E 110°C elastomer cable

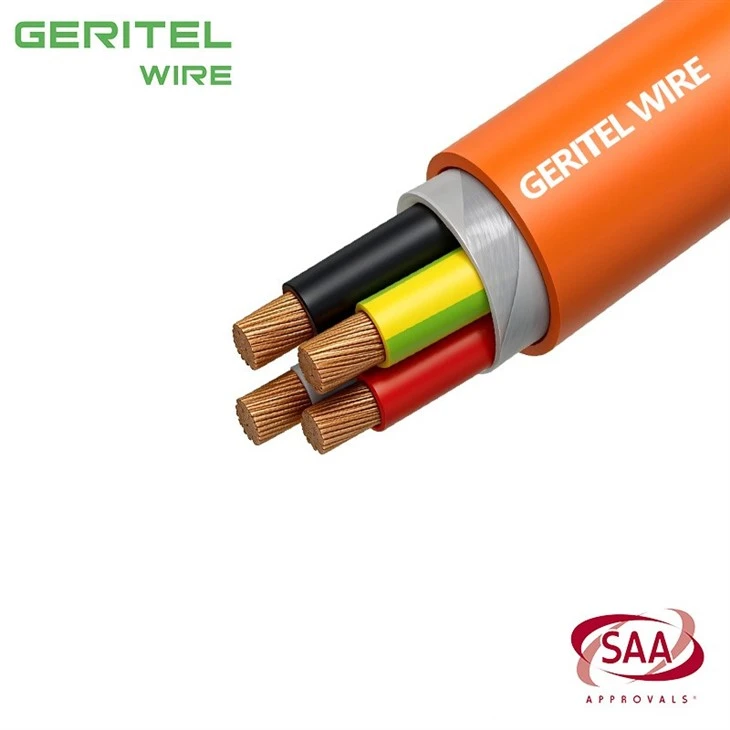

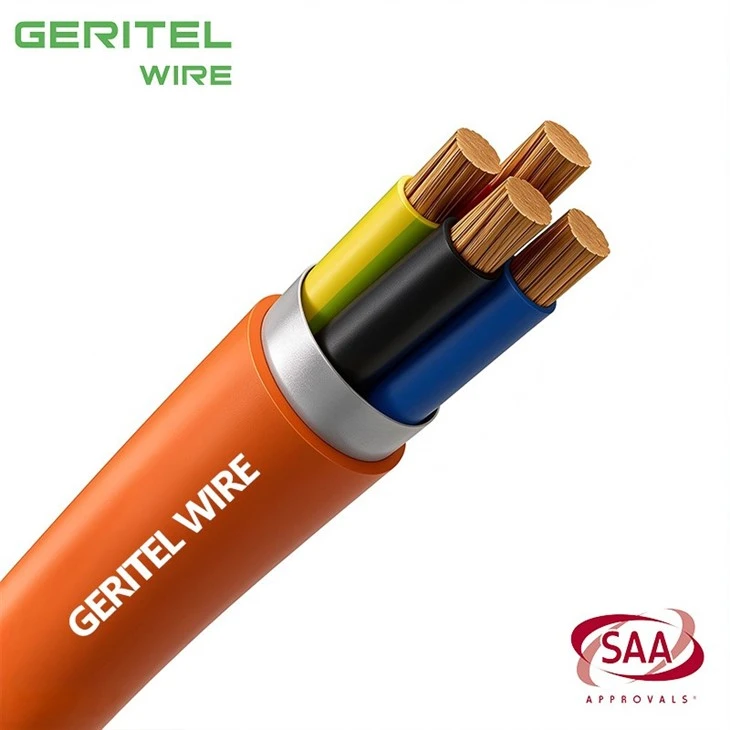

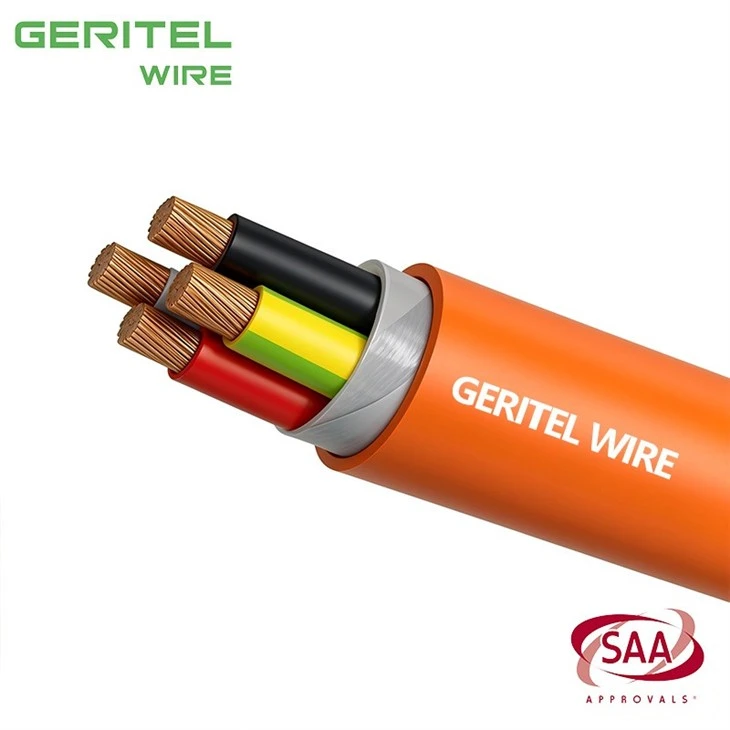

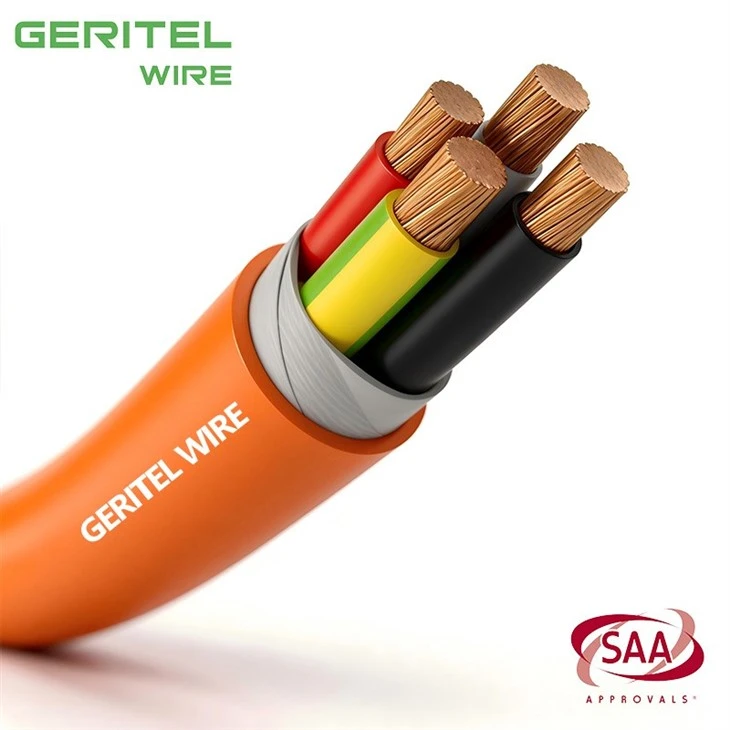

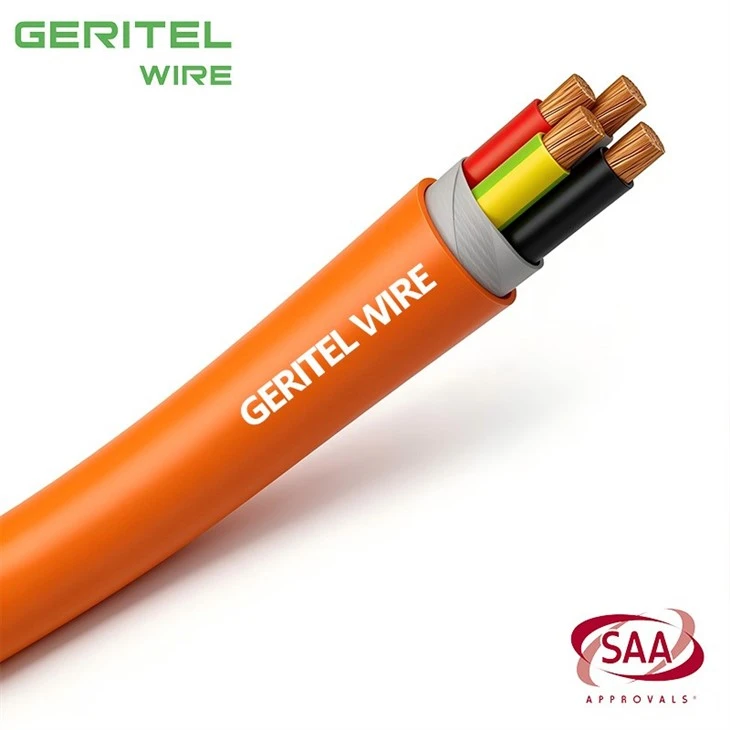

PRODUCT REAL SHOT

3×25+1×6E 3 core + earth cable

110°C Building Submains Cable for Commercial Distribution

The 3x25+1x6E 110C elastomer cable provides three flexible active conductors plus a reduced protective earth core for commercial low-voltage distribution. It works as a 3 core and earth submains cable between main boards, distribution boards, service risers and plant rooms where easier routing is valuable. The X-HF-110 insulated cores and HFS-110-TP outer sheath create a low fire hazard cable for high rise buildings with LSZH and flame-retardant performance. The construction can also be specified as a 3C+E cable for conduit, free-air routes, protected trenches and underground ducts. GERITEL WIRE can provide SAA model confirmation, technical data, test documentation, custom printing and project-specific drum lengths.

PRODUCT SPECIFICATIONS

3×25+1×6E SAA cable

Applications

Flexible single core X-HF-110 insulated and HFS-110-TP sheathed cable for mains, submains and subcircuits unenclosed, enclosed in conduit or in underground ducts for building and industrial plants where not subject to mechanical damage. Suitable where space is at a premium and/or where conditions of overload may occur.

SPECIFICATIONS
Approvals	Suitable for fixed applications only in accordance with AS/NZS 3000+AS/NZS 5000.1
Behaviour in flame and fire:	Flame propagation - AS/NZS IEC 60332-1
Temperature range	Maximum operating temperature: +110°C Minimum operating temperature: -25°C
Minimum bending radius	Installed cables: 4D During installation: 6D
Resistance to	Chemical exposure: OccasionaI Mechanical impact: Light Water exposure: Uccasional condensation Solar radiation and weather exposure:Occasional
Cable design	Conductor: Flexible bunched annealed copper conductor to A5/NZ5 1125 (Class 5). Insulation: X-HF-110 Colour:Natural Sheath: HFS-110-TP Colour: Orange
Installation conditions	In free air In conduit In trench In duct

Core x cross- section mm²
	Conductor Diameter		Nominal insulation thicknes (mm)		Nominal sheath thickness (mm)	Approx. overall diamete (mm)	Approx. weight (kg/km)
	phase	earth	phase	earth	Nominal sheath thickness (mm)	Approx. overall diamete (mm)	Approx. weight (kg/km)
3x10+1x4E	0.40	0.30	0.7	0.7	1.8	19.6	689
3x25+1x6E	0.40	0.30	0.9	0.7	1.8	22.8	974
3x35+1x10E	0.40	0.40	0.9	0.7	1.8	26.0	1327
3x50+1x16E	0.40	0.40	1.0	0.7	1.8	30.1	1846
3x70+1x25E	0.50	0.40	1.1	0.9	1.9	35.1	2581
3x95+1x25E	0.50	0.40	1.1	0.9	2.0	38.4	3238
3x120+1x35E	0.50	0.40	1.2	0.9	2.1	42.8	4117
3x150+1x50E	0.50	0.40	1.4	1.0	2..3	48.2	5196
3x185+1x70E	0.50	0.50	1.6	1.1	2.5	53.7	6430
3x240+1x95E	0.50	0.50	1.7	1.1	2.6	60.4	8358

mm²	Reactance at 50Hz (ohm/km)
		Current Rating (A)				Electrical Characteristics
		Spaced	Touching surface	Metallic wiring enclosure in air	Underground duct one duct	Maximum DC Resistance 20°C Ω/km
16	0.0779	106	99	84	91	1.21
25	0.0783	140	131	112	118	0.780
35	0.0761	173	162	137	143	0.554
50	0.0754	218	204	175	178	0.386
70	0.0744	273	255	217	217	0.272
95	0.0729	327	306	263	259	0.206
120	0.0723	387	360	306	298	0.161
150	0.0728	444	413	356	341	0.129
185	0.0730	505	470	402	381	0.106
240	0.0722	602	559	489	453	0.0801

CERTIFICATIONS

3×25+1×6E SAA approved cable

3×25+1×6E X-HF-110 cable

PACKAGING

Plastic Reel

Small Wooden Reel

Large Wooden Reel

APPLICATION

Industrial Equipment and Motor Power Supply

Switchboard and Distribution Panel Wiring

Underground Cable Trench and Conduit Installation

CASE

Induction Melting Furnace Power System

Mining Processing Plant MCC and Substation UpgradeModular Homes

Steel Mill Walking Beam Furnace Electrical Installation

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

3C+E 0.6/1kV cable

CUSTOMER PHOTOS

0.6/1kV 3 core and earth cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

Australian standard 3 core and earth cable

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

FAQ

Is the conductor flexible?

Yes. The cable uses fine-stranded flexible copper conductors intended to make installation, bending and termination easier than a rigid multicore construction. A Class 5 copper 3C+E cable is especially useful in switchrooms, MCC areas and plant rooms where large cables must be routed neatly. GERITEL WIRE can also plan practical drum lengths for the installation route.

Is this the same product as ordinary orange circular PVC cable?

Not exactly. Orange circular describes a common Australian cable form and colour, but different products may use PVC, XLPE or halogen-free materials. This X-HF-110 3C+E cable uses a 110°C elastomeric insulation system with an HFS-110-TP sheath. GERITEL WIRE recommends comparing the complete construction, not only the orange appearance.

Can I buy only the length I need?

For project and panel-building orders, GERITEL WIRE can discuss a 3C+E cable cut to length supply plan instead of forcing every customer to buy the same standard length. Feasibility depends on conductor size, production quantity and packing. The team confirms length tolerances and identification before order release.

What are the main market names for this product?

Customers may search 3C+E, 3 Core + Earth, 3 Core and Earth, Three Phase + Earth, LSZH, LFH, Flexible 110C or X-HF-110. GERITEL WIRE uses these market terms together with the formal 3C+E 110°C elastomer cable description so technical buyers and installers can identify the correct construction.
