1C orange power cable

PRODUCT REAL SHOT

1C XLPE PVC cable

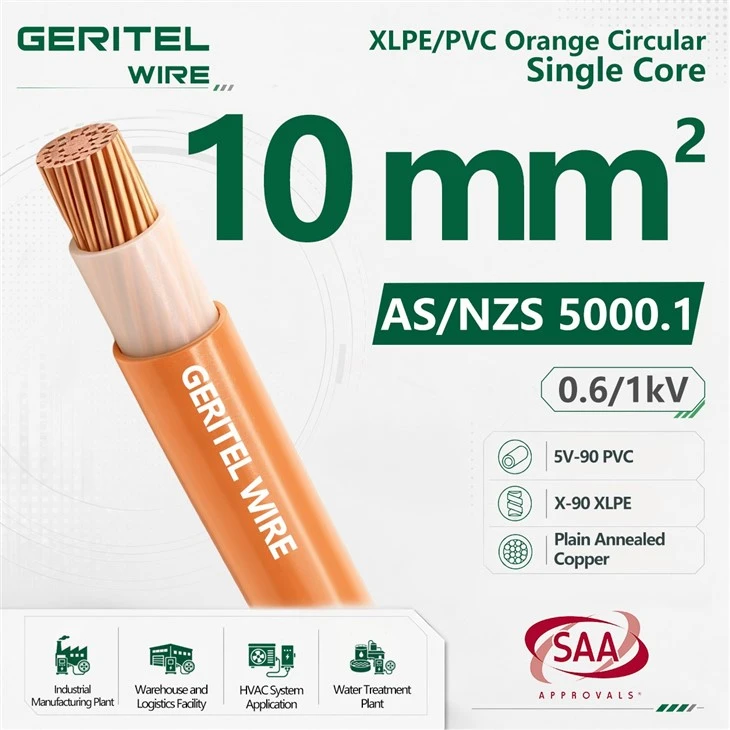

Reliable 10mm2 Orange SDI Cable

The 10mm2 orange SDI cable is developed for dependable power transmission in residential, commercial and light-industrial fixed installations. Its copper conductor provides stable conductivity, while XLPE insulation supports thermal performance and the orange PVC outer layer adds mechanical protection. Typical uses include switchboard circuits, building submains, machinery feeders and service connections, subject to local wiring rules. GERITEL WIRE can provide customized printing, drum or coil lengths, technical datasheets and pre-shipment inspection records, allowing wholesalers and project buyers to match the cable specification, packaging and delivery plan to their market requirements.

PRODUCT SPECIFICATIONS

copper XLPE PVC cable

Application

XLPE Single Core Copper Power Cables are designed for reliablelow-voltage and medium-voltage power distribution in commercial,industrial, and infrastructure installations. Their cross-linkedpolyethylene insulation provides excellent thermal performance,electrical strength, and resistance to moisture and chemicals, makingthem suitable for use in enclosed and unenclosed cable trays,conduits, switchboards, and underground systems. These cables arecommonly used for mains and sub-mains feeders, transformer andswitchgear connections, and high-capacity distribution circuits whererobust current-carrying capability and long-term durability areessential.

SPECIFICATIONS
Conductor	Plain Annealed Copper
Insulation	X-90 XLPE Natural
Sheath	5V-90 PVC Black
Voltage	600V/1000V(0.6/1kV)
Temp	-40°C to +90°C
Standards	AS/NZS 5000.1, AS/NZS 1125, AS/NZS 3808, AS/NZS 1660
Greenstar	Approved
VCA	Approved

SIZE mm²	INSULATION THICKNESS mm	SHEATH THICKNESS mm	O.D. mm	MIN BEND RADIUS


6	0.7	1.4	6.8±10%	61
10	0.7	1.4	7.3±10%	66
16	0.7	1.4	9.3±10%	112
25	0.9	1.4	11.4±10%	137
35	0.9	1.4	12.3±10%	148
50	1.0	1.4	13.7±10%	165
70	1.1	1.4	15.7±10%	188
95	1.1	1.5	17.7±10%	212
120	1.2	1.5	19.6±10%	235
150	1.4	1.6	21.8±10%	262
185	1.6	1.6	24.0±10%	270
240	1.7	1.8	27.0±10%	304
300	1.8	1.9	29.9±10%	331
400	2.0	1.9	33.5±10%	375
500	2.2	2.0	37.2±10%	419
630	2.4	2.2	42.0±10%	467

CERTIFICATIONS

copper XLPE power cable

PACKAGING

Plastic Reel

Small Wooden Reel

Large Wooden Reel

APPLICATION

Industrial Equipment Power Supply

Warehouse Electrical Distribution

Water Treatment Pump System

CASE

Mondelēz Manufacturing & Distribution Facility

Portside Distribution Centre

Western Sydney Recycled Water Scheme

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

GLOBAL CERTIFICATIONS

AS/NZS 5000.1 single core cable

CUSTOMER PHOTOS

X-90 single core cable

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

single core cable with stranded copper conductor

single core cable with compacted copper conductor

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

single core cable with compressed copper conductor

FAQ

Why is the outer sheath orange?

The orange sheath provides clear visual identification and is widely associated with Australian power-cable installations. GERITEL WIRE can maintain a consistent orange finish and legible cable marking on the orange power cable, subject to the approved colour sample and production specification.

Does single core mean the conductor is solid?

No. Single core refers to one insulated conductor, not necessarily one solid copper wire. The single core orange power cable can use stranded or flexible copper according to the required size and conductor class, and GERITEL WIRE confirms the strand construction in the technical offer

Is this cable the same as ordinary building wire?

Not exactly. Ordinary building wire may have only one insulation layer, while an SDI-style single core orange cable includes insulation plus an outer sheath for added protection. GERITEL WIRE helps customers compare the construction, voltage and installation requirements before replacing one cable type with another.

Can I use a single core cable for a three-phase circuit?

Yes, a three-phase circuit can use separate single-core conductors for each phase and any required neutral or protective conductor. GERITEL WIRE can supply the single core orange power cable in matched lengths, but the final grouping, spacing and phase arrangement must follow the project design and local rules.
