Name: China Solar Inverter Heater Cable For Internal Thermal Management Circuitse Cable Manufacturers Suppliers Factory
Brand: GERITEL
SKU: 314014193

Description

Technical Parameters

Certification

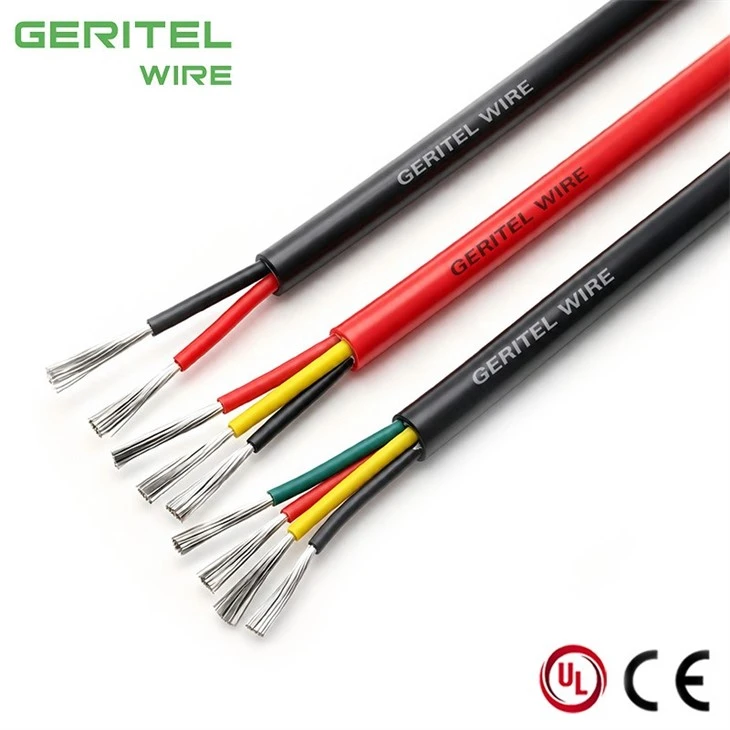

silicone cable with flexible stranded copper conductor

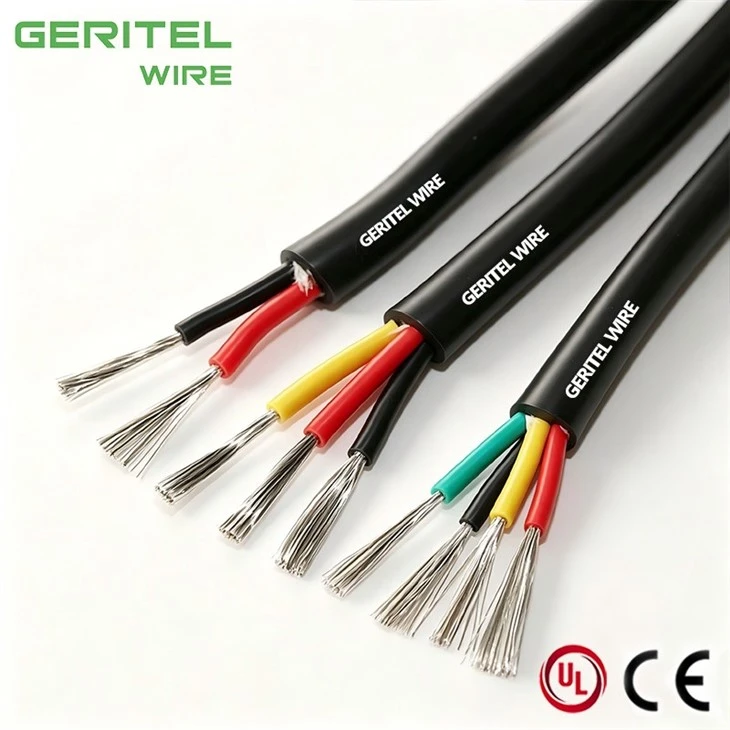

PRODUCT REAL SHOT

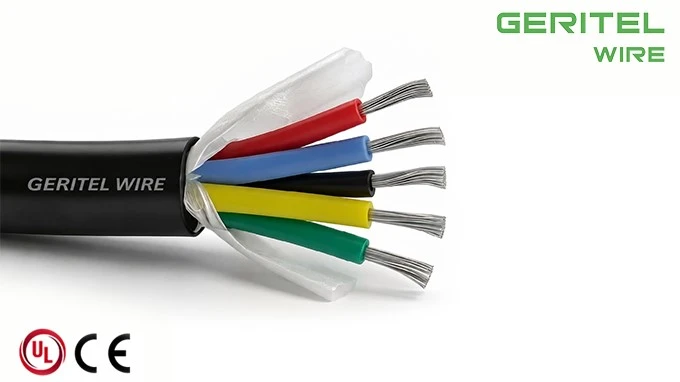

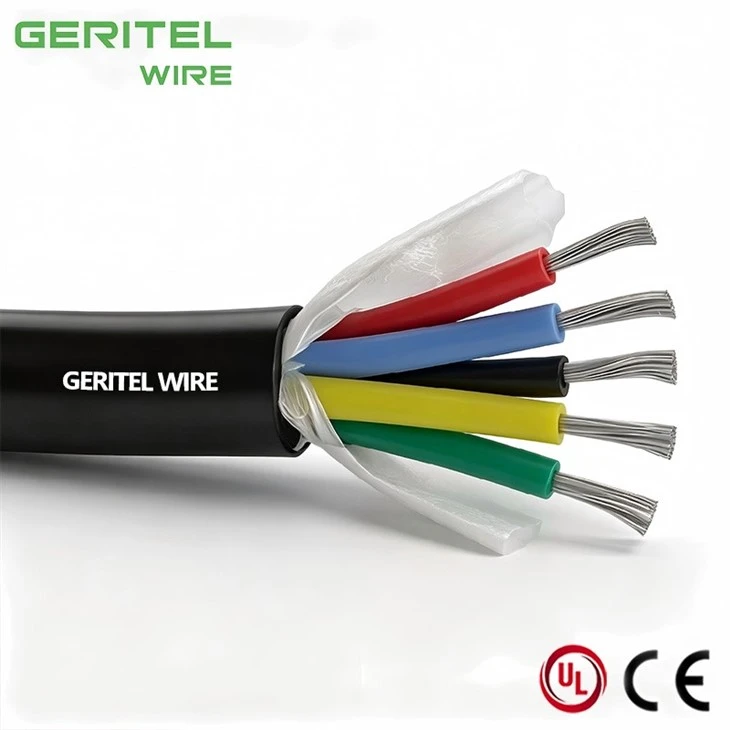

flexible stranded copper multicore silicone cable

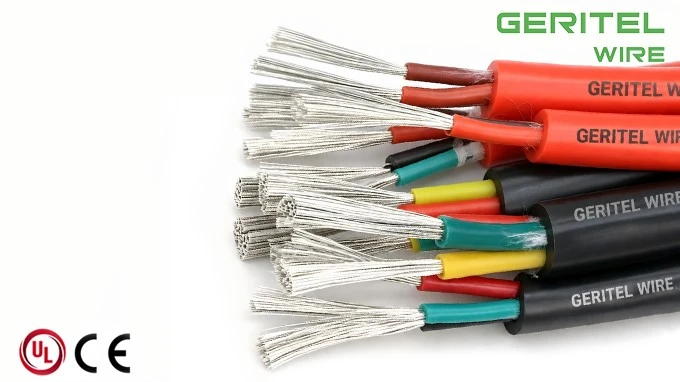

high temperature cable with flexible stranded copper

SiHF-J cable with silicone rubber core insulation

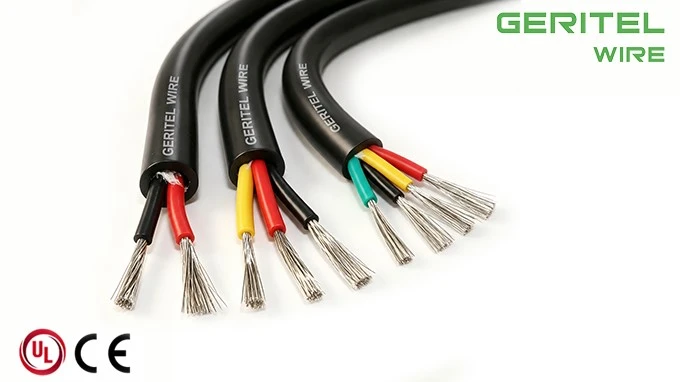

silicone rubber core insulated SiHF-J cable

Renewable Energy Auxiliary Cable for Fans, Heaters and Control Cabinets

Renewable-energy equipment uses enclosure heaters, cooling fans and control circuits to manage condensation and temperature inside cabinets. GERITEL WIRE offers a silicone cable for solar inverter cooling fan and heater connections where flexible tinned copper conductors with silicone insulation and sheath suit the verified internal environment. The same construction can be assessed as a solar tracker control cabinet cable for fixed, protected auxiliary wiring with low mechanical stress. It is not a photovoltaic string cable and should not be marketed for exposed module-to-inverter DC runs. Designers must confirm voltage, current, UV exposure, water ingress, movement and equipment standards.

PRODUCT SPECIFICATIONS

multicore cable with silicone rubber core insulation

Applications

This cable is used for connection of electrical appliances without mechanical stress at increased environmental temperatures, for example in steelworks, but also at low temperatures. Insulation and sheath are resistant to most oils,acids, lyes and oxidants.

SPECIFICATIONS
Voltage Rating Uo/U	300/500V
Temperature Rating	Fixed:-60°C to +200°C
Minimum Bending Radius	Fixed: 5 x overall diameter Flexed: 15 x overall diameter
Conductor	Class 5 flexible Stranded Tinned Copper
Insulation	Silicone rubber
Outer Sheath	Silicone Rubber
Core ldentification	3 cores: Green/Yellow,Blue,Brown 4cores: Green/Yellow,Blue,Black,Grey 5cores: Green/Yellow,Blue,Brown,Black,Grey More than 5 cores: Black numebered +Green/Yellow
Sheath Colour	Red,Black

DIMENSIONS

NO. OF CORES
NO. OF CORES	NOMINAL CROSS SECTIONAL AREA mm²	NOMINAL OVERALL DIAMETER mm	NOMINAL WEIGHT kg/km
3	0.75	6.8	66
3	1	7.4	78
3	1.5	8	98
3	2.5	9.7	152
3	4	11.5	249
3	6	14.2	352
4	0.75	7.8	84
4	1	8	95
4	1.5	8.8	122
4	2.5	10.6	189
4	4	13	330
4	6	16.2	429
4	10	21.4	710
4	16	24	1014
4	25	29.3	1460
4	35	33	2044
4	50	34	2990
5	0.75	8.5	101
5	1	8.8	116
5	1.50	9.6	148
5	2.5	11.6	229
5	4	15	359
5	6	17.7	564
5	10	22.5	900
5	16	26.9	1206
5	35	36.7	2850
7	0.75	9.6	158
7	1	10	177
7	1.5	10.9	232
7	2.5	13.2	348
7	4	16.2	487
7	6	19.3	685
12	0.75	11.1	178
12	1.5	14.8	332
12	2.5	18	530
18	0.75	13.3	260
18	1.5	17.6	510
24	1.5	20.2	635
25	0.75	15.6	370

CERTIFICATIONS

high temperature cable with silicone rubber insulation

PACKAGING

SiHF-J cable with silicone rubber outer sheath

Roll

silicone rubber sheathed multicore cable

Plastic Reel

high temperature silicone rubber sheathed cable

Small Wooden Reel

APPLICATION

silicone insulation and sheath multicore cable

HVAC & Refrigeration Systems

Industrial Automation & Machinery

high temperature cable with silicone insulation and sheath

Industrial Control Cabinet Wiring

CASE

Northern Steel High-Temperature Control Upgrade Project

OceanStar Marine Electrical Retrofit Project

industrial multicore silicone construction cable

PolarFresh Industrial Refrigeration Expansion Project

WHY CHOOSE US

30Years of experience
in one-stop service

Dongguan Greater Wire & Cable Co., Ltd. is a professional engineering-grade cable manufacturer in China, supplying certified electrical cable solutions for building, industrial, mining, energy, and infrastructure projects worldwide.

With a 30,000 m² factory, 30 production lines, experienced engineers, and a strict quality control team, we provide reliable, traceable, and compliant cable products for international engineering applications. Our products are supported by certifications including SAA, UL, cUL, VDE, TÜV, CE, CB, IEC, BPS, and ISO.

We are committed to safety, quality, transparency, and long-term partnership. From raw material inspection to finished product testing, every batch is carefully controlled to ensure stable performance and dependable project use.

Greater Cable - Certified Quality. Reliable Supply. Engineering Value.

high temperature multicore silicone construction

15K

Finished Projects

150+

professional staff

15K

happy clients

92+

awards & certifacates

PLANT EQUIPMENT

SiHF-J cable with cores stranded in layers

high temperature cable with layer stranded cores

GLOBAL CERTIFICATIONS

colour coded silicone control cable

CUSTOMER PHOTOS

high temperature cable with colour coded cores

INTERNATIONL TRANSPORTATION

Sea Freight

We offer reliable sea freight solutions for large-volume orders. Your goods are securely packed and shipped in containers, ensuring cost-effective delivery to ports worldwide.

Air Freight

For faster delivery, our air freight service ensures your products reach international destinations quickly, with careful handling and full tracking along the way.

International Express

Need urgent shipments? Our international express service delivers small to medium orders efficiently, providing door-to-door service with real-time tracking for peace of mind.

COOPERATIVE PARTNER

We are looking for a cooperative partner to expand our business.

high temperature multicore cable with numbered cores

SiHF-J cable with green yellow protective conductor

SiHF-J cable with protective earth conductor

silicone multicore cable with green yellow earth core

high temperature cable with protective earth

How To Cooperate With Us?

Simply share your requirements, receive our professional solution, confirm samples, and enjoy fast, reliable production and worldwide delivery - working with us is that easy.

Our address

Building 2, No. 40 Luxi 2nd Road, Liaobu Town, Dongguan City, Guangdong Province, China

Phone Number

+86 136 6257 9592

+86 135 1078 4550

E-mail

manager01@greaterwire.com

red sheath high temperature silicone cable

FAQ

Can I use SiHF-J on heat-sealing and packaging machines?

A packaging machine silicone cable is suitable for heater, sensor, fan and control connections in protected routes with fixed or occasional movement. GERITEL WIRE helps OEMs confirm core count, colour identification, cut length, printing and reel format; continuous robotic or drag-chain motion requires separate evaluation.

Is SiHF-J suitable for extrusion and injection-moulding machines?

A plastic processing machine cable can connect barrel heaters, mould heaters, temperature sensors, fans and control enclosures where silicone's heat resistance is useful. GERITEL WIRE reviews oil exposure, routing, bend radius and movement and can supply OEM-marked lengths for production lines.

What oven applications are appropriate for SiHF-J?

An industrial oven silicone cable can be considered for heaters, blowers, sensors, door controls and internal machine wiring outside direct flame zones. GERITEL WIRE uses route temperature, current, ventilation and movement data to confirm the cable, and supplies approved marking and documentation for the oven builder.

Can SiHF-J be installed in refrigeration equipment?

A refrigeration equipment cable can serve compressor heaters, evaporator fans, defrost circuits and controls where low-temperature flexibility is important. GERITEL WIRE checks condensation, oil contact, gland sealing and service movement, then helps the manufacturer choose a compatible core arrangement and packing length.
