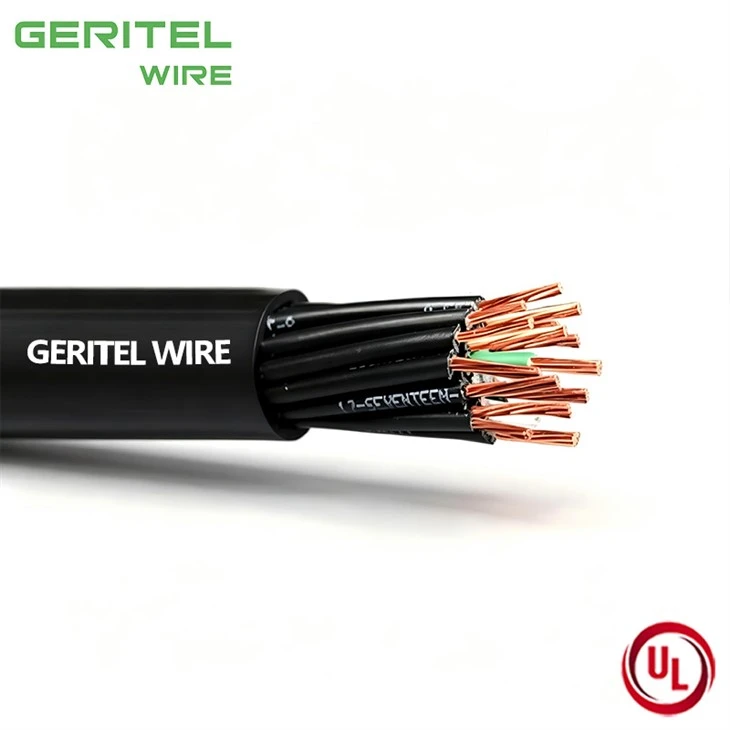

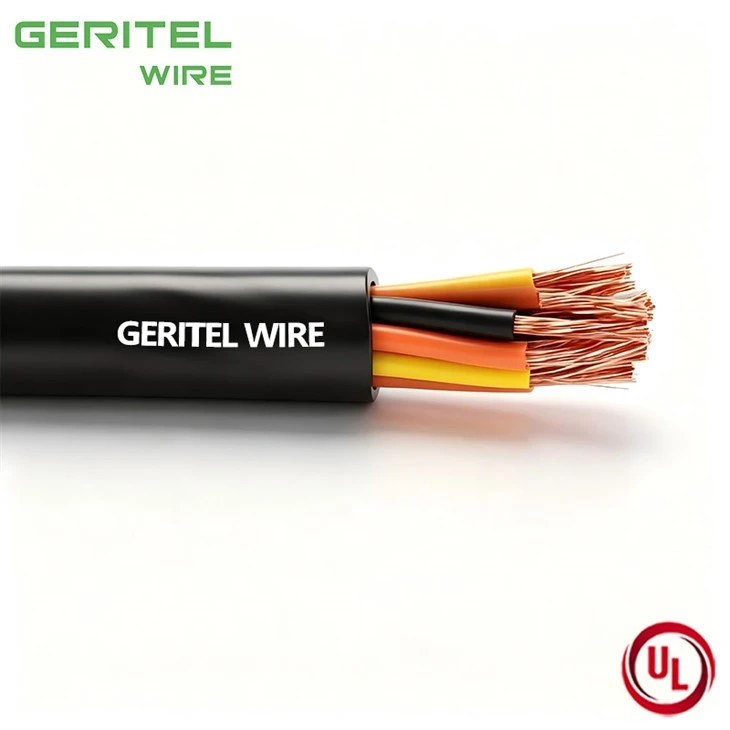

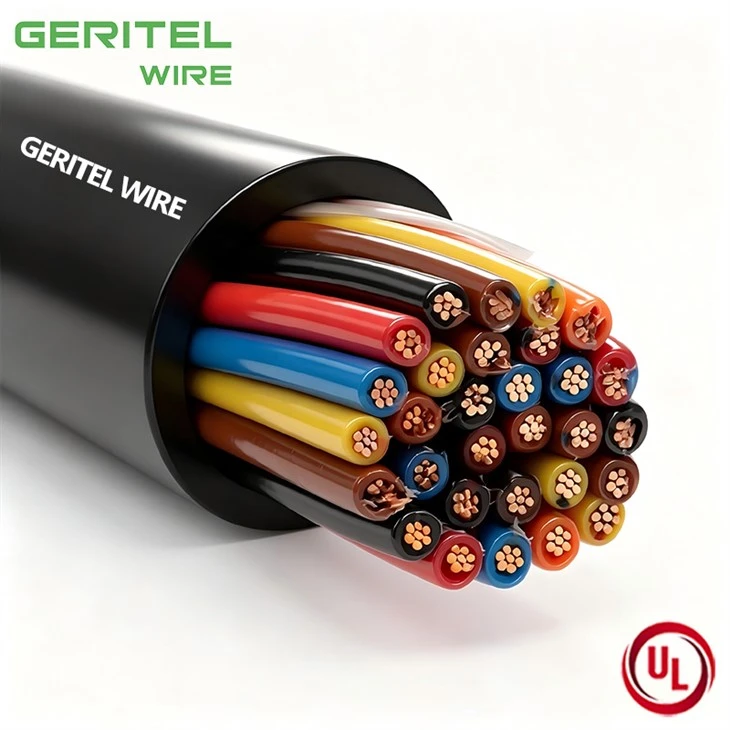

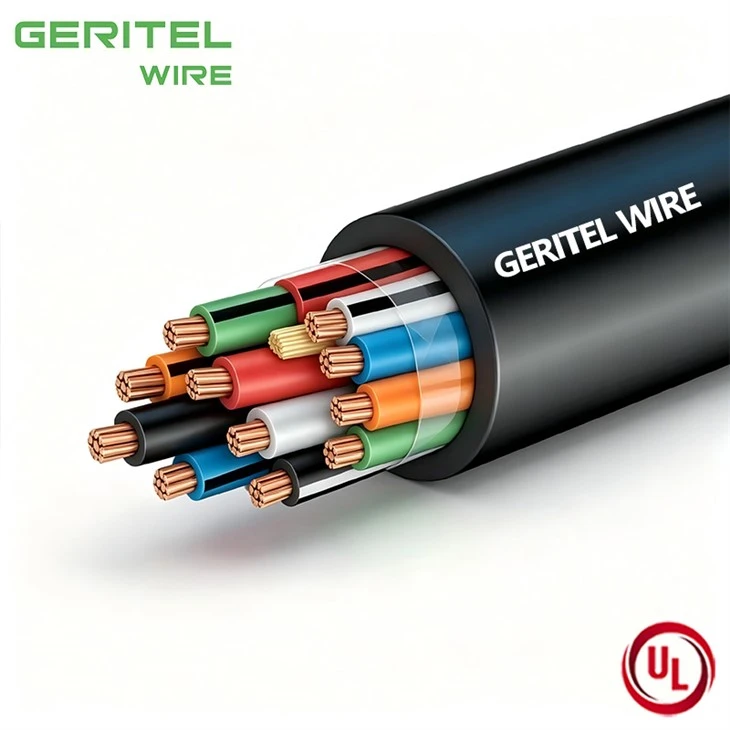

PRODUCT REAL SHOT

XLPE/PVC Type TC-ER

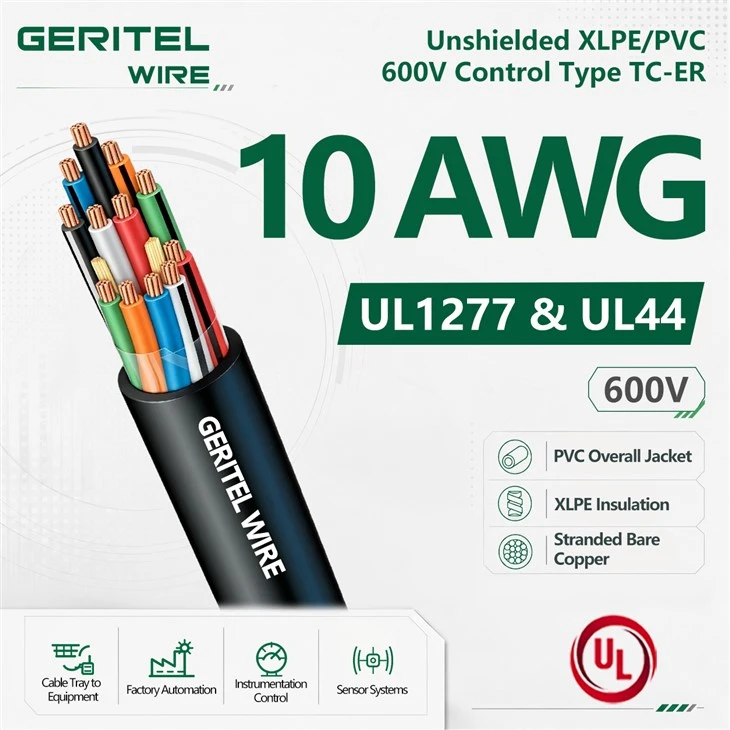

10 AWG TC-ER – High-Ampacity XLPE Insulated Control Cable for Power and Signal Circuits

In factory automation and control systems, a single cable failure can stop an entire production line. This 10 AWG TC-ER control cable delivers the durability and electrical performance needed for demanding industrial environments. Featuring XLPE insulation, stranded bare copper conductors, and a rugged PVC jacket, it provides reliable signal and power transmission in cable tray installations. UL1277 and UL44 certified with a 600V rating, this cable is Type TC-ER rated for exposed run tray installations without conduit. The XLPE insulation offers excellent resistance to heat, moisture, and chemicals, ensuring long-term reliability in factory automation, instrumentation control, and sensor systems. The 10 AWG size provides ample ampacity for both control circuits and low-power equipment connections.

PRODUCT SPECIFICATIONS

XLPE PVC 600V TC-ER

Product Description

The XLPE/PVC, 600V Control, Type TC-ER Direct Burial Cables consist of fully annealed bare copper Class B stranded conductors, covered with oil and gas resistant Cross-linked Polyethylene (XLPE), unshielded or shielded and black PVC jacket. These cables are used in industrial power or station control circuits.

Applications

In conduit, duct, free air, raceways and direct burial, primary installations include cable trays, and outdoor locations.
In wet or dry locations
Approved for Class I, Div. 2 industrial hazardous locations per NEC
Permitted for Exposed Run (ER) used in accordance with NEC for 3 or more conductors; two conductors without a ground wire are Type TC only

Features

Rated at 90°C wet or dry
Rippor (as needed)
Excellent sunlight resistance
Meets cold bend test at -25°C

SPECIFICATIONS
Conductor Count	Available in 2 through 37 conductors
Conductor	Fully annealed bare copper Class B
Gauge Sizes	Available in 14 through 10 AWG
Insulation	Cross-linked Polyethylene (XLPE) 14 AWG and larger are type XHHW-2
Color Coding	Per ICEA S-58-679 Method 1, Table E-2; additional color coding options available
Fillers	Non-hygroscopic fillers, as necessary to obtain a round finish conductor

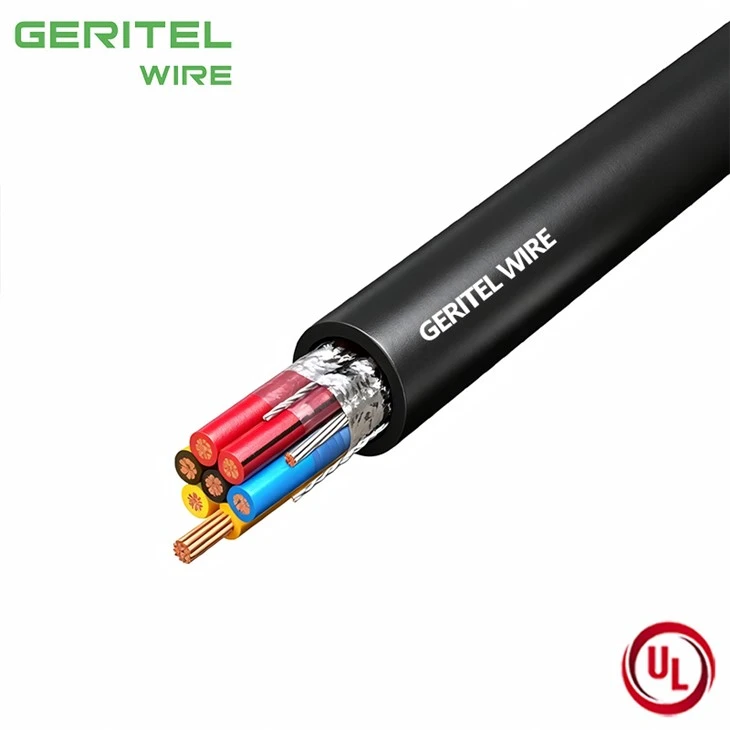

Shield (optional)	Overall aluminum polyester foil in contact with 20 AWG stranded tinned copper drain wire
Jacket	Polyvinyl Chloride (PVC)
Jacket Marking	Type TC-ER (3 or more conductors) Conductor sizes 14 AWG - 10 AWG: 00000 FT GREATER WIRE XXAWG XX/C XHHW-2 PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC-ER (UL) SUN RES DIR BUR MADE IN USA MMDDYYYY Type TC(2 conductors) Conductor sizes 14 AWG - 10 AWG: 00000 FT GREATER WIRE XXAWG XX/C XHHW-2 PVC JKT (or OS) 600V 90C WET OR DRY TYPE TC (UL) SUN RES DIR BUR MADE IN USA MMDDYYYY
Packaging	Non-returnable wood reels in a variety of lengths and dimensions
Performance Compliances	ASTM B3, ASTM B8,ASTM B33 UL 44 UL1277 UL 1685 (flame exposure test) ANSI/NEMA WC 70/ICEA S-95-658 NEC
Other Compliances	EPA 40 CFR, Part 261 OSHA RoHS-compliant/RoHS 2-compliant REACH-compliant

Unshielded

Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	14	0.030(0.76)	0.045(1.14)	0.37(9.3)	65(95)
3	14	0.030(0.76)	0.045(1.14)	0.39(9.9)	85(124)
4	14	0.030(0.76)	0.045(1.14)	0.42(10.8)	105(154)
5	14	0.030(0.76)	0.045(1.14)	0.46(11.7)	125(185)
7	14	0.030(0.76)	0.045(1.14)	0.50(12.7)	165(242)
9	14	0.030(0.76)	0.060(1.52)	0.62(15.8)	225(333)
12	14	0.030(0.76)	0.060(1.52)	0.69(17.5)	285(422)
19	14	0.030(0.76)	0.060(1.52)	0.80(20.4)	425(632)
25	14	0.030(0.76)	0.080(2.03)	0.98(24.9)	590(874)
30	14	0.030(0.76)	0.080(2.03)	1.04(26.3)	685(1,018)
37	14	0.030(0.76)	0.080(2.03)	1.11(28.3)	820(1,218)
2	12	0.030(0.76)	0.045(1.14)	0.40(10.2)	85(125)
3	12	0.030(0.76)	0.045(1.14)	0.43(10.8)	115(166)
4	12	0.030(0.76)	0.045(1.14)	0.47(11.8)	145(209)
5	12	0.030(0.76)	0.045(1.14)	0.51(12.9)	170(253)
7	12	0.030(0.76)	0.060(1.52)	0.59(14.9)	245(361)
9	12	0.030(0.76)	0.060(1.52)	0.69(17.4)	310(455)
12	12	0.030(0.76)	0.060(1.52)	0.76(19.4)	395(582)
19	12	0.030(0.76)	0.080(2.03)	0.93(23.7)	630(937)
25	12	0.030(0.76)	0.080(2.03)	1.09(27.6)	815(1,209)
30	12	0.030(0.76)	0.080(2.03)	1.15(29.2)	955(1,415)
37	12	0.030(0.76)	0.080(2.03)	1.24(31.4)	1,150(1,705)
2	10	0.030(0.76)	0.080(2.03)	0.45(11.4)	115(170)
3	10	0.030(0.76)	0.045(1.14)	0.48(12.1)	155(231)
4	10	0.030(0.76)	0.045(1.14)	0.52(13.3)	200(294)
5	10	0.030(0.76)	0.045(1.14)	0.60(15.4)	260(385)
7	10	0.030(0.76)	0.060(1.52)	0.66(16.7)	345(508)
9	10	0.030(0.76)	0.060(1.52)	0.77(19.6)	435(644)
12	10	0.030(0.76)	0.060(1.52)	0.86(21.8)	560(831)

overall shielded

Conductor Count	Conductor Size AWG	Insulation Thickness in (mm)	Jacket Thickness in (mm)	Approx. Overall Diameter in (mm)	Approx. Net Weight lbs/kft (kg/km)
2	14	0.030(0.76)	0.045(1.14)	0.37(9.4)	70(102)
3	14	0.030(0.76)	0.045(1.14)	0.39(10.0)	90(131)
4	14	0.030(0.76)	0.045(1.14)	0.43(10.8)	110(162)
5	14	0.030(0.76)	0.045(1.14)	0.46(11.8)	130(193)
7	14	0.030(0.76)	0.045(1.14)	0.50(12.8)	170(250)
9	14	0.030(0.76)	0.060(1.52)	0.62(15.9)	230(342)
12	14	0.030(0.76)	0.060(1.52)	0.69(17.6)	290(431)
19	14	0.030(0.76)	0.060(1.52)	0.81(20.5)	435(642)
25	14	0.030(0.76)	0.080(2.03)	0.98(25.0)	600(886)
30	14	0.030(0.76)	0.080(2.03)	1.04(26.4)	695(1029)
37	14	0.030(0.76)	0.080(2.03)	1.12(28.4)	830(1231)
2	12	0.030(0.76)	0.045(1.14)	0.41(10.3)	90(132)
3	12	0.030(0.76)	0.045(1.14)	0.43(10.9)	120(173)
4	12	0.030(0.76)	0.045(1.14)	0.47(11.9)	150(217)
5	12	0.030(0.76)	0.045(1.14)	0.51(13.0)	180(261)
7	12	0.030(0.76)	0.060(1.52)	0.59(15.0)	250(369)
9	12	0.030(0.76)	0.060(1.52)	0.69(17.5)	315(464)
12	12	0.030(0.76)	0.060(1.52)	0.76(19.4)	400(592)
19	12	0.030(0.76)	0.080(2.03)	0.94(23.8)	640(948)
25	12	0.030(0.76)	0.080(2.03)	1.09(27.7)	825(1221)
30	12	0.030(0.76)	0.080(2.03)	1.15(29.2)	960(1428)
37	12	0.030(0.76)	0.080(2.03)	1.24(31.5)	1155(1718)
2	10	0.030(0.76)	0.045(1.14)	0.45(11.5)	120(177)
3	10	0.030(0.76)	0.045(1.14)	0.48(12.2)	165(238)
4	10	0.030(0.76)	0.045(1.14)	0.53(13.4)	205(302)
5	10	0.030(0.76)	0.060(1.52)	0.61(15.4)	265(393)
7	10	0.030(0.76)	0.060(1.52)	0.66(16.8)	350(517)
9	10	0.030(0.76)	0.060(1.52)	0.78(19.7)	440(653)
12	10	0.030(0.76)	0.080(2.03)	0.90(23.0)	605(894)
