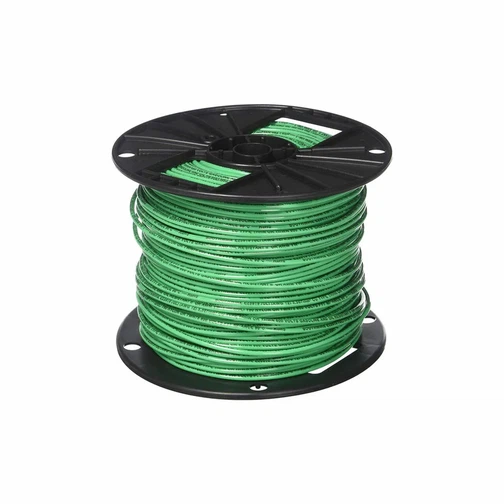

The cable is made of thermoplastic high heat resistant nylon wire. It is also used as NEC designated machine and electrical wiring. The rated voltage of the wire is 600 volts and 75 ° C and 90 ° C. According to THWN, it can be used in damp or dry places.
THWN: Refers to thermoplastic insulation materials that are flame retardant, heat-resistant with extruded nylon or equivalent materials. The rated value of the wire is 75 ° C wet or dry.
THWN-2: Same as THWN, but with a wire rating of 90 ° C wet or dry.
600V, THWN-2 nylon PVC insulated sheathed cable, UL83 standard building industry cable product characteristics:
Resistant to sunlight
Gas resistant
heat-resisting
Moisture resistance
Oil resistant
waterproof
600V, THWN-2 nylon PVC insulated sheathed cable, UL83 standard construction industry cable technical certification:
Compliant with RoHS standards
UL83 standard
600V, THWN-2 nylon PVC insulated sheathed cable, UL83 standard building industry cable product structure:
Conductor material: Bare copper, tin plated copper optional
Conductor type: Complies with UL83 standard, ASTM B3, B8, and B33 or NMX-J-008-ANCE requirements
Core wire insulation: PVC nylon coating
Core wire identification: optional
Product model interpretation: T=thermoplastic
HH=high heat resistance
N=Nylon coating
H=heat-resistant
W=Waterproof
600V, THWN-2 nylon PVC insulated sheathed cable, UL83 standard construction industry cable technical parameters:
Rated voltage: 600V
Test voltage: 14AWG-2AWG: 2.0kV; 1AWG-4/0AWG:2.5kV; 250kcmil-500kcmil:3.0kV;
550kcmil-1000kcmil:3.5kV; 1100kcmil-12000kcmil:4.0kV
Conductor resistance: UL1581 ASTM Class C
Fixed small bending radius 10x d
Move with a small bending radius of 15x d
Fixed minimum/maximum working temperature: THWN: -40 ° C/75 ° C; THWN-2：-40°C/90°C
Flame retardant grade: self extinguishing and flame retardant comply with UL1581 VW-1; CSA C22.2 No.2556-15 FT1, FT2; IEC 60332-1-2 standard
600V, THWN-2 nylon PVC insulated sheathed cable, UL83 standard construction industry cable product application:
THHN/THHN type conductors, installed through conduits in accordance with national electrical specifications, are suitable for service in commercial/industrial systems, feeder and branch circuit wiring. THHN type cables are suitable for dry environments with temperatures not exceeding 90 ℃.
THWN cables are suitable for dry environments with temperatures not exceeding 90 ℃, humid environments with temperatures not exceeding 75 ℃, or oil/coolant with temperatures not exceeding 75 ℃.
THWN-2 cables are suitable for use in dry or humid environments with temperatures not exceeding 90 ℃, and in oil/coolant with temperatures not exceeding 75 ℃.
MTW cables are suitable for use in humid environments, in oil/coolant with a temperature not exceeding 60 ° C, and in dry environments with a temperature not exceeding 90 ° C (under the 75 ° C conductor load specified in NFPA79).
In dry environments where the conductor temperature does not exceed 105 ℃, AWM cables can be used as equipment wires with a rated voltage of 600 volts.
600V, THWN-2 nylon PVC insulated sheathed cable, UL83 standard construction industry cable standard and certification:
UL83- Thermosetting Material Insulated Cable
CSA C22.2 NO.75-03
UL 1063 (MTW) - Machine Tool Wire and Cable (Multi strand)
UL 758 (AWM)
ICEA S-95-658/NEMA WC 70
600V, THWN-2 nylon PVC insulated sheathed cable, UL83 standard construction industry cable. Main uses and characteristics:
Nylon sheathed cables have better electrical and physical properties than ordinary PVC insulated cables;
Nylon sheathed cables have good heat resistance and low weight loss during operation at high temperatures, which can enhance the instantaneous heat overload resistance of cables and slow down or reduce the escape and migration of PVC components;
Nylon sheathed cables have the characteristics of corrosion resistance, self-lubricating, and oil resistance;
Compared with PVC insulated cables of the same cross-section, nylon sheathed cables have the characteristics of small outer diameter, light weight, low static friction coefficient, and corrosion resistance, which can enhance the safety and applicability in laying;
The rated voltage of nylon sheathed cables is 450/750V, widely used in household appliances, aviation systems, buildings, and lighting.
