In the North American electrical wiring industry, NM-B cable (Non-Metallic Sheathed Cable, Type B) is one of the most widely used options for residential and light commercial projects. It is commonly installed for lighting, receptacles, and household appliances.
However, a frequently asked question among contractors, builders, and end-users is: "Is NM-B wet rated? Can NM-B be used in damp or outdoor environments?"
This question is critical because it relates to electrical safety, NEC compliance, and long-term performance. Choosing the wrong cable type for a specific environment can lead to serious safety hazards and code violations.
In this article, we will cover the definition of NM-B, the concept of wet-rated cables, their uses, whether NM-B qualifies as wet rated, comparison with other cable types, and how to choose the right product.
Definition and Basic Information of NM-B Cable
NM-B stands for Non-Metallic Sheathed Cable, Type B, manufactured under UL 83 and UL 719 standards, and compliant with the NEC (National Electrical Code).

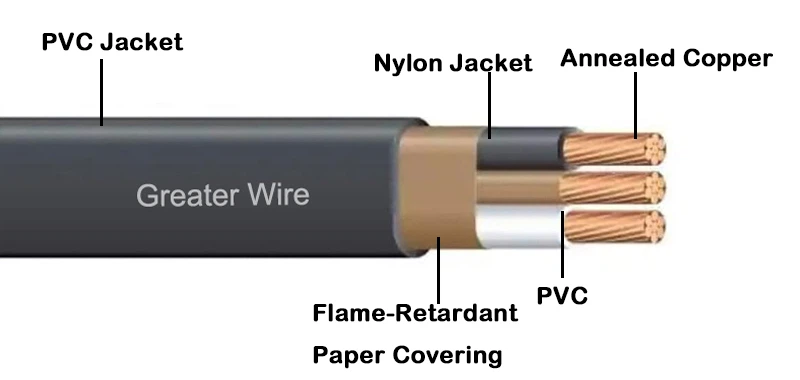

Its construction includes:
- Copper conductors: UL-compliant, excellent conductivity.
- Insulation: PVC material, with color-coded conductors (black, white, green, etc.).
- Non-metallic sheath: PVC outer jacket, printed with size, type, and certification markings.
The letter "B" indicates that the cable is rated for 90°C (194°F) in dry locations, giving it higher heat resistance for residential and commercial indoor applications such as:
- Branch circuits for lighting, outlets, and small appliances;
- Kitchen, laundry, and HVAC circuits;
- Indoor concealed wiring in walls, ceilings, and floors.
👉 Key Point: NM-B is designed strictly for dry indoor environments-not for wet or damp conditions.
What Is a Wet-Rated Cable?
A wet-rated cable is designed to safely operate in wet, damp, or water-exposed environments. Compared with standard indoor cables, wet-rated types feature:
Moisture-resistant insulation
- XLPE (cross-linked polyethylene) or upgraded PVC that prevents performance degradation when exposed to water.
Enhanced sheath sealing
- Prevents moisture from penetrating the cable structure.
UL/NEC wet-environment certification
- Cables tested for safe long-term use in wet or outdoor environments.
Common wet-rated cable types include:
- UF-B - suitable for direct burial underground;
- THHN/THWN - for conduit installations in damp or wet conditions;
- XHHW - with extra-thick insulation, ideal for industrial and outdoor environments.
What Are Wet-Rated Cables Used For?
Wet-rated cables are essential in applications where electrical systems may be exposed to moisture, rain, underground soil, or coastal humidity. Typical use cases include:
- Outdoor lighting systems: garden lights, pathway lights, and landscape illumination;
- Underground wiring: receptacles, pumps, irrigation systems;
- Industrial damp locations: cold storage, washdown areas, and factories with condensation;
- Coastal or humid regions: protection against salt spray and persistent moisture;
- Outdoor appliances: air conditioners, water heaters, pool equipment.
👉 The primary value of wet-rated cables is to ensure electrical safety, prevent failures, and extend service life in challenging environments.
Is NM-B Wet Rated?
The answer is clear: No, NM-B cable is not wet rated.
According to UL and NEC standards:
- NM-B is only approved for dry locations.
- It must not be installed in areas exposed to moisture, water, or direct burial in soil.
- Using NM-B in wet environments can lead to accelerated insulation breakdown, leakage, short circuits, or fire hazards.
👉 If your project involves wet, damp, or outdoor environments, you must select UF-B, THHN/THWN, or XHHW cables instead.
Typical Applications of NM-B Cable
Although not wet rated, NM-B remains the most popular choice for dry indoor wiring in North America due to its cost-effectiveness and ease of installation. Common applications include:
- Residential lighting circuits (14 AWG typical);
- General receptacle circuits (12 AWG standard);
- Large appliances such as HVAC units, dryers, or water heaters (10–6 AWG);
- Office branch circuits for lighting and outlets;
- Indoor concealed wiring within walls, ceilings, and floor structures.
Cable Type Comparison: Dry vs. Wet Applications
| Cable Type | Wet Rated? | Typical Applications | Key Features |
|---|---|---|---|
| NM-B | ❌ No (Dry only) | Indoor lighting, receptacles, household appliances | Easy installation, cost-effective |
| UF-B | ✅ Yes | Outdoor lighting, garden receptacles, underground runs | Direct burial, moisture-resistant |
| THHN/THWN | ✅ Yes (in conduit) | Industrial/commercial branch circuits | Heat- and moisture-resistant, conduit use |
| XHHW | ✅ Yes (high level) | Wet/outdoor/industrial facilities | Thicker insulation, excellent weather resistance |
👉 Summary: Use NM-B indoors only; for wet or outdoor applications, UF-B, THHN, or XHHW are the correct options.
How to Choose the Right Cable Type?
Identify the environment
- Dry indoor: NM-B.
- Wet, underground, or outdoor: UF-B / XHHW.
- Industrial or damp locations: THHN/THWN.
Confirm load and wire size
- 14 AWG: lighting circuits.
- 12 AWG: receptacles.
- 10 AWG: HVAC, water heaters.
- 8–6 AWG: large equipment or higher loads.
Check certification
- Always ensure UL & cUL certification for use in U.S. and Canadian markets.
Choose a reliable supplier
- Full product range?
- Fast delivery capability?
- Technical support available?
👉 With Greater Wire & Cable, you can meet all these requirements in one place.
Choose Greater Wire - Safe and Efficient for Every Project
Returning to our main question: Is NM-B wet rated?
The answer is No. NM-B is designed for dry indoor environments only.
If your project requires installation in wet, damp, or outdoor areas, the right choices are UF-B, THHN/THWN, or XHHW cables.
As a trusted manufacturer and exporter, Dongguan Greater Wire & Cable Co., Ltd. offers the following advantages:
- Product Range: NM-B, THHN, UF-B, XHHW - all popular UL-approved types;
- Certified Quality: UL & cUL certifications, fully compliant with U.S. and Canadian markets;
- Complete Specifications: Standard sizes from 14 AWG to 6 AWG;
- Delivery Capability: Fast shipment, supporting both small and large volume orders;
- Service Strength: Professional technical support, worry-free pre- and after-sales assistance;
- Global Experience: Many years of manufacturing and export, with partners worldwide.
Whether your project is a small-scale residential renovation, a commercial facility, or a large industrial installation, we provide safe, compliant, and high-performance cable solutions.
👉 Contact us today for product quotes and technical consultation - make your project faster, safer, and more reliable!
