For electrical contractors, distributors and project buyers, the difference between PVC jacketed MC cable and standard bare-armor MC cable is not just a plastic wrap-it's the line between a successful project and costly rework. Many professionals still confuse their performance boundaries, leading to misapplication that causes rapid corrosion, hidden electrical faults and unexpected project delays. This article breaks down the exact structural and performance differences, provides a simple selection rule, and recommends the right specifications for wet locations and direct burial projects.
1. The Hidden Project Risk of Misapplying Standard Bare-Armor MC Cable
· The #1 Mistake That Causes Rework & Electrical Failures：
The most common and expensive mistake in commercial wiring is using standard bare-armor MC cable in wet locations or direct burial applications. Standard MC cable is built with exposed aluminum interlocked armor or galvanized steel armor, with no outer protective layer to seal out the environment.
When installed in damp basements, rooftop areas, car washes or underground, moisture, soil chemicals and ultraviolet rays will continuously attack the bare metal armor. This corrosion does not happen overnight-it progresses slowly, causing hidden insulation degradation, ground connection failures and eventually complete electrical breakdown. Even when run through conduit, internal condensation will still seep in and corrode the armor over time. This mis-selection leads to unplanned rework, disrupted operations and additional costs that could have been completely avoided.
2. Core Structural & Performance Differences That Define Their Use Cases
· Outer Jacket: The Critical Protective Layer You Can't Ignore

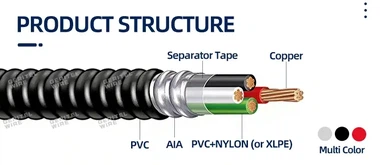

Standard MC cable consists of copper conductors, THHN/THWN-2 or XHHW-2 insulation, a non-conductive separator, exposed aluminum interlocked armor or galvanized steel armor, and either a bare ground or insulated green ground conductor for 600V power distribution. It has no sealed outer protective layer.
PVC coated MC cable retains all the core advantages of standard MC cable-including flexible interlocked armor, easy termination and built-in grounding. The only difference is the addition of a seamless, UV-stabilized PVC jacket that completely encloses the metal armor. This single structural change is what transforms the cable's environmental capabilities. Importantly, both cables use identical termination tools and procedures, so your electricians require no special training to make the switch.
· Environmental Resistance: What Each Cable Is Actually Built For
Standard bare-armor MC cable has no inherent moisture-proof, corrosion-resistant or UV-resistant properties. It was engineered exclusively for fully dry indoor environments, and cannot withstand exposure to moisture, chemicals or sunlight.
In contrast, the sealed PVC jacket provides PVC coated MC cable with excellent moisture-proof, corrosion-resistant and UV-resistant capabilities. When paired with aluminum interlocked armor, it can be used for direct burial without the need for additional conduit. This eliminates the cost and labor of installing separate conduit systems, significantly reducing both installation time and long-term maintenance requirements.
3. The Simple Selection Rule That Eliminates Guesswork
Forget complicated spec sheets and conflicting advice. Follow this one simple rule, and you will never make the wrong choice again:
· When PVC Coated MC Cable Is Your Only Reliable Option
Always select PVC coated MC cable if your project involves any wet locations (including basements, rooftops, pool areas, car washes and industrial washdown areas) or any direct burial requirements. There are no exceptions. Even with conduit protection, standard MC cable will eventually corrode in these environments, leading to premature failure.
· When Standard MC Cable Is Still Appropriate
Standard bare-armor MC cable is only suitable for 100% dry indoor wiring projects with no risk of moisture exposure, UV radiation or burial. For these applications, it meets all basic power transmission requirements and is the conventional choice for general indoor commercial wiring.
4. Recommended MC Cable Specifications for Wet & Direct Burial Projects
For most commercial wet location and direct burial jobs, these are the most widely used and reliable specifications:
· 14/2 MC cable with PVC jacket and ground: The industry workhorse for parking lot lighting, commercial crawl space wiring and landscape direct burial circuits.
· 12/4 THHN/THWN-2 PVC jacketed MC cable: Ideal for multi-circuit power supply to rooftop HVAC units, car wash equipment and outdoor security systems.
For more demanding industrial applications, consider these upgraded options:
· XHHW-2 MC cable 90C wet and dry locations: Offers enhanced heat resistance for high-temperature industrial environments.
· XHHW-2 galvanized steel armor PVC jacket MC cable: Provides superior mechanical protection for heavy-duty wiring jobs.
· XHHW-2 Type MC feeder cable PVC jacket: Available in 3/C and 4/C configurations for 600V power distribution in commercial and industrial facilities.
5. Frequently Asked Questions About MC Cable Selection
Q: Can I use standard MC cable in wet locations if I run it through conduit?
A: No. Condensation will always penetrate conduit over time and corrode the exposed metal armor of standard MC cable. Only PVC jacketed MC cable is designed for wet location use.
Q: Do I need to use conduit with PVC coated MC cable for direct burial?
A: No. PVC coated MC cable with aluminum interlocked armor is designed for direct burial without additional conduit protection.
Q: What is the difference between THHN/THWN-2 and XHHW-2 insulation in PVC coated MC cable?
A: THHN/THWN-2 is suitable for most general wet location applications. XHHW-2 insulation provides better heat resistance and is preferred for industrial environments with higher operating temperatures.
Q: What ground options are available for PVC coated MC cable?
A: PVC coated MC cable is available with both bare ground and insulated green ground conductors, matching the options for standard MC cable.
