1. Why Polarity Color Mix-Ups Cause Costly DC System Failures
Most battery wiring accidents are not caused by complex technical errors, but by neglected color coding details and wrong installation habits. For professional repair shops, solar installers, and DIY enthusiasts, confusing battery cable positive vs negative leads to irreversible equipment damage and safety hazards.
Five field pain points repeatedly trouble DC wiring projects. First, reversed polarity from misjudging red and black cables burns inverters, controllers, and vehicle electrical systems, triggering severe safety risks. Second, aged equipment cables fade severely, making color identification impossible and forcing technicians to hesitate before operation. Third, international color standard differences cause polarity confusion when wiring imported vehicles and marine devices. Fourth, most users skimp on battery ground cable color and gauge, using thinner negative cables that increase loop resistance and weaken startup power. Fifth, people only focus on positive cable specifications while ignoring negative cables, resulting in unbalanced circuit load and continuous overheating.
Unlike generic THHN/THWN-2 and XHHW-2 AC building wires with fixed industrial color norms, low-voltage DC battery cables rely on strict red-black polarity differentiation for system safety. Standard red PVC battery cable and black PVC battery cable solve these practical pain points with standardized, long-lasting color identification and balanced circuit performance.
2. Universal Field Standard: Red = Positive, Black = Negative/Ground
For all mainstream DC low-voltage scenarios including car/truck battery replacement, RV house battery installation, solar battery bank connection, and forklift/UPS wiring, the industry default rule is clear:red battery cable positive, black battery cable negative (ground). This universal rule covers 99% of automotive, marine, and off-grid system applications.

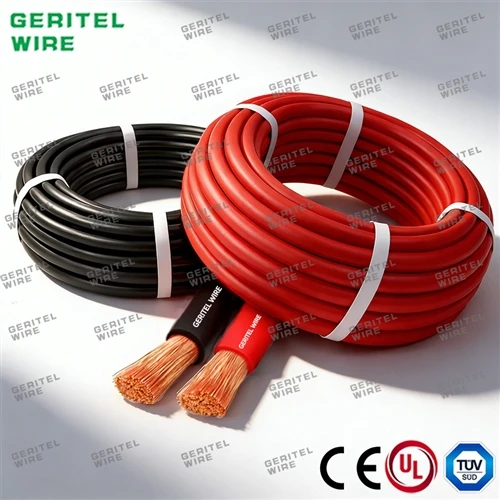

High-quality color coded battery cable adopts integrated color extrusion technology. The thickened PVC jacket ensures uniform, fade-resistant colors, avoiding the blurred identification problem of painted or printed colored cables after long-term outdoor exposure, engine compartment vibration, and moisture erosion. Whether you use 6 AWG red battery cable for medium-current solar connections or 4/0 AWG black battery cable for heavy-duty truck grounding, the red-black distinction remains intuitive and accurate.
A core professional detail most beginners ignore: positive and negative cables must use the same material and gauge. Our flexible copper battery cable features consistent stranding and conductivity for red and black models. For example, 25mm² red battery cable paired with matching 50mm² black battery cable (customized for high-current scenarios) ensures symmetrical loop resistance, stable current transmission, and no uneven heat generation.
3. Critical Exceptions & Hidden Polarity Risks Professionals Must Know
While red-positive and black-negative is the mainstream norm, blind generalization is the main cause of wiring errors, especially for imported equipment and old modified systems. This section covers differentiated rules that generic color guides ignore.
3.1 Regional & Special Equipment Standard Differences
Individual overseas devices and old industrial equipment do not follow US automotive color standards. Never rely solely on color judgment; always verify the printed polarity mark on the cable terminal before wiring. Do not confuse DC battery color rules with AC 3/C or 4/C multi-core cable norms or insulated green ground AC grounding standards, as DC low-voltage systems have independent color logic.
3.2 Ground Cable Sizing Is As Important As Positive Cable
The battery ground cable is not an auxiliary wire but a core part of the entire current loop. Using a thinner negative/ground cable will reduce the overall circuit cross-sectional area, causing excessive voltage drop and overheating even if the positive cable meets specifications. For heavy-duty scenarios such as large UPS systems and marine boat battery installations, matching high-spec black ground cables is mandatory.
3.3 Forbidden Color Substitution Rule
Never use blue, yellow, or other colored cables for main positive/negative loops. Non-standard color wiring will cause identification confusion in later maintenance, easily leading to miswiring and short-circuit accidents during equipment overhaul.
4. Application-Specific Polarity Wiring Tips
Different scenarios have unique wiring details based on current load and working environment. Below are field-verified practical tips for target application scenarios:
· Car & truck battery replacement: Match battery positive cable and battery negative cable gauges strictly; never downsize the black ground cable to save cost, which will cause weak engine startup.
· Marine & boat wiring: Humid and corrosive environments require fade-resistant PVC jacket cables to ensure long-term clear polarity identification and avoid seawater-induced color fading.
· RV & campervan installations: Compact space and frequent vibration demand flexible copper cables with consistent red-black quality to prevent wire breakage and polarity failure.
· Solar battery banks & inverters: Long-distance wiring requires symmetric positive and negative cables to stabilize voltage and reduce line loss.
· Forklift & golf cart fleets: Frequent charge-discharge cycles require standardized color-coded cables for quick daily maintenance and fault inspection.
· UPS industrial hookups: High-current instantaneous load requires full-spec red-black cable sets to avoid loop resistance imbalance.
5. FAQ
Q1: Is red always positive and black always negative for all battery cables?
It is the universal standard for automotive, solar, marine, and RV DC systems, but not 100% universal for imported old equipment. Always check terminal polarity labels before wiring instead of relying solely on color to avoid short circuits and equipment burnout.
Q2: Can I use a thinner black ground cable to save costs?
Absolutely not. The positive and negative cables form a complete current loop. A thinner battery ground cable increases overall circuit resistance, leading to insufficient startup power, excessive voltage drop, and continuous cable overheating.
Q3: Why do my old battery cables fade and fail color identification?
Ordinary painted cables fade easily under outdoor light, engine heat, and moisture erosion. Premium PVC jacket battery cable adopts integral color extrusion, featuring anti-aging and fade-resistant performance for long-term clear polarity recognition.
6. Custom Cable Solution & Inquiry CTA
Standard color rules cannot solve all on-site wiring problems. We provide standardized red and black battery cable sets with matched gauges, including pre-installed battery cable with copper lugs for fast, standardized on-site wiring. All cables feature uniform color coding, symmetrical low-resistance conductors, and durable PVC insulation, suitable for automotive, marine, solar, and industrial fleet projects. Contact us now for customized size matching, bulk wholesale quotations, and professional polarity wiring guidance.
