1. What Is SIS Switchboard Wire?
SIS switchboard wire, short for "Switchboard Instrumentation Service Wire," is a single-conductor electrical wire designed for use in switchboards, control panels, and instrumentation systems. SIS type wire typically features a solid or stranded copper conductor and is insulated with high-performance, heat-resistant SIS wire insulation, made from thermoset cross-linked polyethylene (XLPE). This wire meets standards such as UL 3173, UL 44, and CSA, making it a preferred choice in North American industrial settings.
2. Technical Specifications of SIS Type Wire
When selecting a suitable SIS type wire, understanding its technical specifications is crucial:
Voltage Rating: Up to 600V
Operating Temperature: Up to 90°C in both dry and wet conditions
Conductor Type: Solid or stranded bare copper (ASTM B3, B8 compliant)
Insulation Material: Thermoset cross-linked polyethylene (XLPE), known as SIS wire insulation
Flame Resistance: VW-1 flame test compliant
Environmental Compliance: RoHS compliant
These specifications ensure that SIS switchboard wire can operate reliably in high-density, high-performance environments.
3. Key Advantages of SIS Switchboard Wire
Compared to other control wire types, SIS type wire offers the following standout benefits:
✅ Superior Electrical Performance
High-quality copper conductors and XLPE insulation deliver low resistance and excellent signal integrity, even in complex systems.
✅ Heat and Chemical Resistance
Thanks to its SIS wire insulation, SIS wire resists heat, oil, solvents, and chemicals-ideal for harsh industrial environments.
✅ Flexibility for Tight Spaces
Its compact insulation and flexible design make it ideal for dense switchboard layouts and narrow panel spaces.
✅ Certified and Reliable

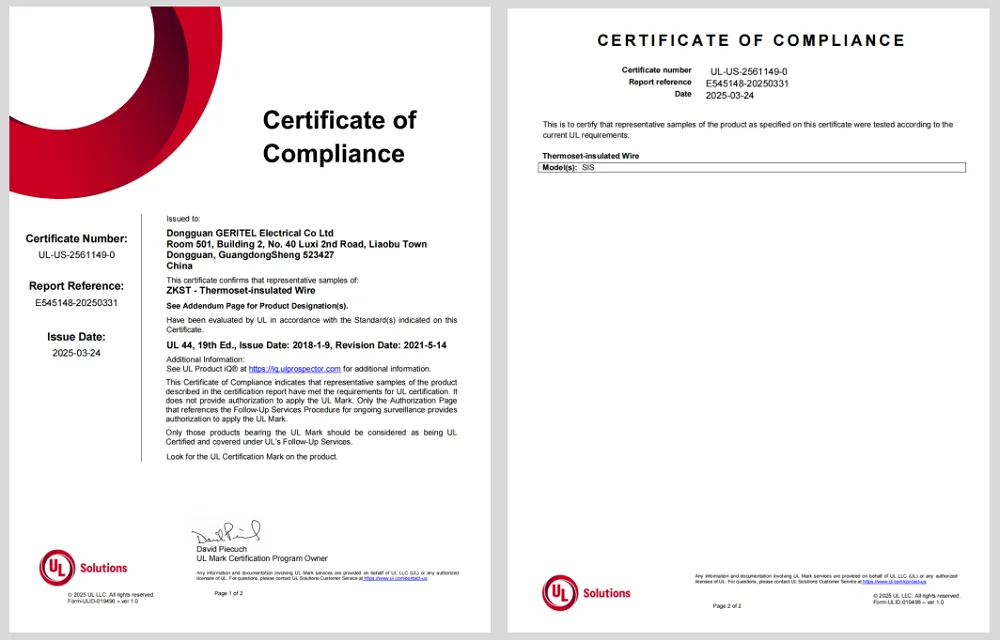

Complies with multiple standards, including UL and CSA, ensuring consistent safety and quality for industrial applications.
4. Typical Applications of SIS Type Wire
Due to its excellent properties, SIS switchboard wire is widely used in:
Internal wiring of switchboards and distribution panels
Instrumentation and control circuits in industrial automation
Control wiring in power plants and substations
Electrical panels and terminal connections in commercial buildings
High-density electrical systems requiring heat-resistant performance
In all these applications, the robustness of SIS wire insulation ensures long-term system safety and stability.
5. SIS vs Other Industrial Wire Types
| Feature | SIS Type Wire | THHN Wire | MTW Wire |
|---|---|---|---|
| Insulation | Cross-linked polyethylene (XLPE) | PVC + Nylon | PVC |
| Max Temp | 90°C (wet/dry) | 90°C (dry), 75°C (wet) | 90°C (wet/dry) |
| Flame Test | VW-1 | Optional VW-1 | VW-1 |
| Typical Use | Fixed switchboards, control panels | General building wiring | Machinery/internal wiring |
SIS switchboard wire offers superior performance in high-temperature and enclosed cabinet environments due to its SIS wire insulation.
6. How to Select the Right SIS Type Wire
When choosing SIS type wire, consider the following factors:
Voltage Requirements: Ensure compatibility with system voltage
Temperature Conditions: Evaluate ambient and operational temperatures
Conductor Size: Select AWG size based on current load and layout space
Certifications: Look for UL, CSA, and RoHS compliance
Color Coding: Choose from standard colors for circuit identification
Reliable SIS wire insulation not only protects the conductor but also extends equipment service life in demanding applications.
