1. Common Pain Points of Commercial Lighting Wiring & Core Advantages of PVC Jacketed MC Cable
Commercial lighting projects cover shopping mall interior lighting, office concealed ceiling lighting, corridor exposed emergency lighting, outdoor landscape lighting, and data center raised floor lighting. For lighting contractors, building electricians, facility maintenance teams, and landscape installers, traditional wiring solutions create persistent on-site challenges. Multiple separate lighting circuits result in messy cable layouts that complicate inspections and routine maintenance. Exposed cables lack UV resistance and degrade rapidly under continuous outdoor sunlight exposure. Concealed wiring cables are easily scratched or damaged during pipe threading. Standard cable types also cause electromagnetic interference that disrupts modern LED dimming systems. Additionally, using different cable models for each installation type creates bloated inventory and increases overall project costs.

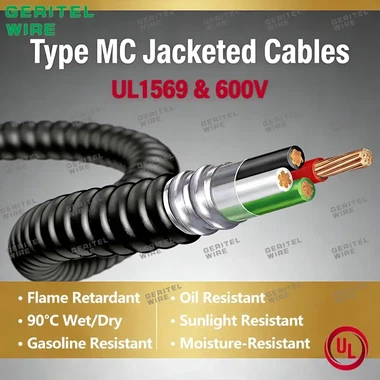

MC cable for lighting circuits with PVC jacket is purpose-built to resolve these common industry pain points. Its multi-core structure consolidates multiple lighting circuits for cleaner, more organized wiring layouts. Flexible interlocked armor allows smooth cable pulling and routing in tight concealed spaces. The upgraded PVC jacket delivers superior weather and UV resistance for long-term outdoor deployment. Featuring a low-capacitance design, it maintains stable, flicker-free performance for LED dimming systems. Most importantly, the integrated PVC outer sheath eliminates the need for extra conduits, cutting field construction time by approximately 35% and significantly improving overall installation efficiency.
· Practical Strengths of PVC Jacketed MC Cable

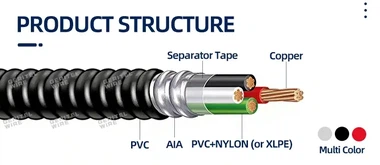

These MC cables feature durable aluminum interlocked armor or galvanized steel armor, delivering excellent flexibility and mechanical crush resistance for commercial building environments. Internal conductors support both THHN/THWN-2 and XHHW-2 insulation with a standard 600V voltage rating that meets mainstream commercial power distribution requirements. Equipped with optional bare ground and insulated green ground configurations, these cables comply fully with commercial electrical safety standards, serving as a unified, all-in-one solution for mixed lighting installation scenarios.
2. Indoor Installation: Concealed & General Lighting Wiring
Indoor MC cable deployments fall into two core categories: concealed routing and general open runs, widely used in office buildings, shopping malls, and data center facilities.
· Concealed Installation: Ceiling & Raised Floor Wiring
MC cable for concealed installations is the preferred solution for office suspended ceiling lighting and MC cable under raised floors for data center underfloor lighting systems. The flexible metal armor structure allows cables to glide smoothly through ceiling joists and narrow underfloor gaps, preventing insulation abrasion and conductor damage during threading and installation.
For large-scale, high-load indoor lighting distribution, heavy-duty specifications deliver reliable performance: 6 AWG 3/C Type MC XHHW-2 AIA PVC 600V, 2 AWG 4/C XHHW-2 PVC jacketed MC cable, and 3/0 AWG 4/C XHHW-2 PVC jacketed MC cable. These 3/C and 4/C cables with premium XHHW-2 insulation maintain consistent power output for high-density lighting loads in large commercial spaces.
· General Indoor Runs: Shopping Mall Interior Lighting
Shopping mall interiors feature dense, multi-branch lighting circuits with mixed load demands. 3/C and 4/C PVC jacketed MC cables consolidate multiple individual circuits into a single streamlined run, simplifying wiring organization and speeding up daily inspection and repair work for facility maintenance teams. Adopting unified MC cable specifications standardizes on-site materials and reduces inventory and management complexity for renovation and long-term facility upkeep.
3. Exposed Installation: Indoor Emergency Lighting & Outdoor Landscape Lighting
Exposed cable installations require stricter physical durability, appearance consistency, and environmental adaptability, covering both indoor exposed emergency circuits and outdoor exposed landscape lighting systems.
· Indoor Exposed: Corridor Emergency Lighting
Corridor emergency lighting cables are surface-mounted and fully visible, making them vulnerable to daily collision and abrasion. The rugged PVC jacket paired with reinforced metal armor provides reliable mechanical protection, ensuring stable long-term operation of critical emergency power circuits. Small-gauge MC cable specifications are ideal for these low-power, continuous safety lighting loads.
· Outdoor Exposed: Courtyard & Landscape Lighting
Outdoor landscape and courtyard lighting faces year-round UV radiation, wind, rain, and dust exposure. Standard indoor-grade PVC jackets cannot withstand harsh outdoor conditions and will become brittle, cracked, or degraded over time. A non-negotiable selection rule applies here: all outdoor exposed MC cables must feature a PVC jacket clearly marked "Sunlight Resistant". This specialized jacket formulation resists UV degradation and weather aging to extend cable service life for exterior lighting systems.
4. Complete Selection Guide for PVC Jacketed MC Cable
Learning how to choose PVC jacketed MC cable matched to specific load sizes and installation methods is critical for compliant, cost-effective, and long-lasting commercial lighting projects. Below are field-verified selection rules for common working conditions.
· Small-Gauge Cables for Standard Lighting Loads
For conventional office lighting, mall spotlights, and low-power landscape fixtures, prioritize compact small-gauge models including 14/2 and 12/3 MC cables. These multi-core lightweight cables perfectly accommodate low-to-medium lighting loads, balancing installation simplicity, cost efficiency, and circuit stability for standard commercial projects.
· Large-Gauge Cables for Main Lighting Distribution
For main trunk distribution lines supporting large-scale commercial lighting systems, select heavy-duty MC cable options: 6 AWG 3/C, 2 AWG 4/C, and 3/0 AWG 4/C PVC jacketed MC cable. Equipped with XHHW-2 insulation, durable metal armor, and 600V rating, these cables reliably handle concentrated high-power lighting loads. Users can choose bare ground or insulated green ground configurations to match on-site safety and code requirements.
· Code & Technical Rules for Special Circuits
Strictly follow NEC 330.30(D) for ceiling installation: the last 6 feet of MC cable routed within ceiling cavities can be installed without additional supports, significantly accelerating ceiling wiring workflows.
For LED dimming circuits, electromagnetic interference is a primary cause of flicker and unstable performance. Always specify low-capacitance shielded PVC jacketed MC cable for dimming applications. Its optimized internal structure suppresses signal interference, ensuring smooth, consistent LED dimming operation.
5. FAQ
Q1: What is the core difference between indoor and outdoor exposed PVC jacketed MC cable?
The key difference lies in jacket performance. Outdoor exposed MC cables require a "Sunlight Resistant" rated PVC jacket for UV and weather protection. Standard indoor PVC jackets only offer basic abrasion resistance and cannot sustain long-term outdoor sun exposure.
Q2: Which MC cable works best for concealed wiring under data center raised floors?
PVC jacketed MC cable with aluminum interlocked armor and XHHW-2 insulation is the optimal choice. It delivers superior flexibility for easy threading in tight underfloor gaps and provides full protection against ambient dust and minor moisture accumulation.
Q3: Why do LED dimming circuits need low-capacitance MC cable?
LED dimming control systems are highly sensitive to electromagnetic interference. A low-capacitance cable design eliminates signal distortion and capacitive coupling, preventing light flicker and ensuring precise, stable dimming performance.
6. Get Customized Cable Solutions for Your Projects
Whether your project involves concealed ceiling wiring, exposed corridor emergency lighting, outdoor landscape circuits, or data center raised floor lighting, accurate MC cable for lighting circuits selection directly impacts safety, compliance, construction speed, and long-term operational reliability.
Our team specializes in supporting commercial lighting contractors, renovation electricians, mall facility teams, and building electrical technicians. Share your installation type, load requirements, and project specifications, and we will provide compliant, tailored MC cable recommendations and professional technical guidance for your next commercial lighting project.
