In modern electrical and construction industries, selecting the right wire is crucial for ensuring safety, efficiency, and long-term reliability. Among the many cable types available, TW Cable has become a trusted choice for residential, commercial, and light industrial projects due to its durability, cost-effectiveness, and compliance with UL and CUL standards. Designed with thermoplastic, water-resistant insulation, TW Cable performs reliably in both dry and damp environments, making it an ideal option for general indoor wiring. Whether you're an electrical contractor, engineer, or project manager, understanding what TW Cable is-and how it differs from other wire types like THW, THHN, or THWN-can help you make smarter, safer decisions. This article provides a complete overview of TW Cable, including its structure, applications, advantages, and installation guidelines, as well as professional insights from Dongguan Greater Wire & Cable Co., Ltd., a leading manufacturer offering certified, high-quality TW Wire products worldwide.
Definition and Basic Characteristics of TW Cable
The abbreviation TW stands for Thermoplastic / Water-resistant, or more precisely Thermoplastic-insulated, Water-resistant wire.
It refers to a type of single-conductor electrical wire insulated with thermoplastic material (usually PVC), designed for use in dry or damp environments.
Key Features
- Insulation Material: Heat-resistant thermoplastic PVC (Polyvinyl Chloride).
- Water Resistance: Suitable for dry or damp indoor locations.
- Rated Voltage: Commonly up to 600 V.
- Rated Temperature: Up to 60 °C in both dry and wet conditions.
- Certifications: Usually complies with UL (Underwriters Laboratories) and NEC (National Electrical Code) standards.
- Applications: Residential wiring, branch circuits, lighting systems, and control wiring.
So when you see "TW" printed on a wire jacket, you can be sure it's a thermoplastic, water-resistant cable designed for standard building-wiring applications.

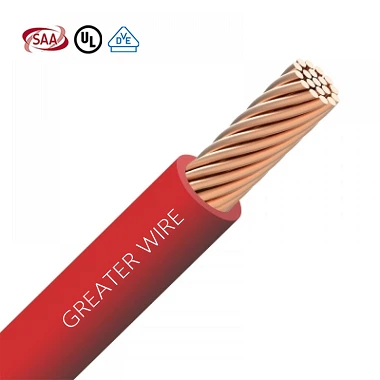

Structure and Composition of TW Cable
Understanding its construction helps ensure you're selecting a safe, high-quality product.
| Component | Description |
|---|---|
| Conductor | Usually made of soft-annealed copper (solid or stranded). |
| Insulation | A single layer of thermoplastic PVC, providing both electrical insulation and mechanical protection. |
| Outer Identification | Printed markings include "TW", voltage rating, AWG size, material type, and UL mark. |
| Available Sizes | Standard American Wire Gauge (AWG 14 – AWG 2/0), depending on application and current load. |
| Color Codes | Color-coded insulation (black, white, green, red, etc.) for phase identification. |
TW cables are typically single conductors, easy to pull through conduits or ducts, and optimized for both new installations and renovation projects.
Common Applications of TW Cable
TW cables are designed for general purpose building wiring and are widely used in:
- Residential Wiring: Lighting, outlets, power branch circuits in houses and apartments.
- Commercial Buildings: Office buildings, shops, retail malls-general indoor power and lighting distribution.
- Light Industrial Settings: Machinery control panels, HVAC systems, and electrical equipment connections.
- Conduit / Raceway Installations: TW wires are suitable for pulling through conduits, raceways, and ducts rated up to 600 V.
- Cost-Sensitive Projects: Due to their affordability and ease of installation, TW cables are perfect for large-scale projects where reliability and budget balance are essential.
In short, TW Cable is ideal for indoor wiring where moisture protection is needed but extreme heat or outdoor exposure is not expected.
Comparison: TW Cable vs. Other Cable Types
To help you better understand where TW Cable fits in the electrical world, here's a comparison with other common types like THW, THHN, and THWN:
| Cable Type | Abbreviation Meaning / Key Traits | Temperature & Environment Rating | Typical Applications | Advantages | Limitations |
|---|---|---|---|---|---|
| TW | Thermoplastic, Water-resistant | Up to 60 °C (wet or dry) | Residential, commercial indoor wiring, conduit/raceway | Cost-effective, easy to install | Limited heat resistance, not suitable for outdoor/direct burial |
| THW | Thermoplastic, Heat- and Water-resistant | Up to 75 °C (wet or dry) | Building power distribution, branch circuits | Higher heat & moisture tolerance | Slightly more expensive |
| THHN | Thermoplastic, High Heat-resistant, Nylon-jacketed | Up to 90 °C (dry) | Industrial and commercial installations | Excellent heat resistance, high durability | Higher cost |
| THWN | Thermoplastic, Heat- and Water-resistant, Nylon-jacketed | Up to 75 °C (wet/dry) | Both indoor/outdoor, wet environments | Water-resistant and flexible | Higher cost, less budget-friendly |
If your project requires wiring for normal indoor use at moderate temperatures, TW Cable offers the best balance between cost, performance, and safety. For outdoor or high-temperature applications, choose THW or THHN/THWN types.
Advantages and Disadvantages of TW Cable
Advantages
- Economical: Lower cost than THHN/THWN wires, ideal for budget-sensitive projects.
- Versatile: Works well in both dry and damp indoor environments.
- Easy Installation: Standard AWG sizing, flexible enough for conduit pulling.
- Widely Available: Stocked by most distributors, easy to source and replace.
Disadvantages
- Lower Heat Resistance: Rated only up to 60 °C, not ideal for high-temperature or industrial environments.
- Limited Environmental Tolerance: Not recommended for outdoor exposure or direct burial.
- Upgrade Limitations: Future system expansion or higher load upgrades may require cable replacement.
- Requires Proper Installation: Incorrect conduit sizing, tight bends, or excessive heat can shorten its lifespan.
In short: TW Cable is a great choice for standard, cost-efficient indoor wiring-provided it's installed correctly and within its rated limits.
Installation and Safety Guidelines
Proper installation ensures safety, reliability, and compliance with international standards.
Key Safety Requirements
- Compliance: All TW cables must be UL-listed or CSA-approved and installed per NEC (National Electrical Code) requirements.
- Environment: TW is not rated for direct sunlight or burial, and should always be installed inside conduit or raceways.
- Temperature Control: Avoid areas where ambient temperature exceeds 60 °C.
- Conduit Bending Radius: Ensure adequate radius to prevent insulation cracking or conductor strain.
- Identification and Labeling: Maintain clear circuit labeling for future maintenance.
- Testing: Perform continuity, insulation resistance, and voltage drop testing before energizing.
- Routine Inspection: Regularly check high-load points, bends, and connection terminals for heat buildup or insulation damage.
When installed following UL/NEC standards, TW cables can deliver decades of safe, efficient performance in residential and commercial wiring systems.
How to Choose and Buy TW Cable
Now that you understand the technical aspects, here's how to select and purchase the right TW Cable-and why Dongguan Greater Wire & Cable Co., Ltd. is your trusted partner.
How to Identify a Qualified Product
- UL / CUL Certification: Always check for UL and CUL logos printed on the wire jacket.
- Clear Markings: The jacket should show model (TW), voltage rating (600 V), conductor type (CU = Copper), and wire gauge (AWG size).
- Material Verification: Confirm thermoplastic PVC insulation and rated temperature.
- Manufacturer Details: Reliable suppliers provide batch numbers and traceability.
- After-Sales Support: Choose suppliers offering technical consultation and responsive customer service.
Technical Selection Guidelines
- Choose wire gauge (AWG/mm²) based on load current, circuit length, and voltage drop.
- Match the wire to installation method-conduit, tray, or raceway.
- Assess environmental factors (humidity, heat, chemicals).
- Leave margin for future expansion or load increase.
- Balance cost with long-term reliability and safety.
Why Choose Greater Wire & Cable?
Dongguan Greater Wire & Cable Co., Ltd. is a professional manufacturer specializing in high-quality electrical wires and cables.
Here's why our TW Wire product line stands out:
✅ Full UL and CUL Certification
Our TW series meets both UL (U.S.) and CUL (Canada) safety standards-ensuring global compliance and reliability.
✅ Complete Product Range
From residential wiring to industrial applications, we offer all sizes and types of TW cables-ready for immediate delivery.
✅ Flexible Support for Any Project Size
Whether you're wiring a single home or an entire commercial complex, we can tailor supply volumes and logistics to your project needs.
✅ Professional Pre-Sales & After-Sales Service
Our experienced engineers and support staff assist you with selection, installation guidance, and troubleshooting-ensuring worry-free procurement.
✅ Competitive Pricing + Quality Assurance
As a direct manufacturer, we control both production and quality, offering superior products at factory-direct prices.
