What Is The Proper Name For Twin And Earth Cable?

In electrical installation and building wiring, Twin and Earth Cable is the most common type of fixed wiring cable. It consists of two insulated conductors (typically live and neutral) and a grounding conductor, covered in a PVC sheath. Due to its simple structure, ease of installation, and reasonable cost, Twin and Earth Cable is widely used worldwide.

However, different regions have different official names, standard codes, and designations for this cable. This article, titled "What is the Proper Name for Twin and Earth Cable?" , will comprehensively explain the global designations and standards for Twin and Earth Cable, covering regions such as the UK, Europe, the US, Australia, New Zealand, Africa, and Asia. A comparison chart is also provided to help electricians, buyers, and students gain a clearer understanding.

United Kingdom & Ireland: The Birthplace of Twin and Earth

In the UK and Ireland, Twin and Earth Cable is the most commonly used domestic wiring cable, widely applied in lighting, socket outlets, and fixed appliances.

• Colloquial name: Twin and Earth (T&E)
• Official designation: 6242Y or H6242Y
• Standard: BS 6004
• Structure:

1. Live conductor: Brown (older versions used Red)
2. Neutral conductor: Blue (older versions used Black)
3. Earth conductor: Bare copper (must be sleeved with Green/Yellow insulation when terminated)
4. Outer sheath: Grey PVC

• Common applications

1. Lighting circuits: usually 1.0mm² or 1.5mm²
2. Socket outlet circuits: typically 2.5mm²
3. High-power appliances (e.g. cookers, showers): 4.0mm² or 6.0mm²

• Naming explanation

1. 6242Y → "62" = fixed wiring cable series, "4" = PVC insulated conductors, "2" = two cores plus earth, "Y" = PVC sheath.
2. H6242Y → the prefix "H" stands for Harmonised, meaning it meets European harmonised standards.

Although most electricians in the UK casually say "T&E," the proper name in specifications, tender documents, and international trade is 6242Y / H6242Y.

Continental Europe: NYM-J Cable

In countries such as Germany, France, and the Netherlands, the equivalent to Twin and Earth is NYM-J Cable. NYM-J cables are round (Round Cable), not flat like the UK's 6242Y Twin and Earth cables.

• Common name: NYM-J
• Standard: VDE 0250 (German electrical standard)
• Structure:

1. Multiple insulated PVC conductors (2-core, 3-core, 5-core, etc.)
2. Earth conductor (Green/Yellow)
3. Outer sheath: White or grey PVC

• Features

1. More core options: not limited to two cores plus earth; available in 3-core, 5-core, or more.
2. Installation: typically installed in walls, conduits, or ceilings.
3. Voltage rating: usually 300/500V.

While NYM-J serves the same purpose as 6242Y, its construction differs: UK T&E is flat and mainly two-core, while NYM-J is round and offered in a wider range of configurations.

United States: NM-B (Romex)

In North America, the equivalent of Twin and Earth is NM-B (Non-Metallic Sheathed Cable, Type B), more commonly known by its trade name Romex.

• Official name: NM-B
• Colloquial name: Romex
• Standard: NEC (National Electrical Code)
• Structure:

1. Ground conductor: Bare copper
2. Outer sheath: PVC, with different colors for different gauges

• Sheath color and gauge mapping

1. White sheath: 14 AWG (lighting circuits)
2. Yellow sheath: 12 AWG (socket outlets)
3. Orange sheath: 10 AWG (high-power appliances)

• Features

1. Easy identification: sheath colors indicate wire gauge.
2. Widespread use: covers nearly all residential wiring needs.
3. Comparison with UK T&E: structurally similar but follows different naming and color coding systems.

Canada: NMD90

In Canada, the equivalent of Twin and Earth (T&E) is NMD90 (Non-Metallic Dry 90°C), sometimes referred to by trade names like Romex in certain markets.

• Official name: NMD90
• Colloquial name: Twin and Earth, Romex
• Standard: CEC (Canadian Electrical Code)
• Structure:
• Ground conductor: Bare copper
• Outer sheath: PVC, typically gray or white depending on gauge
• Sheath color and gauge mapping:

1. White sheath: 14 AWG (lighting circuits)
2. Yellow sheath: 12 AWG (general power outlets)
3. Orange sheath: 10 AWG (high-power appliances)

• Features:

1. Easy identification: sheath colors indicate wire gauge
2. Suitable for dry or damp indoor environments

Commonly used in residential and commercial building wiring, similar in structure to UK Twin and Earth, but following Canadian standards and color coding

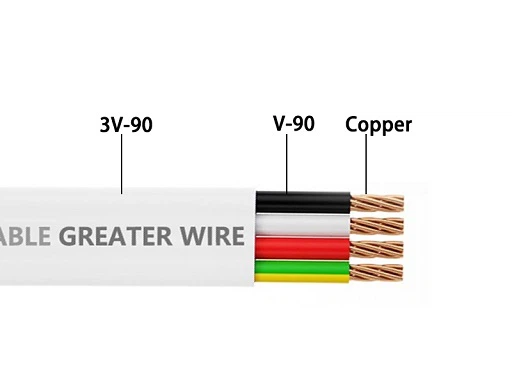

Australia & New Zealand: Flat TPS

In Australia and New Zealand, Twin and Earth is known as Flat TPS Cable (Thermoplastic Sheathed).

• Common name: Flat TPS
• Standard: AS/NZS 5000
• Structure:

1. Active (Live): Brown (older versions Red)
2. Neutral: Blue (older versions Black)
3. Earth: Green/Yellow
4. Outer sheath: White, yellow, purple, or blue PVC

• Features

1. Appearance: very similar to UK T&E (flat, twin plus earth).
2. Color coding changes: from Red-Black-Green (old) to Brown-Blue-Green/Yellow (new), aligning with IEC standards.
3. Applications: residential lighting, socket outlets, and high-load appliances.

Africa & Selected Asian Regions

South Africa

• Common name: Flat Twin and Earth
• Standard: SANS 1507
• Color codes: older Red-Black-Green, transitioning to Brown-Blue-Green/Yellow
• Application: domestic and commercial wiring

Hong Kong & Singapore

• Common name: Twin and Earth / 6242Y
• Standard: BS 6004 (British system)
• Application: almost identical to the UK due to historical influence

Malaysia & parts of India

• Often use BS 6004 or IEC-standard Twin and Earth equivalents
• T&E terminology is also commonly understood in the electrical trade
• These regions largely follow the British system, meaning Twin and Earth (6242Y) is widely recognized.

Global Definition of Twin and Earth Cable

From this analysis, it is clear that:

• Twin and Earth is essentially a UK/Irish trade name.
• Equivalent cables exist worldwide but under different designations:

1. UK/Ireland → 6242Y / H6242Y
2. Continental Europe → NYM-J
3. USA → NM-B (Romex)
4. Canada → NM-D
5. Australia/New Zealand → Flat TPS
6. South Africa, Hong Kong, Singapore → Flat Twin and Earth or 6242Y

• Differences mainly lie in color codes, sheath design, and technical standards.

In international trade or cross-border projects, it is best to use the official designation (6242Y, NM-B, NYM-J, TPS) rather than just "Twin and Earth," to avoid confusion.
