In today's modern society, cables play an essential role in transmitting energy and information across countless industries. From high-rise commercial buildings to large-scale industrial projects, from underground metro tunnels to advanced data centers, cables are not just conductors of electricity but also critical components that safeguard system stability and human safety.
With the growing demand for safety, environmental protection, and system reliability, high-performance cables have become the preferred choice for projects of all scales. Among these, X-HF-110 Insulation Cable stands out for its high-temperature resistance, low smoke, halogen-free (LSHF) properties, and superior safety performance. It is widely used in the Australian, New Zealand, and broader Oceania markets.
This article provides an in-depth overview of what X-HF-110 Insulation Cable is, including its technical definition, key features, installation guidelines, applications, advantages over other cables, and guidance on how to select the right type. We will also highlight Greater Wire & Cable's supply strengths and value-added services, ensuring customers can find the most reliable solutions for their projects.

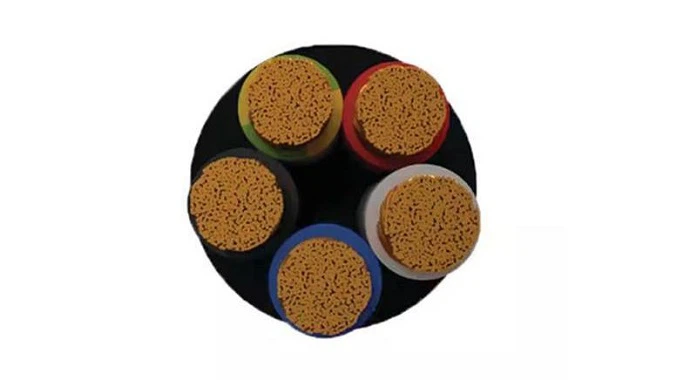

What Is X-HF-110 Insulation Cable?
Definition
X-HF-110 refers to a cross-linked insulation cable ("X" = cross-linked), that is halogen-free ("HF"), with a continuous operating temperature rating of 110°C. This unique combination makes it ideal for demanding applications that require both environmental safety and high performance.
Technical Features
- High Temperature Resistance: Continuous operation up to 110°C.
- Low Smoke, Halogen-Free: Does not release toxic or corrosive gases during combustion.
- Electrical Stability: Excellent insulation resistance and dielectric strength.
- Extended Service Life: Resistant to thermal aging, mechanical stress, and environmental wear.
Compared to PVC-insulated cables, X-HF-110 is significantly safer during fire scenarios. Compared to standard XLPE cables, it offers higher operating temperatures and enhanced reliability.
Applications of X-HF-110 Cable
X-HF-110 Insulation Cable is widely used in environments with strict safety and performance requirements:
1.Commercial Buildings: Airports, office towers, shopping malls.
2.Education & Healthcare: Universities, schools, hospitals.
3.Industrial Projects: Mining, petrochemical plants, and power facilities.
4.Infrastructure: Metro systems, tunnels, transport hubs.
5.Critical Safety Environments: Data centers, server rooms, and emergency fire systems.
Installation Guidelines and Safety Considerations
Pre-Installation Checklist
- Confirm cable specification matches project design.
- Inspect outer sheath, labeling, and certification marks.
Installation Requirements
- Maintain proper bending radius to avoid insulation stress.
- Ensure clearance from heat sources; use protective conduits if required.
- For outdoor installation, apply UV- and water-resistant protection.
Safety Notes
- Avoid dragging cables across construction sites.
- Apply derating factors for continuous use in high-temperature environments.
- Use certified terminations to prevent loose connections and arcing.
- Perform insulation resistance and withstand voltage testing after installation.
X-HF-110 Cable Models and Specifications
| Model | Cross-Section (mm²) | Rated Voltage | Temp Rating | Typical Applications | Key Features |
|---|---|---|---|---|---|
| X-HF-110 1.5 | 1.5mm² | 450/750V | 110°C | Lighting circuits | Halogen-free, eco-friendly |
| X-HF-110 2.5 | 2.5mm² | 450/750V | 110°C | Socket & outlet power | Stable conductivity |
| X-HF-110 4 | 4mm² | 0.6/1kV | 110°C | Building distribution lines | Low smoke, safe |
| X-HF-110 6 | 6mm² | 0.6/1kV | 110°C | Motors & small equipment | Anti-aging |
| X-HF-110 10 | 10mm² | 0.6/1kV | 110°C | Industrial main feeders | Fire-resistant |
| X-HF-110 Custom | As required | ≤35kV | 110°C | Special engineering use | Fully customizable |
How to Select the Right Cable
When selecting X-HF-110 insulation cables, consider:
- Application Scenario: Lighting, distribution, industrial machinery, emergency systems.
- Voltage Rating: 450/750V, 0.6/1kV, or higher.
- Conductor Size: 1.5mm² up to 240mm² depending on load.
- Environmental Conditions: Fire safety, waterproofing, UV resistance.
- Certification: Compliance with SAA certification (Australia/New Zealand) and IEC standards.
| Application | Recommended Size | Recommended Model |
|---|---|---|
| Indoor Lighting | 1.5–2.5mm² | X-HF-110 1.5 / 2.5 |
| Building Power | 4–10mm² | X-HF-110 4 / 6 / 10 |
| Industrial Power | ≥16mm² | X-HF-110 16+ |
| Special Projects | Custom | X-HF-110 Custom |
Advantages Compared with Other Wires
- Vs PVC Cables: More environmentally friendly, no toxic gas release.
- Vs Standard XLPE Cables: Higher temperature rating (110°C vs 90°C).
- Vs Mineral-Insulated Cables: Easier installation, better flexibility, cost-effective.
- Vs Household Wiring: Longer lifespan and significantly higher safety.
Competitive Edge Against Other Cable Types
- Orange Circular Cable: Easy identification, widely used in construction, but lacks LSHF and high-temp resistance.
- TPS Cable: Common household wiring, economical, but lower fire safety rating.
- Medium Voltage Cable: Suitable for high-voltage power distribution.
- VSD Cable: Designed for variable speed drives, superior EMI shielding.
- Fire Rated Cable: Excellent fire survival but less flexible.
- Elastomer Cable: High flexibility and abrasion resistance, ideal for mobile equipment.
- Heavy Duty Cable: For mining and rugged environments.
- Ordinary Duty Cable: Cost-effective but limited features.
- Mining Cable: Mechanically strong but not halogen-free.
- Neutral Screen Cable: Strong shielding against interference.
- Instrumentation Cable: Precision signal transmission.
👉 Compared to these, X-HF-110 excels in its balance of safety, environmental friendliness, and temperature resistance.
Our Supply and Service Strengths

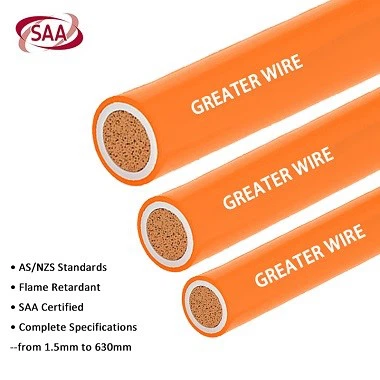

1.Product Range: Complete portfolio of SAA-certified cables, including Orange Circular, TPS, Medium Voltage, VSD, Fire Rated, Elastomer, Heavy Duty, Ordinary Duty, Mining, Neutral Screen, and Instrumentation Cables.
2.Market Compliance: Fully compliant with Australian, New Zealand, and Oceania standards.
3.Full Specifications: Elastomer cables available from 1.5mm² upwards.
4.Delivery Capability: Fast shipping, supporting both small and bulk orders.
5.Technical Support: Expert guidance pre- and post-sales.
6.Global Experience: Years of manufacturing and export expertise with worldwide partners.
7.Certified Quality: All products are SAA-certified for reliability and safety.

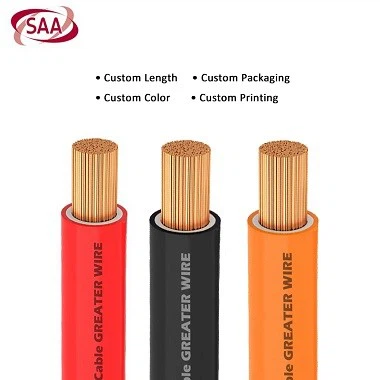

8.Customization Options: Tailored solutions in materials, sizes, lengths, colors, performance, markings, and packaging.
Building a Safer and More Efficient Future Together
X-HF-110 Insulation Cable is more than just a wire-it's a safeguard for modern infrastructure. Whether your project is a data center, airport, hospital, metro line, or mining site, choosing the right cable is critical for both safety and performance.
At Greater Wire & Cable, we are committed to delivering high-quality, certified cables alongside professional technical support. With us, your projects can achieve both safety and efficiency, no matter the scale.
👉 Contact us today to access our full product catalog and receive a tailored quotation!
