In modern power systems and industrial facilities, cables are not merely conduits for electricity-they directly affect power reliability, system safety, and long-term maintenance costs. With the rapid development of industrial automation and large-scale infrastructure, the requirements for cable performance have become increasingly stringent.
XLPE SWA PVC Cable (Cross-Linked Polyethylene Insulated Steel Wire Armoured PVC Sheathed Cable) has become the preferred choice for commercial buildings, industrial plants, mining projects, and infrastructure due to its excellent insulation performance, mechanical strength, and environmental adaptability. This article provides an in-depth analysis of XLPE SWA PVC Cable, covering materials, structure, electrical and mechanical properties, application scenarios, and a professional comparison with conventional PVC SWA cables, offering comprehensive guidance for engineering design and procurement.

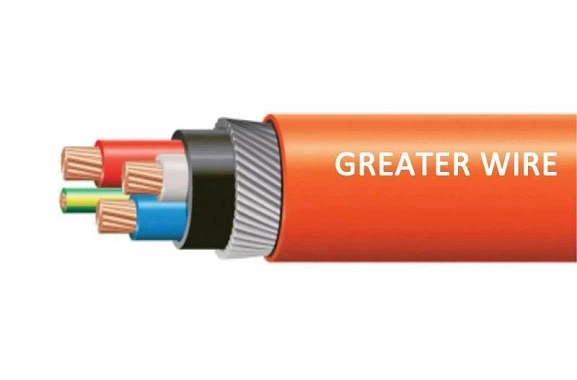

Overview of XLPE SWA PVC Cable
The XLPE SWA PVC Cable mainly consists of the following components:
1.Conductor
·Material: High-purity copper or aluminum
·Features: Low resistance, high conductivity
·Technical Insight: The conductor's cross-section directly affects current density. Copper conductors in XLPE SWA PVC Cables are usually multi-stranded to improve flexibility, reduce skin effect in high-frequency currents, and ensure cable temperature rise remains within safe limits under continuous load.
2.XLPE Insulation
·Material: Cross-Linked Polyethylene
·Thermal Rating: Up to 90°C
·Technical Insight: XLPE is cross-linked either by chemical or high-energy radiation methods, forming a three-dimensional molecular network that enhances thermal stability and oxidation resistance. The cross-linked structure reduces molecular chain slippage, increases mechanical and electrical properties, and improves resistance to chemical corrosion, moisture, and aging.
3.Steel Wire Armouring (SWA)
·Material: Galvanized high-strength steel wires
·Function: Provides mechanical protection against impact, tension, and compression
·Technical Insight: SWA not only offers lateral mechanical protection but also influences bending radius, installation methods, and current-carrying capacity. Proper armour design balances tensile strength and flexibility while maintaining integrity under short-circuit conditions.
4.PVC Sheath
·Function: Waterproof, UV-resistant, abrasion-resistant
·Technical Insight: PVC contains chlorine elements, providing flame retardancy and weather resistance. Plasticizers and UV stabilizers can be added to enhance durability in outdoor or chemically aggressive environments.
Core Technical Advantages of XLPE SWA PVC Cable
1.Superior Current Carrying Capacity and Temperature Control
·Low dielectric loss of XLPE insulation reduces temperature rise under high load.
·Multi-stranded conductors and optimized insulation ensure uniform current density, extending cable service life.
2.Excellent Mechanical Strength
·Steel wire armouring provides high tensile, compressive, and impact resistance.
·Suitable for underground installation, bridge crossings, and mining operations.
·The combination of armour and sheath reduces stress concentration and enhances durability.
3.Heat, Aging, and Chemical Resistance
·XLPE insulation maintains thermal stability at continuous operation up to 90°C.
·PVC sheath protects against chemical corrosion, suitable for humid, acidic, alkaline, or saline environments.
·UV-treated sheath ensures long-term outdoor performance without degradation.
4.Short-Circuit and Fire Safety
·SWA withstands mechanical forces during short-circuit events, protecting conductors from rupture.
·PVC sheath exhibits flame retardancy, slowing fire propagation, meeting IEC 60332-1 standards.
5.Ease of Installation and Flexibility
·Multi-stranded conductors provide excellent flexibility for complex installation routes.
·Optimized steel wire armouring balances mechanical strength with minimum bending radius.
Application Scenarios
·Industrial and Commercial Distribution: Main and branch power lines in buildings.
·Infrastructure Projects: High-rise buildings, airports, subways, tunnels requiring long-distance cable runs.
·Industrial Automation and Heavy Machinery: Power supply and control cables for vibrating or moving equipment.
·Mining and Port Projects: Underground and high-humidity environments where mechanical protection is essential.
·Renewable Energy Projects: Photovoltaic, wind power, and energy storage systems.
Case Study: In a solar power plant, over 2 km of XLPE SWA PVC Cable was installed outdoors, exposed to high temperatures, UV, and dust. After one year of operation, the temperature rise remained below 70°C, with no insulation aging or mechanical damage, demonstrating the cable's reliability and durability.
Comparison with PVC SWA Cable
| Feature | XLPE SWA PVC Cable | PVC SWA Cable |
|---|---|---|
| Insulation Material | XLPE, cross-linked, 90°C thermal rating | PVC, lower thermal stability, 70°C |
| Electrical Resistance | Low, high conductivity | Slightly higher, larger voltage drop |
| Short-Circuit Withstand | High | Moderate |
| Service Life | Long, up to 30+ years | Typically 20 years |
| Chemical Resistance | Excellent | Moderate, prone to aging |
| Suitable Environment | Underground, outdoor, harsh industrial | Indoor or short-term outdoor |
| Cost | Slightly higher | Lower |
From electrical performance, thermal stability, lifespan, and harsh environment suitability, XLPE SWA PVC Cable has clear advantages for long-term, high-current, and high-safety applications.
Product Strengths: We Produce Full Range of IEC Cables
Dongguan Greater Wire & Cable Co., Ltd. specializes in IEC-standard cables with years of experience. Our products cover industrial, commercial, and infrastructure applications, ensuring each cable meets international standards for conductivity, insulation reliability, and mechanical strength.
Compliance with American Market Standards
Our XLPE SWA PVC Cables comply with IEC standards, suitable for application in industrial and infrastructure projects worldwide without the need for additional certification.
·Complete Range from 16mm² Upwards
We offer cables from 16mm² to 630mm², meeting requirements from low-voltage distribution to high-power industrial equipment. Each specification is optimized for current-carrying capacity and temperature rise to ensure safety and reliability.
·Fast Delivery, Supporting Small and Large Orders
With modern production lines and a comprehensive logistics system, we can quickly respond to customer orders, supporting both small-batch customization and large-scale project supply, ensuring timely project completion.
·Technical Support and Comprehensive Service
Our experienced technical team provides selection guidance, engineering consultation, installation instructions, and after-sales maintenance. Customers receive full technical support before and after purchase, minimizing project risks and improving engineering efficiency.
·International Collaboration
Our products are exported to the Americas, Europe, Africa, and Asia-Pacific regions. Long-term partners include major power companies, engineering contractors, and industrial enterprises, forming a stable global supply network and ensuring project success worldwide.
·IEC Certification
XLPE SWA PVC Cables are manufactured strictly according to IEC standards and have passed a range of performance tests, including voltage withstand, thermal rating, short-circuit, flame retardancy, and mechanical strength, ensuring safe and reliable operation in all types of projects.
·Color Options and Customization
We offer a wide range of cable colors and full customization, including:
1.Material options (copper/aluminum conductors, different insulation sheaths)
2.Specifications (cross-section, current capacity)
3.Length, performance, flame retardancy
4.Cable identification and packaging
5.Special environmental resistance (UV, chemical, flame retardancy)
Meeting the unique requirements of different engineering projects.
